Planets

by Dr. Drang

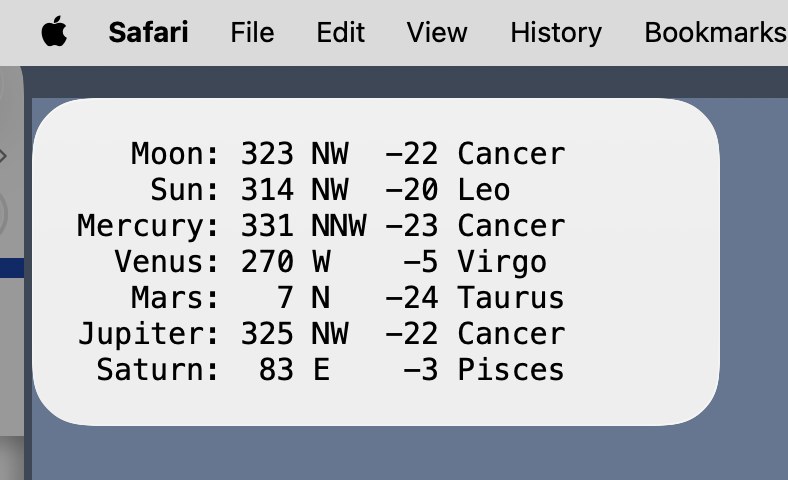

A Python script that lists the azimuth, altitude, and constellation for the Moon, Sun, Mercury, Venus, Mars, Jupiter, and Saturn. Example:

    Moon: 113 ESE  37 Leo
     Sun: 120 ESE  49 Leo
 Mercury: 133 SE   61 Cancer
   Venus: 101 E     6 Virgo
    Mars: 221 SW   68 Gemini
 Jupiter: 130 SE   58 Cancer
  Saturn: 274 W     0 Pisces

Requirements:

  • The Astropy module for Python.
  • The latitude and longitude of the location from which you’ll be viewing. These are entered in the script as the loc variable.
  • A TerminalWidget widget named planets.
  • Some means of running the script on a schedule, so your widget will be updated reasonably often. I used launchd to run the script every half-hour.

Script (planets.py)

#!/usr/bin/env python3

import astropy.units as u
from astropy.time import Time
from astropy.coordinates import get_body, AltAz, EarthLocation
from subprocess import run

def direction(az):
	'Return a string indication of the azimuth (given in degrees).'

	dirs = 'N NNE NE ENE E ESE SE SSE S SSW SW WSW W WNW NW NNW'.split()
	i = int(((az + 11.25) % 360) / 22.5)
	return dirs[i]

# Current time in UTC.
ut = Time.now()

# Observation location.
# This is currently set to the Visitor Center at the Morton Arboretum in
# Lisle, Illinois, which is probably not where you'll be viewing the sky.
# Change the latitude and longitude to your viewing location. The values
# must be in decimal degrees followed by `*.u.deg`. The height parameter
# is optional.
loc = EarthLocation(lat=41.81433*u.deg, lon=-88.07093*u.deg, height=208*u.m)

# Bodies of interest.
planets = 'Moon Sun Mercury Venus Mars Jupiter Saturn'.split()

# Current positions of all the bodies.
pos = {}
const = {}
for p in planets:
    pos[p] = get_body(p, ut).transform_to(AltAz(obstime=ut, location=loc))
    const[p] = pos[p].get_constellation()

# Assemble the results.
output = []
for p in planets:
    output.append(f'{p:>8s}: {pos[p].az.value:3.0f} \
{direction(pos[p].az.value):3s} {pos[p].alt.value:3.0f} {const[p]}')

# Pipe the results through TerminalWidget. The widget that gets the results
# must be named "planets." You can change the colors and font, but make
# sure the font you choose is monospaced.
tw = '/Applications/TerminalWidget.app/Contents/MacOS/TerminalWidget\
 --target planets --font Menlo --bg eeeeee --fg 000000 --text -'.split()
run(tw, input='\n'.join(output).encode())

# To send the output to a terminal instead of TerminalWidget, comment the
# three lines above and uncomment the line below. This may aid in debugging.
# print('\n'.join(output))

Download script

Running in the background with launchd

Suggested interval: 30 minutes (StartInterval = 1800 seconds).

Save the script from this recipe to ~/bin/planets.sh, then create a Launch Agent plist:

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
  <key>Label</key>
  <string>com.terminalwidget.planets</string>
  <key>ProgramArguments</key>
  <array>
    <string>/bin/bash</string>
    <string>~/bin/planets.sh</string>
  </array>
  <key>RunAtLoad</key>
  <true/>
  <key>StartInterval</key>
  <integer>1800</integer>
  <key>StandardOutPath</key>
  <string>/tmp/com.terminalwidget.planets.log</string>
  <key>StandardErrorPath</key>
  <string>/tmp/com.terminalwidget.planets.err</string>
</dict>
</plist>

From Terminal:

mkdir -p ~/bin ~/Library/LaunchAgents
# Save your script to ~/bin/planets.sh
cat > ~/Library/LaunchAgents/com.terminalwidget.planets.plist <<'EOF'
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
  <key>Label</key>
  <string>com.terminalwidget.planets</string>
  <key>ProgramArguments</key>
  <array>
    <string>/bin/bash</string>
    <string>~/bin/planets.sh</string>
  </array>
  <key>RunAtLoad</key>
  <true/>
  <key>StartInterval</key>
  <integer>1800</integer>
  <key>StandardOutPath</key>
  <string>/tmp/com.terminalwidget.planets.log</string>
  <key>StandardErrorPath</key>
  <string>/tmp/com.terminalwidget.planets.err</string>
</dict>
</plist>
EOF
launchctl bootstrap "gui/$(id -u)" ~/Library/LaunchAgents/com.terminalwidget.planets.plist

For a GUI editor and troubleshooting, see LaunchControl from soma-zone.
