Widget Types, Modes, and Examples

TerminalWidget is a Mac, iPhone, and iPad app that shows text, progress bars, charts, and images in widgets, used by developers and power users to monitor scripts and automations at a glance.

Use this page as a visual checklist for every widget style. Each section includes sample commands you can run as-is, plus screenshot slots for macOS, iOS/iPadOS, and watchOS.

Click a screenshot to zoom and you’ll see the command that generated it beneath it.

macOS Widget Gallery

Example output for each widget style:

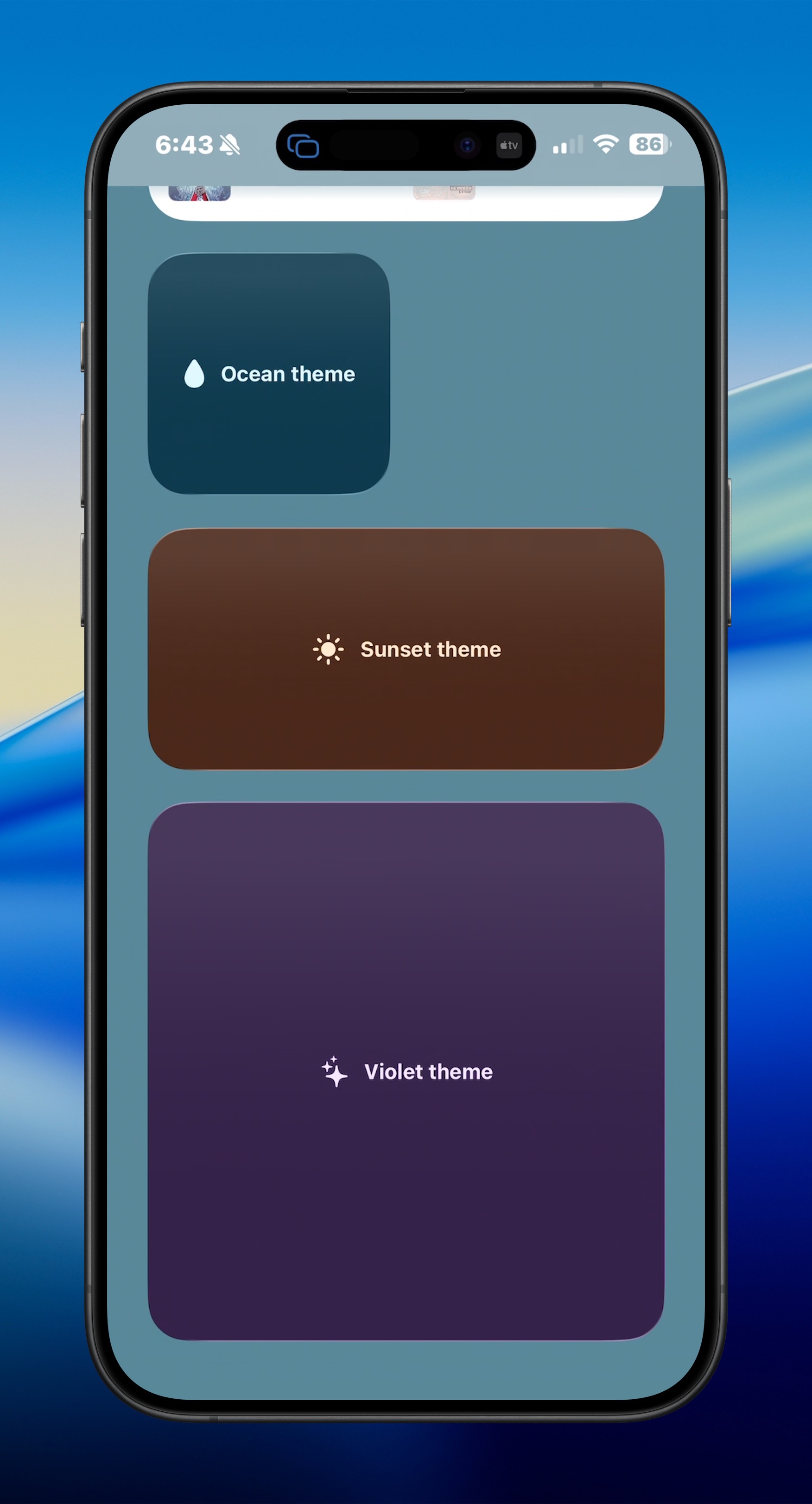

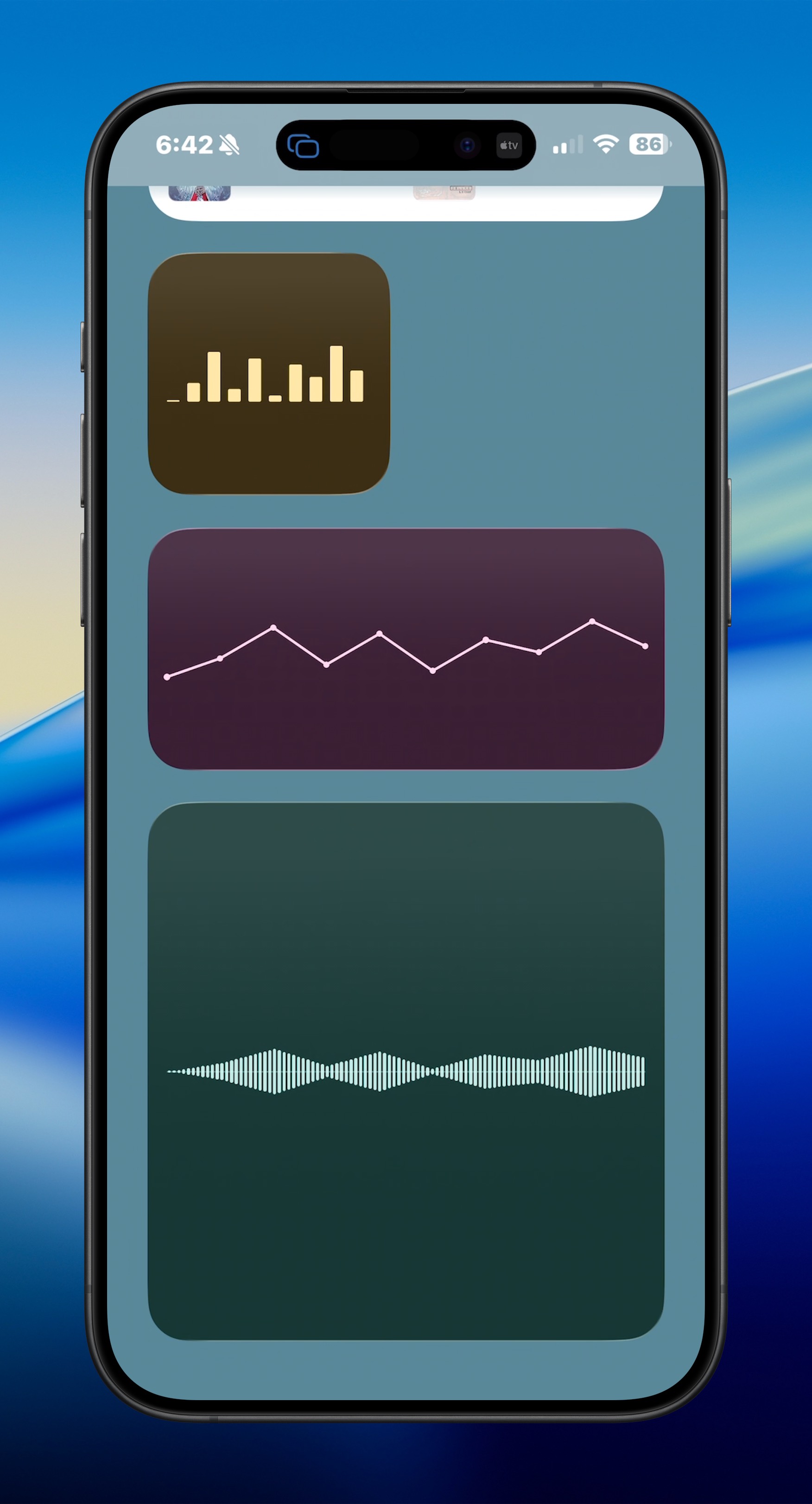

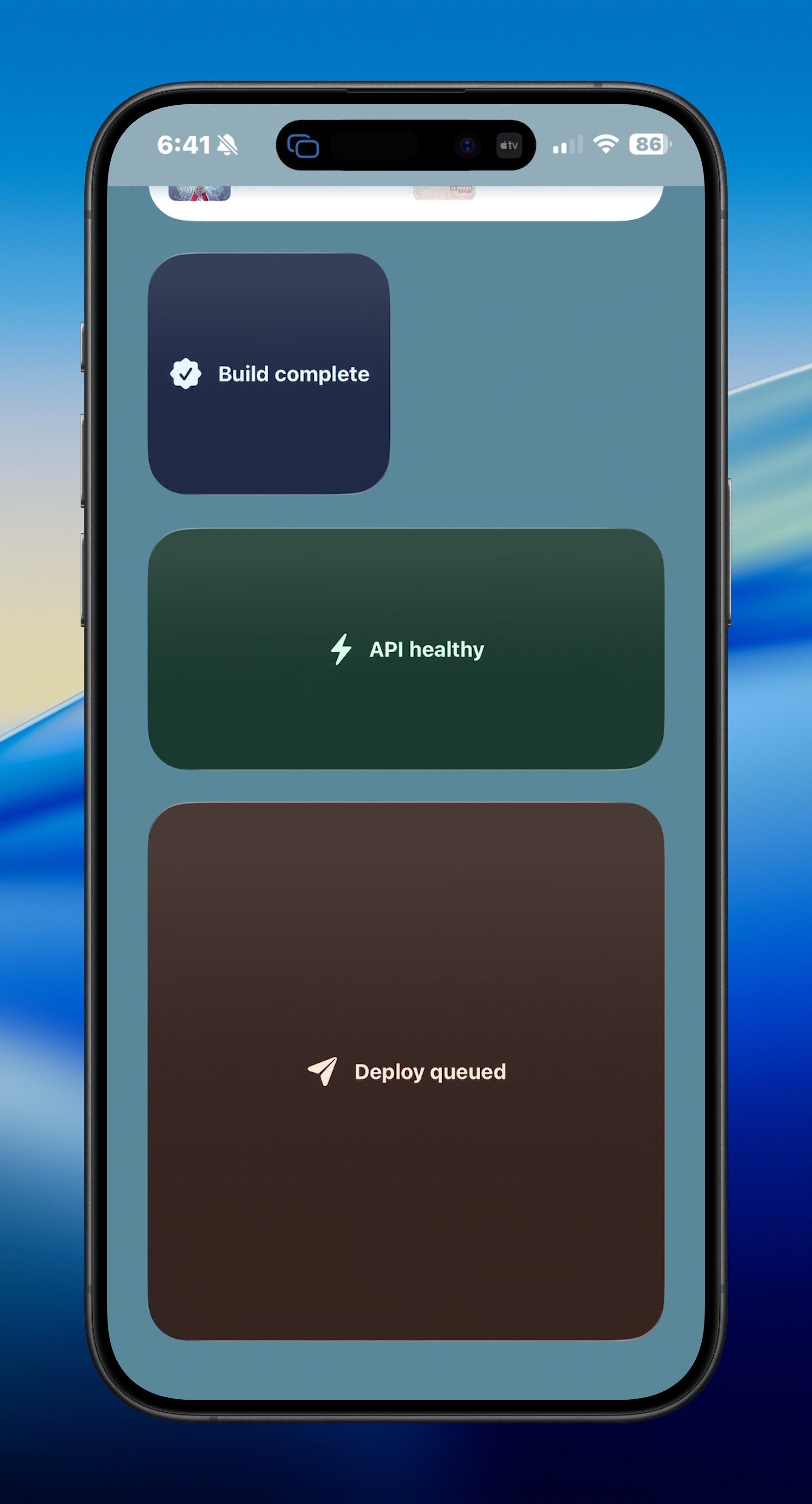

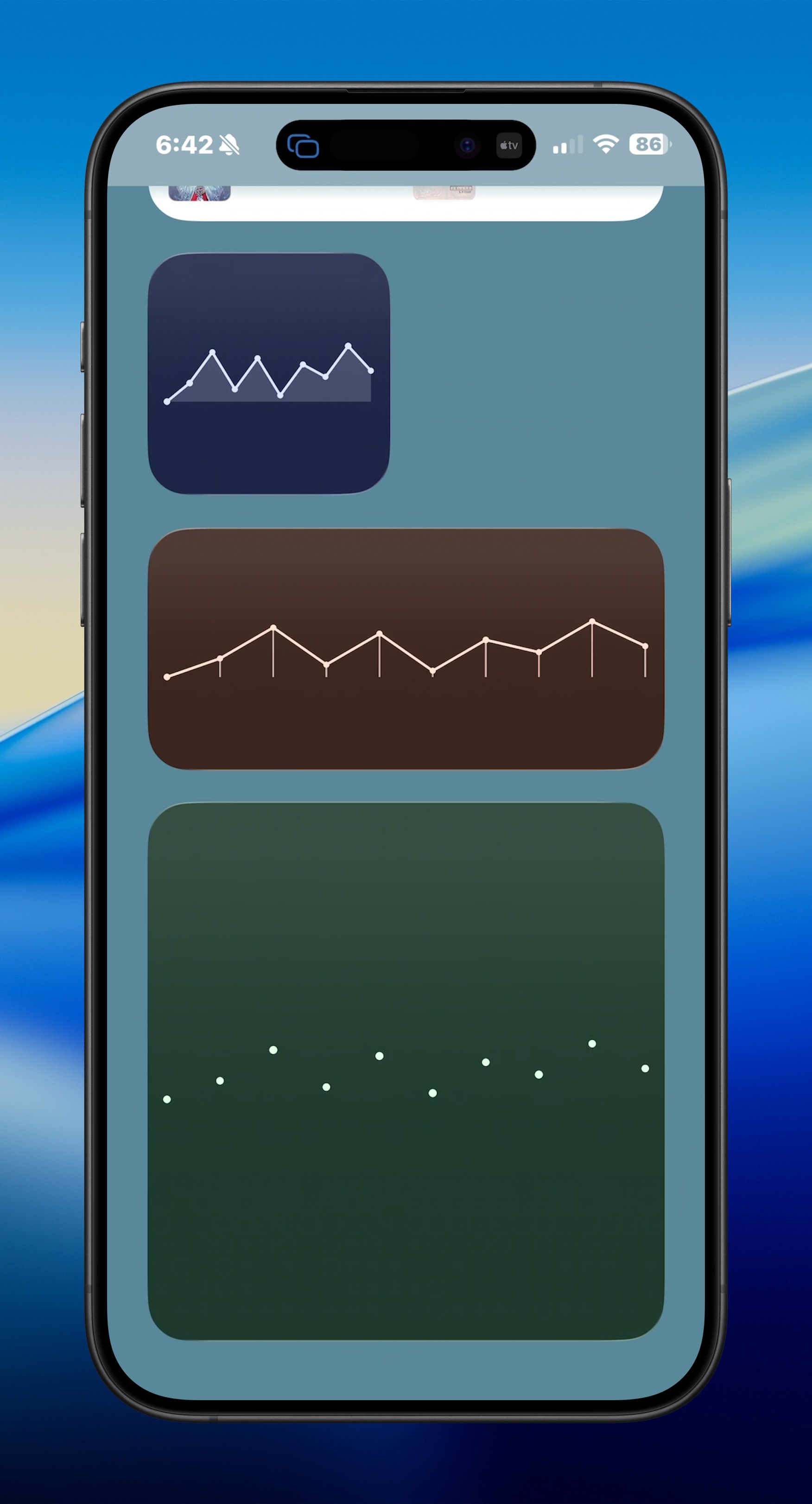

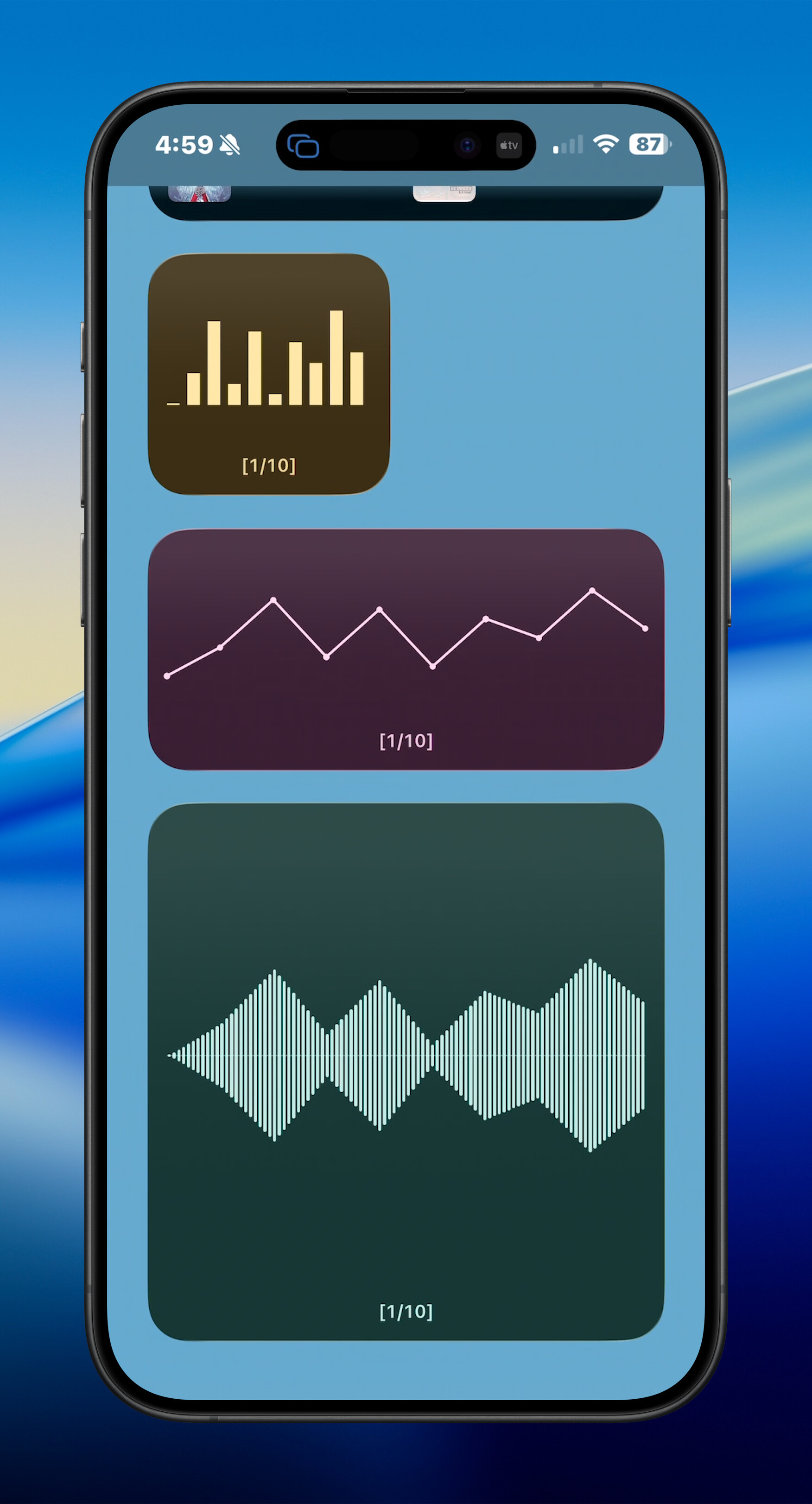

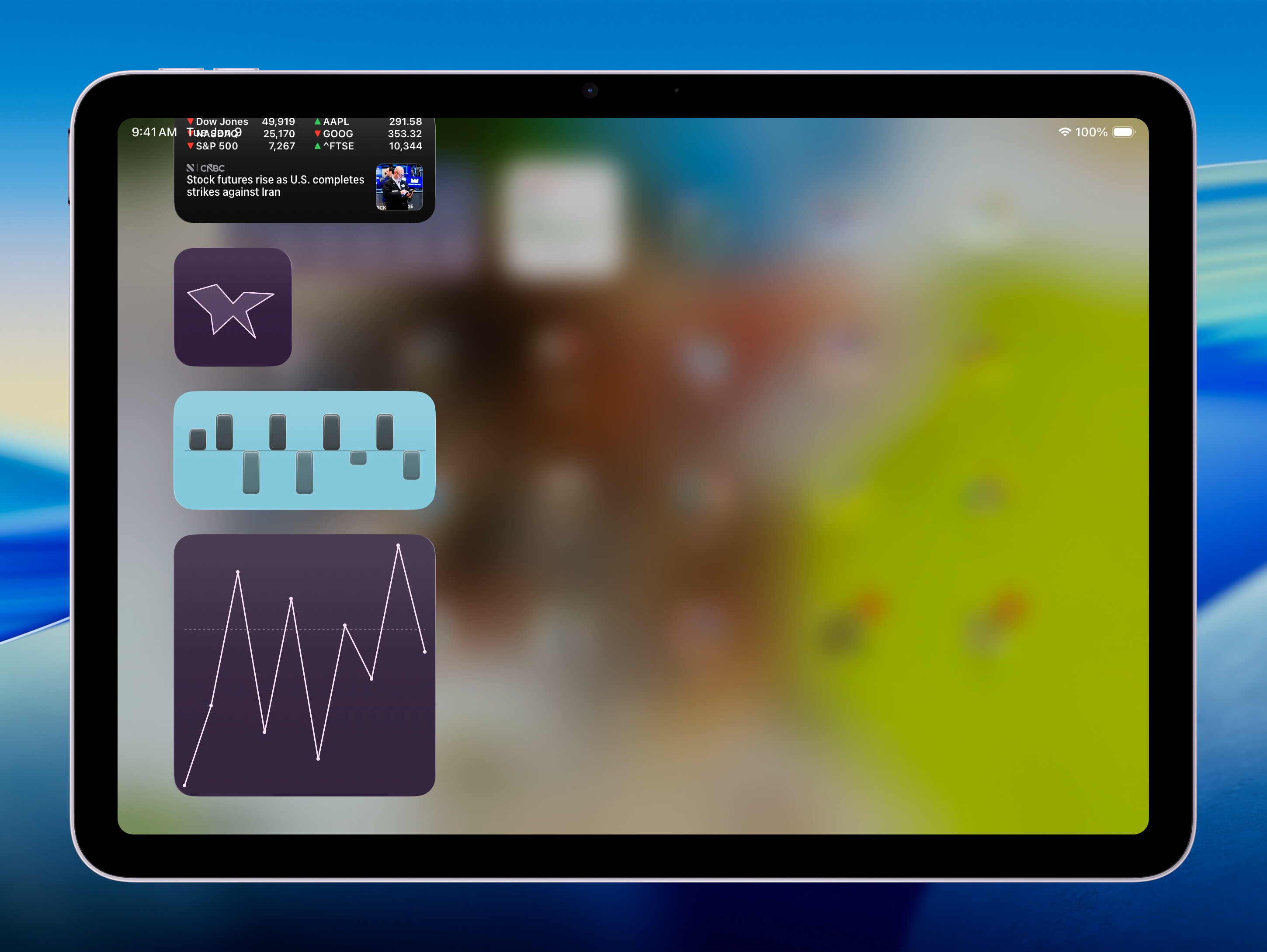

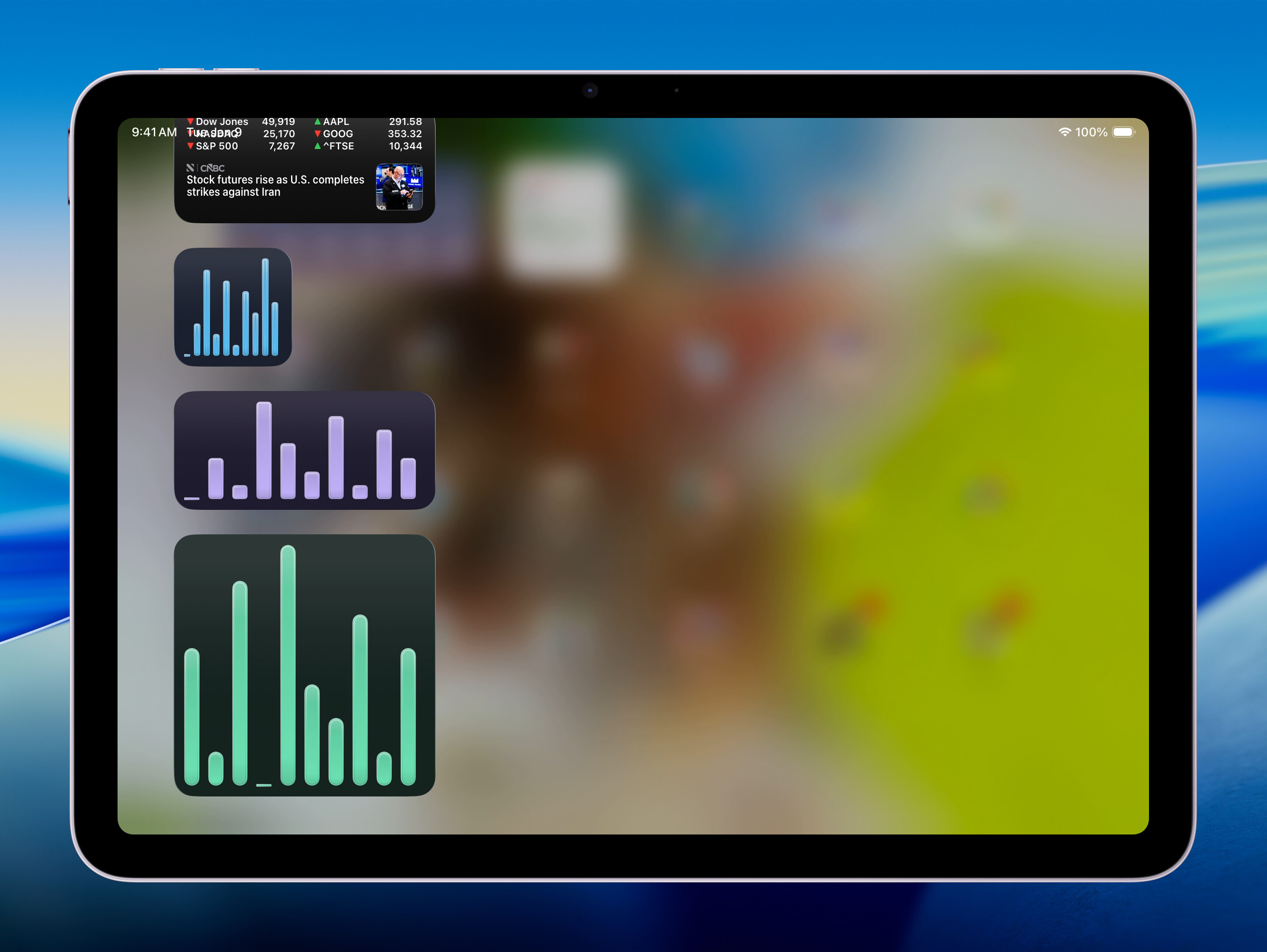

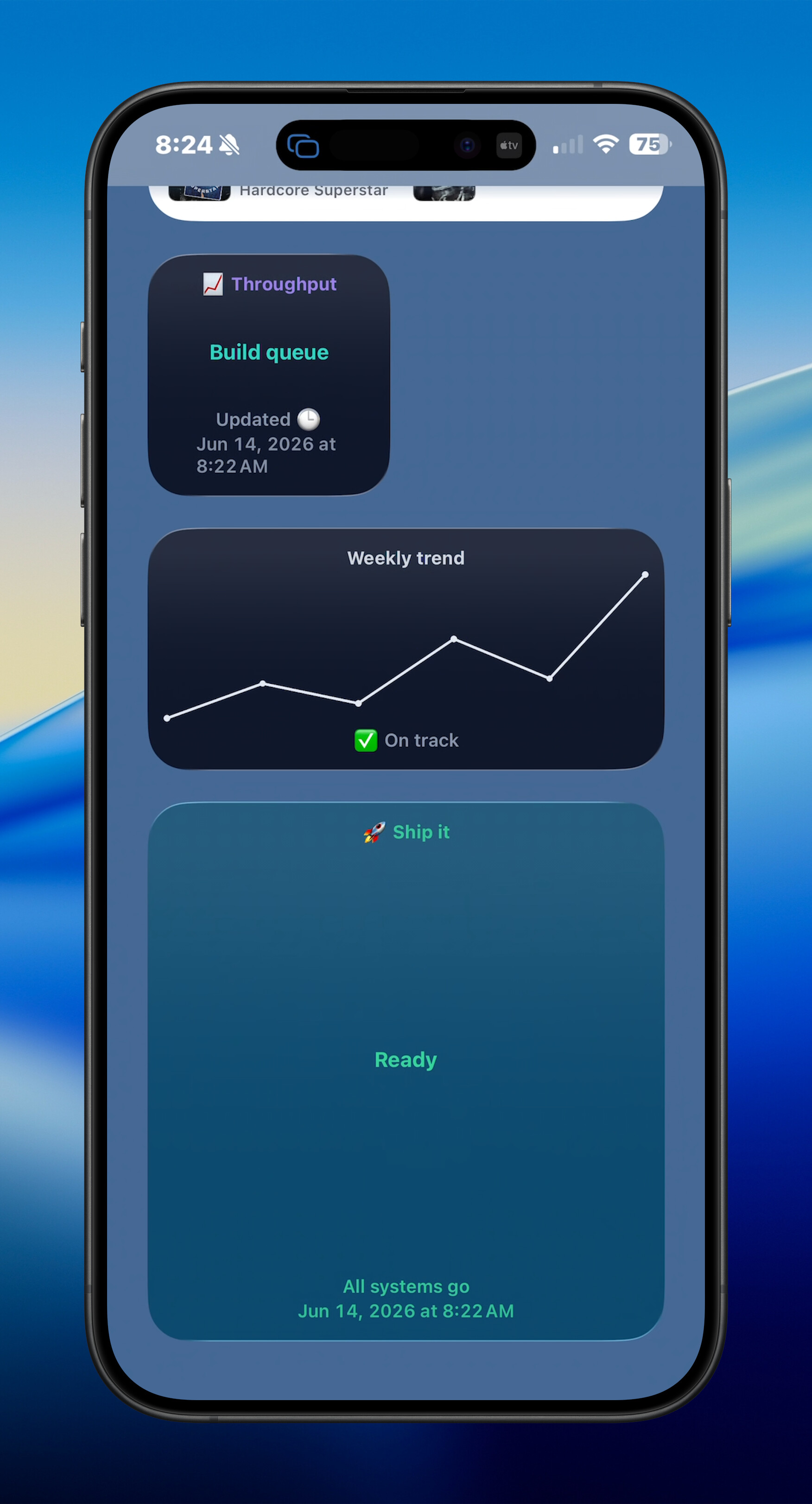

iOS/iPadOS/watchOS

watchOS

Screenshots coming soon.

Text Widgets

Text mode is active when you provide --text or --command without chart/progress-only output.

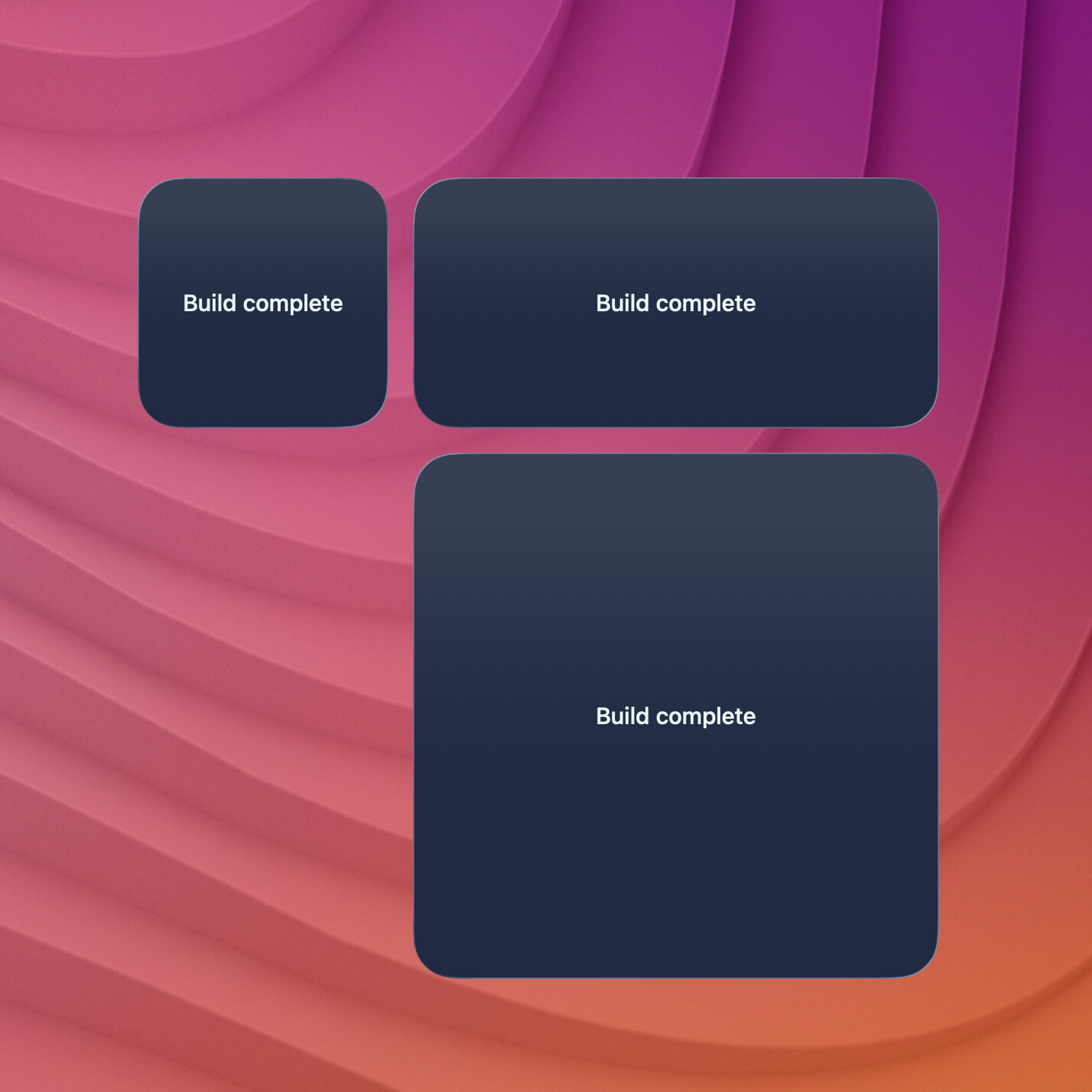

Basic Text

terminal-widget --target widget1 --text "Build complete"

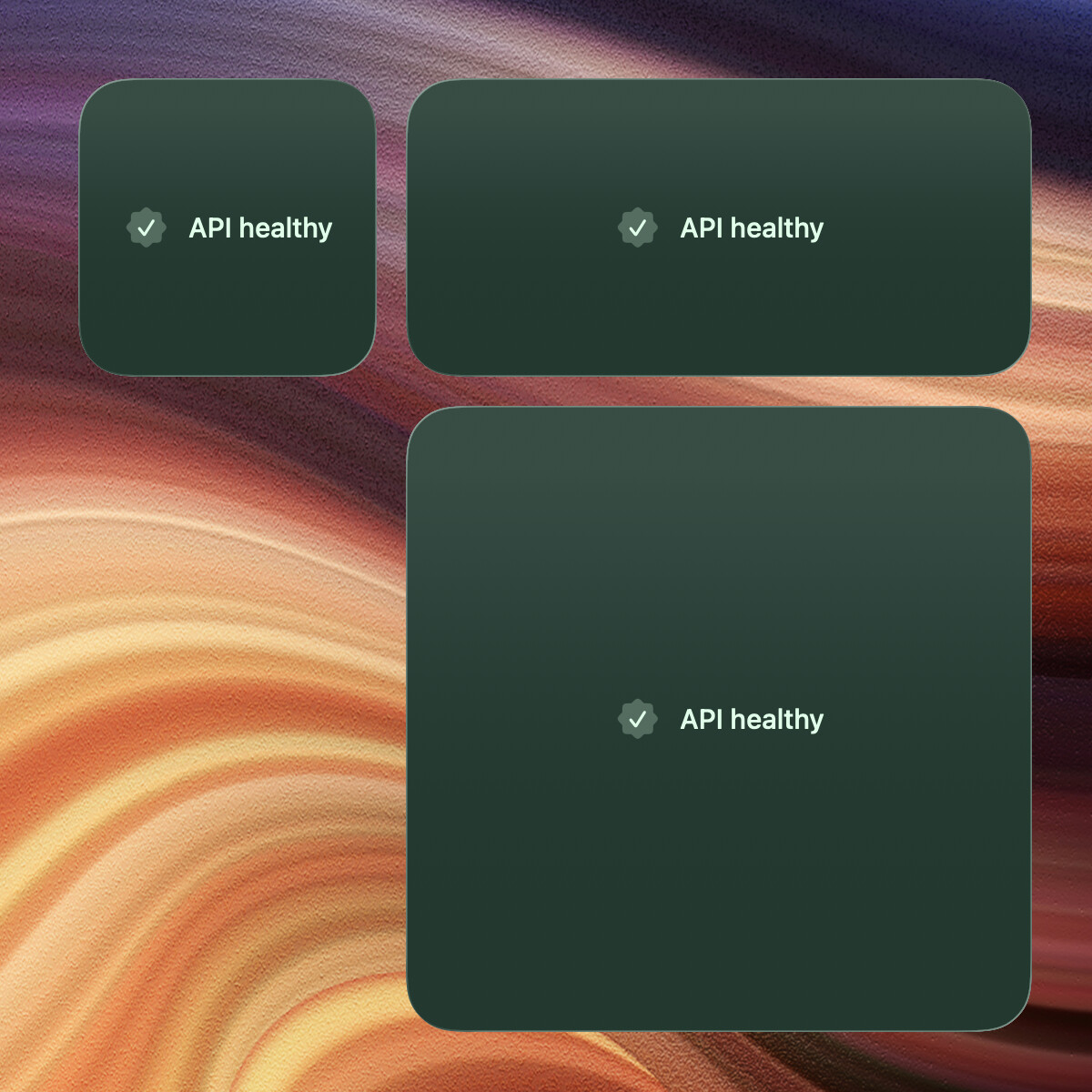

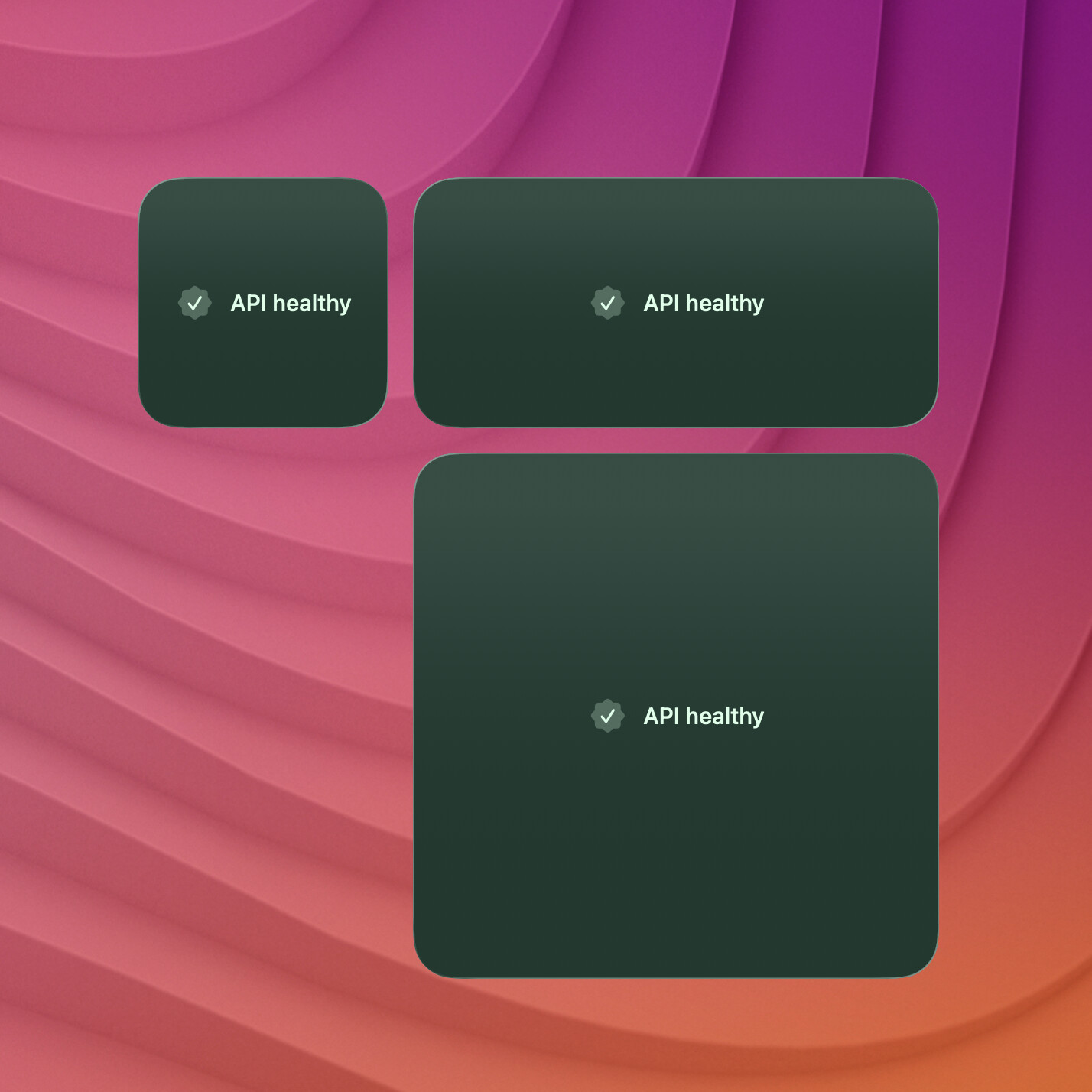

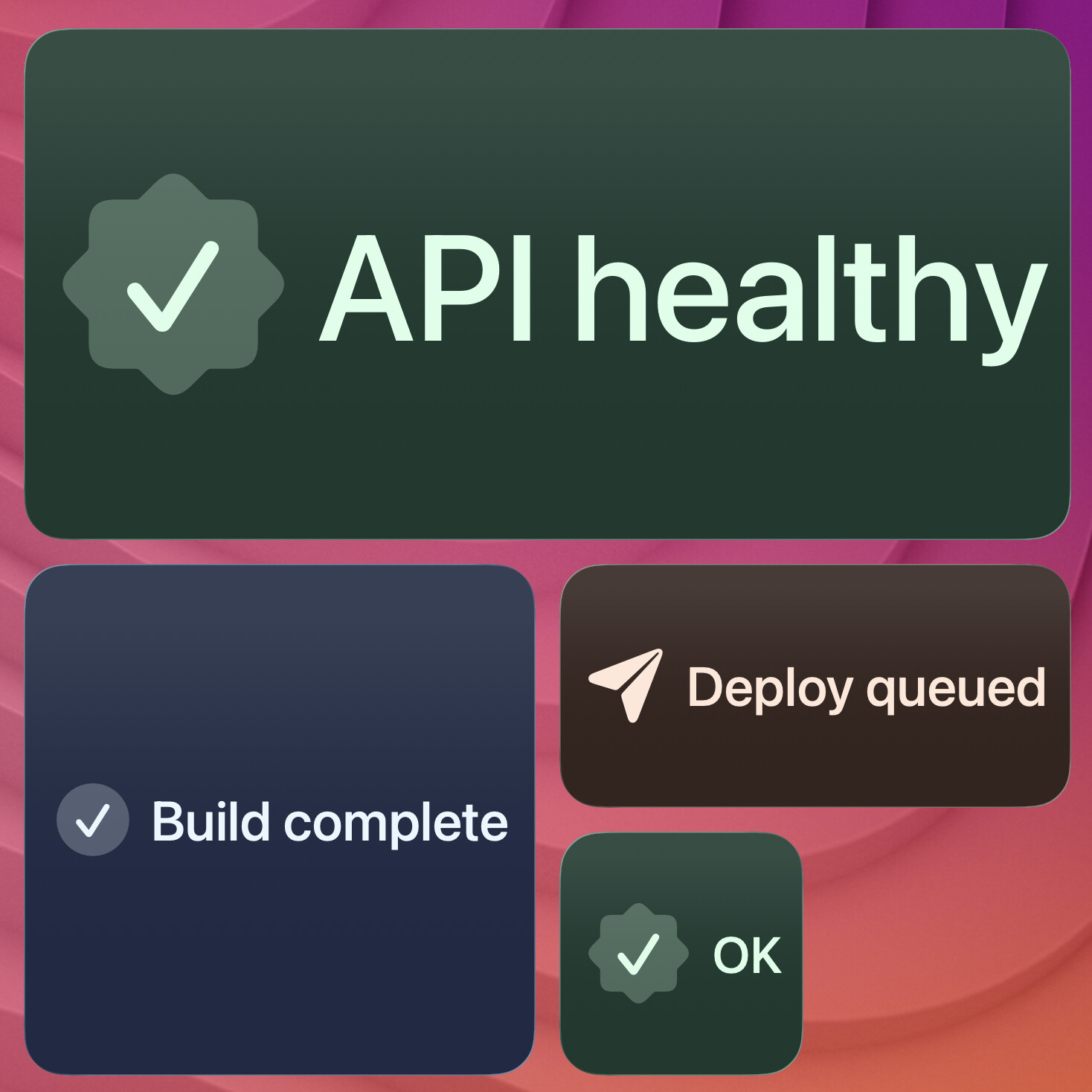

Text + Icon

terminal-widget --target widget1 --text "API healthy" --icon "checkmark.seal.fill"

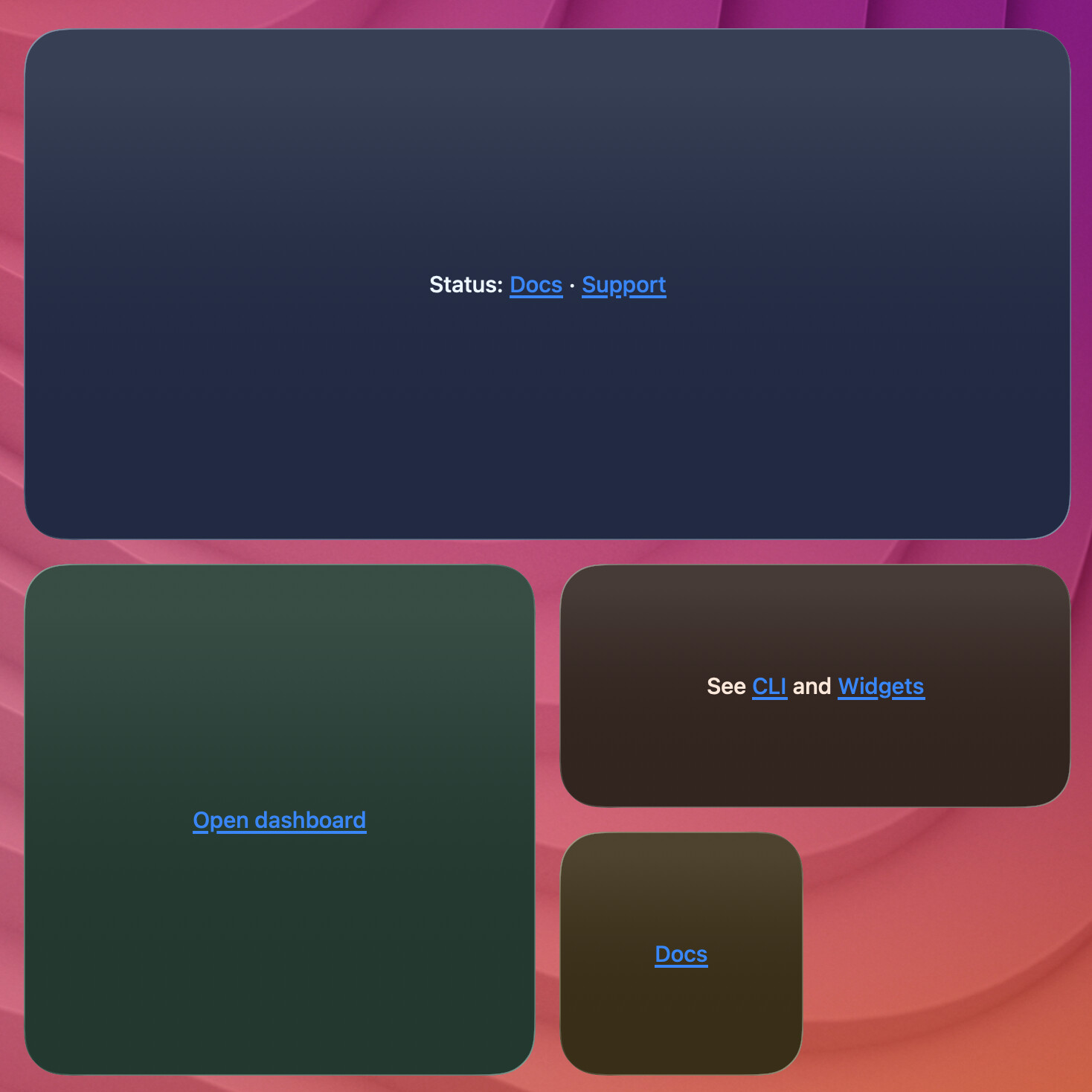

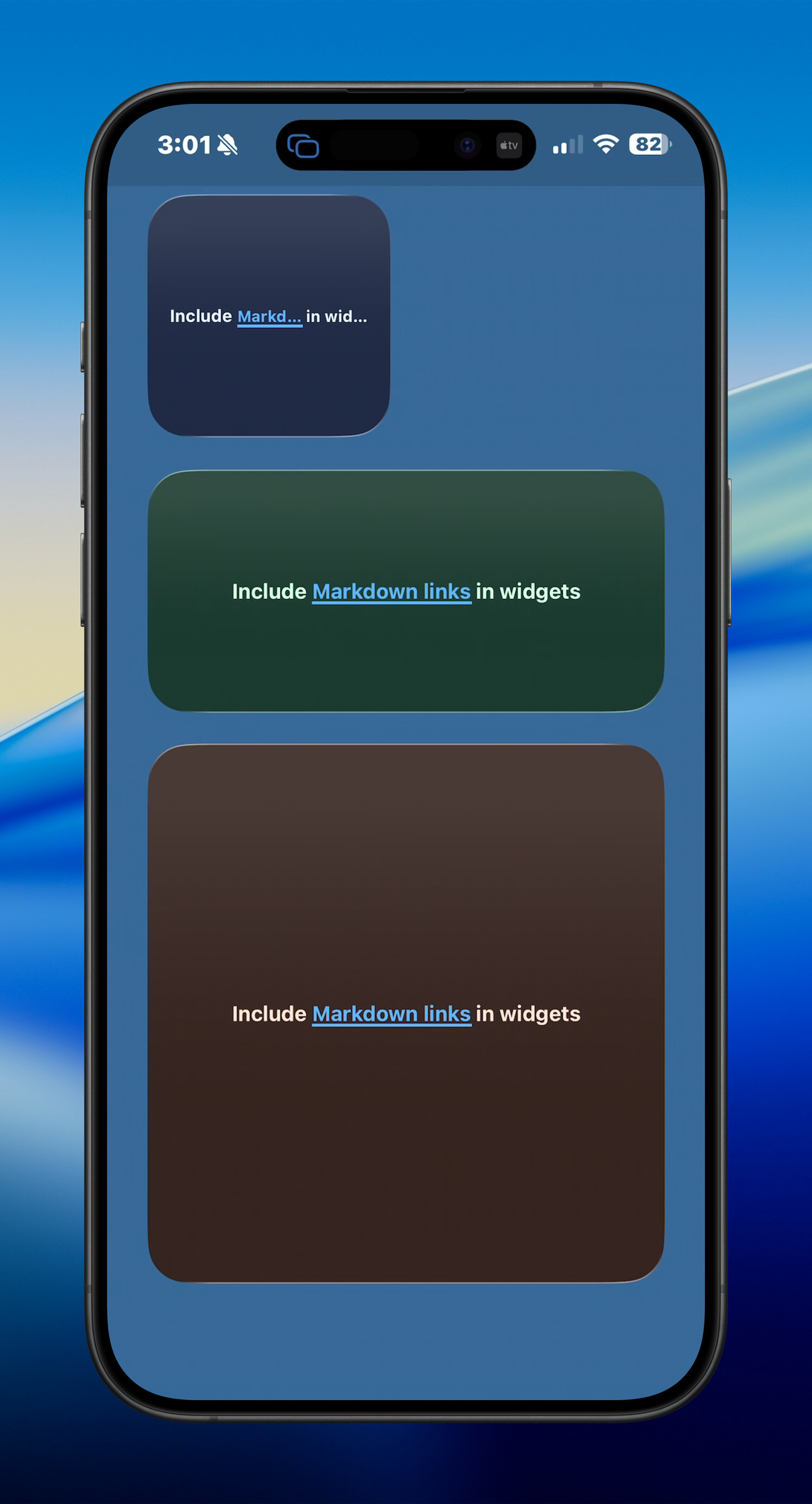

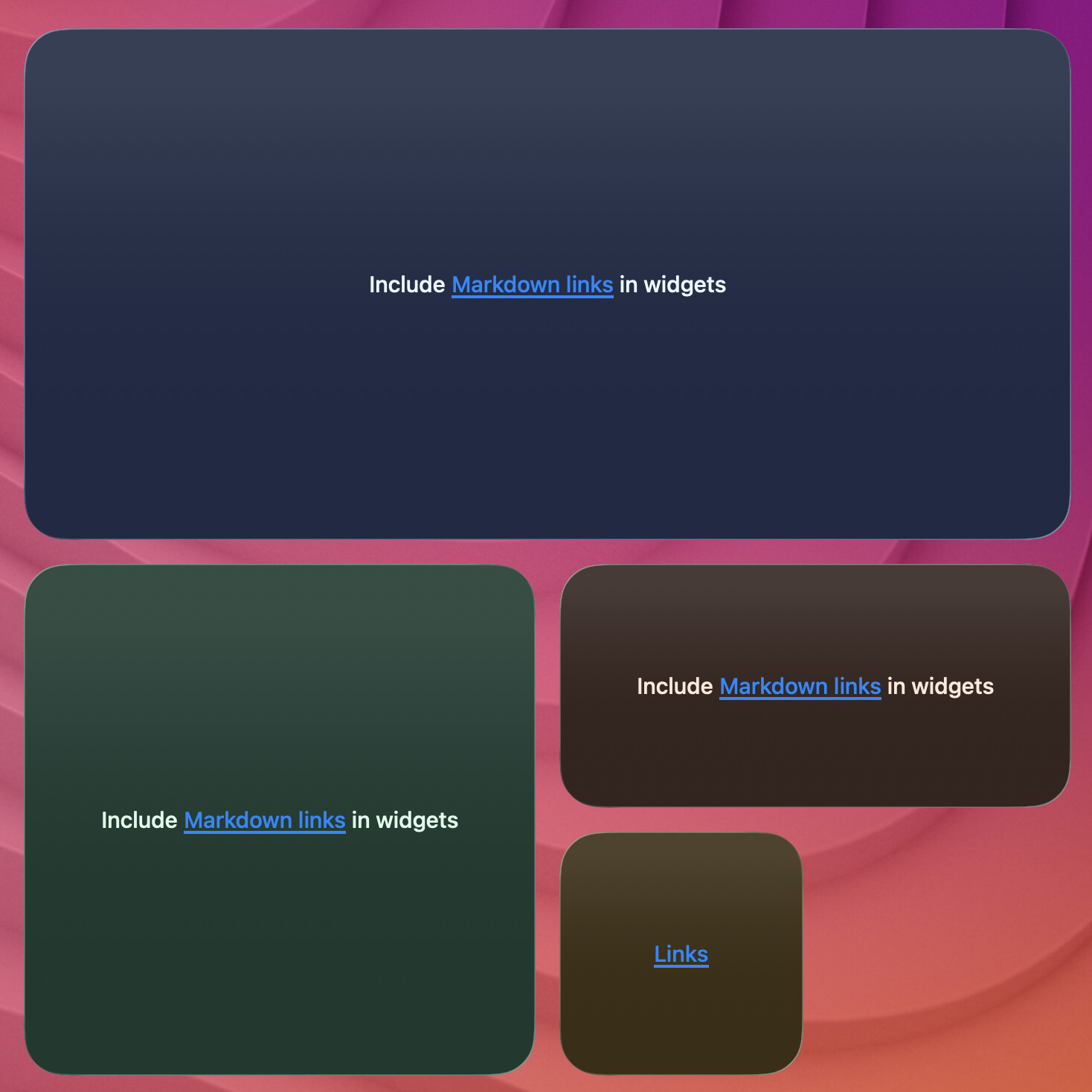

Markdown links in text

--text accepts CommonMark-style [label](url) links. On macOS and iOS, link labels render as tappable buttons; taps outside links still use the widget’s --action-kind action. URLs need a scheme (https://…, mailto:…, etc.). --fit-text scaling is skipped when any link is present.

terminal-widget --target widget1 --text "Status: [Docs](https://terminalwidget.app) · [Support](https://terminalwidget.app/support)" --fg "#EAF6FF" --bg "#1F2A44"
terminal-widget --target widget1 --text "[Open dashboard](https://example.com/status)"
terminal-widget --target widget1 --text "Include [Markdown links](https://brettterpstra.com) in widgets" --fg "#EAF6FF" --bg "#1F2A44"

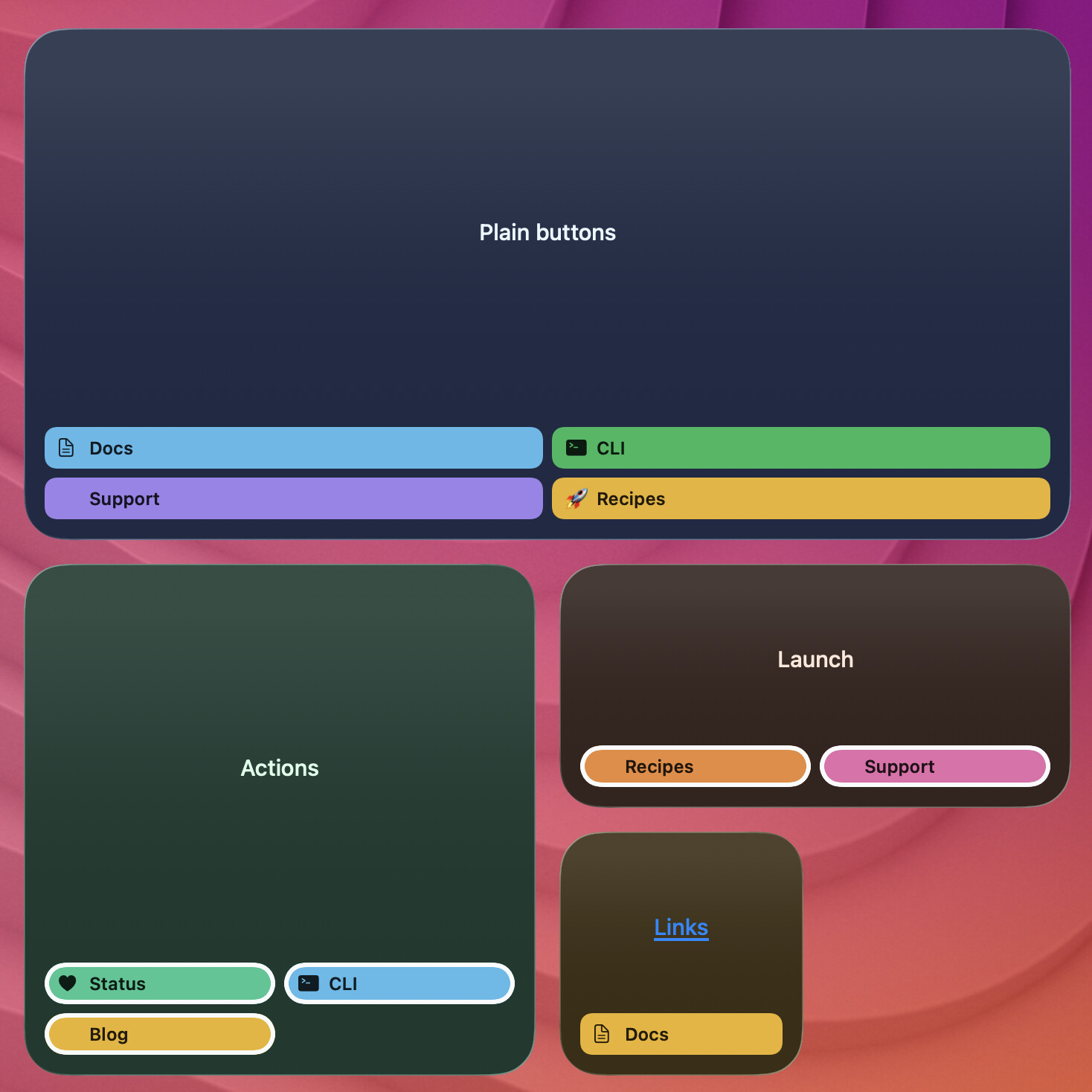

Launcher buttons (buttons in JSON)

JSON updates (--json) can include a buttons array that renders a tappable footer grid under any widget content (text, chart, progress, image, table), or alone as a buttons-only layout. Max 12 buttons. Set launcher buttons from CLI --json (file, - stdin, inline {...}, or URL); Shortcuts/AppleScript do not expose per-button fields in v1, but any update that sends structured JSON can include buttons.

Button fields

Each entry needs a label and an action:

Button layout (button-columns)

• Small widgets always use one column.
• Medium / large default to smart layout: 3 columns when the button count is divisible by 3, otherwise 2. Incomplete final rows are padded so widths stay equal. A single button stays one column.
• Root button-columns / buttonColumns: "smart" or "auto" restores smart layout; 1, 2, or 3 forces that many columns (capped by button count).
• Omit button-columns to leave the previous column mode. Clear the footer with "buttons": [] (merges onto the previous payload and keeps text, charts, and other content), --clear-buttons, or --json '{"buttons":[]}'. Omit the buttons key to leave the previous button list.

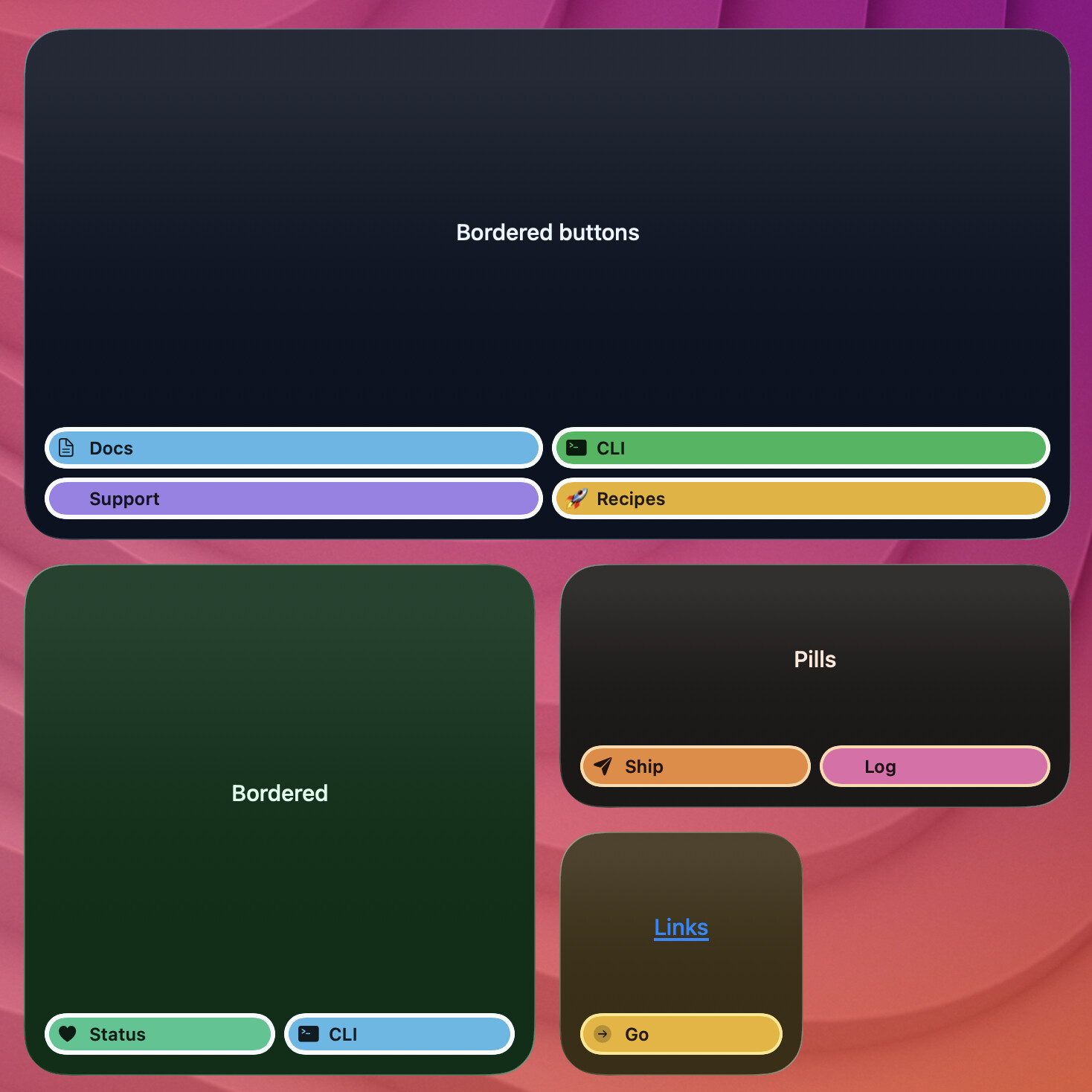

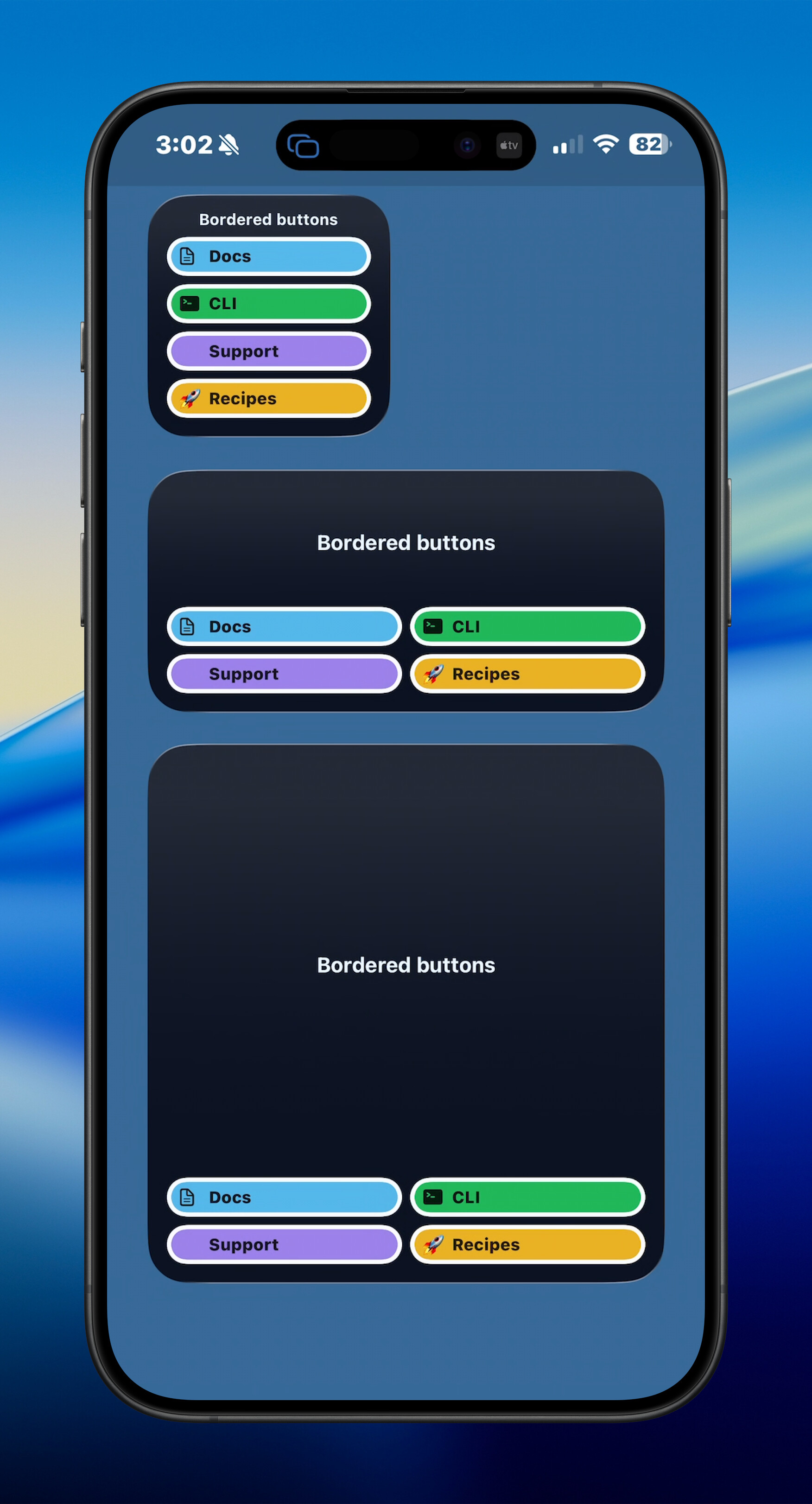

Button border styling

Buttons are borderless by default. Borders come from widget-level defaults and optional per-button overrides.

Root defaults (apply to every button unless overridden):

• button-border / buttonBorder — shorthand width + color, e.g. "2px #0f0aff"
• button-border-color / buttonBorderColor
• button-border-width / buttonBorderWidth (0–12)
• button-border-radius / buttonBorderRadius (0–48)

Per-button overrides: border, border-color, border-width, border-radius win over the matching root default.

Shorthand rules: tokens may be WIDTH, WIDTHpx, and/or a color (#rrggbb, named colors, etc.), in either order. Optional solid / none tokens are ignored. Empty string clears width + color from that shorthand. Explicit border-color / border-width (or root equivalents) after a shorthand override those parts.

Effective stroke: if a border color is set and width is omitted, width defaults to 1. If neither color nor width is set, width is 0 (no stroke). Corner radius defaults to 8 when omitted.

Root border keys persist like other payload fields: send them without buttons to restyle the current grid; omit them to keep previous defaults.

Button platform notes

On iOS, open-app and run-command buttons render muted and do not run (macOS supports all action types). When any launcher buttons are present, the whole-widget tap URL is omitted on macOS so the footer controls stay interactive.

terminal-widget --target widget1 --json - <<'EOF'
{
  "text": "Status board",
  "button-columns": 2,
  "button-border": "2px #0f0aff",
  "button-border-radius": 10,
  "buttons": [
    {"label": "Docs", "icon": "doc.text", "color": "#5ac5fa", "border": "1px #ffffff", "border-radius": 10, "action-type": "open-url", "action-value": "https://terminalwidget.app"},
    {"label": "Marked", "color": "#22c55e", "action-type": "open-app", "action-value": "com.brettterpstra.marked2"},
    {"label": "Refresh", "action-type": "refresh", "action-value": "https://example.com/widget.json"}
  ]
}
EOF

Title and custom caption (--title, --title-color, --caption-text)

--title renders a small caption-style line at the top (inside padding). --caption-text sets custom footer text below the main content and implies --caption (no [min/max] or [n%] auto text). Both accept GitHub :emoji: shortcodes like --text.

terminal-widget --target widget1 --text "Build queue" --title ":chart_with_upwards_trend: Throughput" --title-color "#a78bfa" --caption-text "Updated :clock3:" --timestamp --bg "#0f172a" --fg "#94a3b8"
terminal-widget --target widget1 --chart "5 12 8 21 13 34" --chart-format graph --title "Weekly trend" --caption-text ":white_check_mark: On track" --caption-color "#94a3b8" --fg "#e2e8f0" --bg "#0f172a"

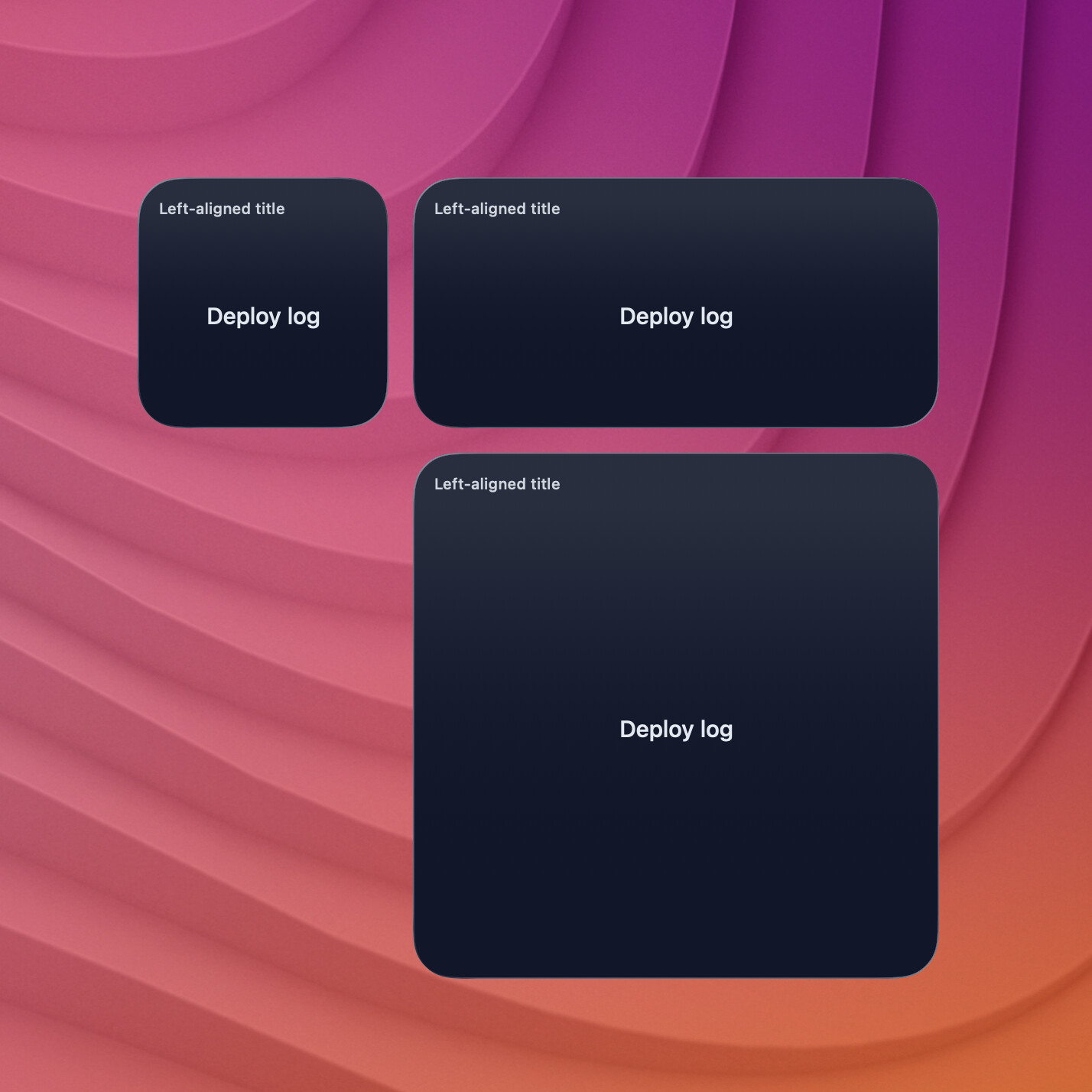

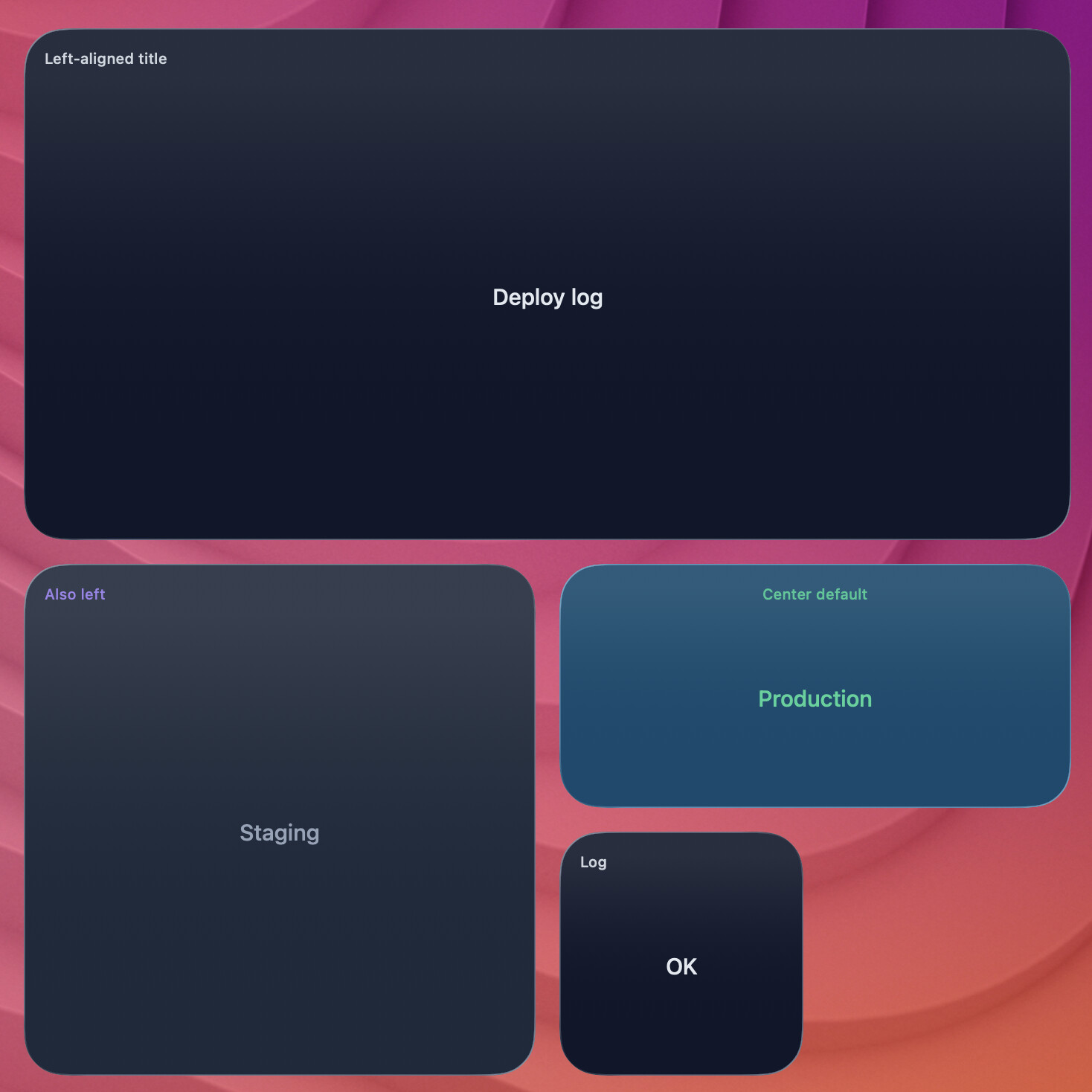

terminal-widget --target widget1 --text "Deploy log" --title "Left-aligned title" --title-alignment left --fg "#e2e8f0" --bg "#0f172a"

--title-alignment accepts left, center (default when --title is set), or right.

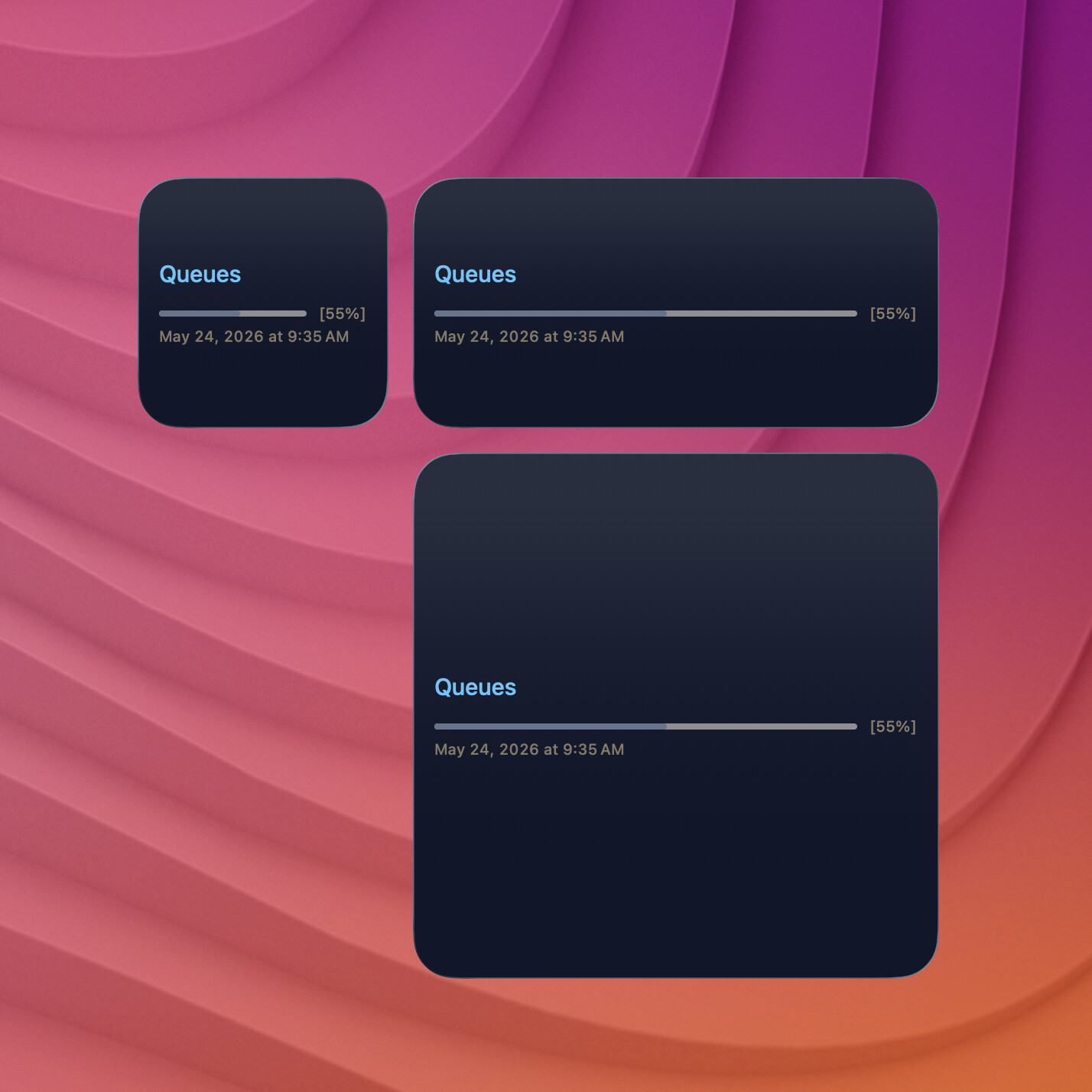

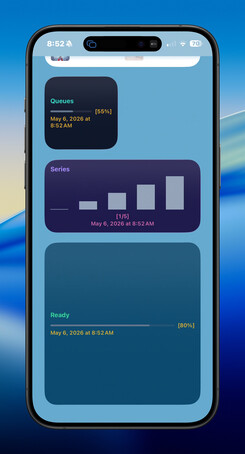

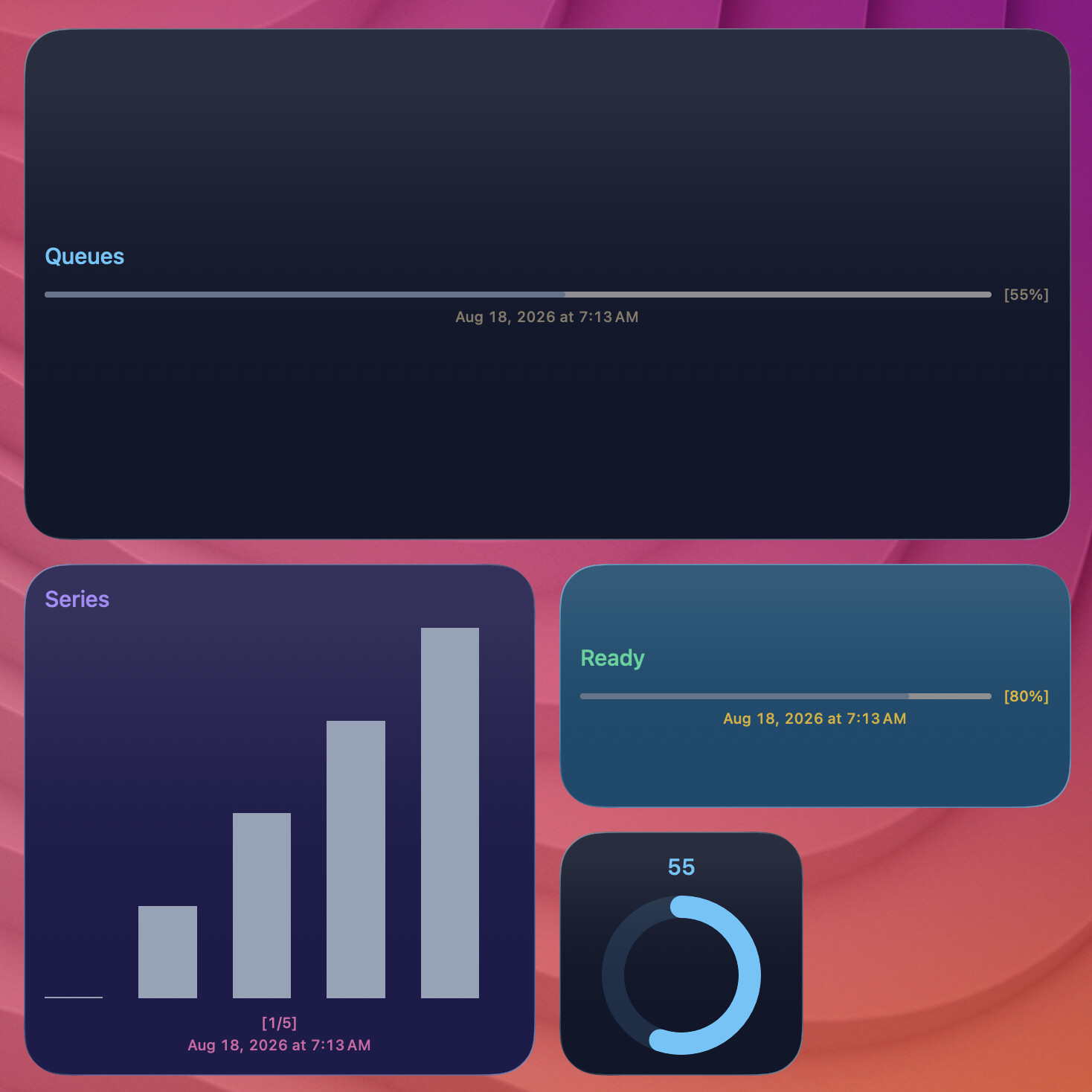

Text vs caption colors (--text-color, --caption-color)

Use --foreground for icons, charts, and progress visuals. Optionally set --text-color so the main --text line (and table defaults) differ from --foreground, and --caption-color for [min/max], [n%], --caption-text, and --timestamp lines.

terminal-widget --target widget1 --text "Queues" --foreground "#64748b" --text-color "#2dd4bf" --progress 55 --caption --timestamp --caption-color "#fbbf24" --bg "#0f172a"

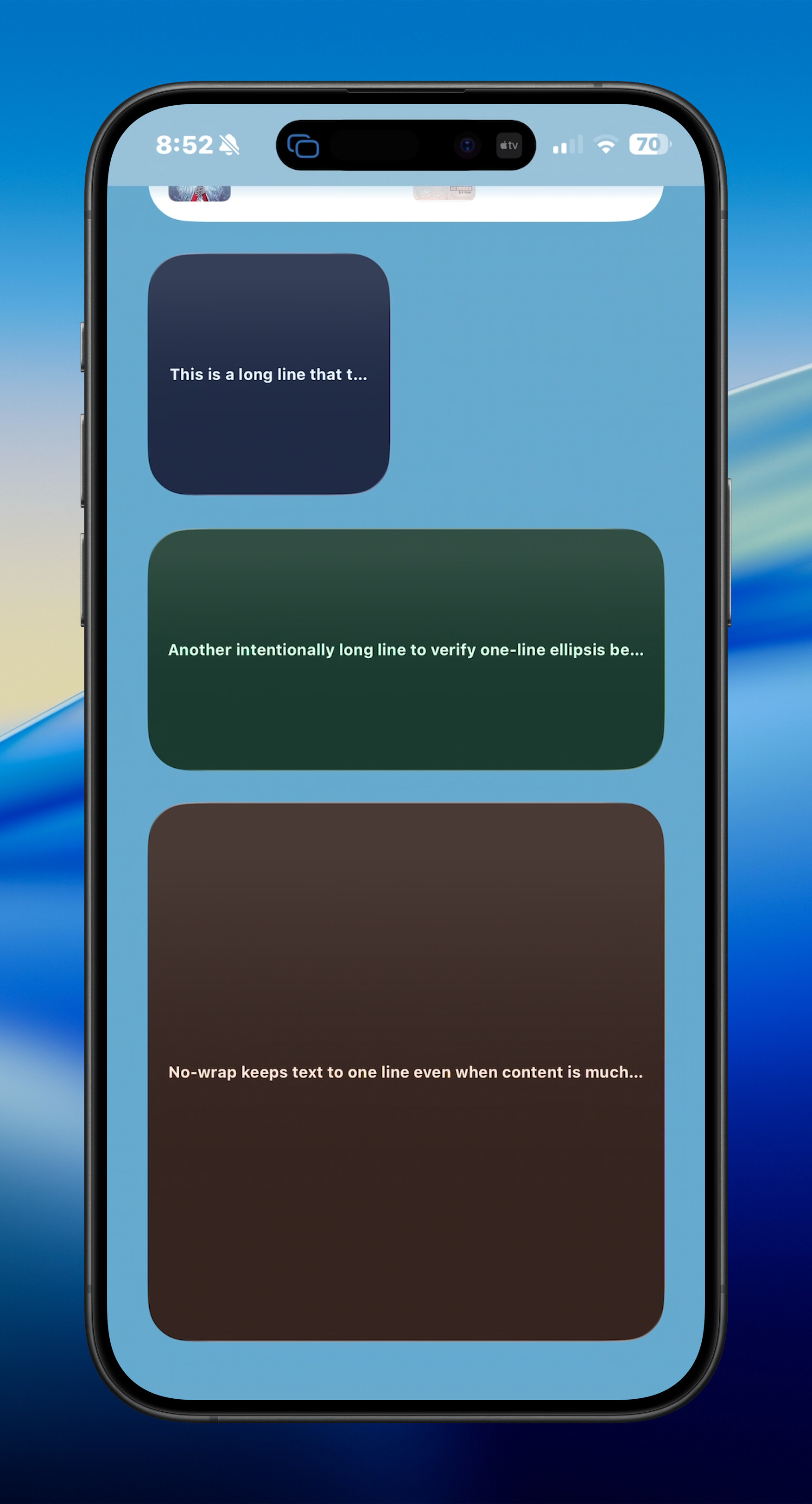

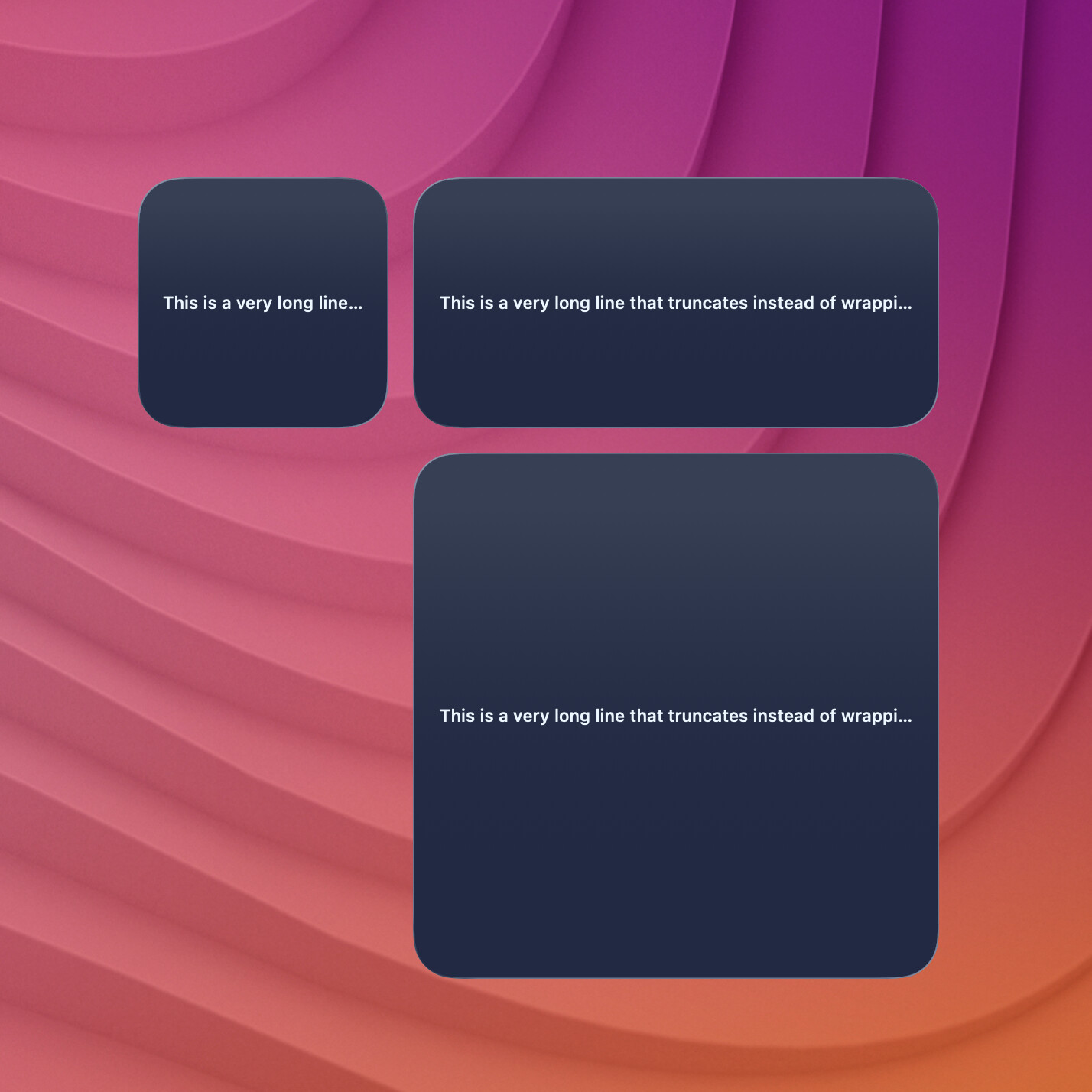

Single-Line Truncation (--no-wrap)

terminal-widget --target widget1 --text "This is a very long line that truncates instead of wrapping in the widget" --no-wrap

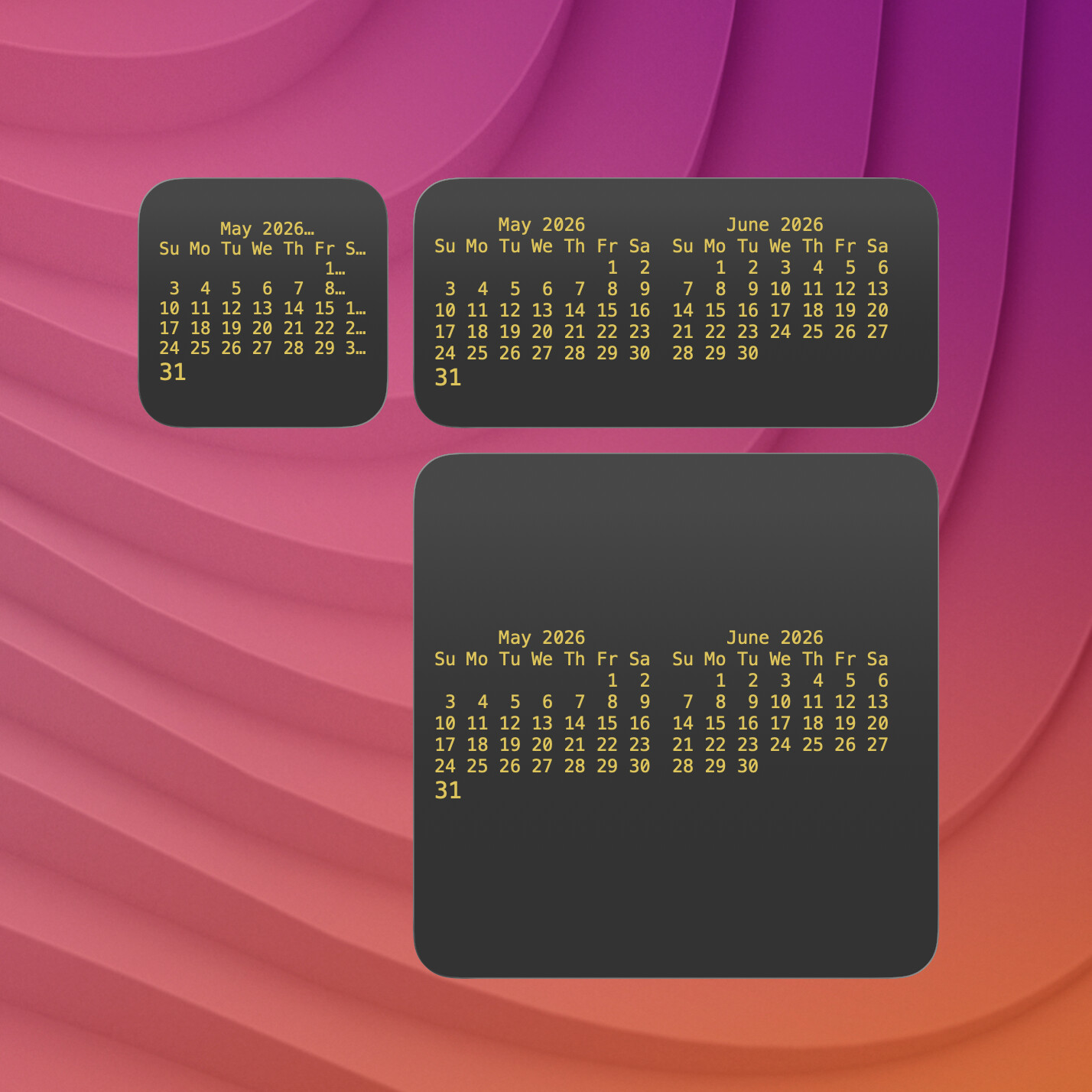

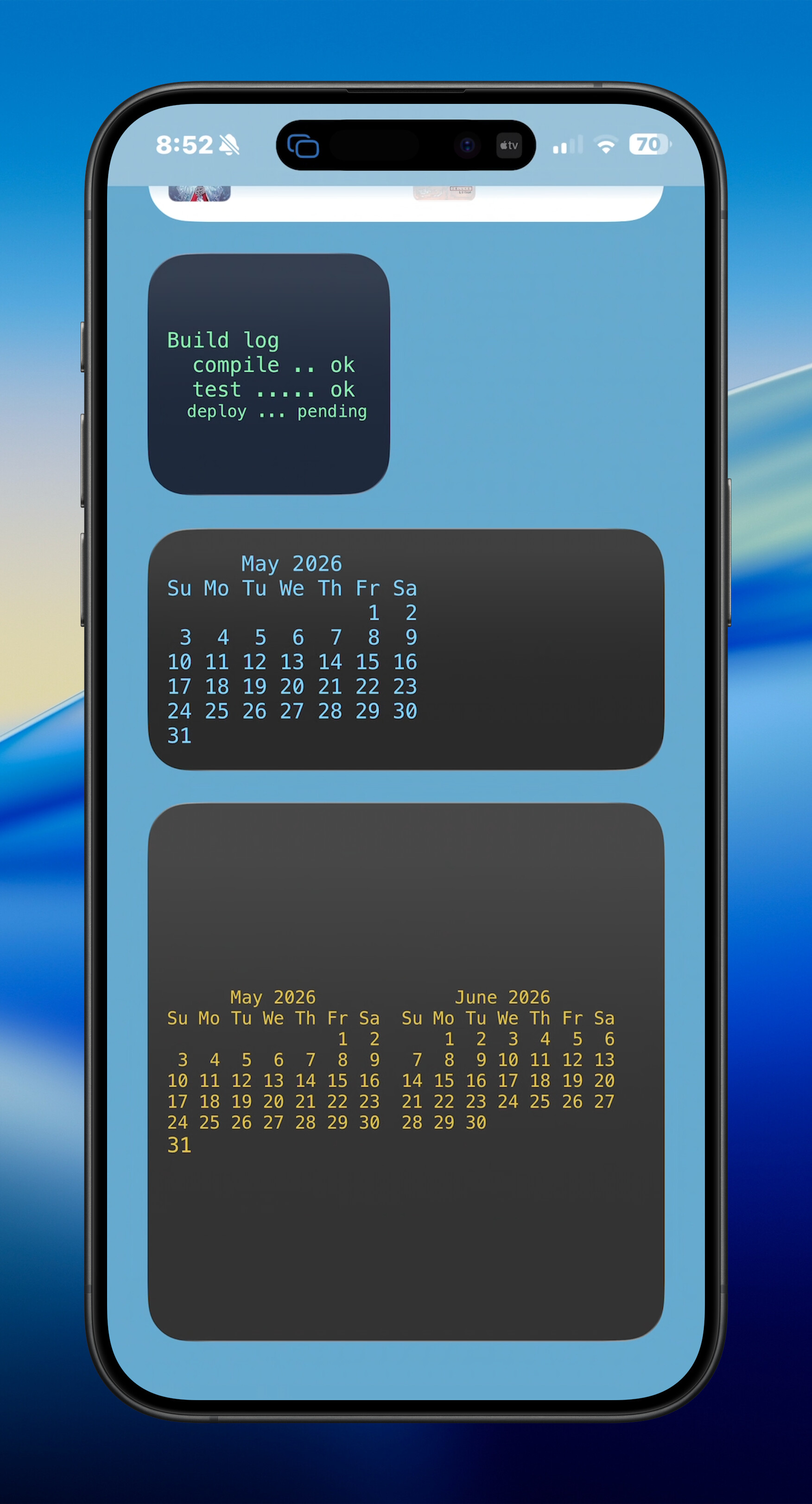

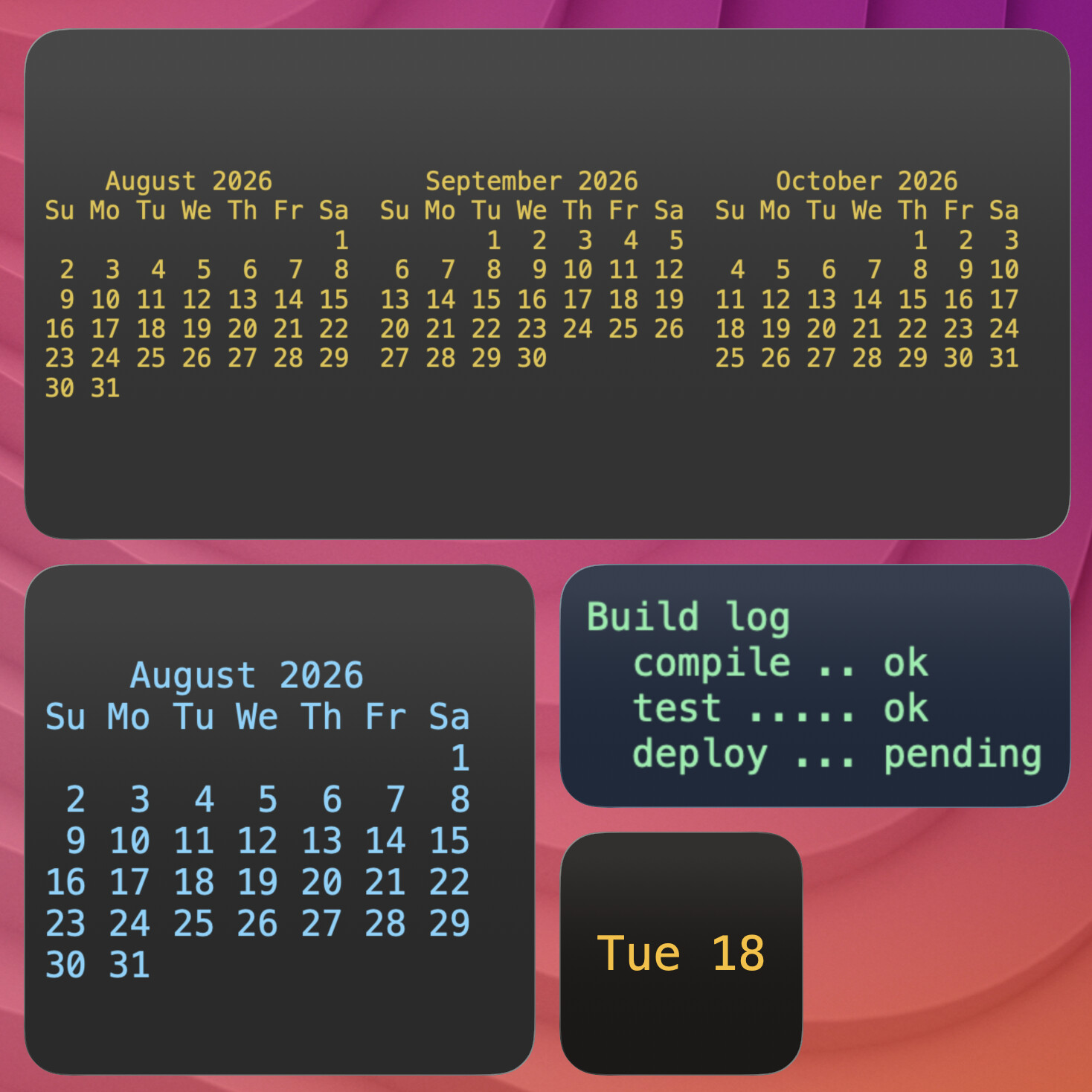

Terminal Output (terminal-output)

cal -A 1 | terminal-widget --target widget1 --text - --font menlo --bg "333333" --fg "#e1c245" --no-wrap

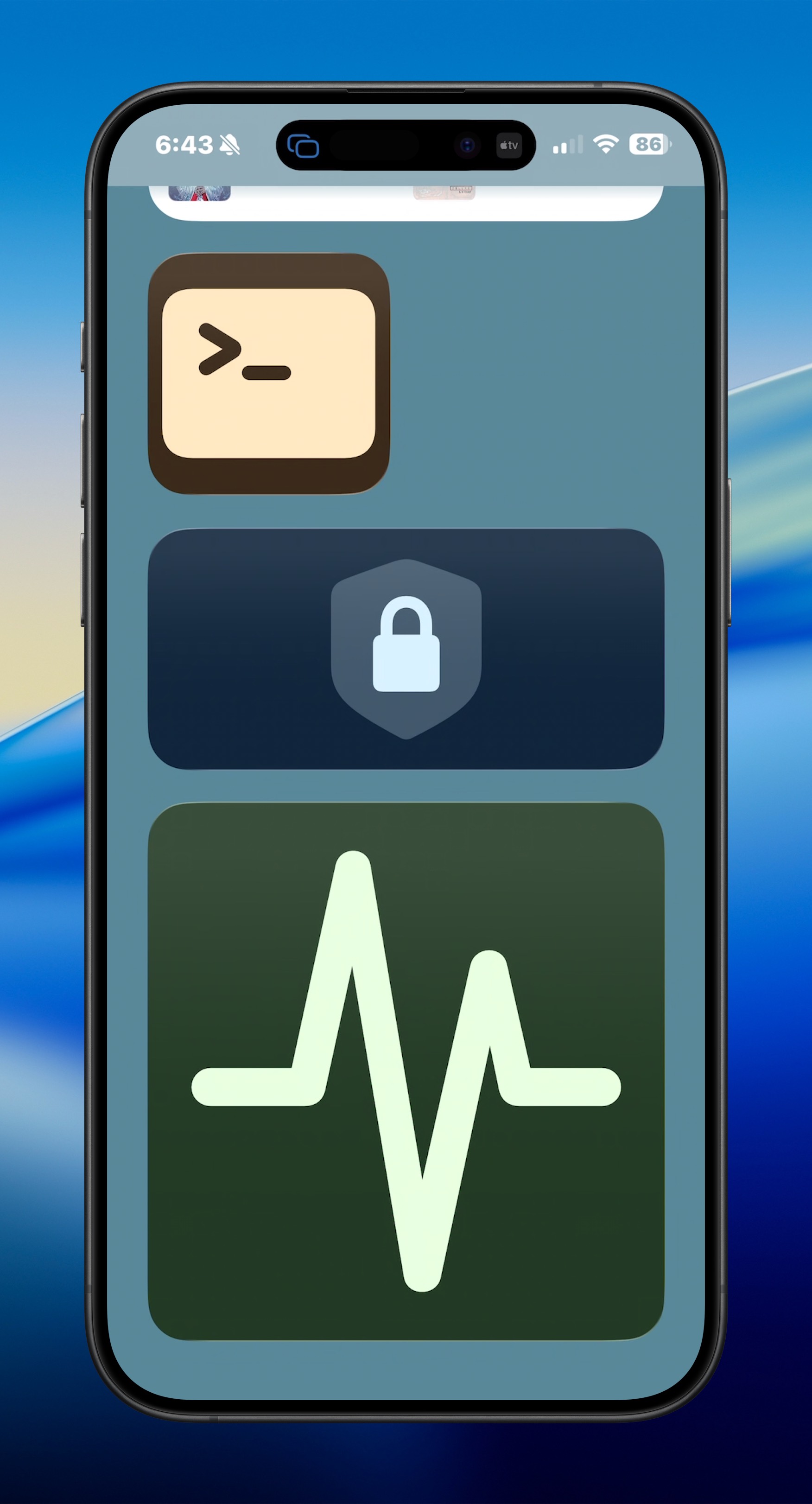

Icon-Only Widget

When no --text, --progress, --chart, --image, or --command is present, the icon is centered and scaled.

terminal-widget --target widget1 --icon "terminal.fill"

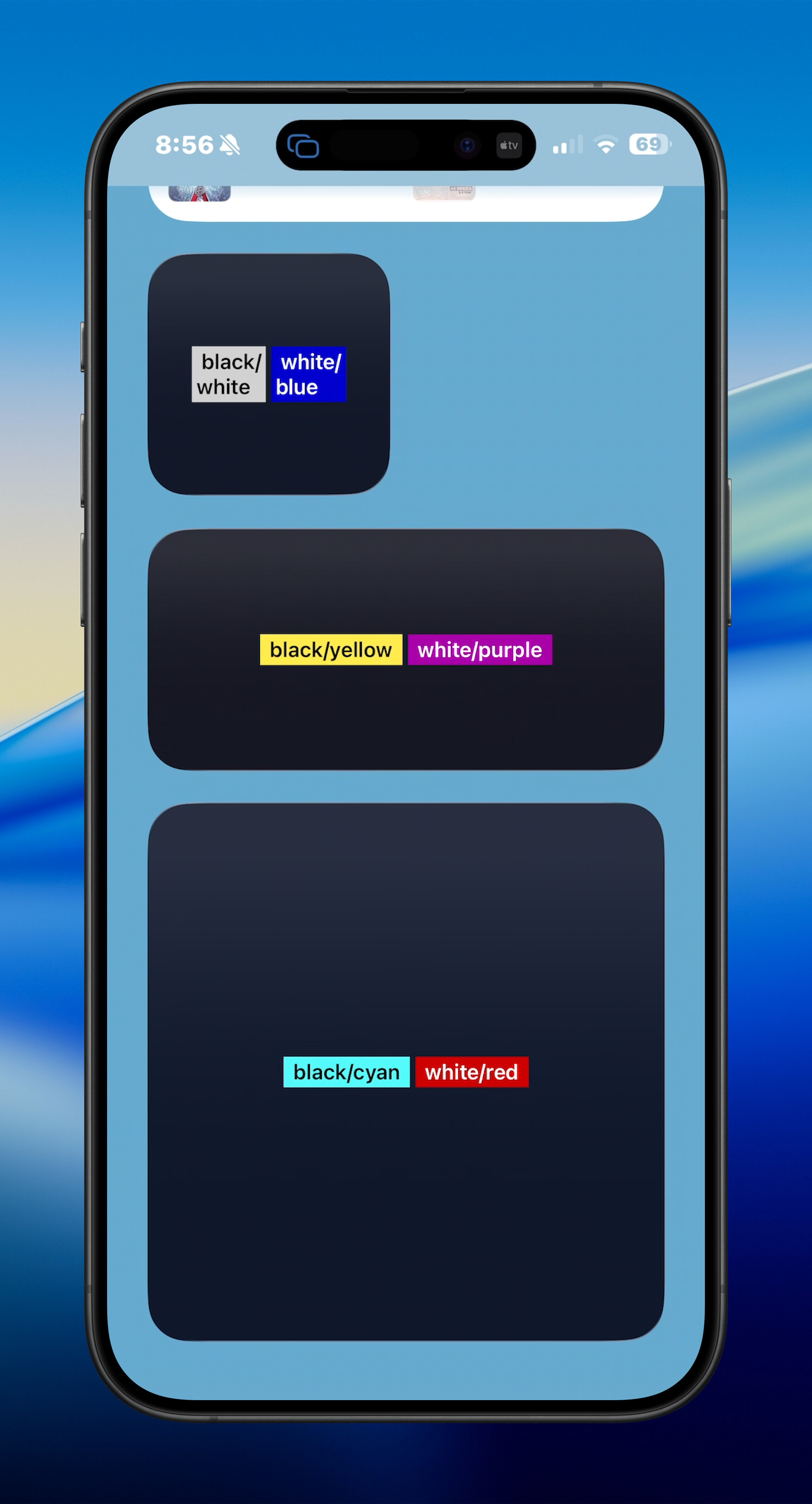

ANSI Text (--ansi-mode, --strip-colors)

Use ANSI escape sequences for foreground/background color blocks in text mode, or strip them when you want plain text.

printf '\033[30;47m black on white \033[0m \033[97;44m white on blue \033[0m' | terminal-widget --target widget1 --text - --ansi-mode on
printf '\033[31mred text\033[0m' | terminal-widget --target widget1 --text - --strip-colors

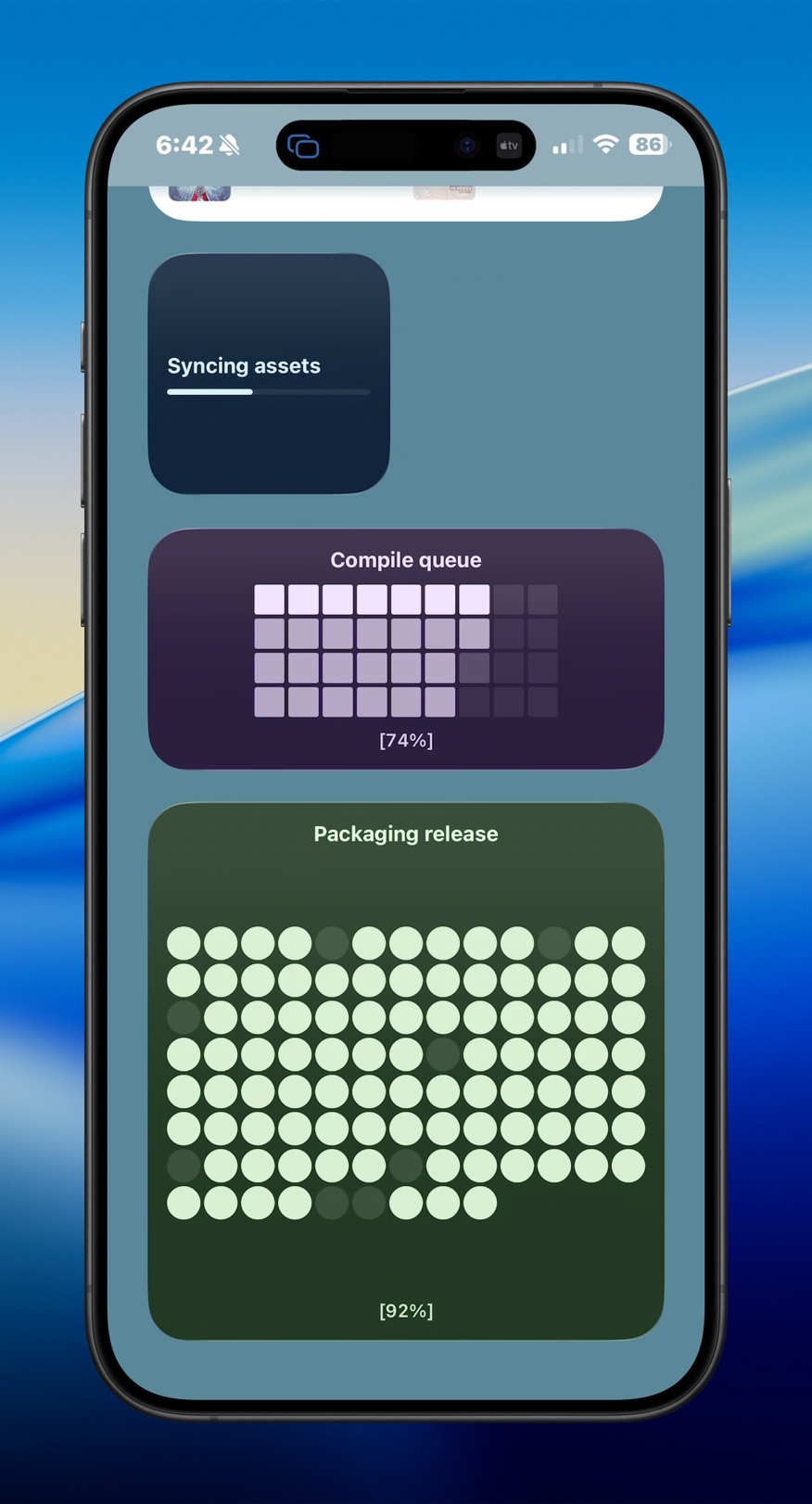

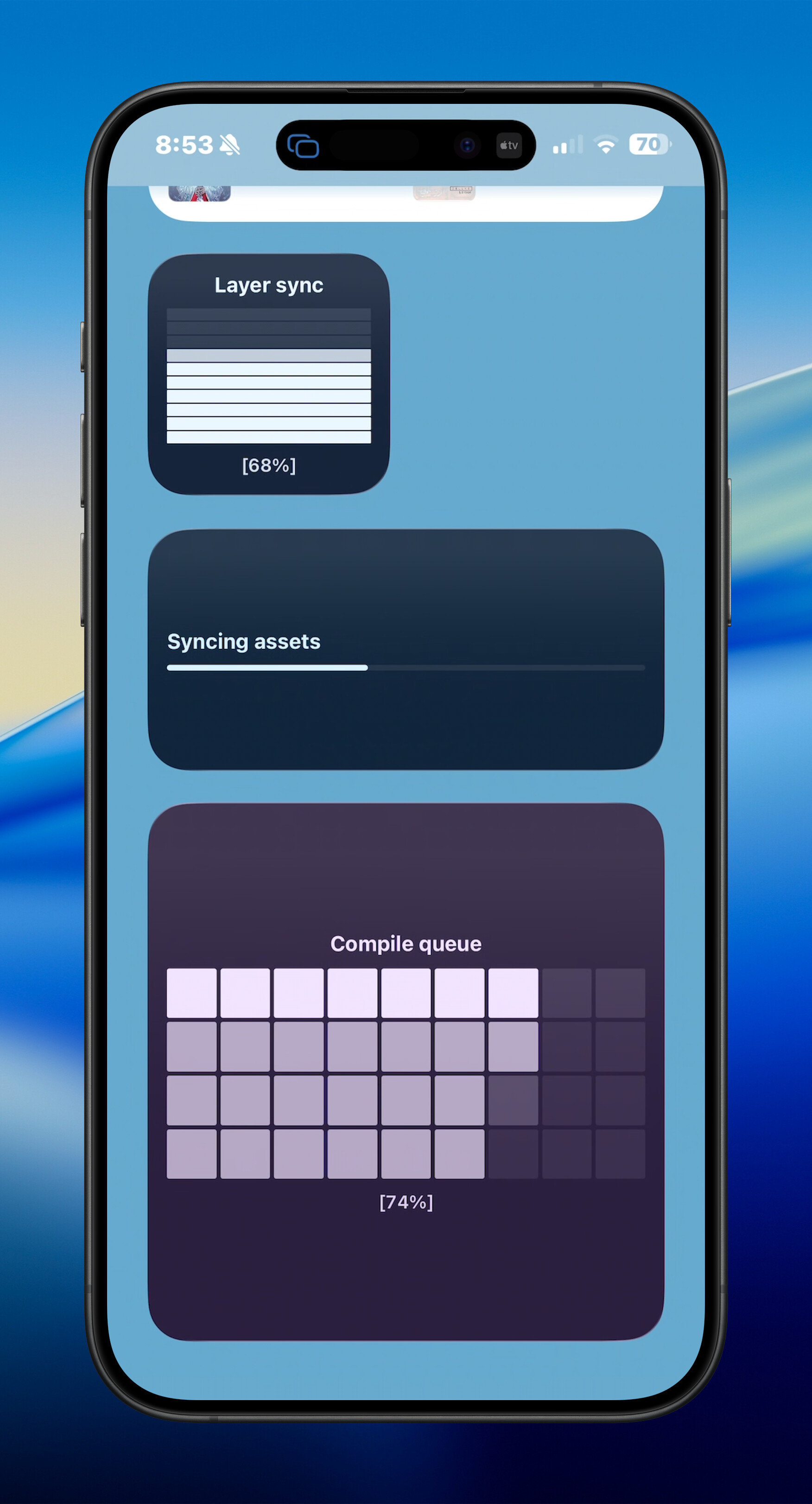

Progress Widgets

Progress mode uses --progress 0..100. Add --progress-format to choose a visual style.

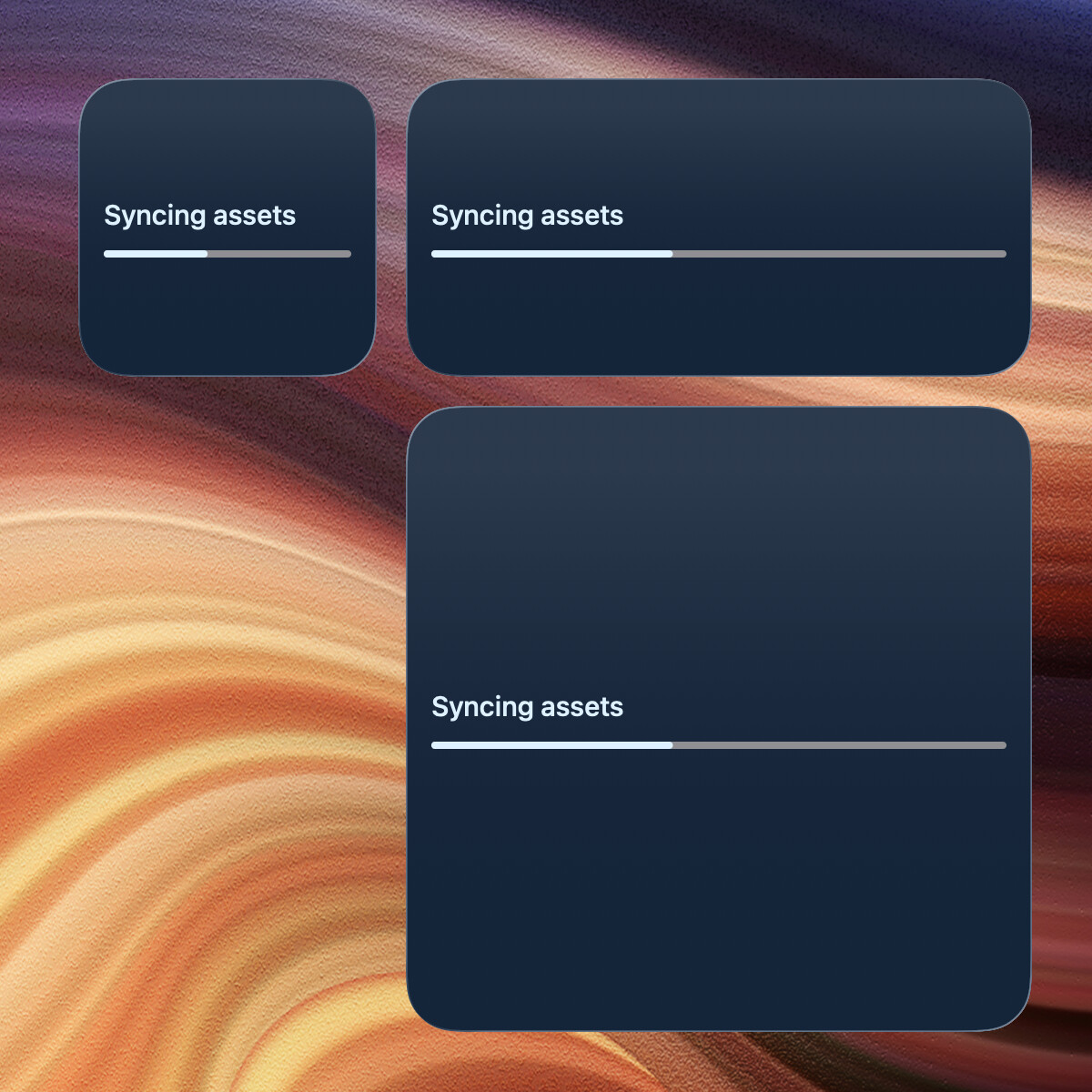

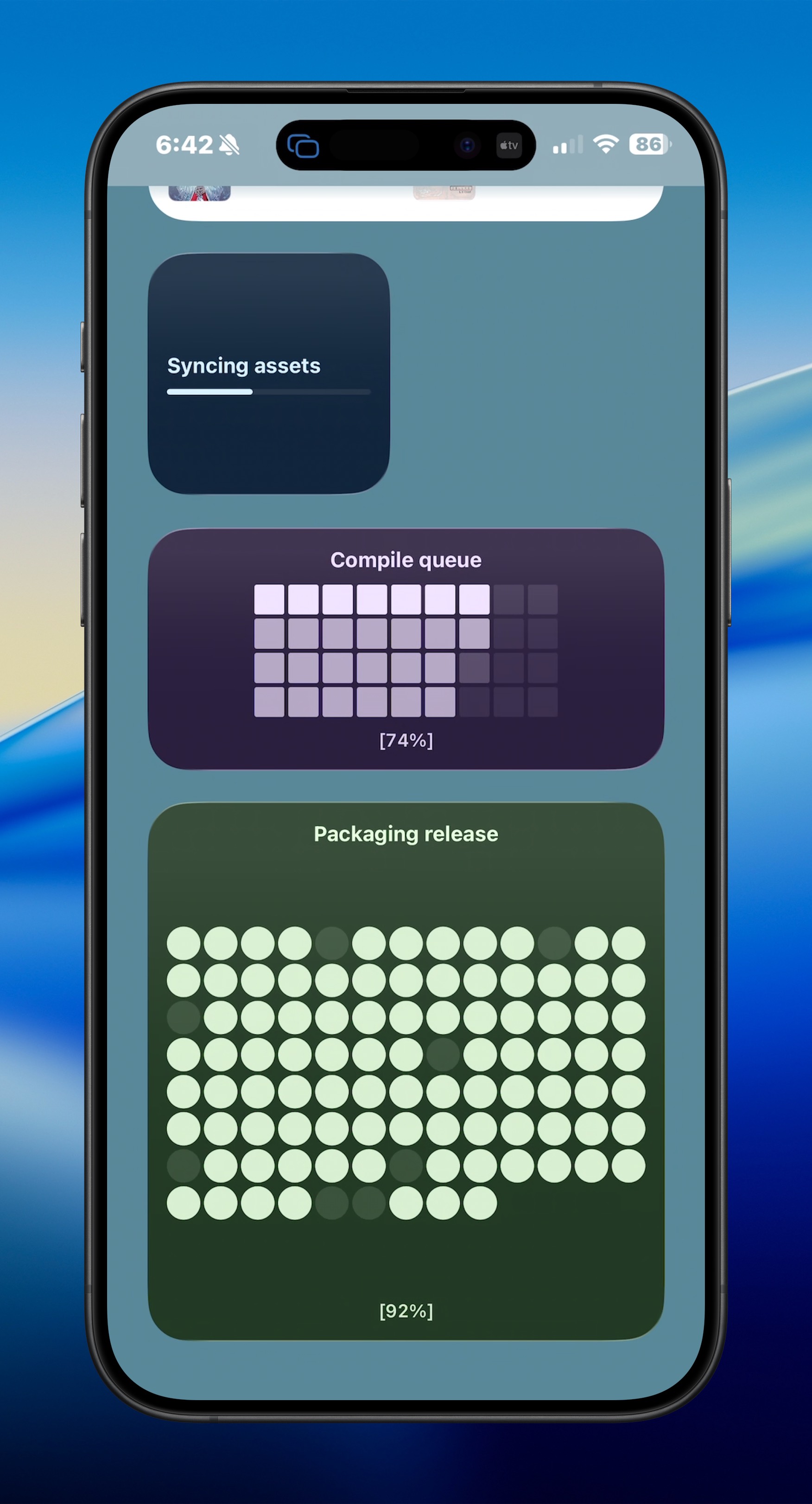

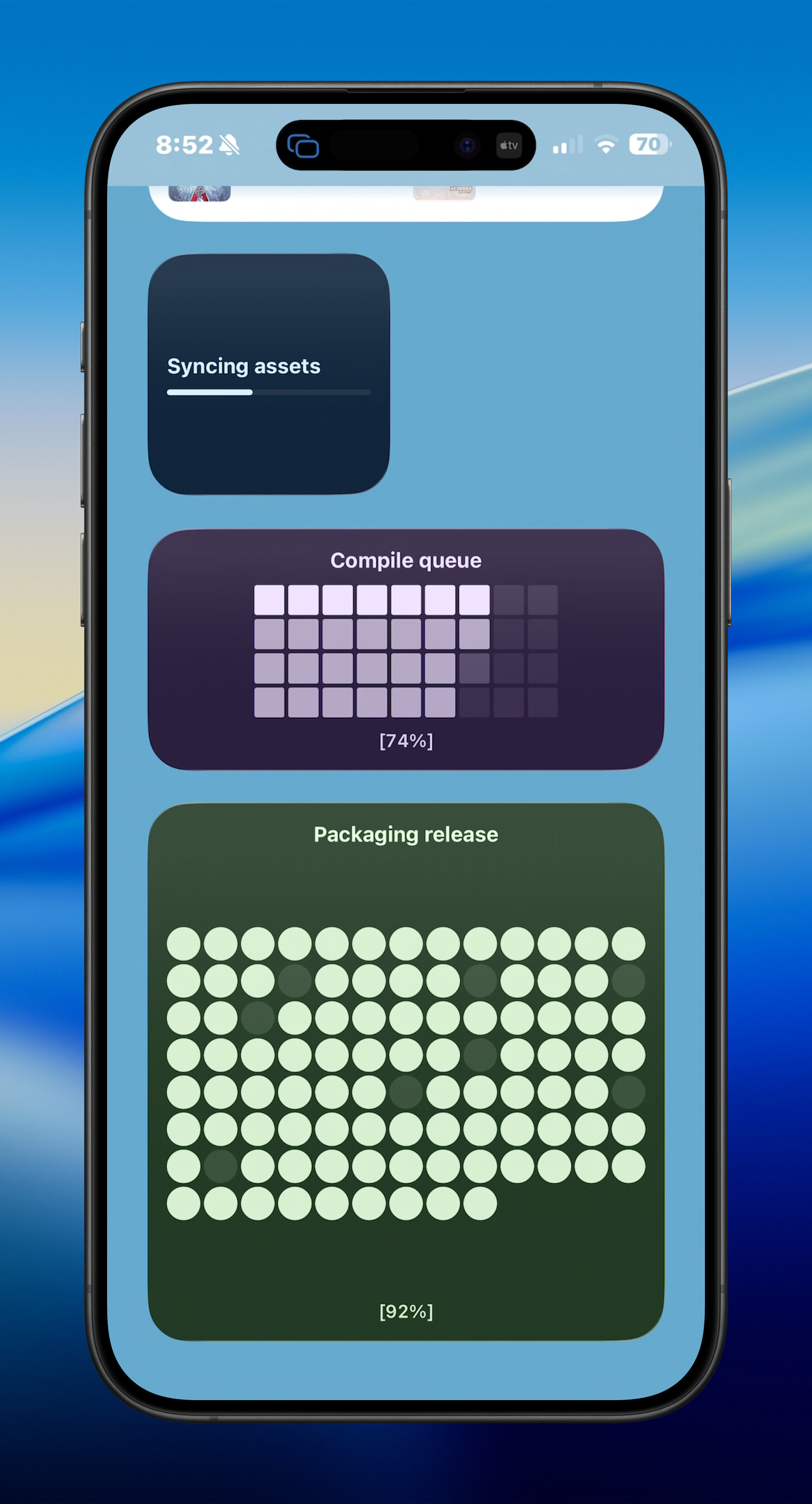

bar (default)

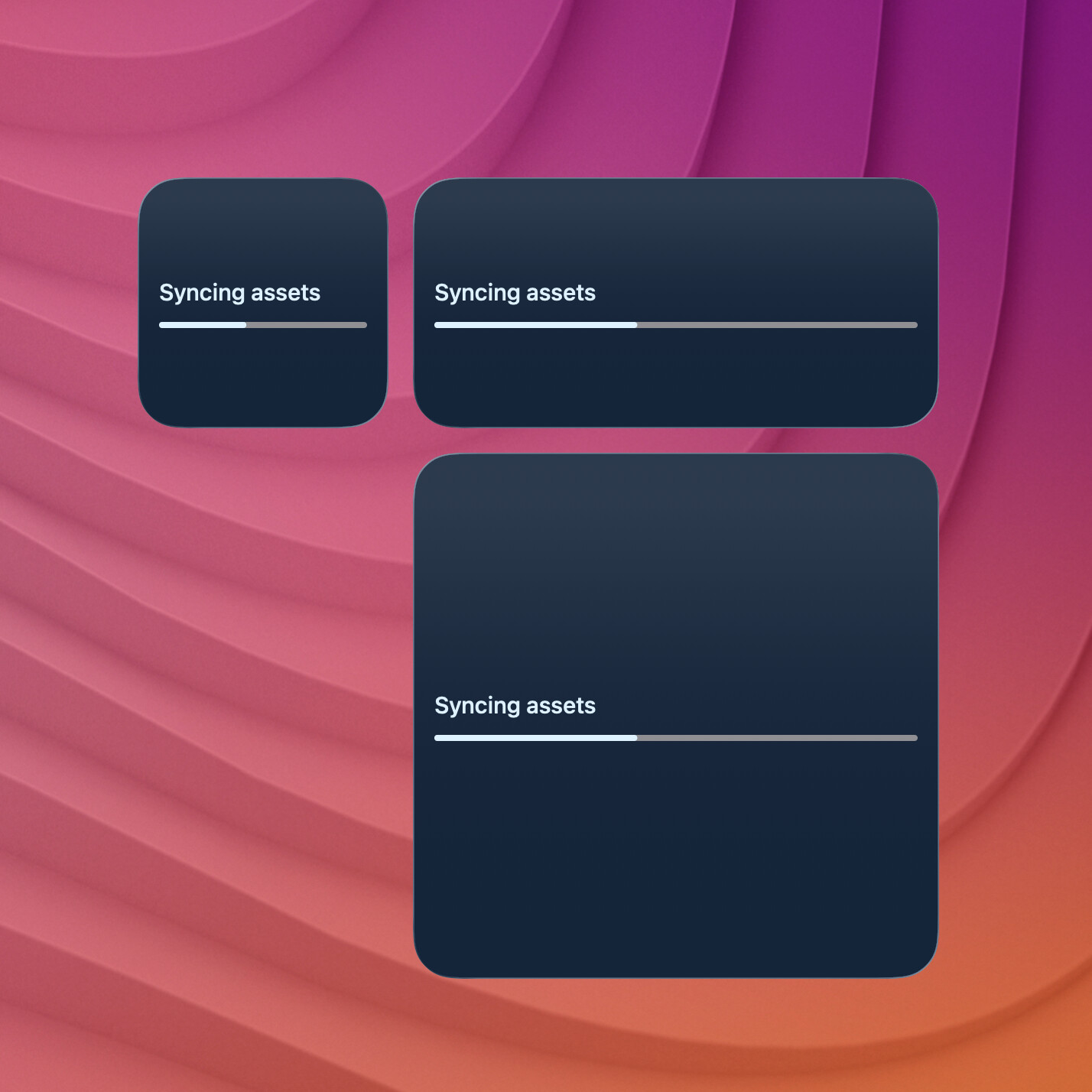

terminal-widget --target widget1 --text "Syncing assets" --progress 42 --progress-format bar

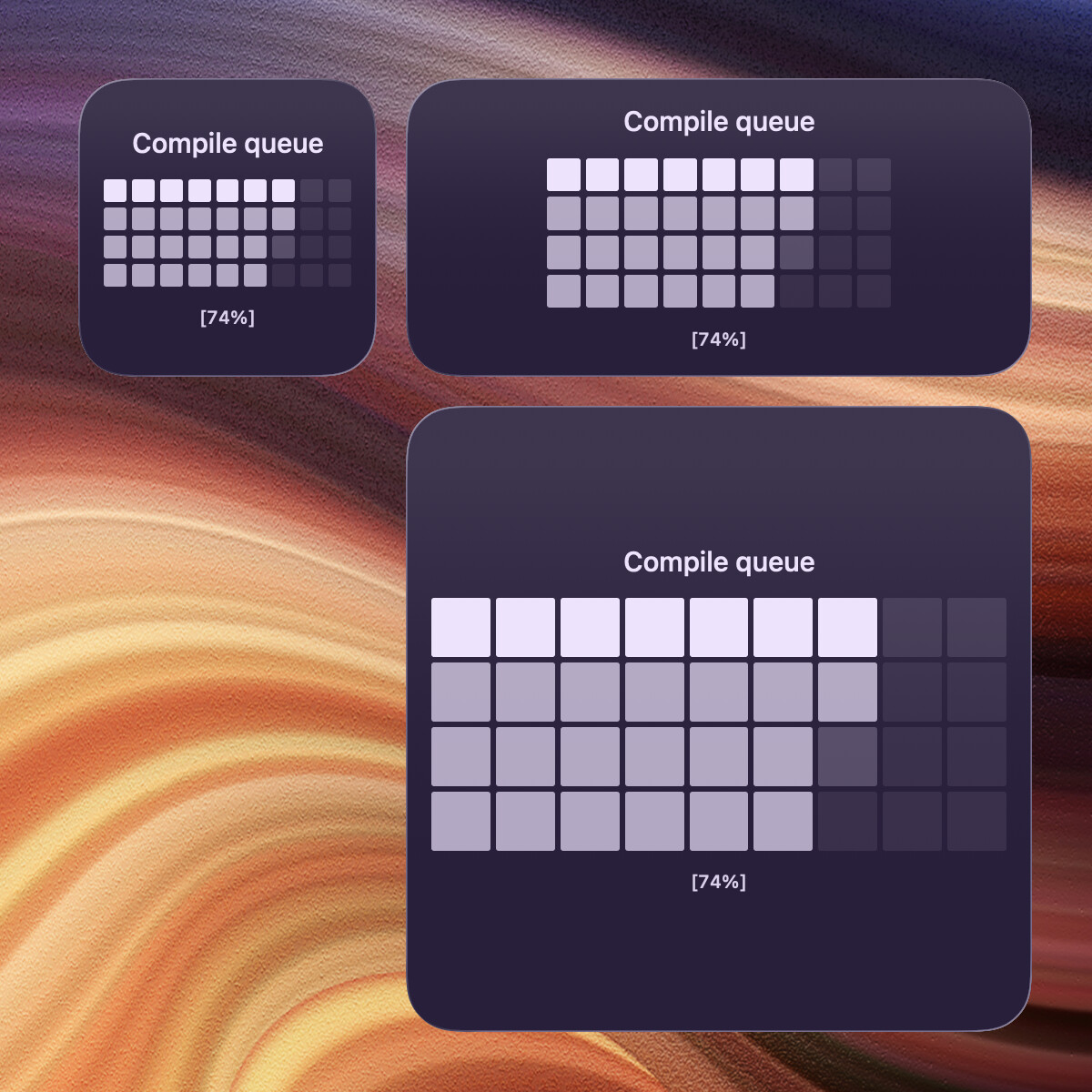

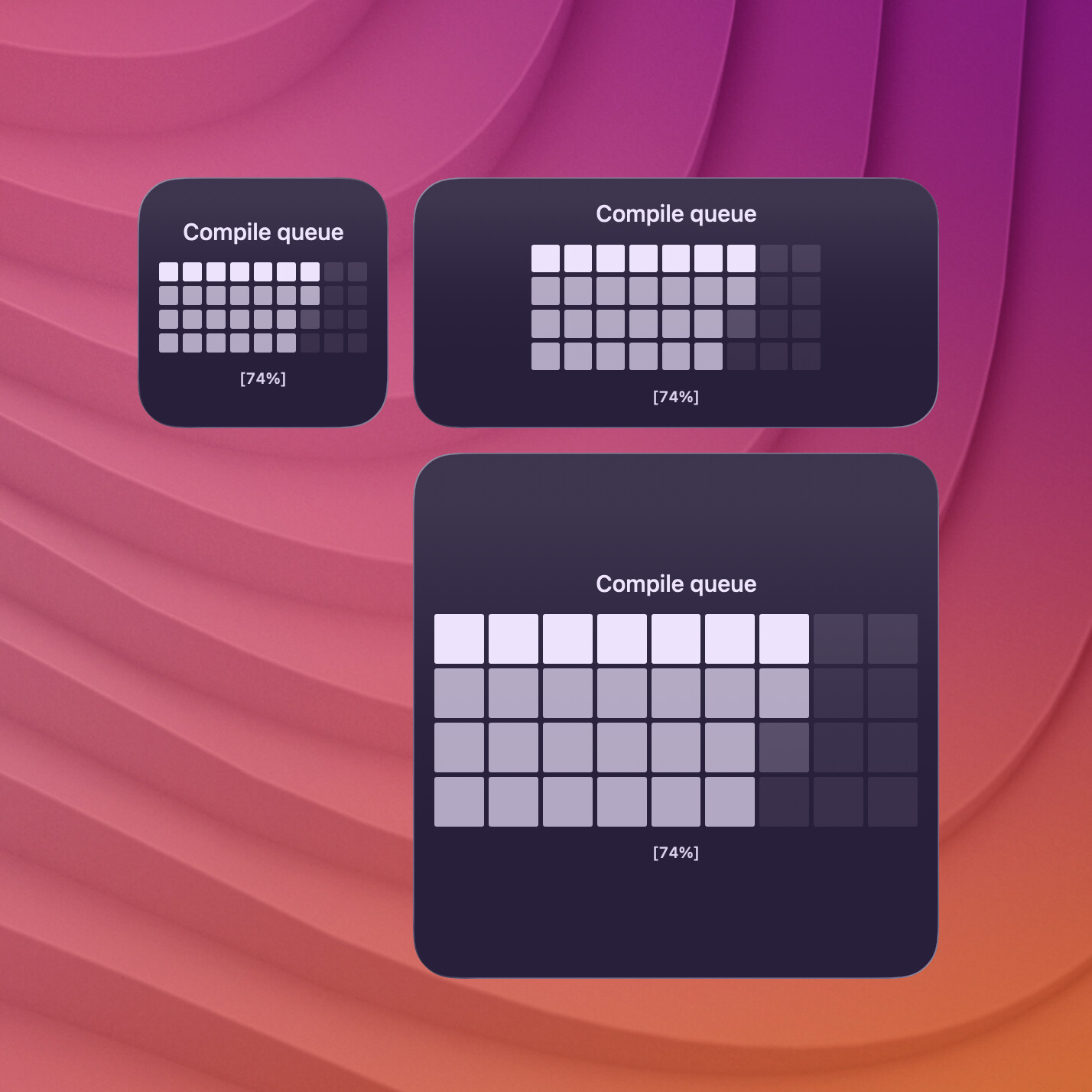

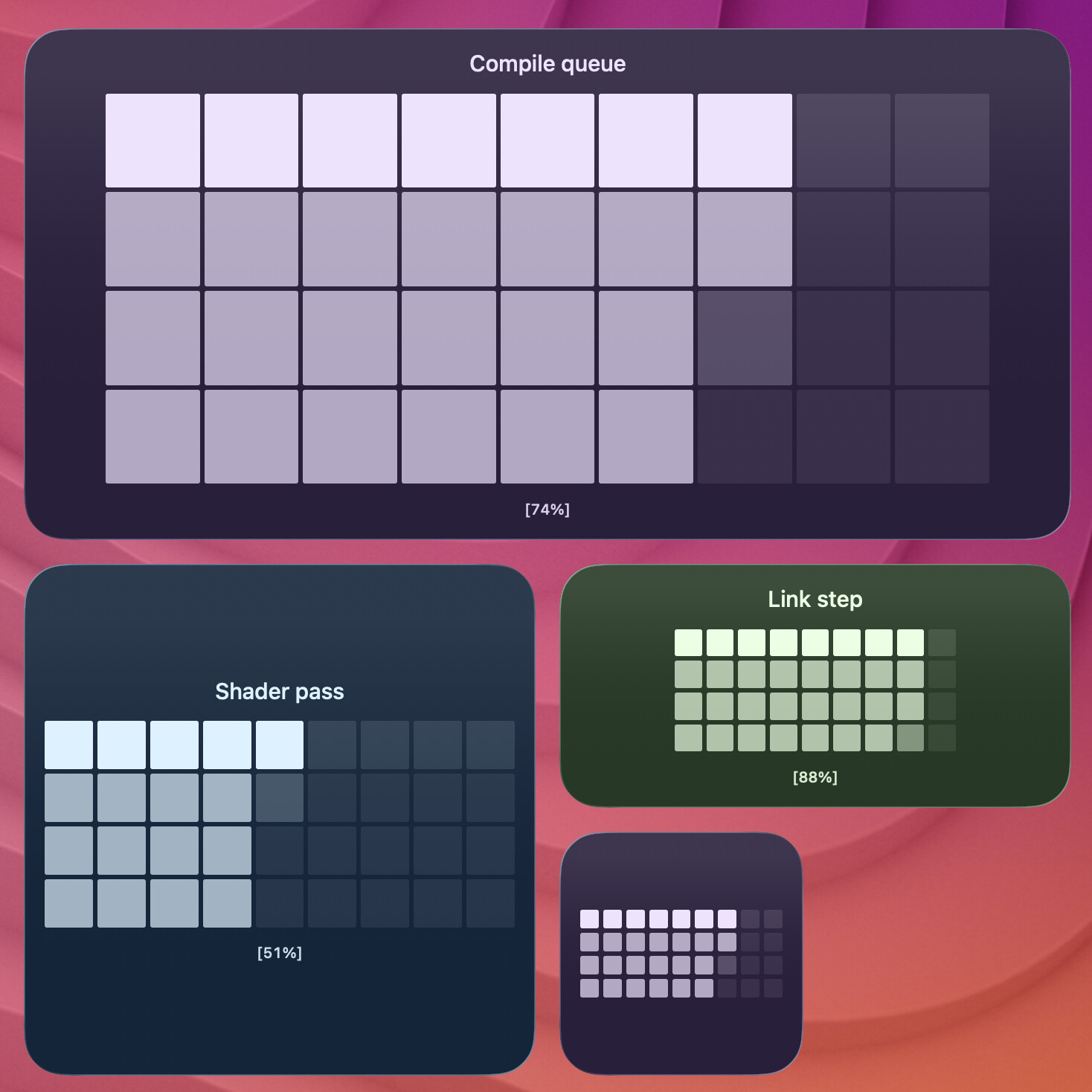

matrix

terminal-widget --target widget1 --text "Compile queue" --progress 74 --progress-format matrix --caption

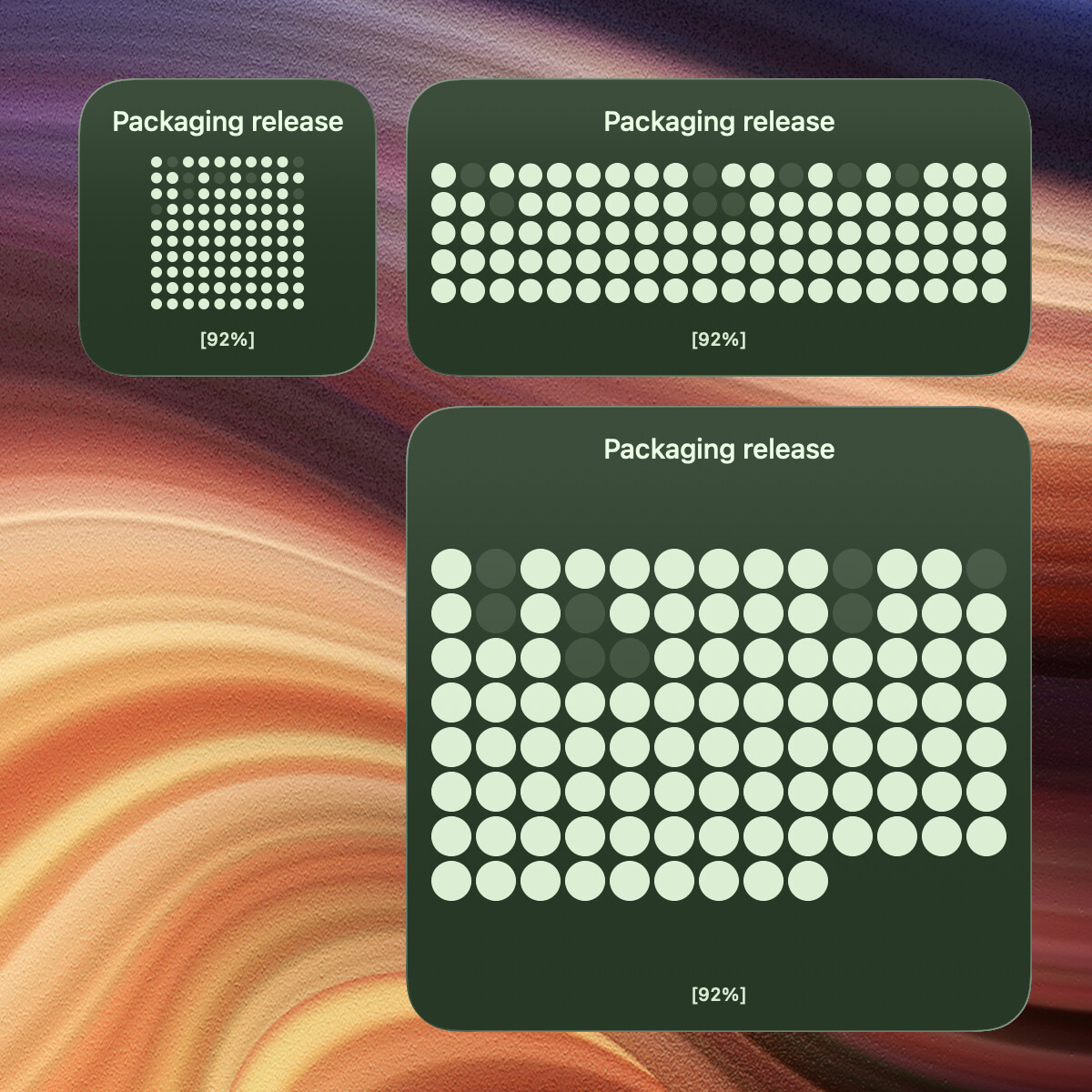

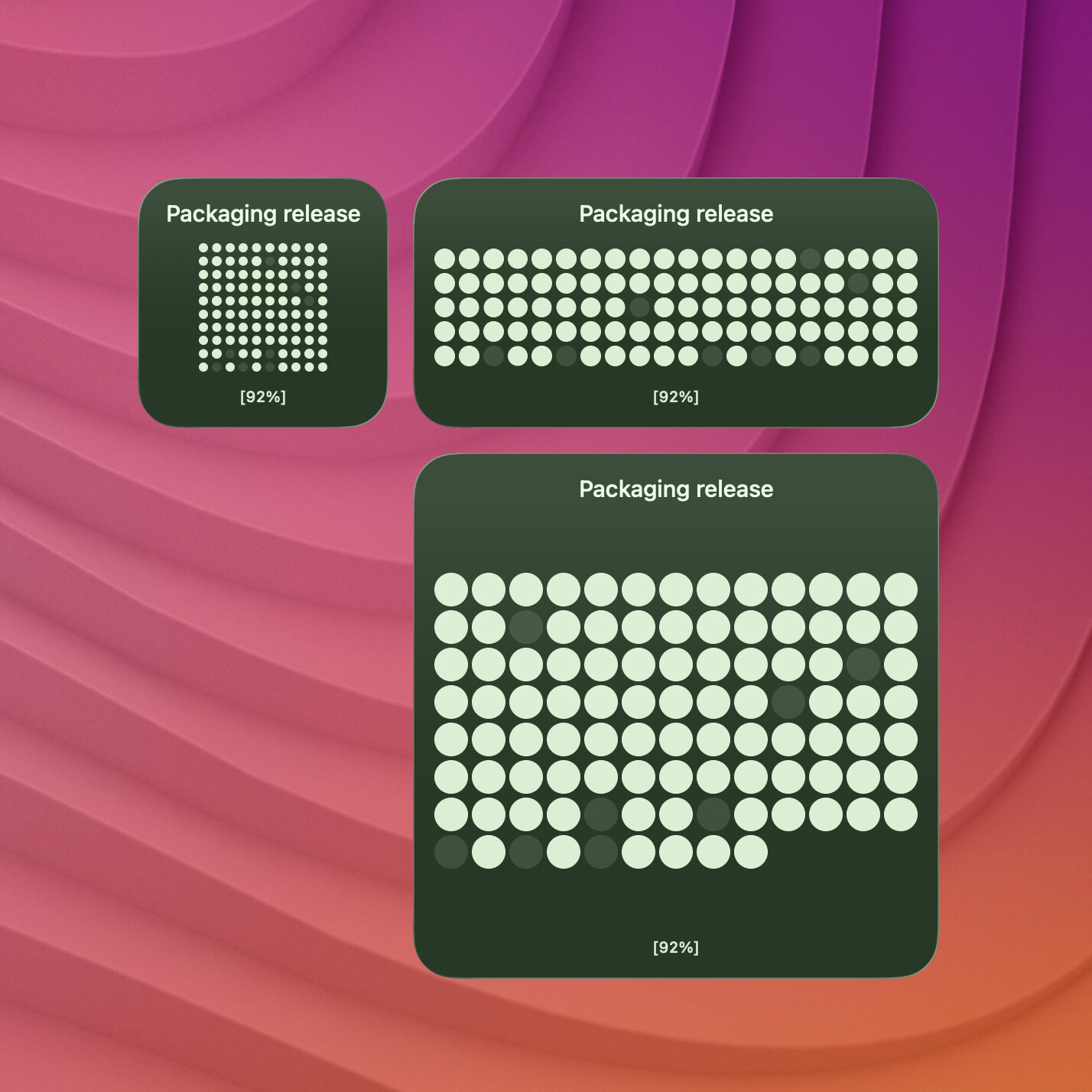

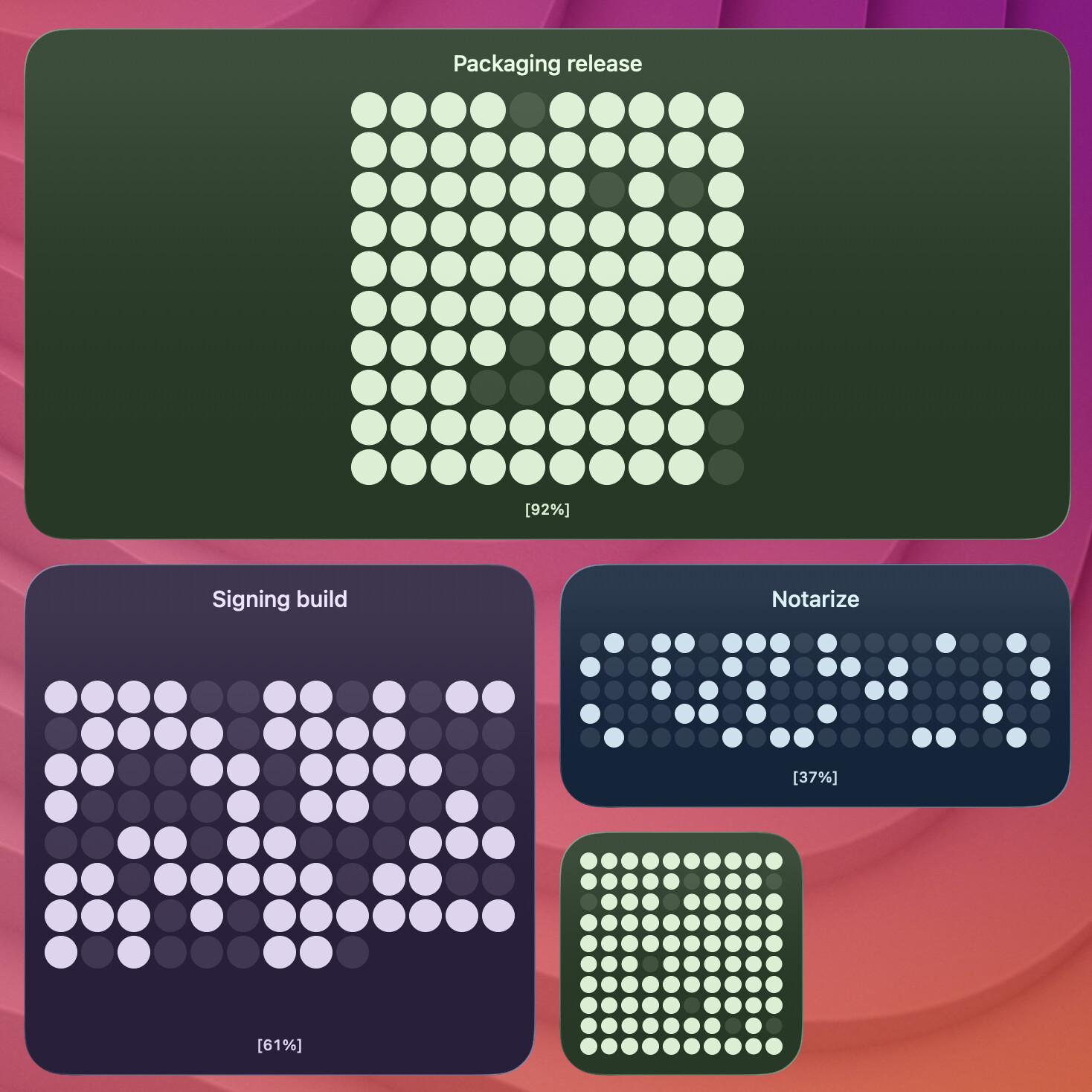

dots

terminal-widget --target widget1 --text "Packaging release" --progress 92 --progress-format dots --caption

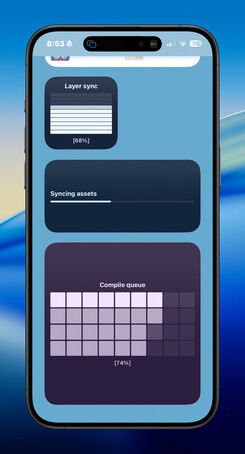

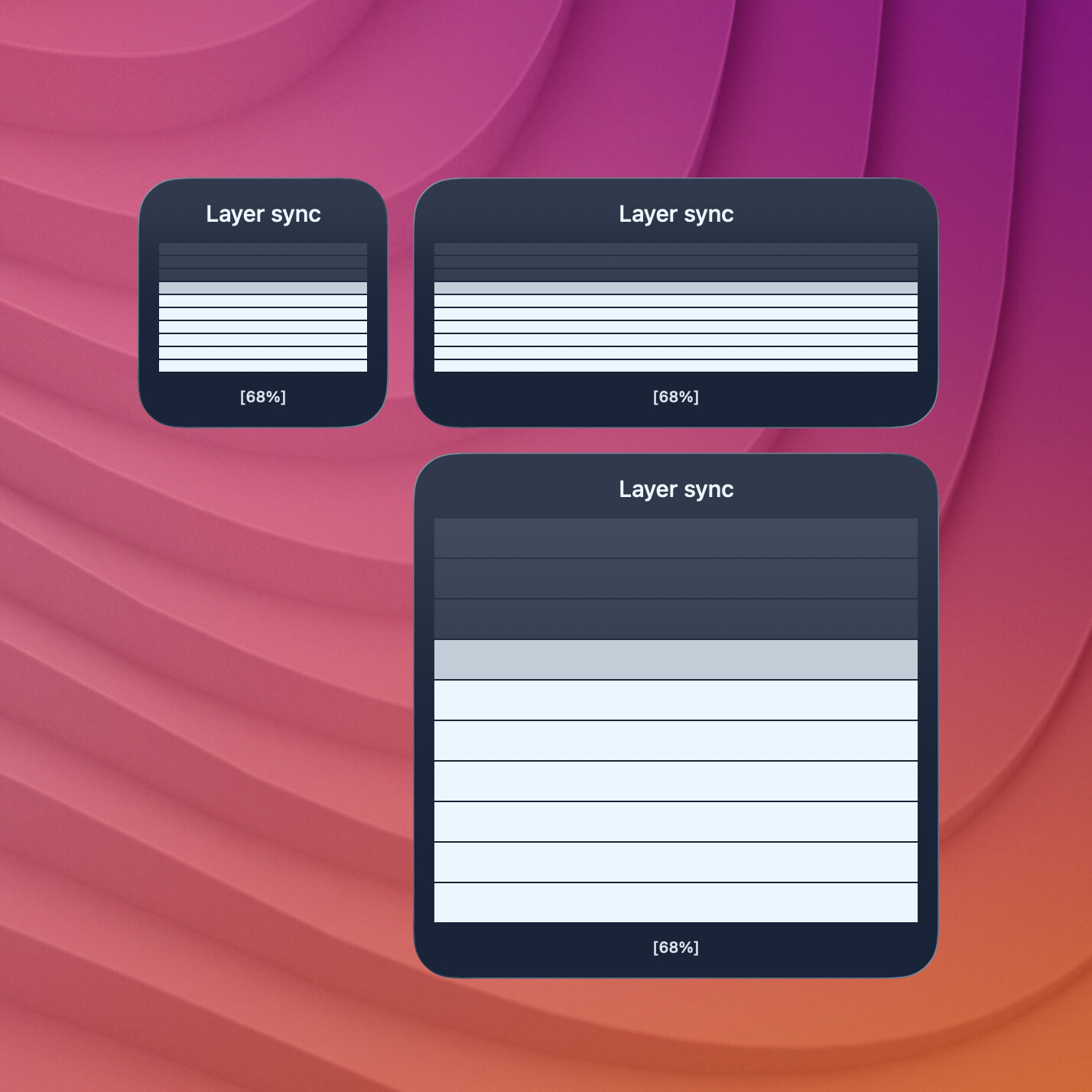

stack

terminal-widget --target widget1 --text "Layer sync" --progress 68 --progress-format stack --caption

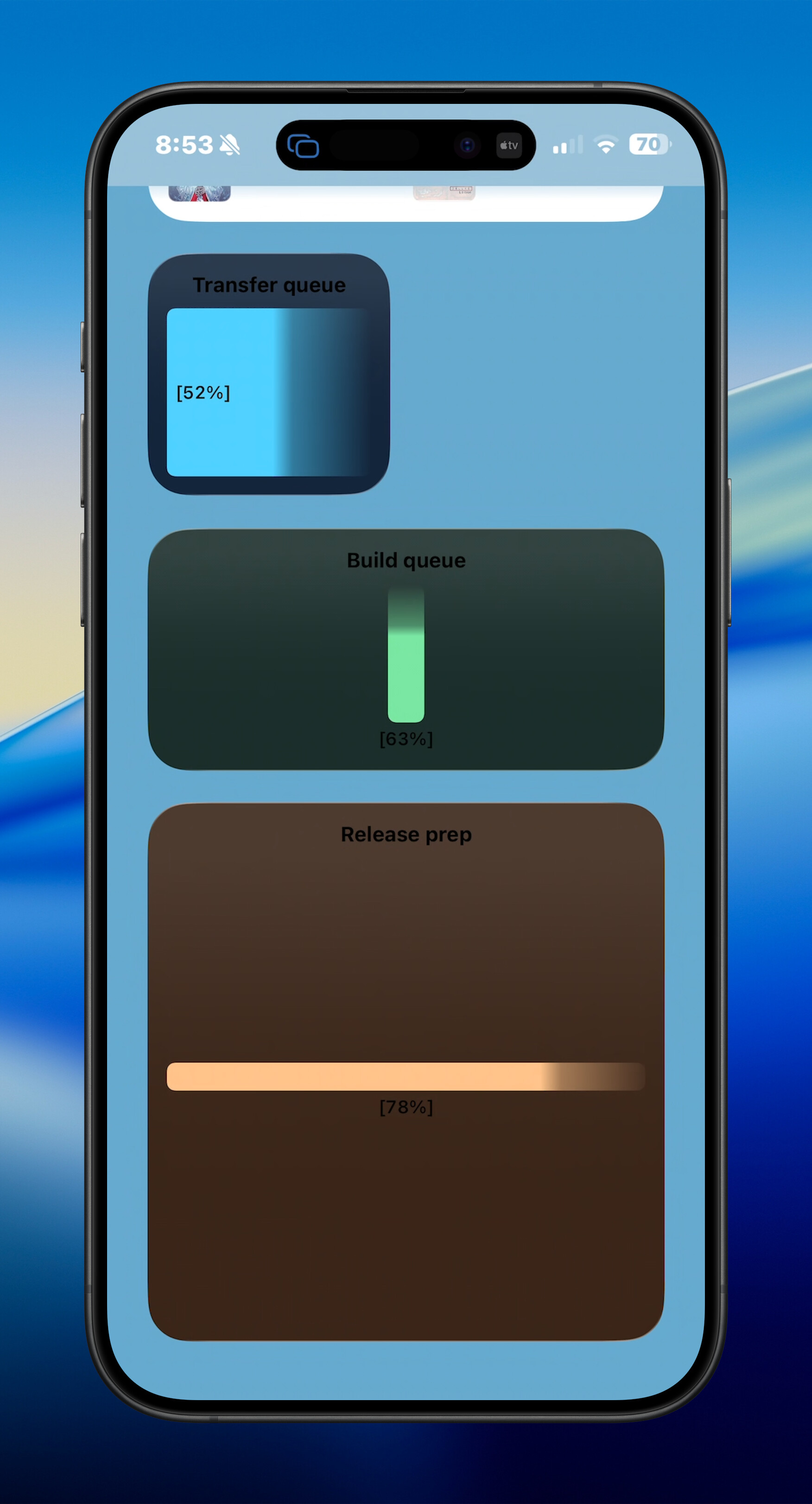

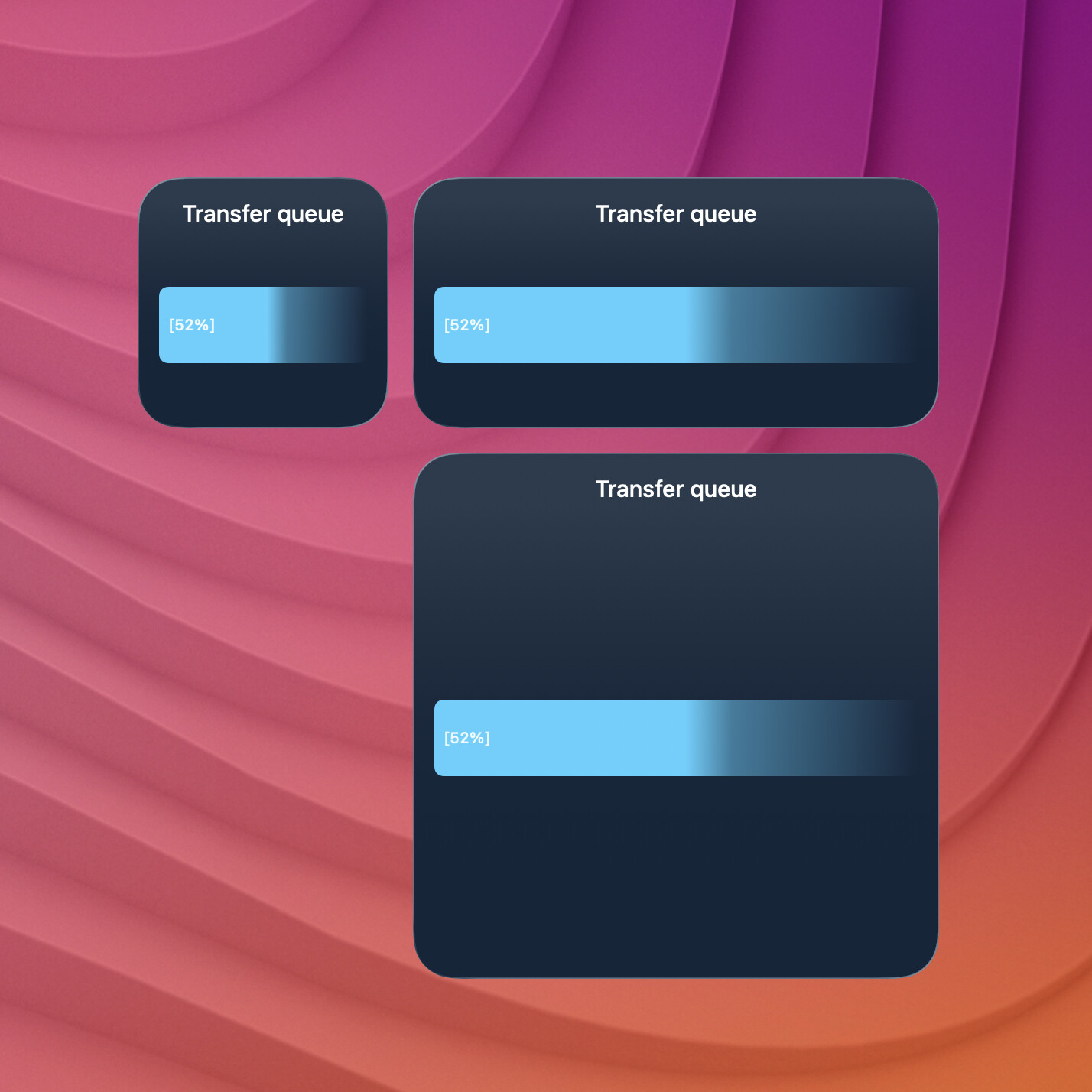

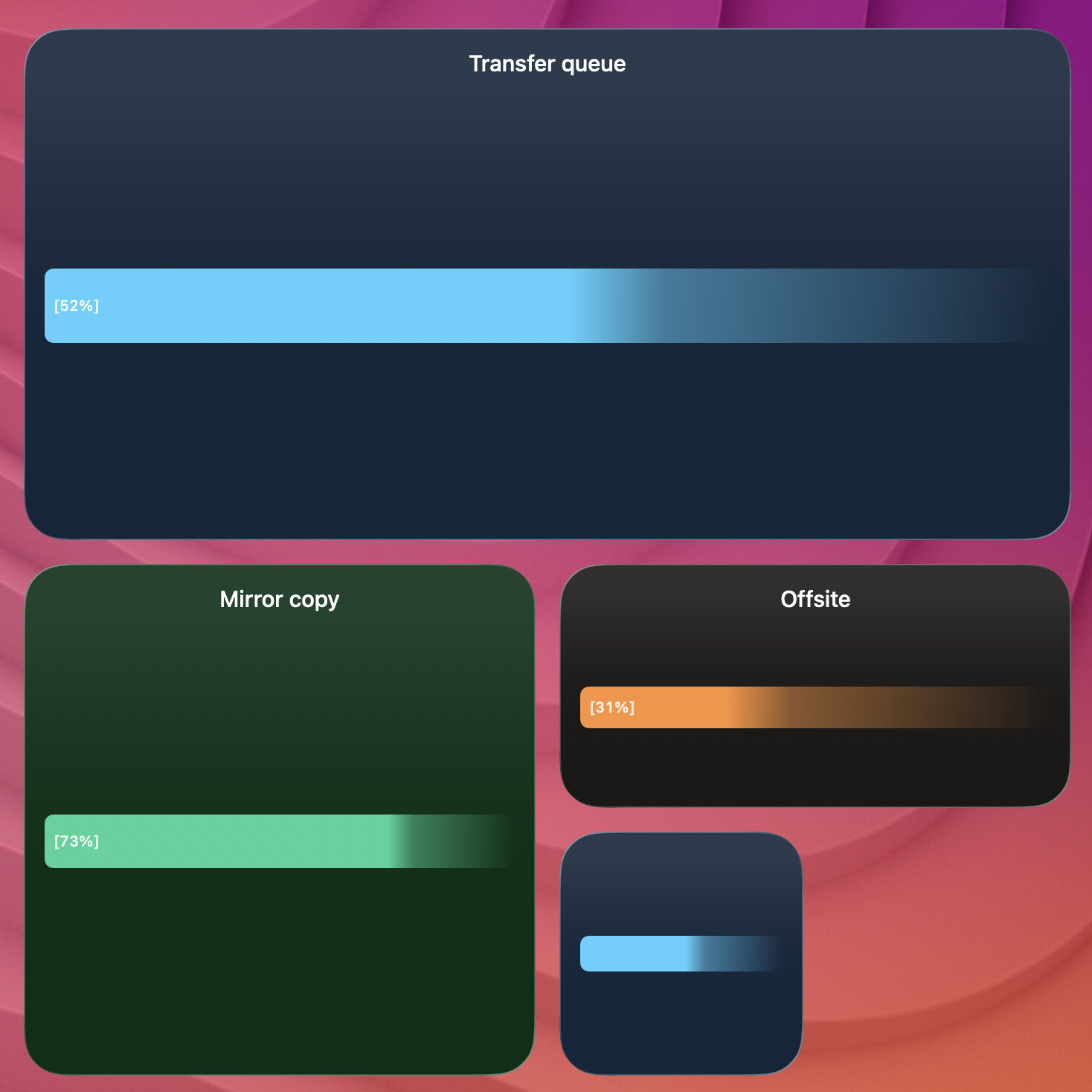

gradient / gradient-horizontal

gradient is an alias for gradient-horizontal.

terminal-widget --target widget1 --text "Transfer queue" --progress 52 --progress-format gradient --gradient-from "#4fd1ff" --caption

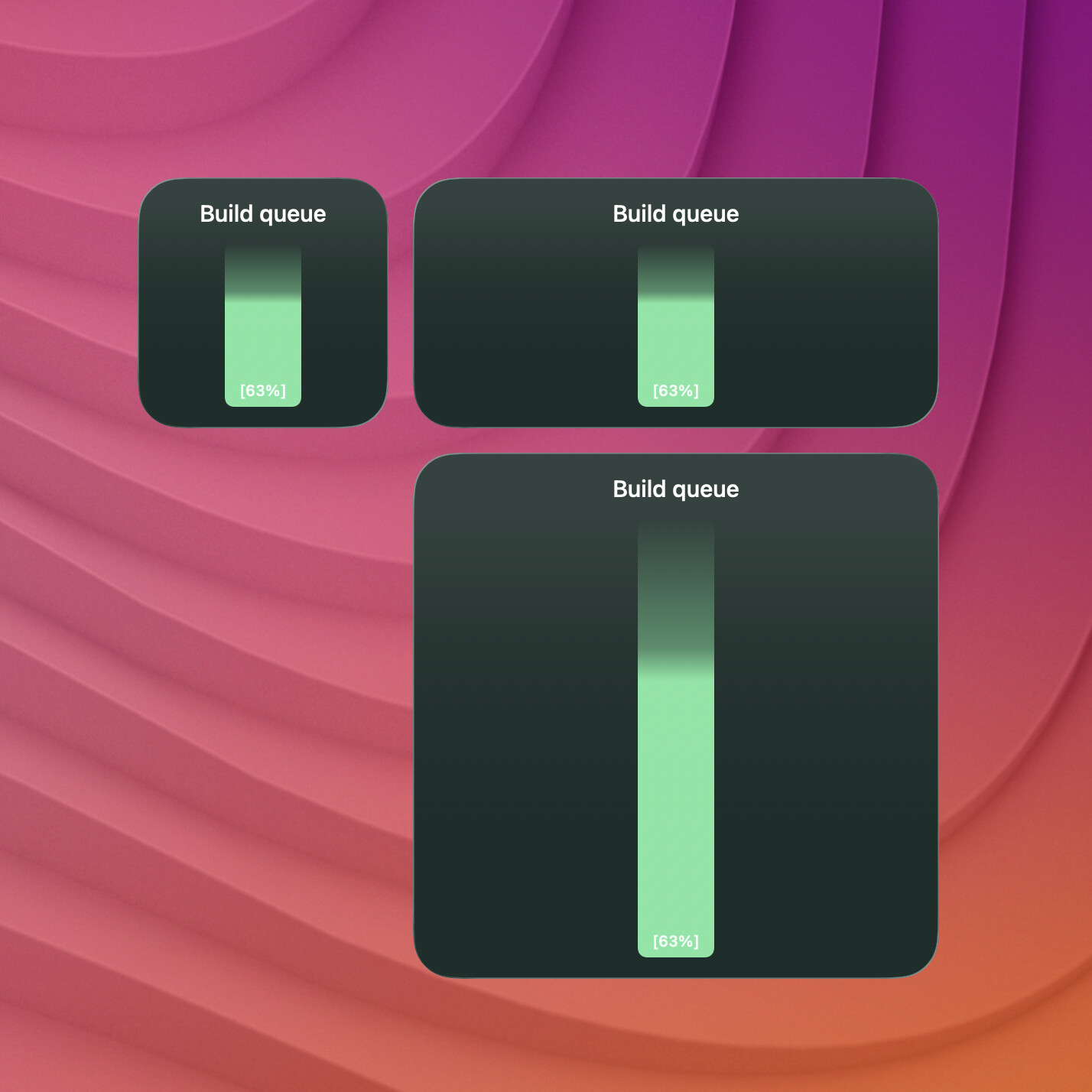

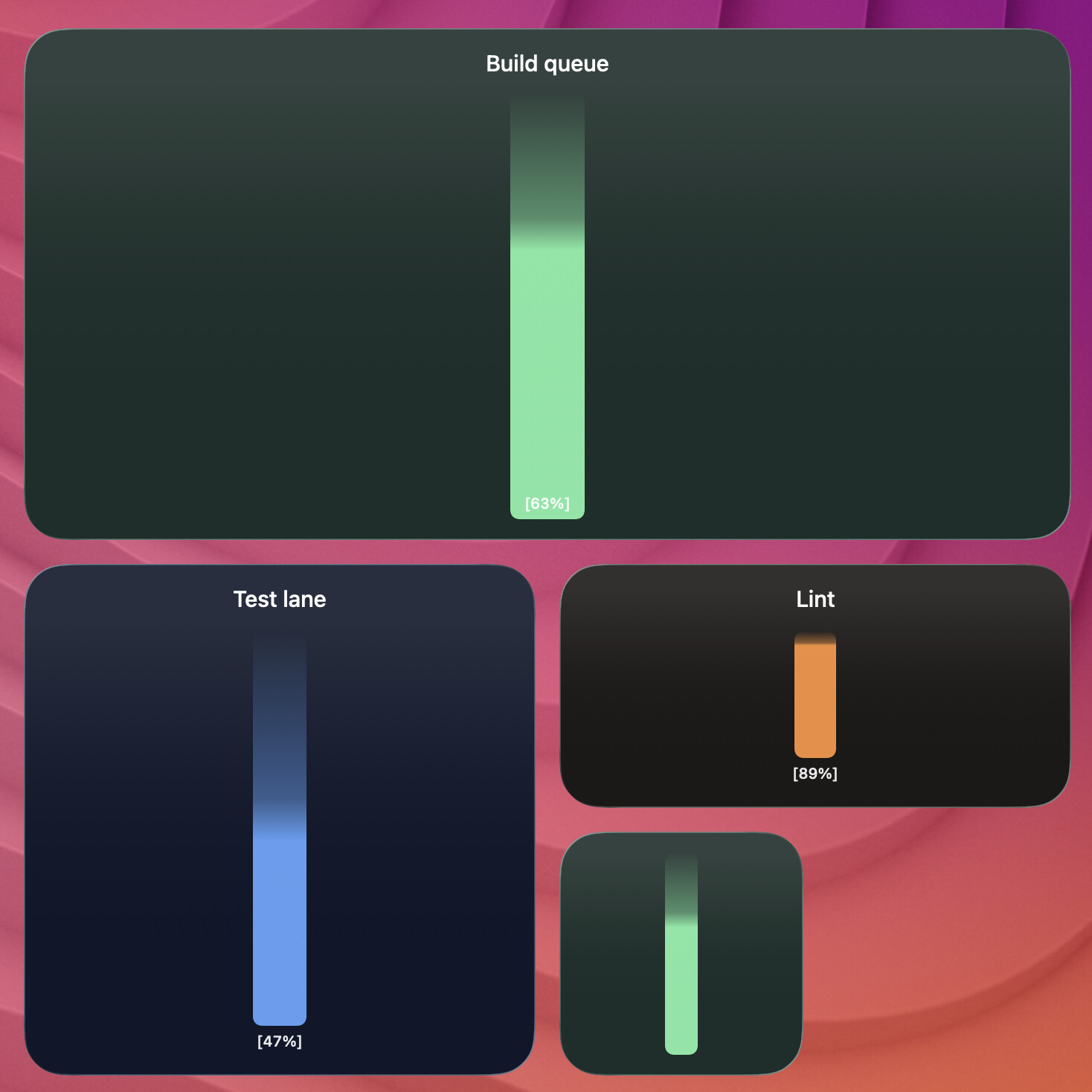

gradient-vertical

Use --gradient-width to render a narrower vertical progress bar.

terminal-widget --target widget1 --text "Build queue" --progress 63 --progress-format gradient-vertical --gradient-from "rgba(126,240,168,0.95)" --gradient-width 32 --caption

:emoji:` shortcode; left of label. If any button has an icon, all buttons reserve a left gutter so icons/labels line up id="circle">circle

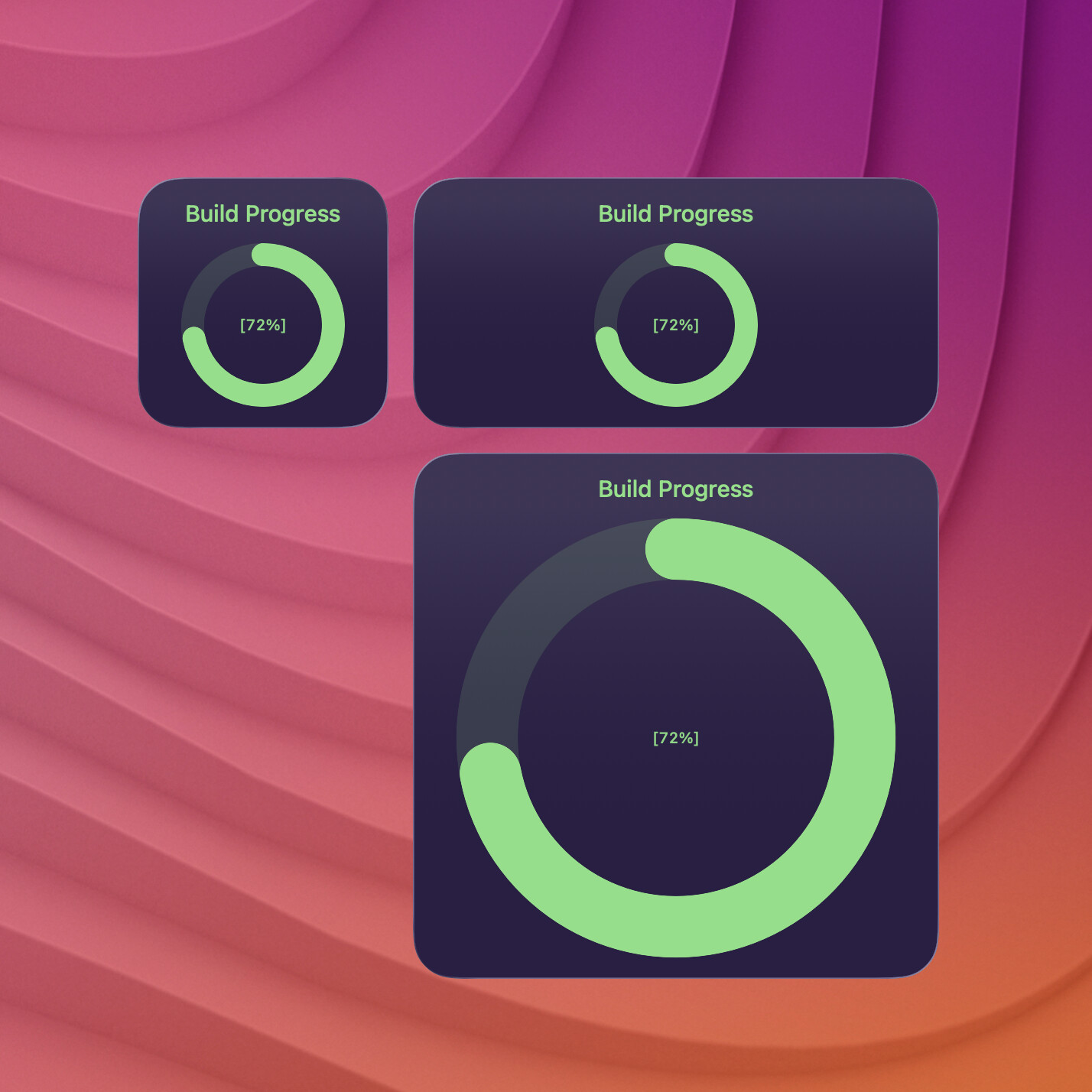

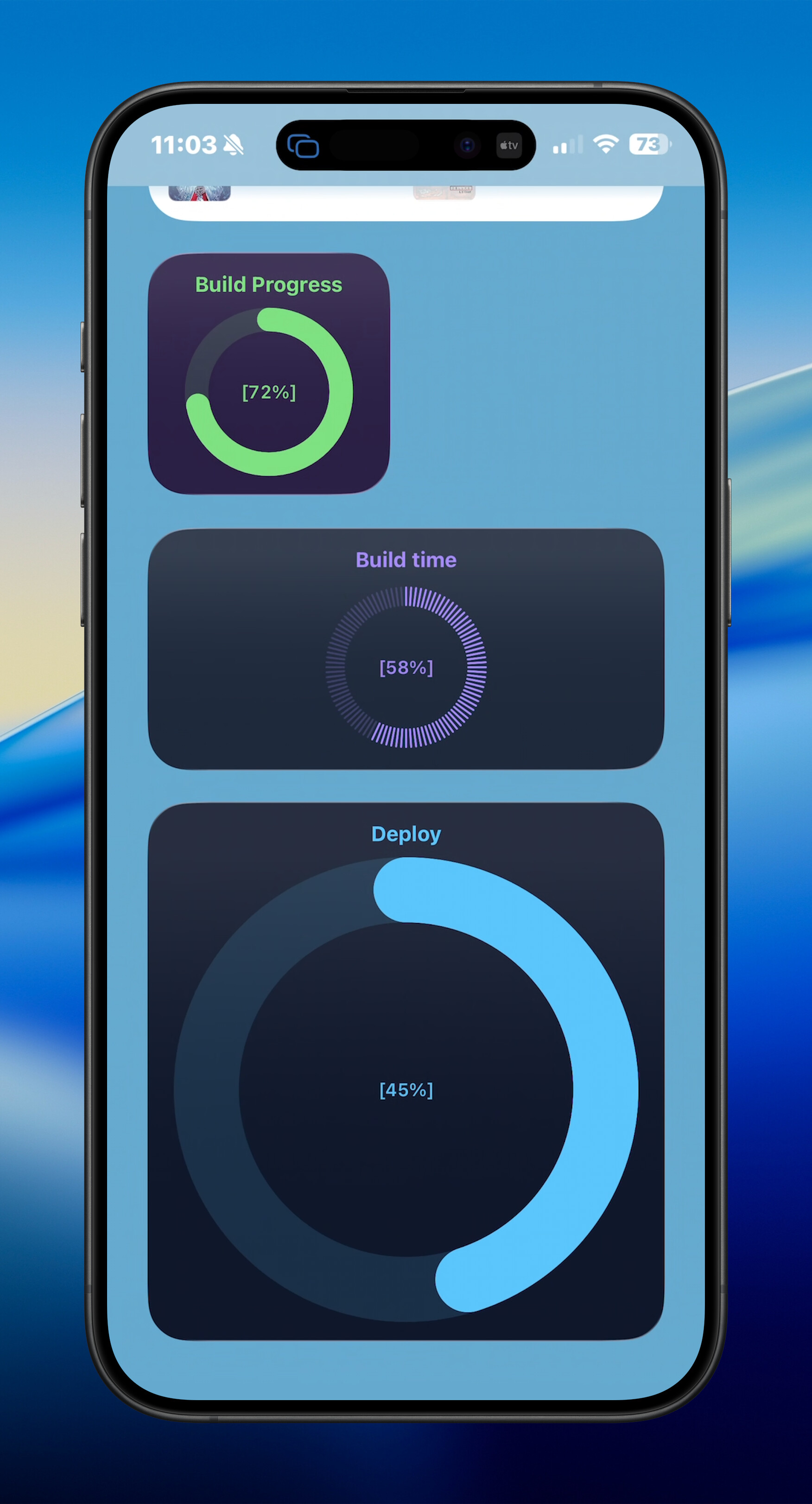

terminal-widget --target widget1 --text "Build Progress" --progress 72 --progress-format circle --fg "#7ee081" --caption --bg "#2a1f44"

macOS gallery slot progress-circle matches the command above (capture-macos-widgets.sh --only progress-circle).

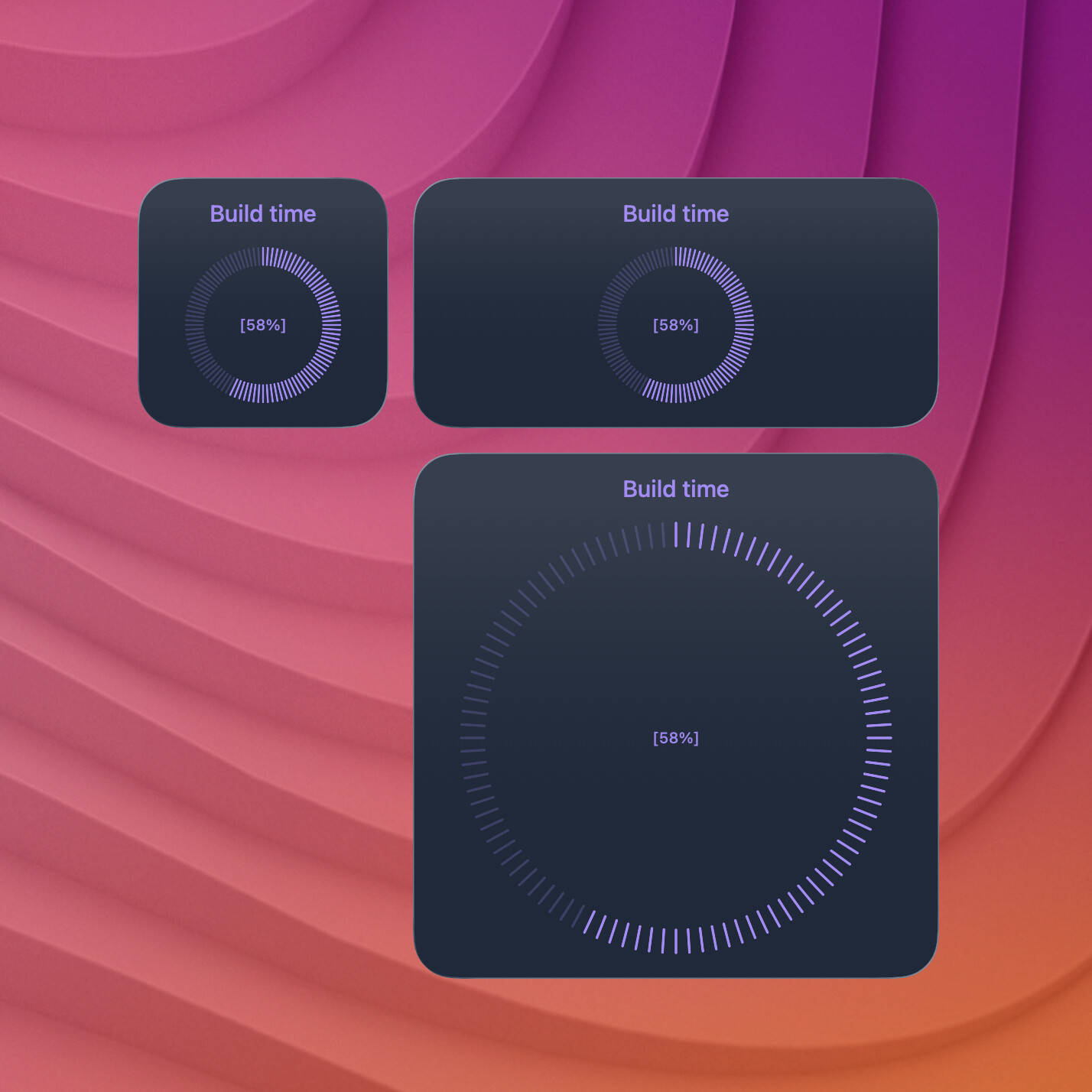

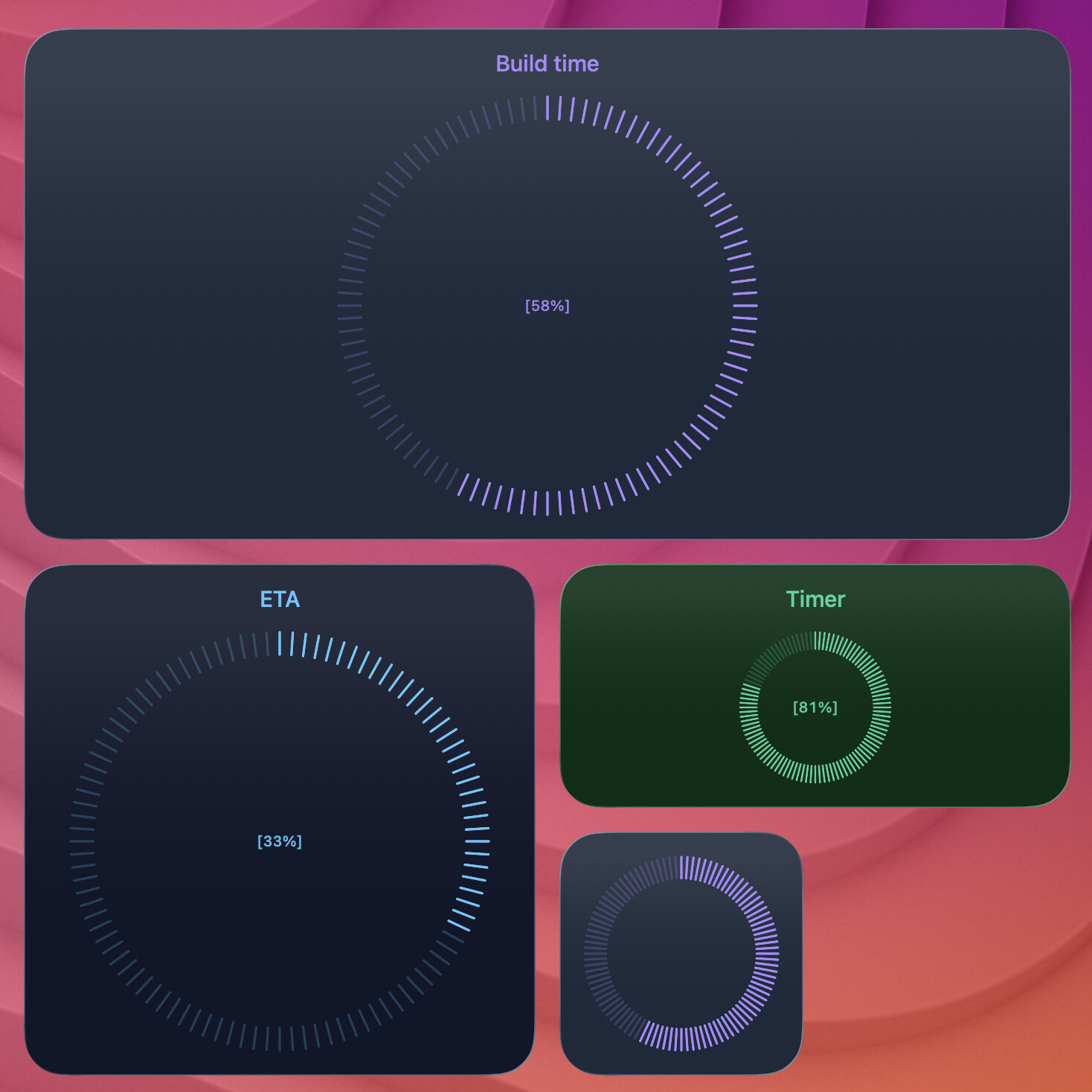

watch (clock-style arc)

terminal-widget --target widget1 --text "Build time" --progress 58 --progress-format watch --fg "#a78bfa" --caption --bg "#1e293b"

macOS gallery slot progress-watch matches the command above (capture-macos-widgets.sh --only progress-watch).

Chart Widgets

Chart mode uses --chart "N N ..." with --chart-format. rangebar uses low-high pairs instead of single numeric values.

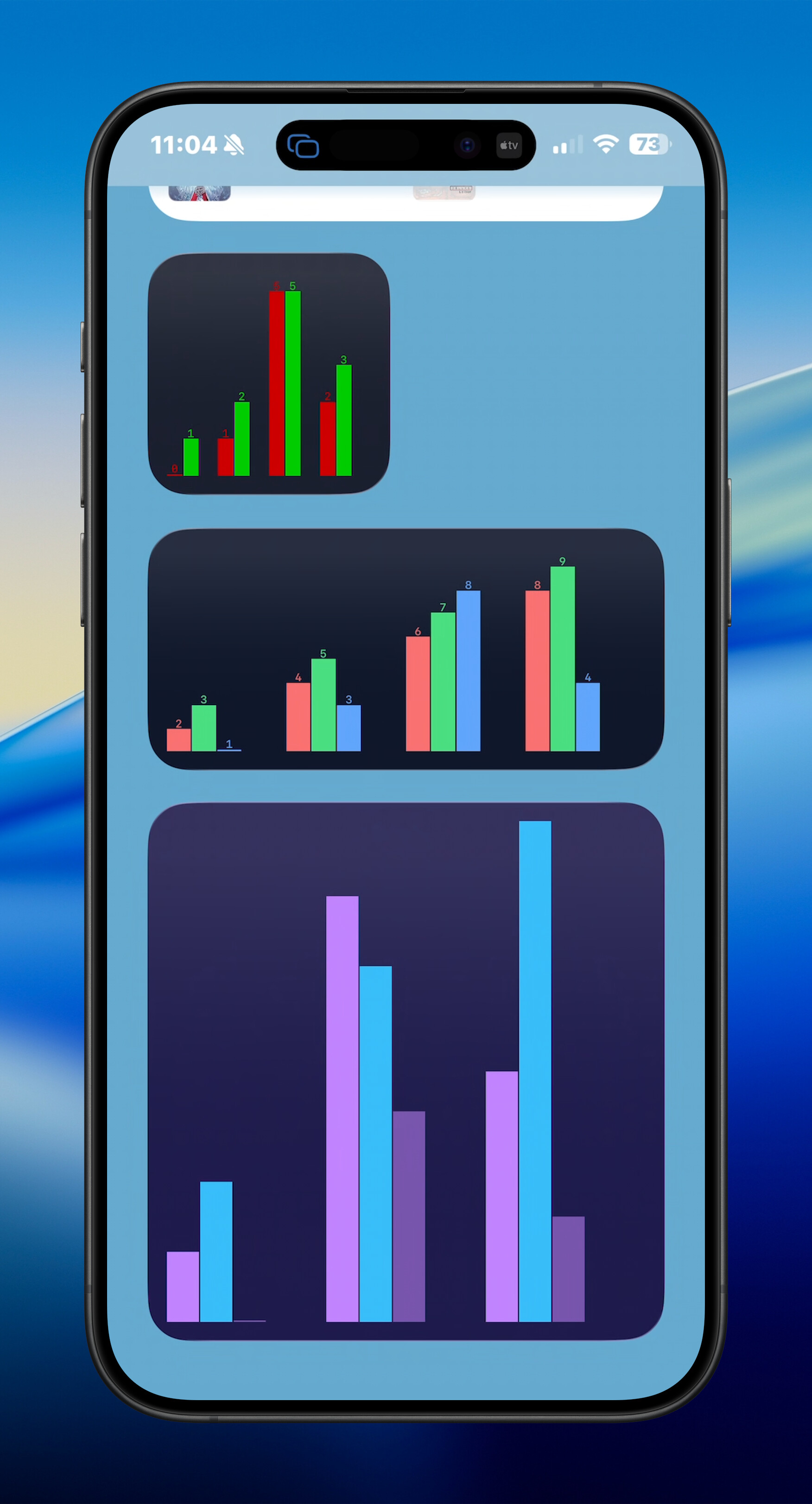

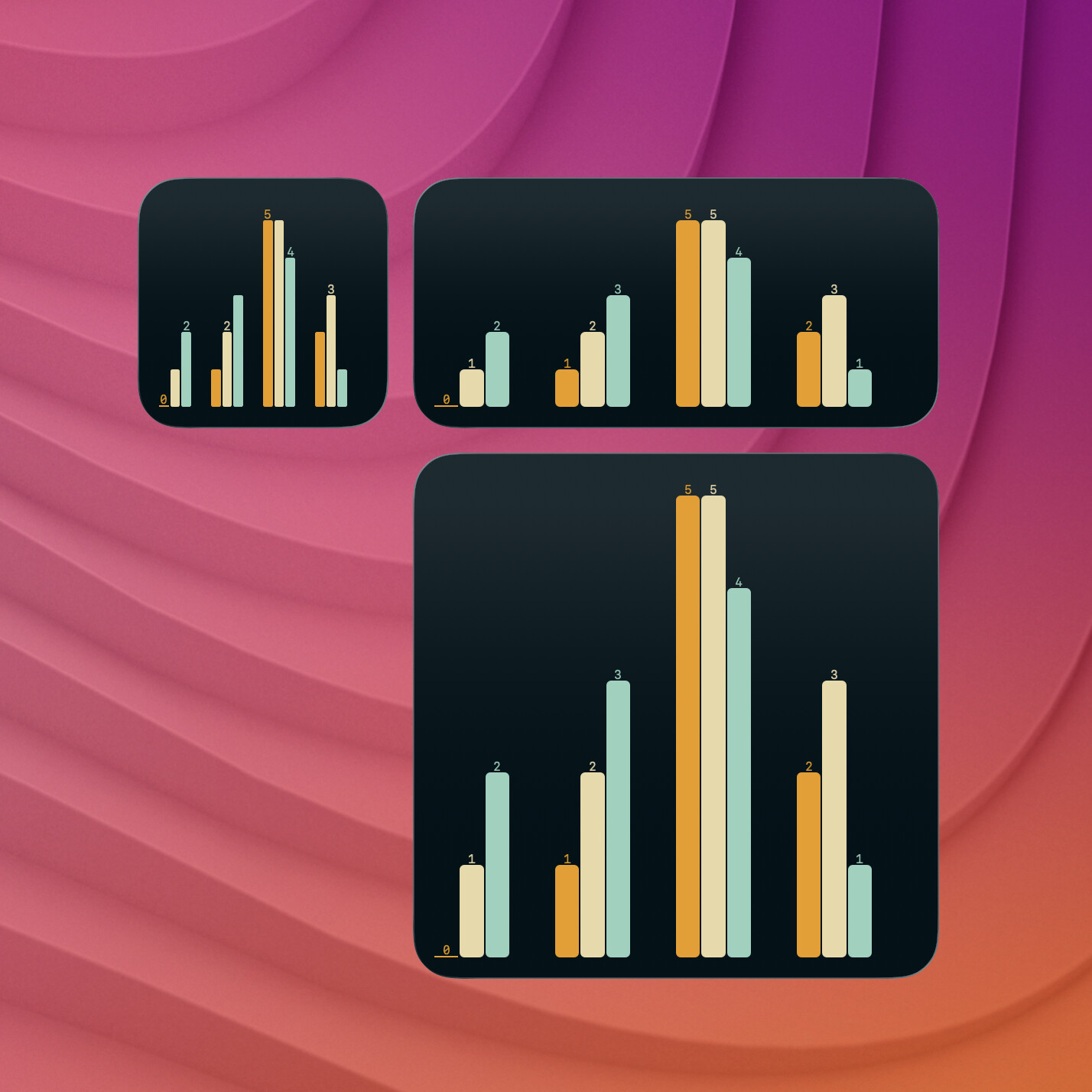

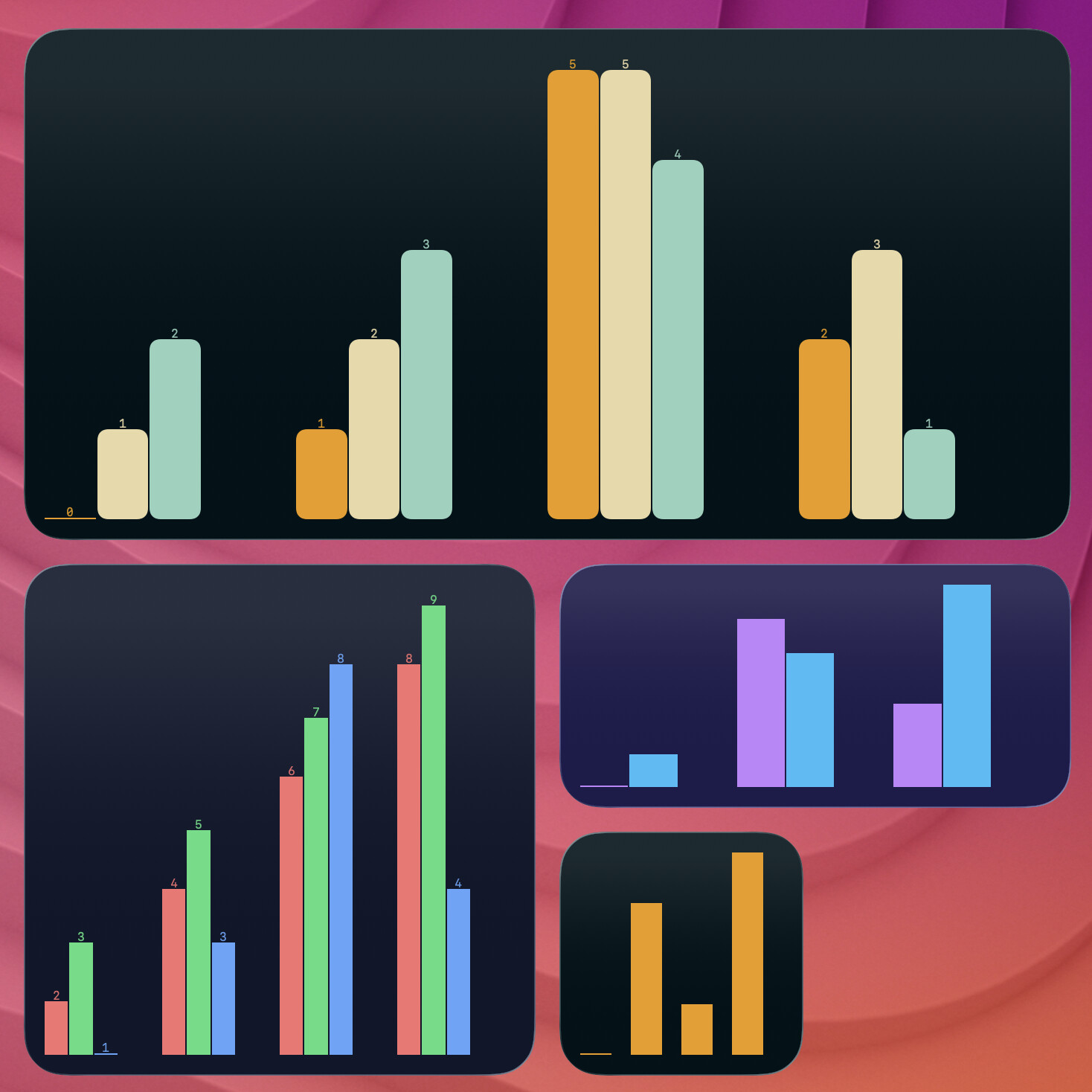

Grouped sparkline/bar (/ series)

Use slash-separated segments for side-by-side sub-bars per column (up to four series). Pair with comma-separated --foreground for per-series colors.

terminal-widget --target widget1 --chart "0 1 5 2/1 2 5 3/2 3 4 1" --chart-format bar --bar-radius 20 --fg "#ee9b00,#e9d8a6,#94d2bd" --annotate --bg "#001219"

macOS gallery slot chart-grouped matches the command above (capture-macos-widgets.sh --only chart-grouped). iOS interactive scene chart-grouped uses the same slash syntax on all three widget targets.

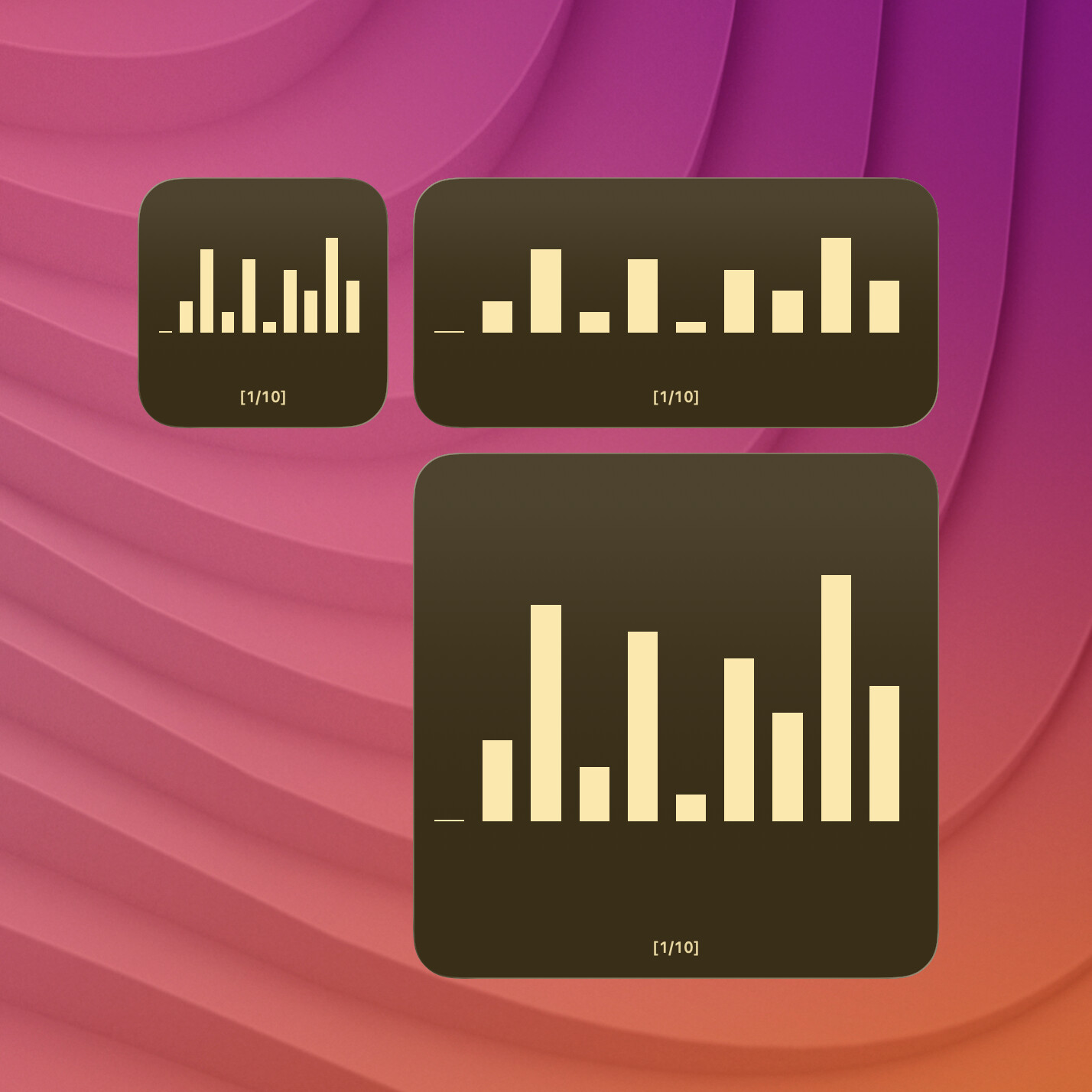

Starter Example

terminal-widget --target widget1 --chart "1 4 9 3 8 2 7 5 10 6" --chart-format sparkline

Append and limit (--append, --limit)

Use --append to add chart columns (same syntax as --chart, including slash-grouped series and rangebar low-high pairs) or text lines without replacing the rest of the widget. Use --limit N for a rolling window of the newest N columns/lines (0 clears the soft limit; charts still hard-cap at 128 newest points).

terminal-widget --target widget1 --chart "1 4 9 3 8 2 7 5" --chart-format sparkline --limit 8 --bar-radius 20 --chart-bar-style glass --fg "#ffffff" --bg "#9b1e86"
terminal-widget --target widget1 --append "10 6" --limit 8

macOS gallery slot chart-append-limit matches the sequence above.

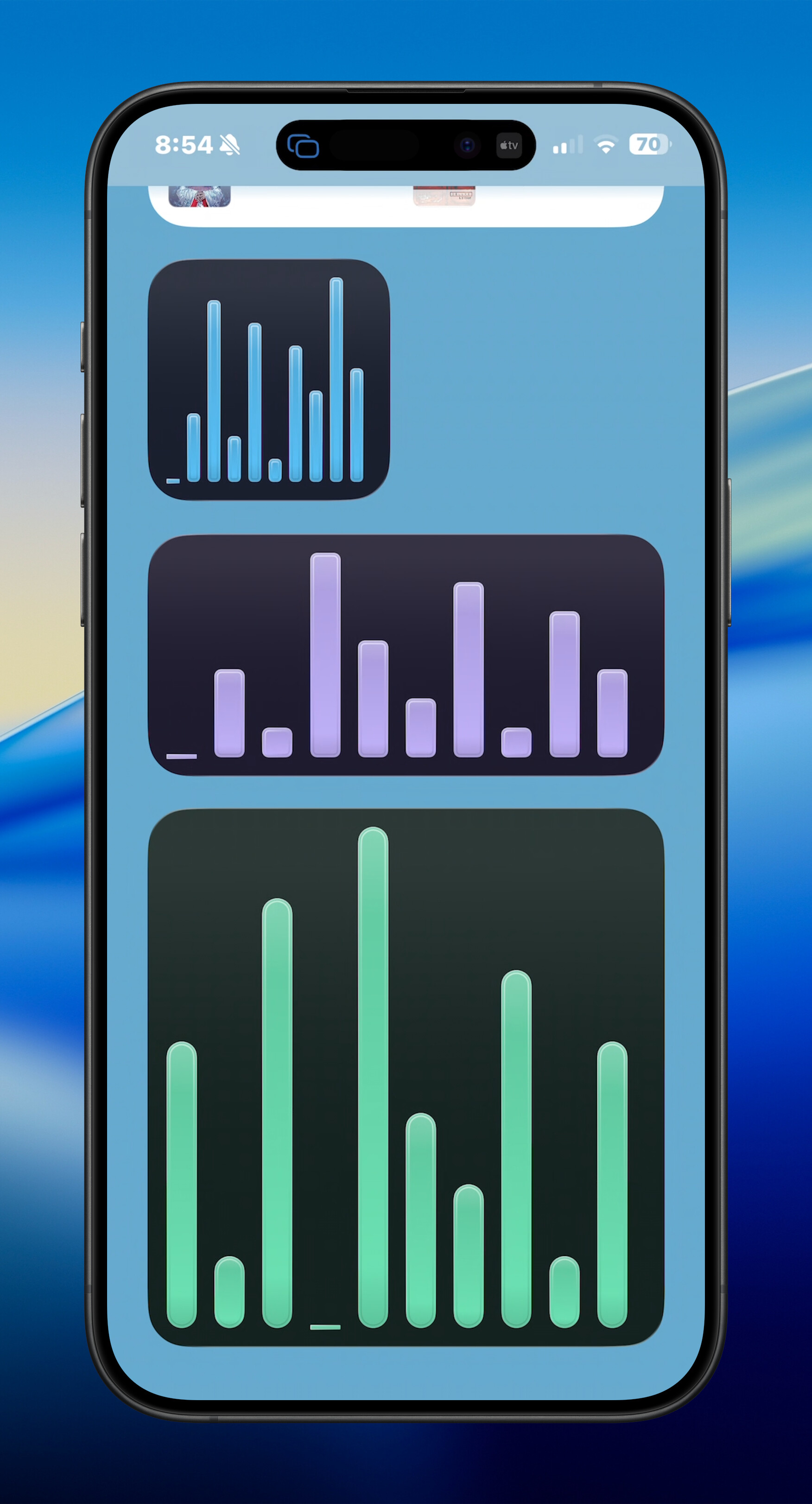

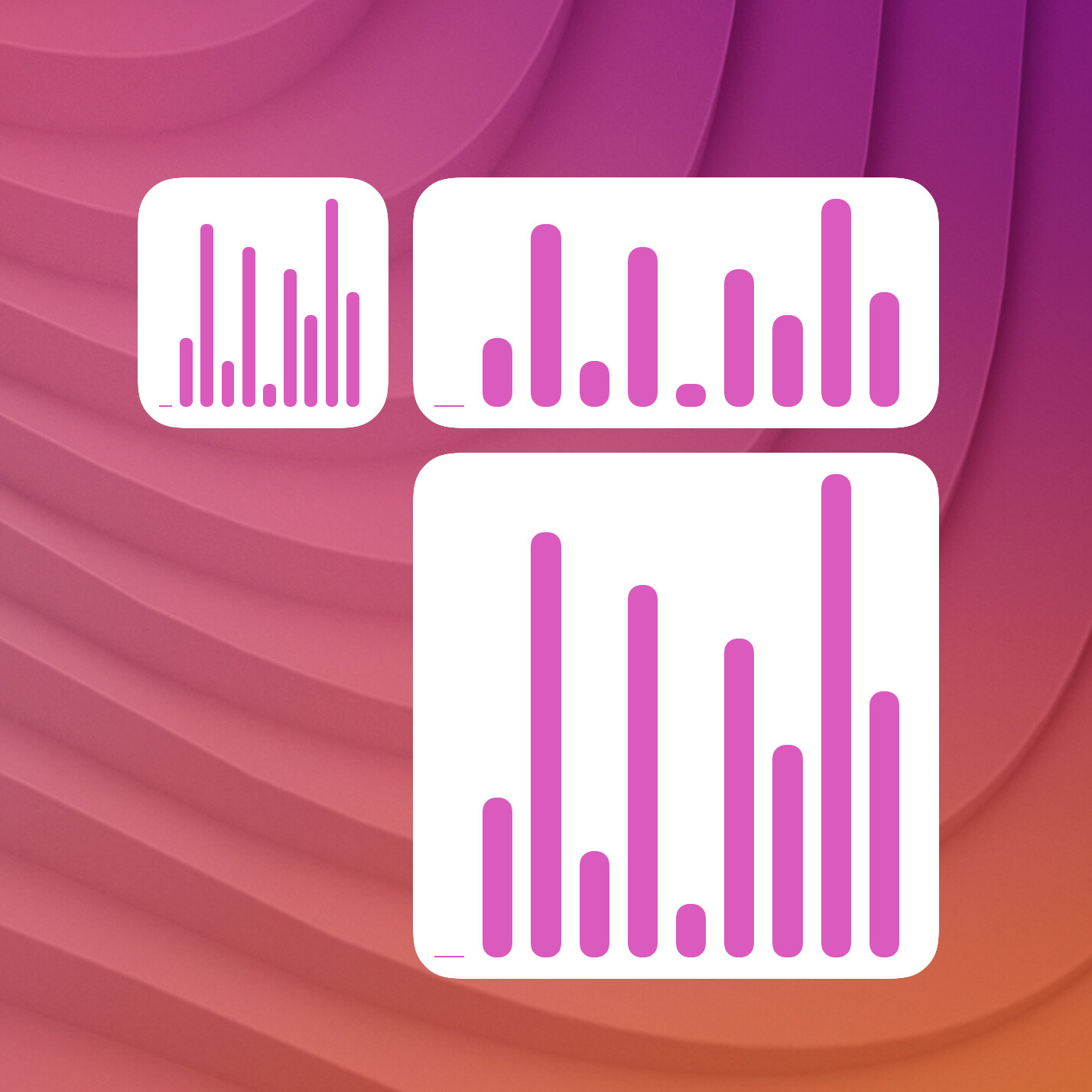

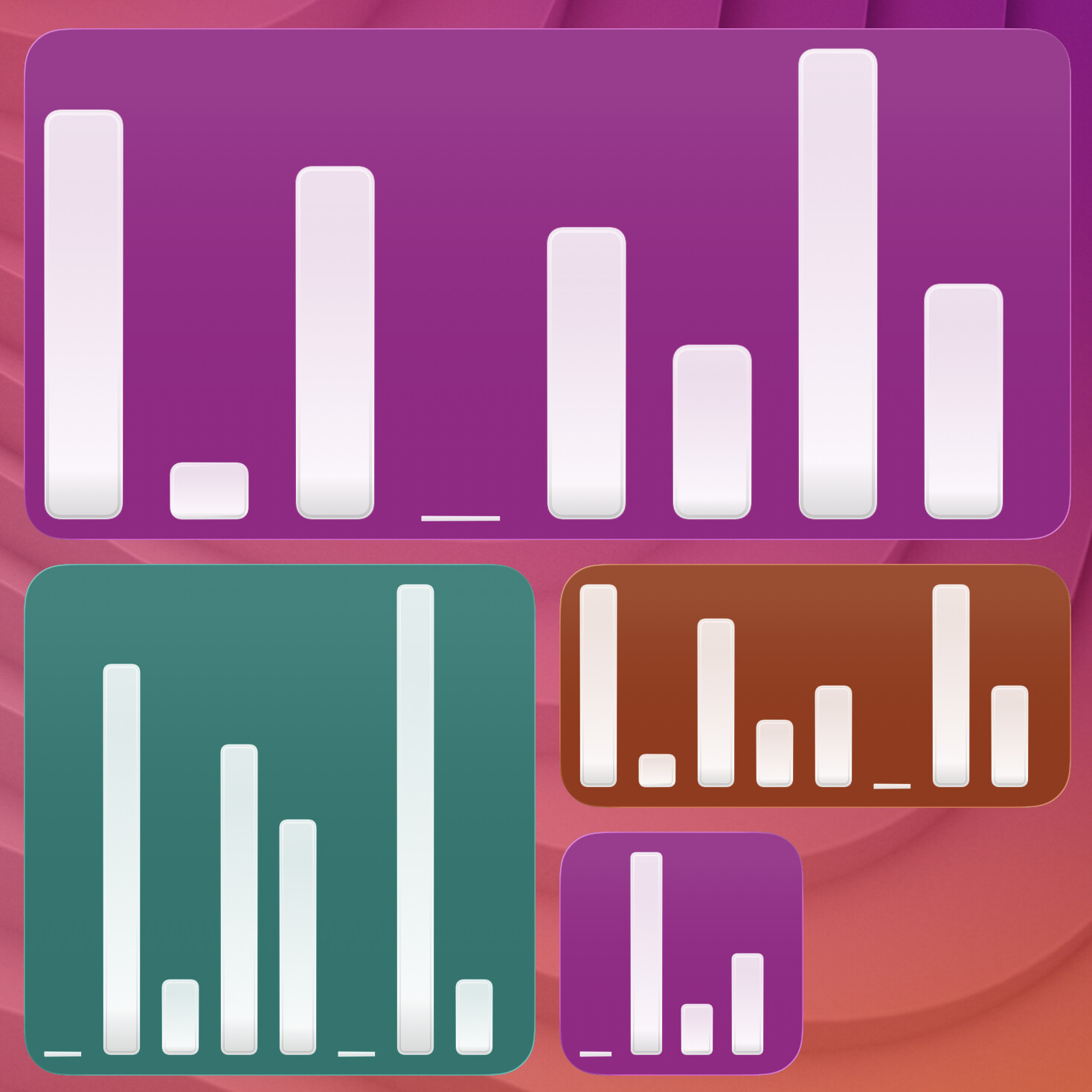

Bar radius (--bar-radius)

Use --bar-radius 0..100 to round sparkline bar corners, or range bar column corners in rangebar mode.

terminal-widget --target widget1 --chart "1 4 9 3 8 2 7 5 10 6" --chart-format sparkline --bar-radius 45
terminal-widget --target widget1 --chart "1-3,2-4,1-5" --chart-format rangebar --bar-radius 40

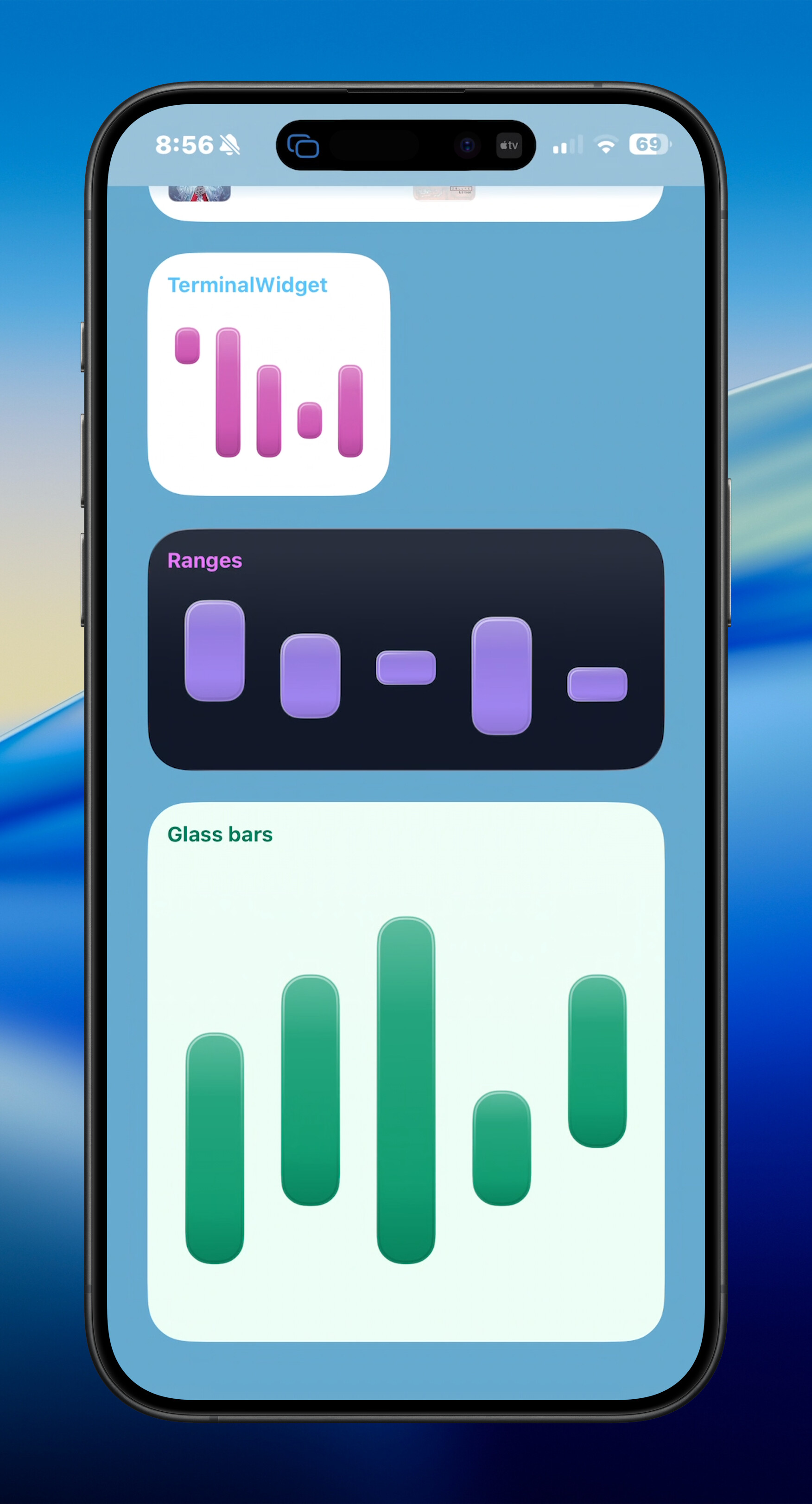

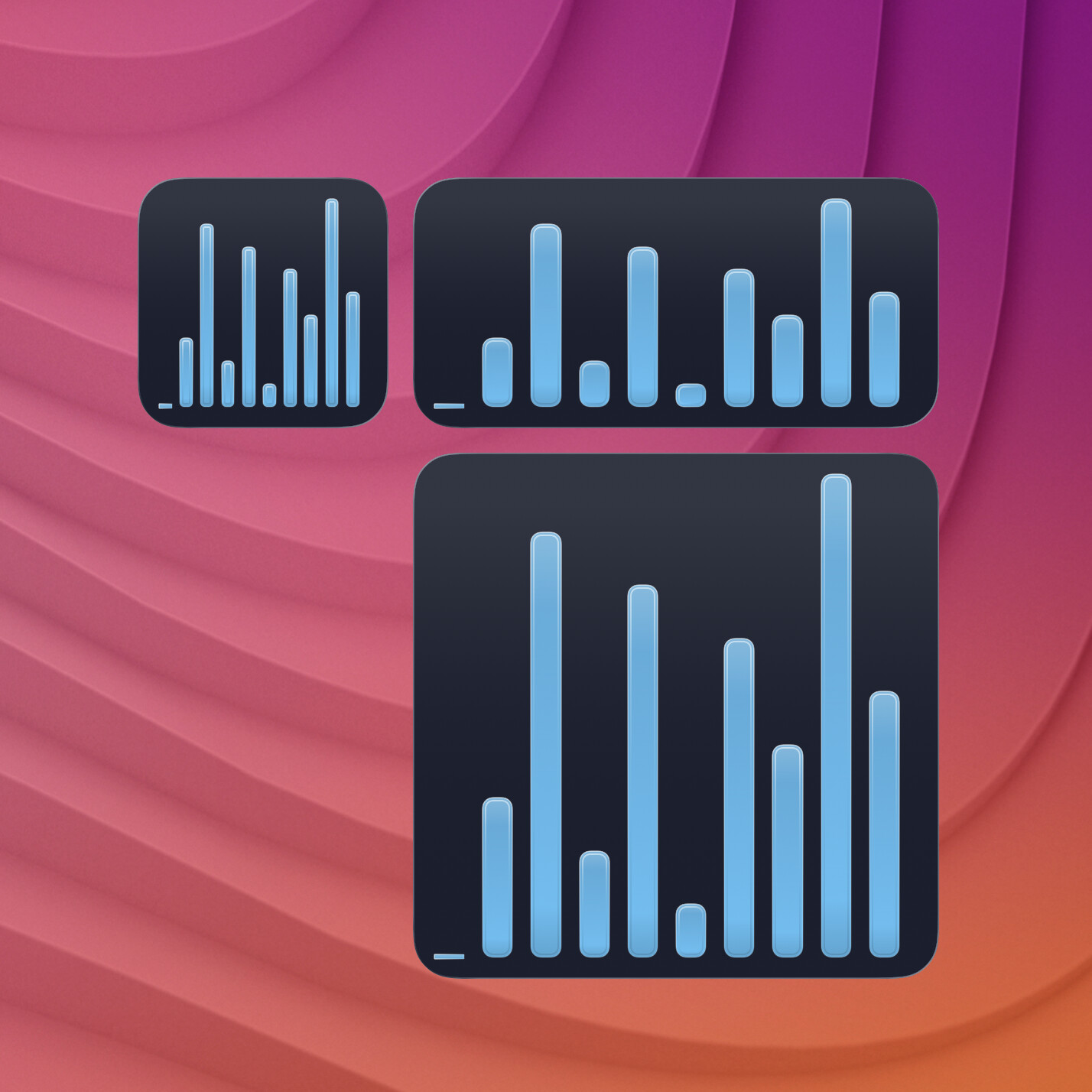

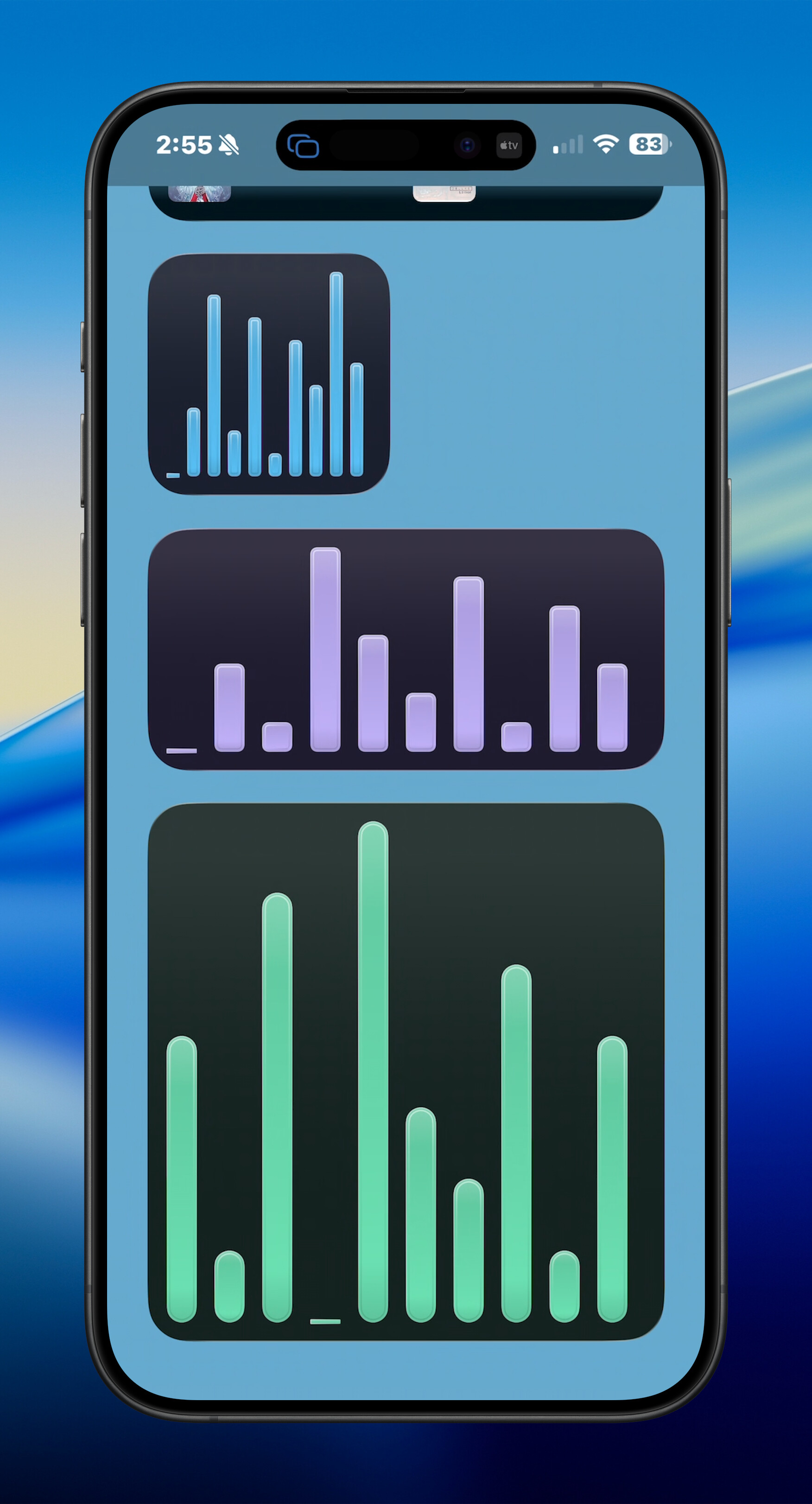

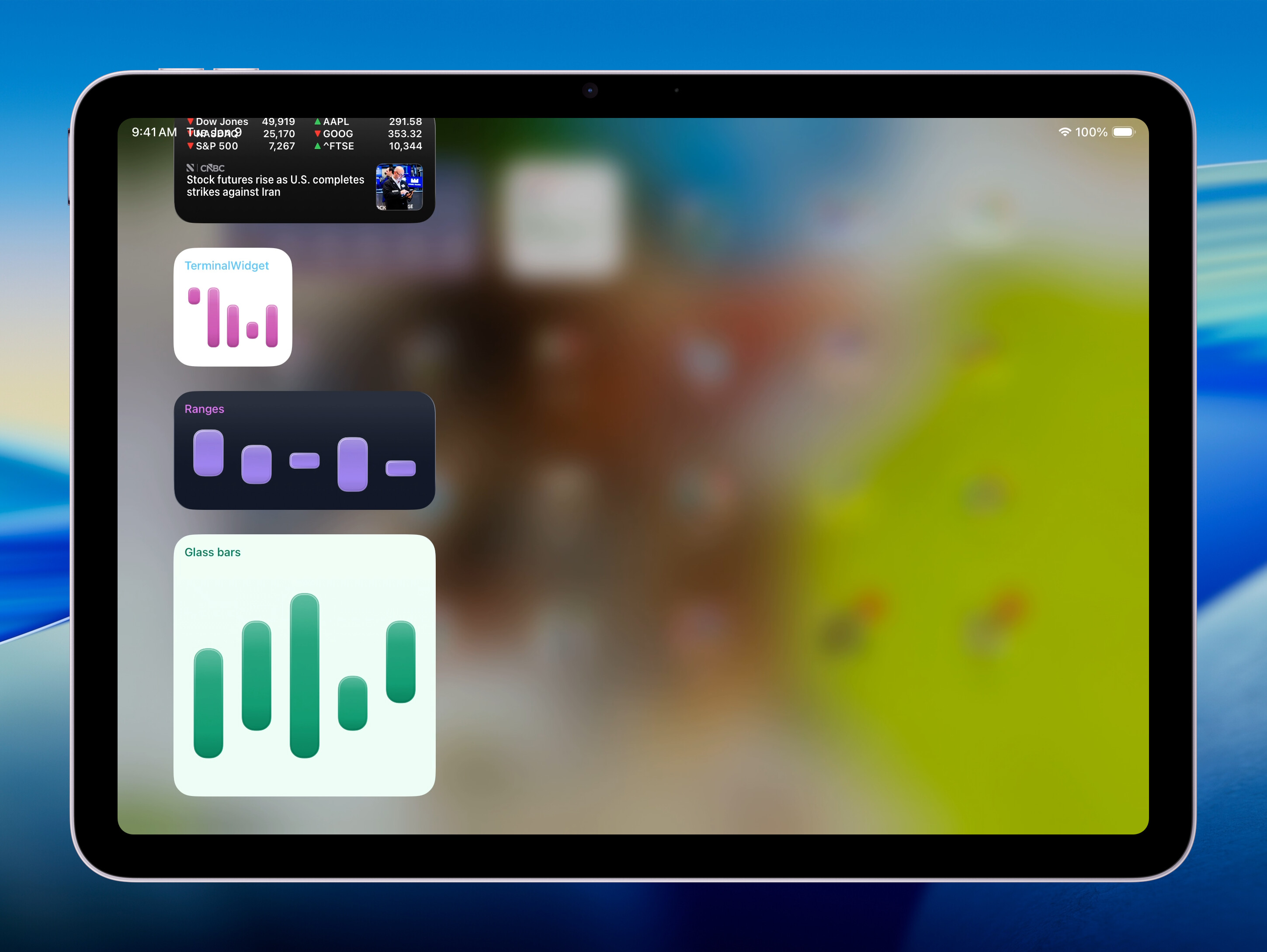

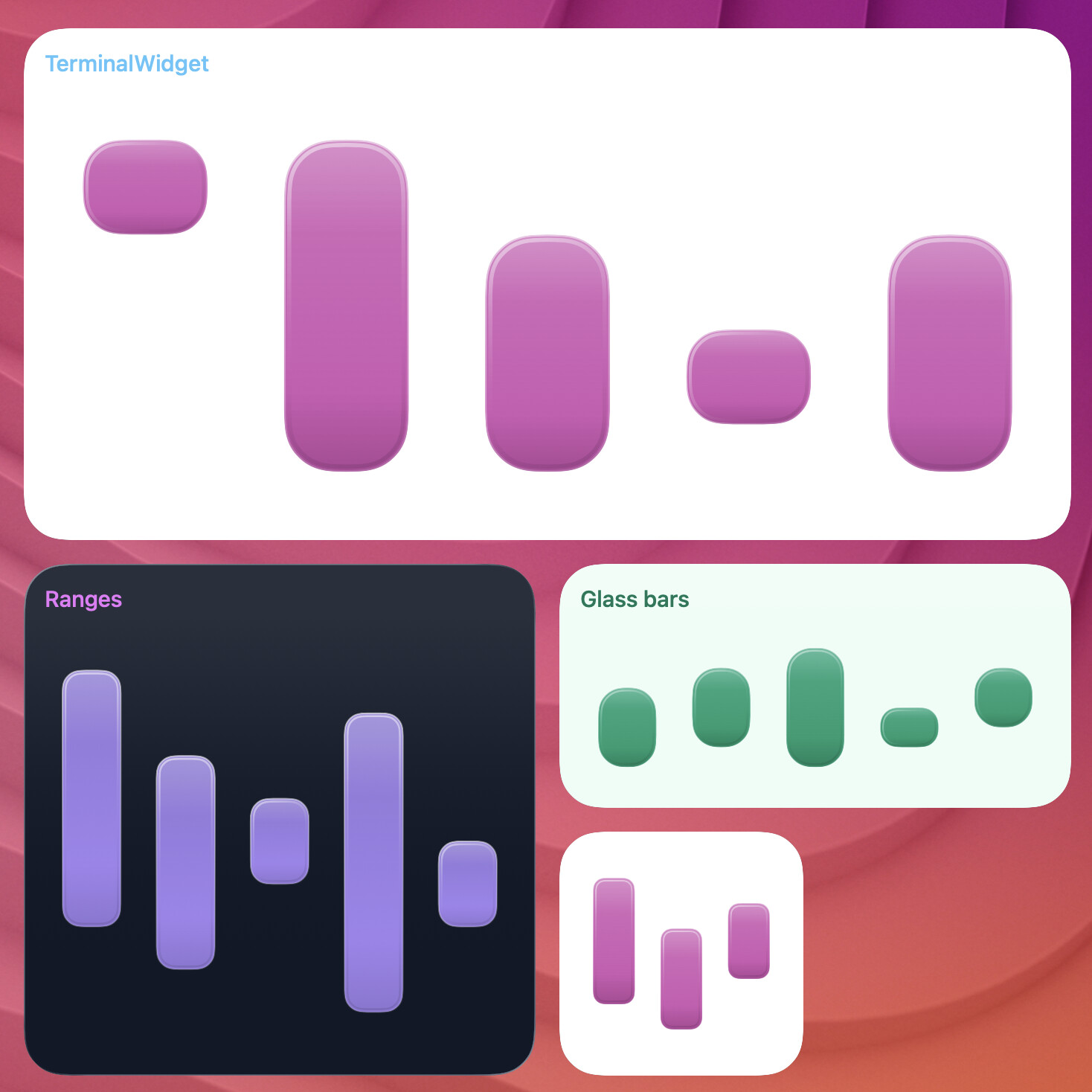

Chart bar style (--chart-bar-style)

Use --chart-bar-style glass with bar-like formats (sparkline, waveform, rangebar, matrix, delta) for a gradient “liquid glass” bar/cell treatment (default is solid). The same flag applies to circle progress rings (--progress-format circle) without chart data.

terminal-widget --target widget1 --chart "1 4 9 3 8 2 7 5 10 6" --chart-format sparkline --chart-bar-style glass --bar-radius 35
terminal-widget --target widget1 --progress 72 --progress-format circle --chart-bar-style glass --fg "#4a9eff" --caption

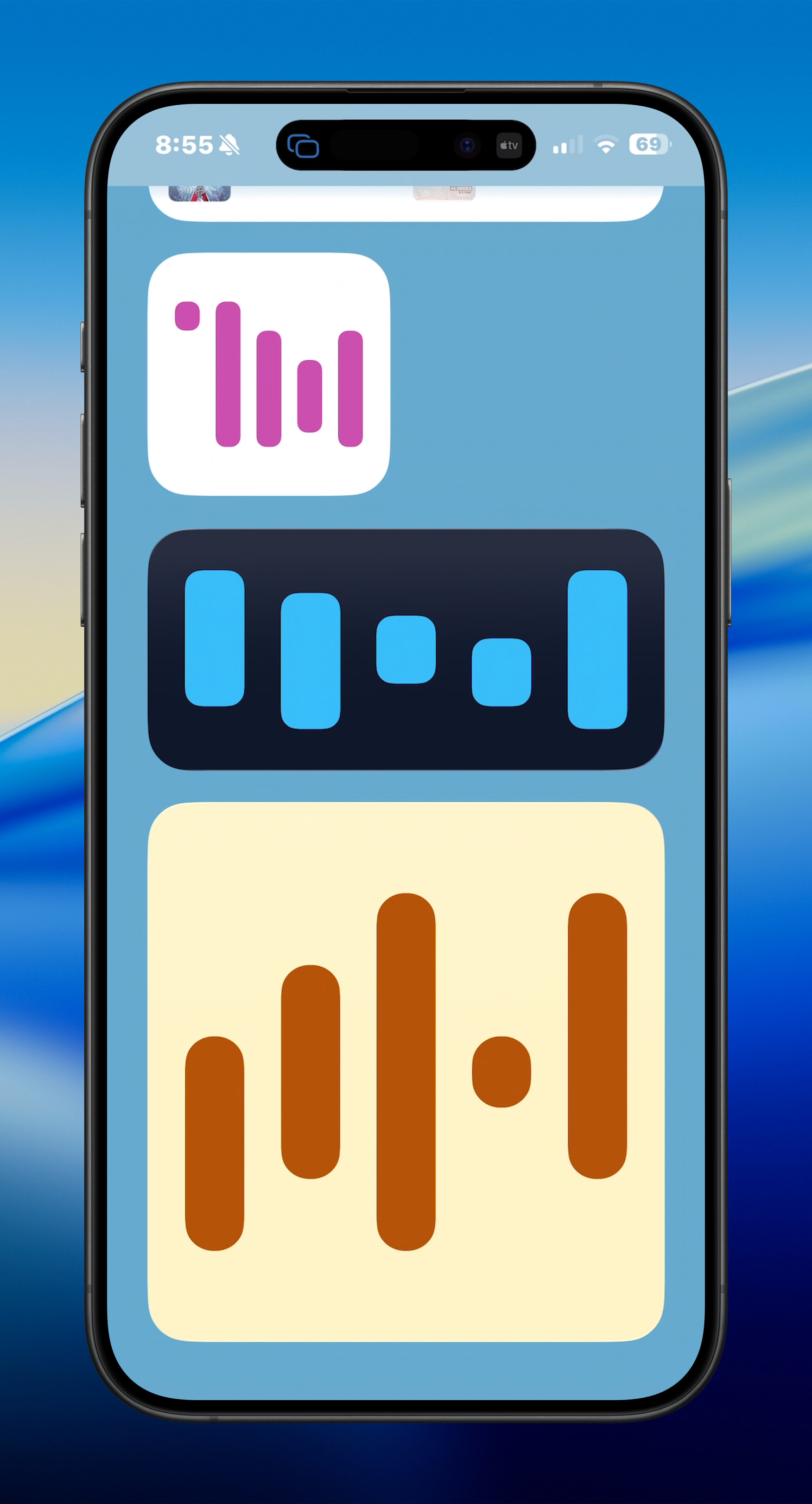

terminal-widget --chart "6-8,1-8,1-6,2-4,1-6" --chart-format rangebar --chart-bar-style glass --bar-radius 40 --target widget1 --bg "ffffff" --fg "ca4fae" --text "TerminalWidget" --text-color "#5ac5fa"

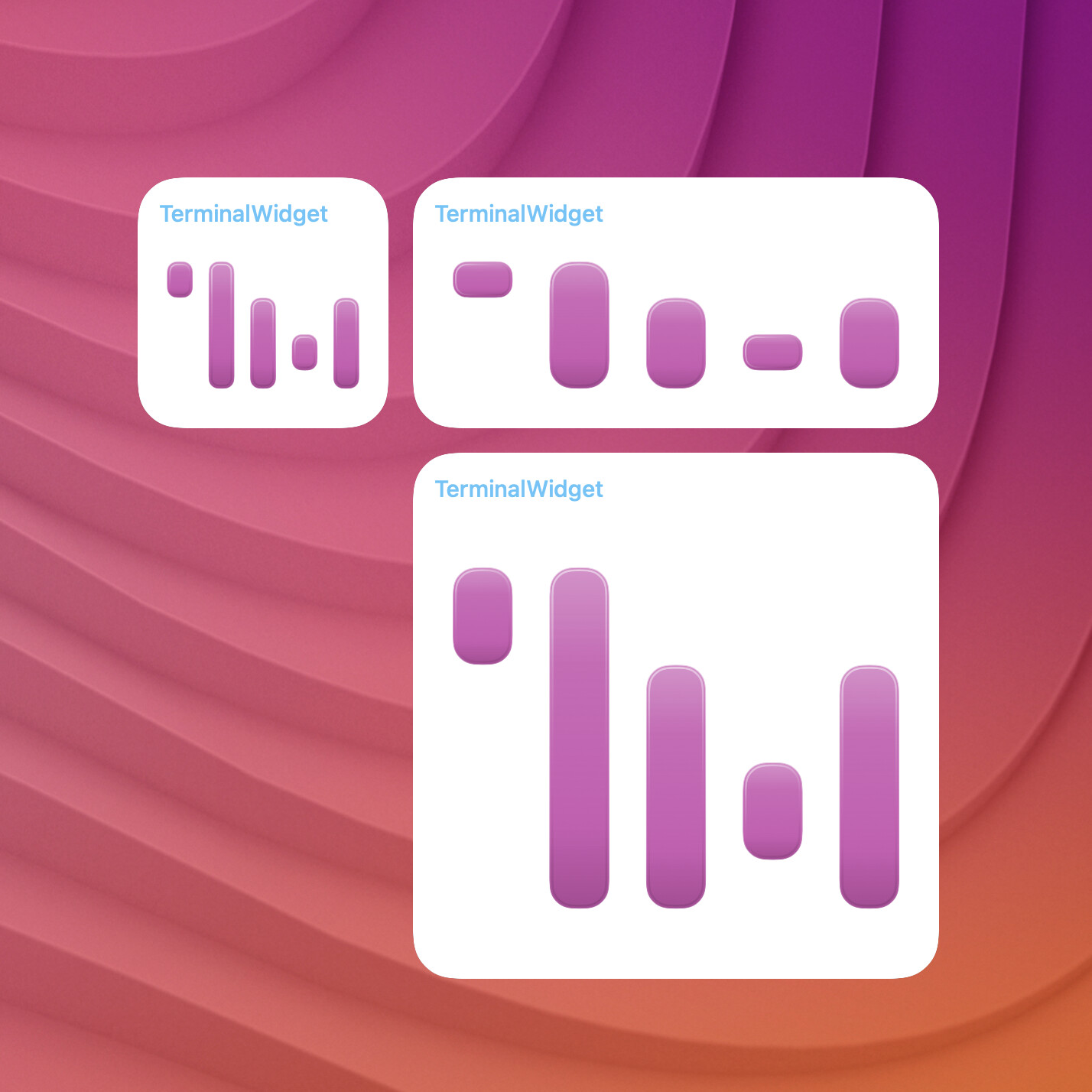

macOS gallery slot chart-rangebar-glass matches the range bar example above (run capture-macos-widgets.sh --only chart-rangebar-glass after placing widgets).

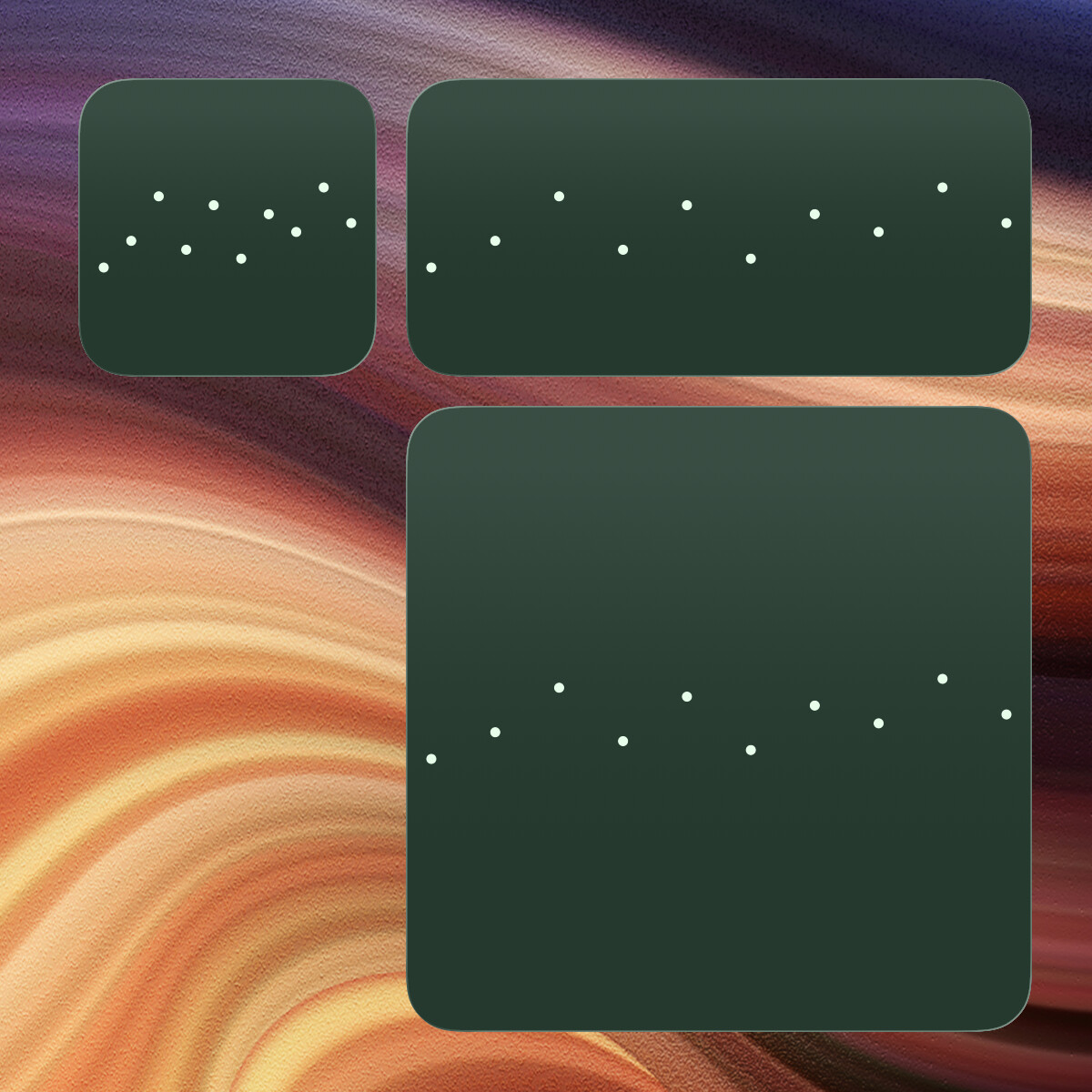

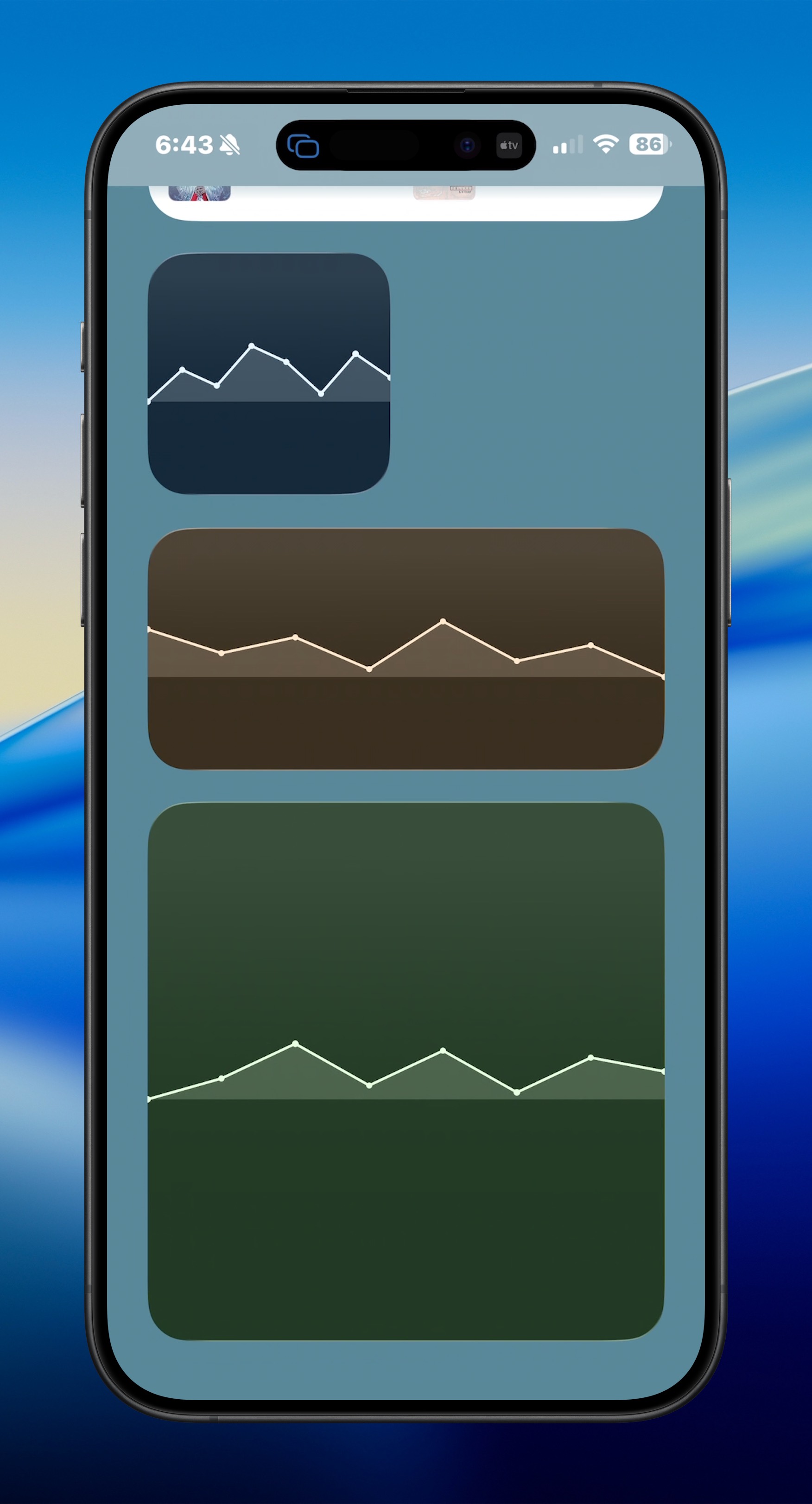

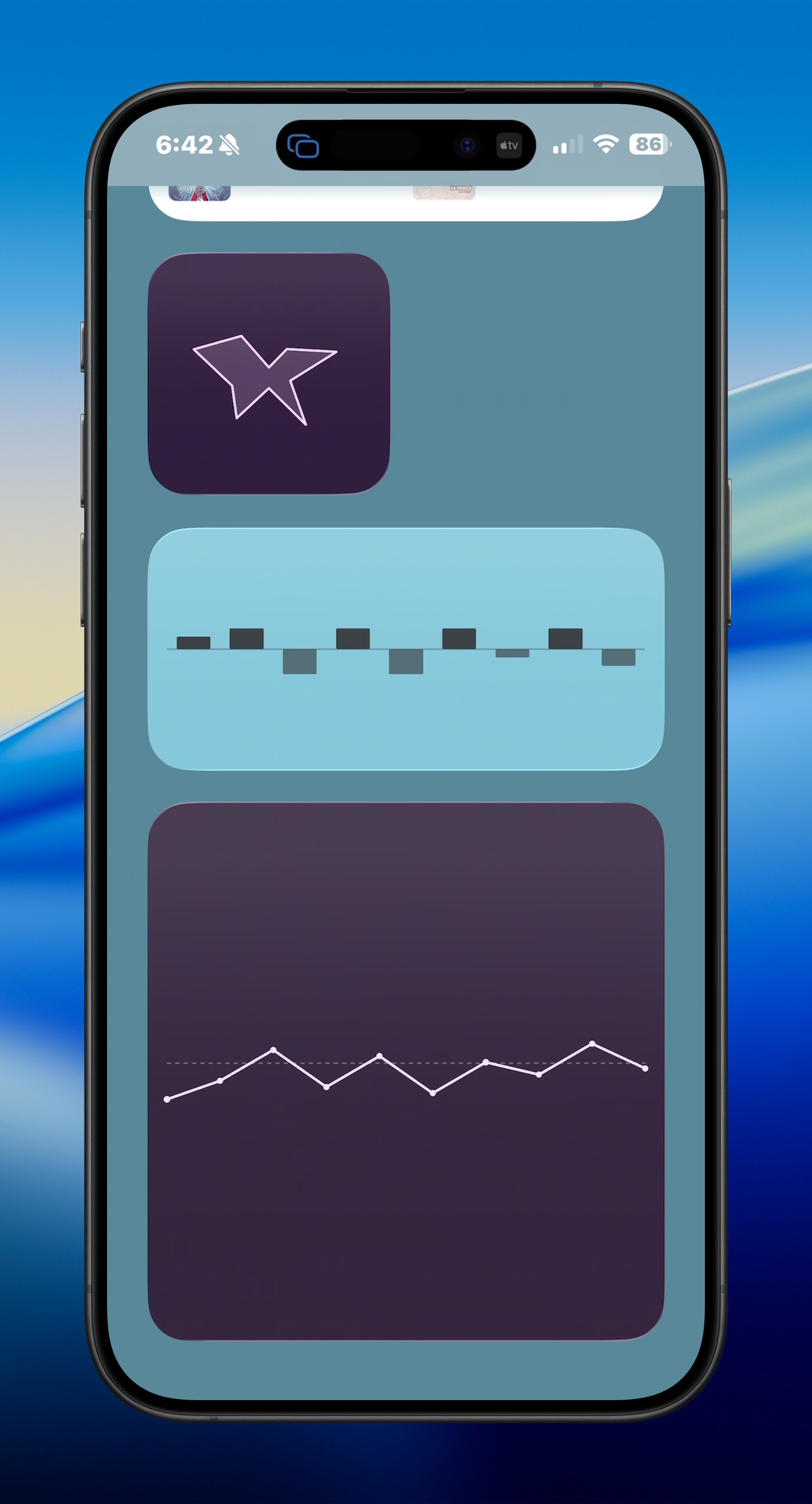

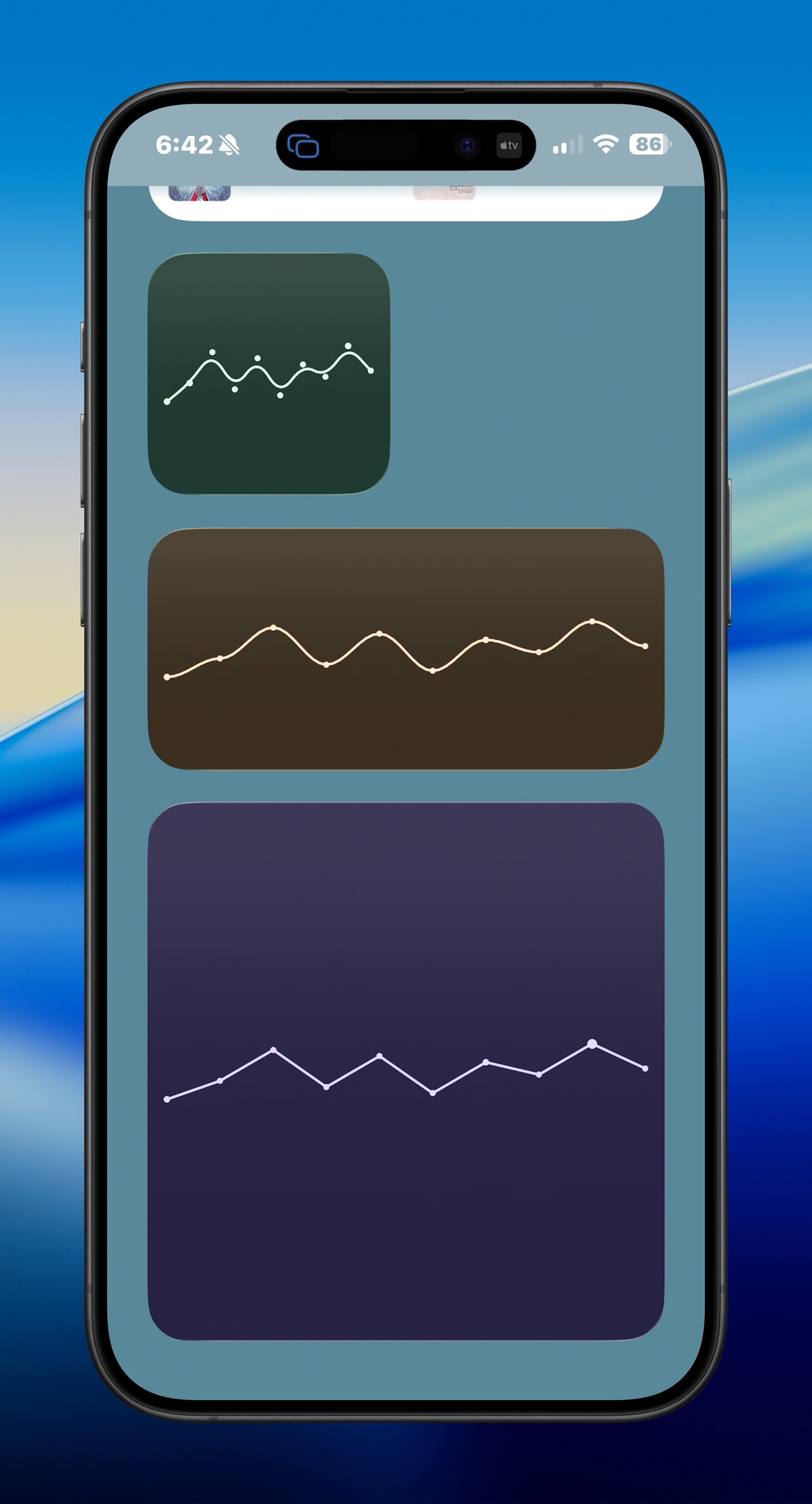

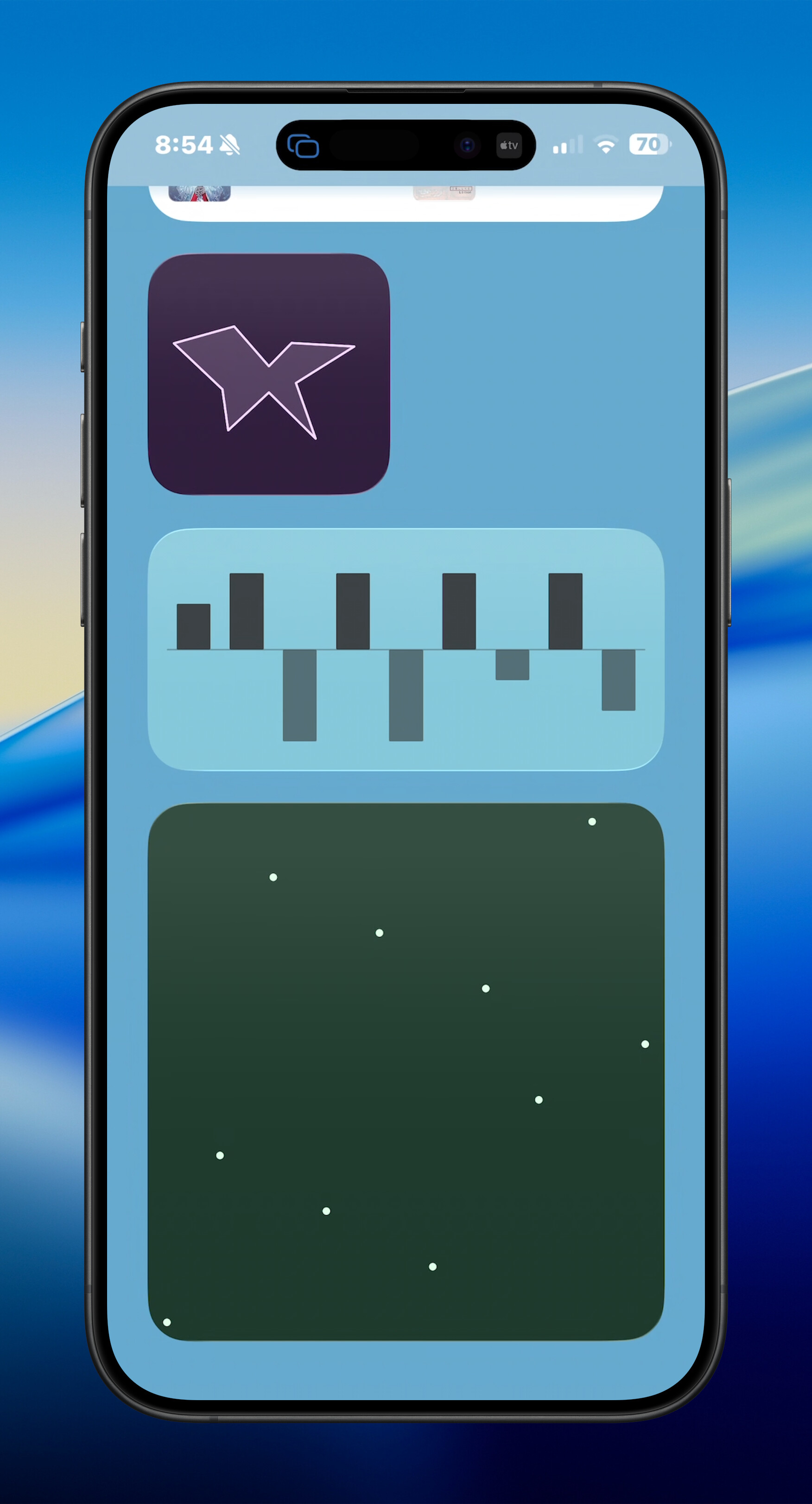

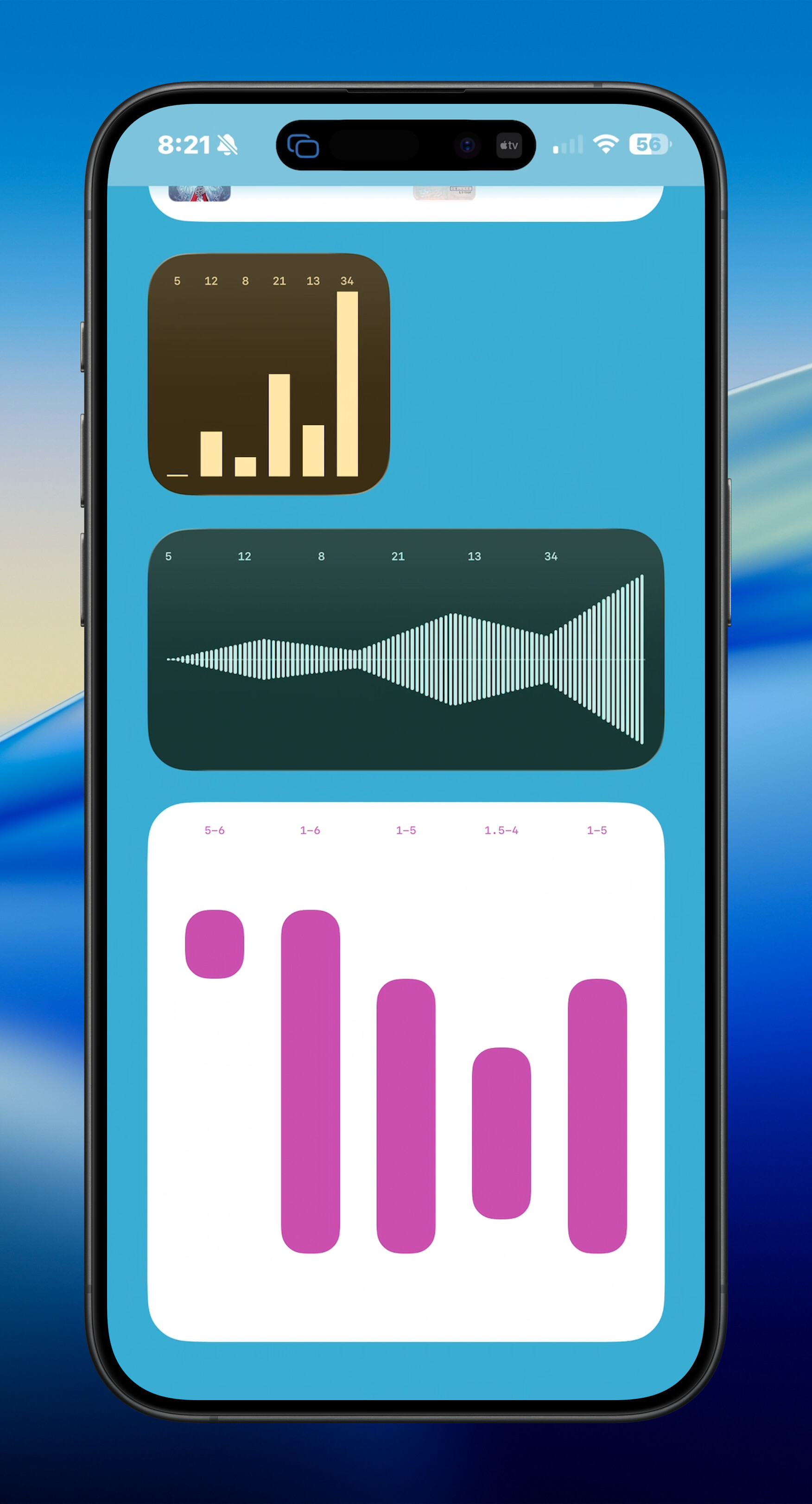

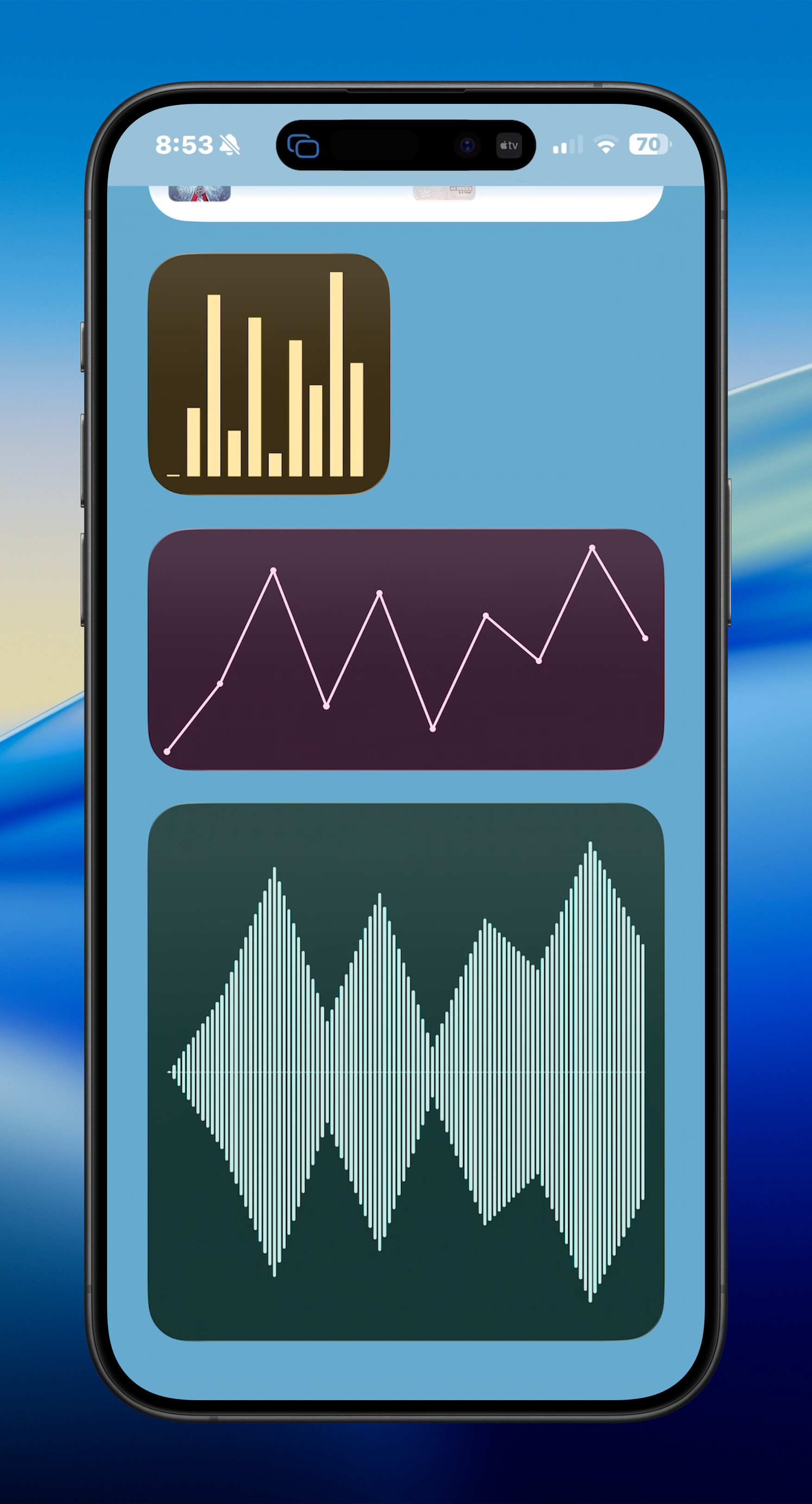

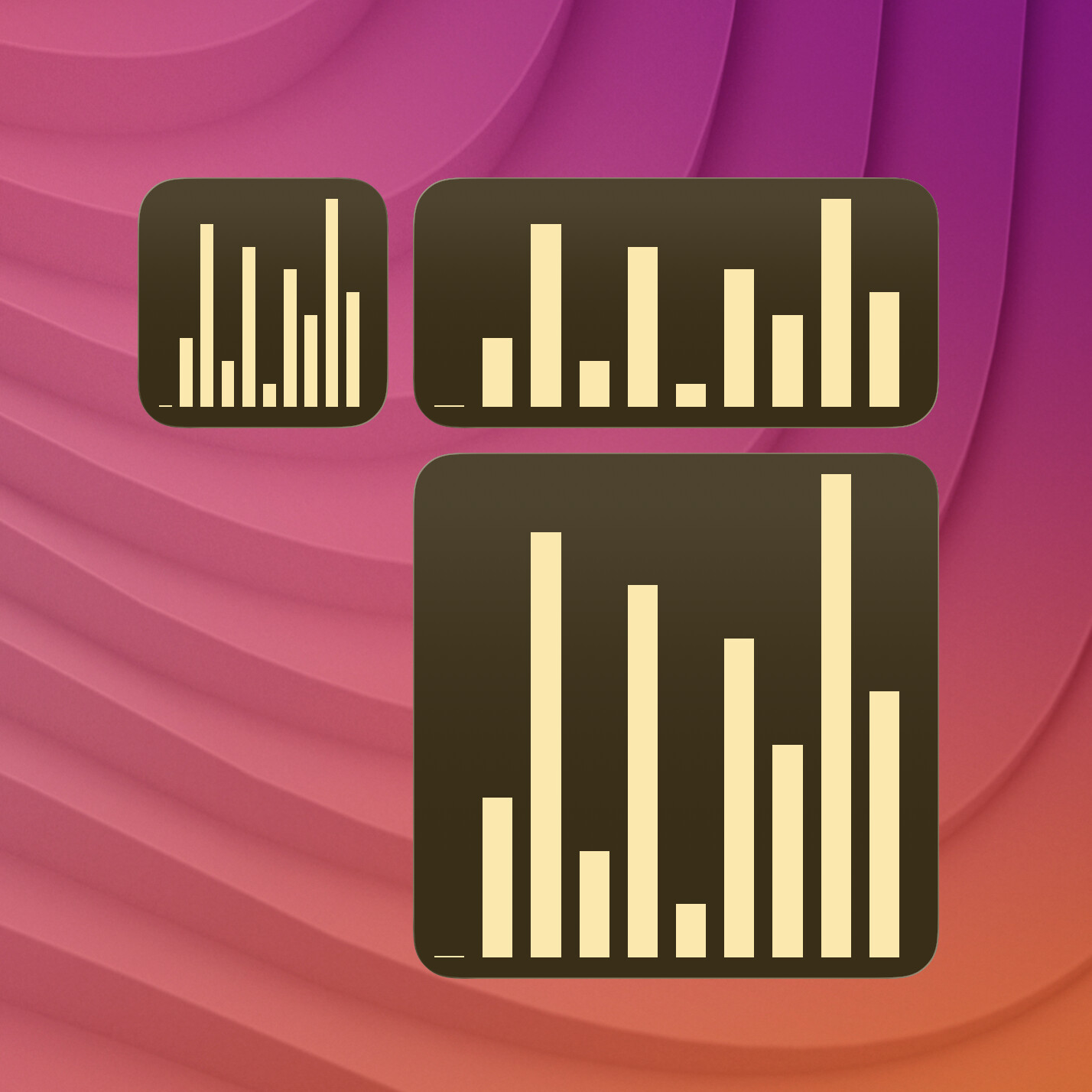

All Chart Modes

DATA="1 4 9 3 8 2 7 5 10 6"

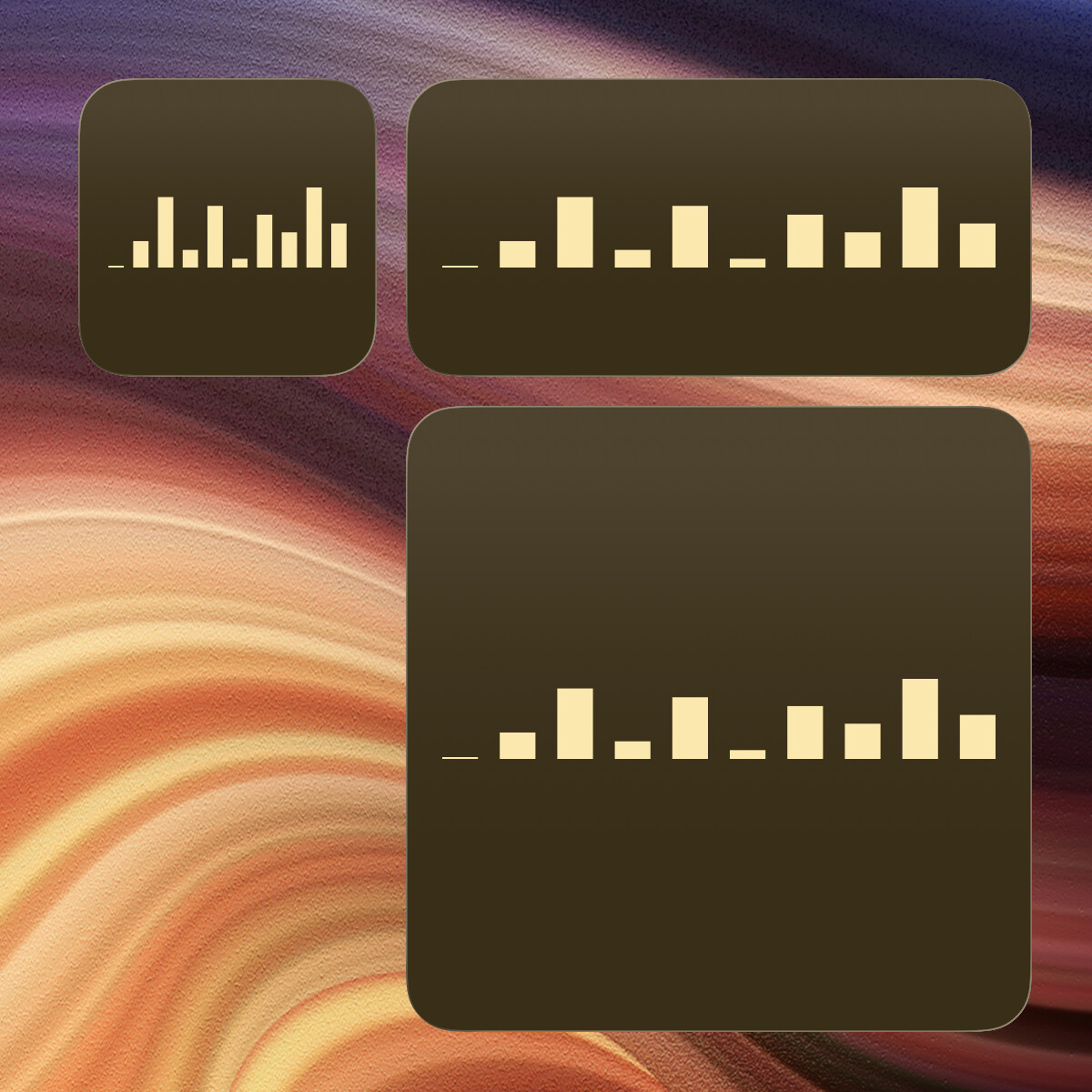

terminal-widget --target widget1 --chart "$DATA" --chart-format sparkline

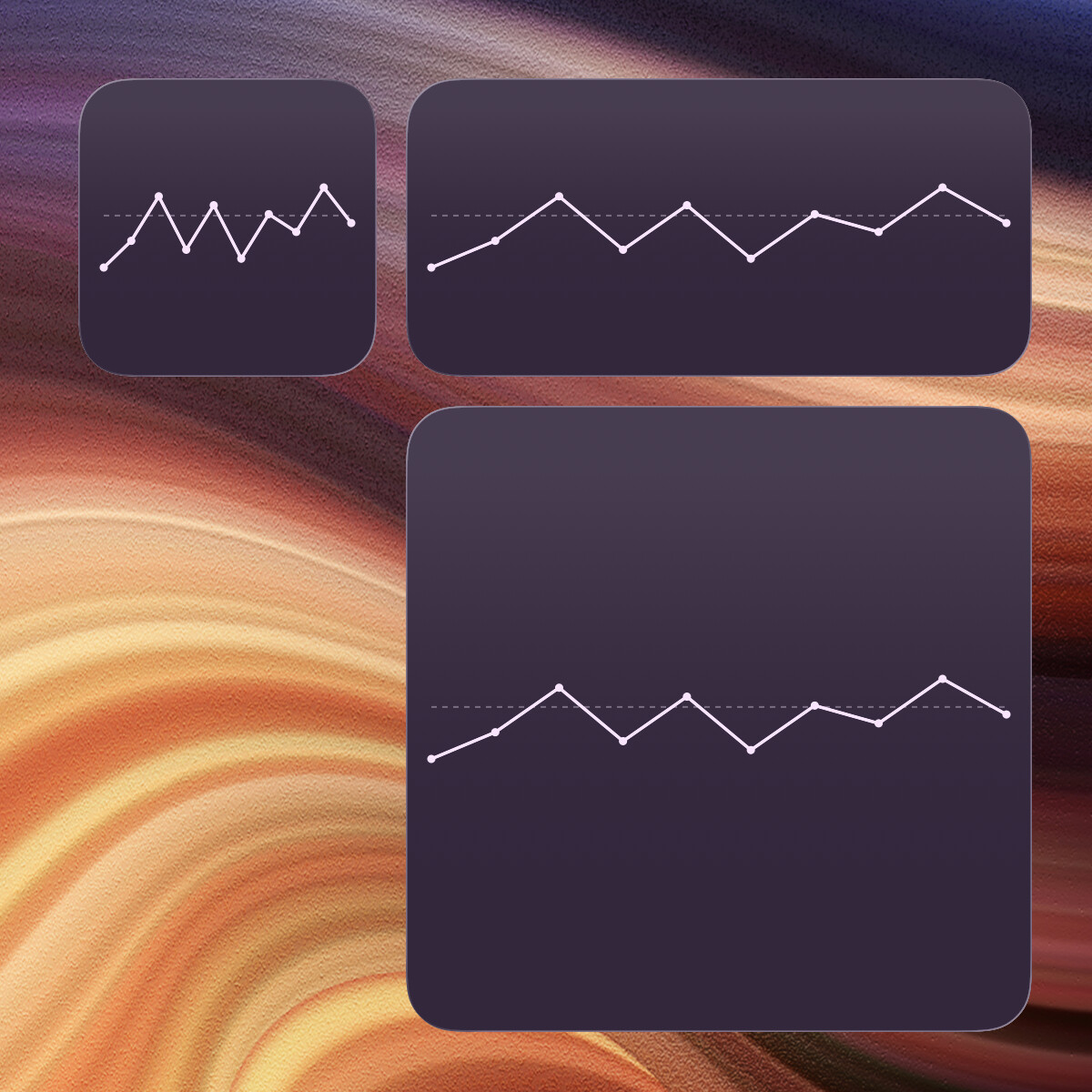

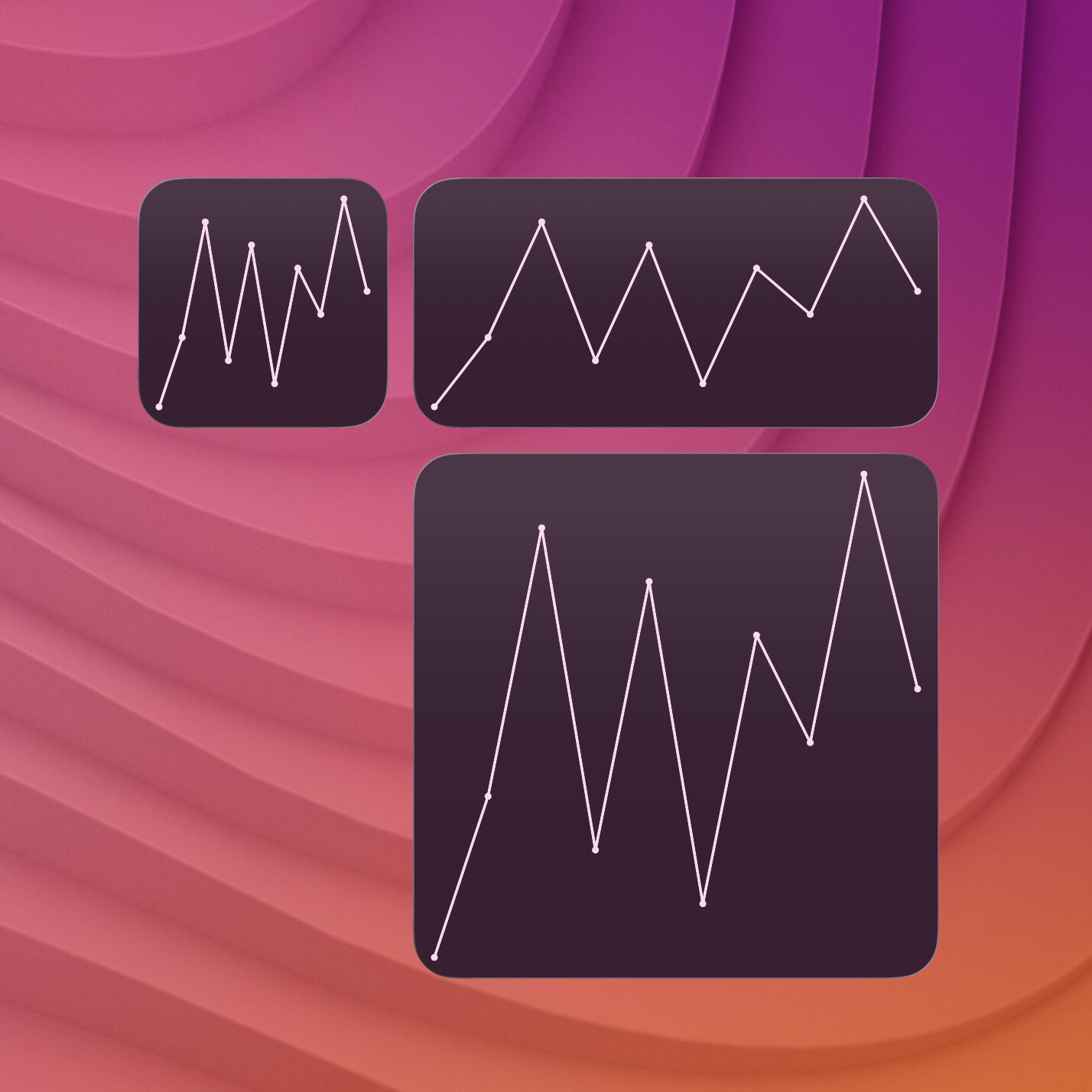

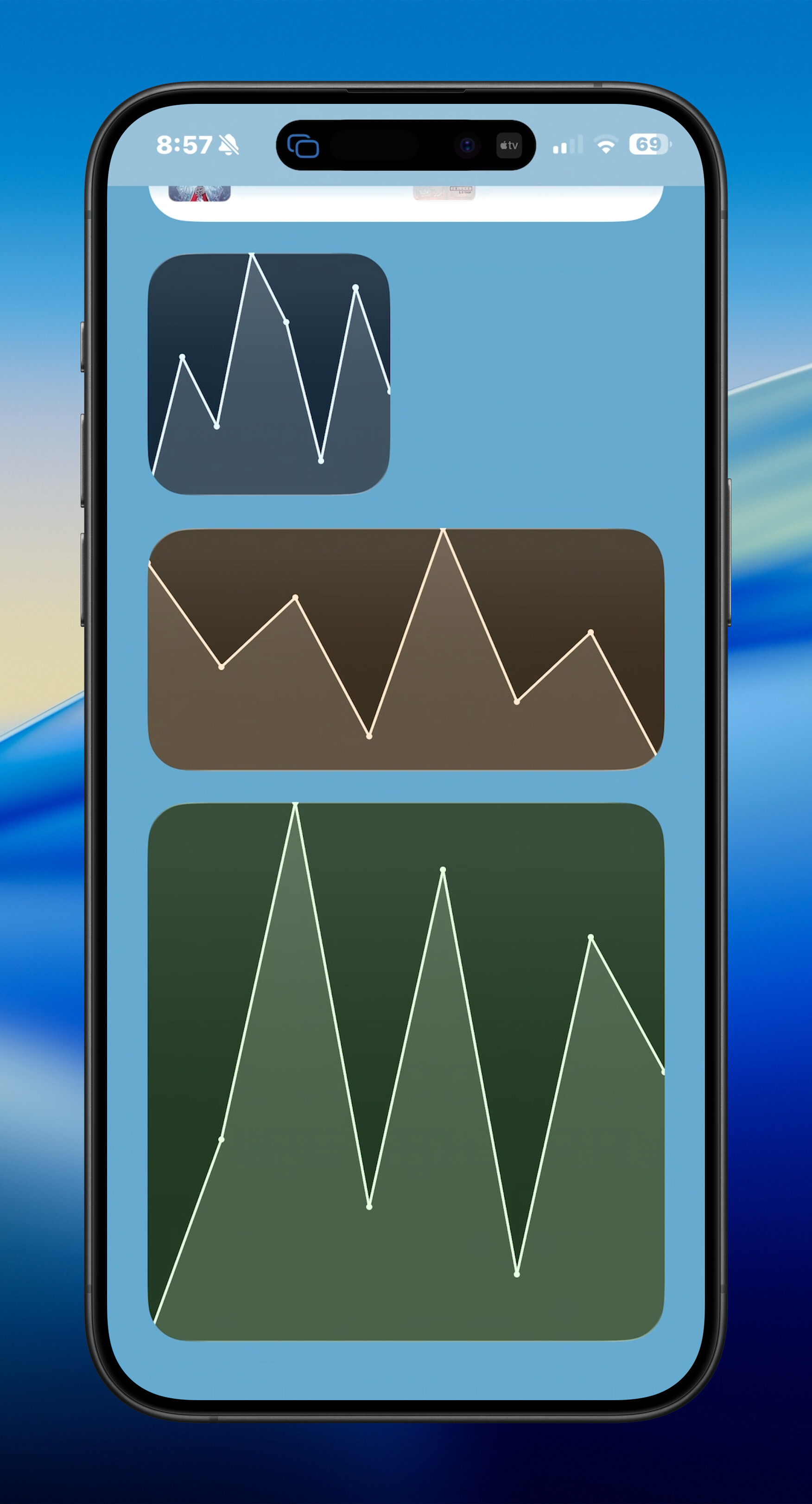

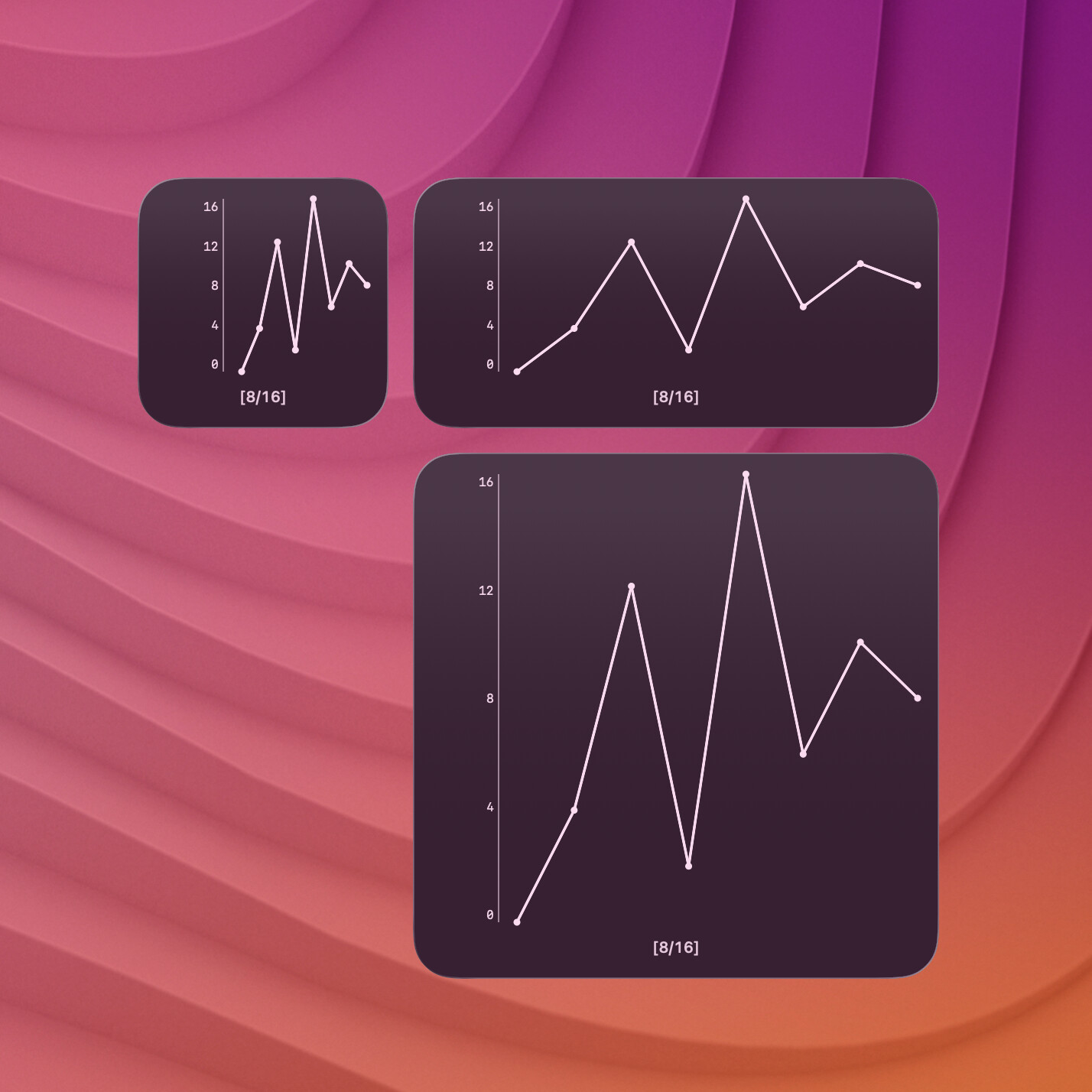

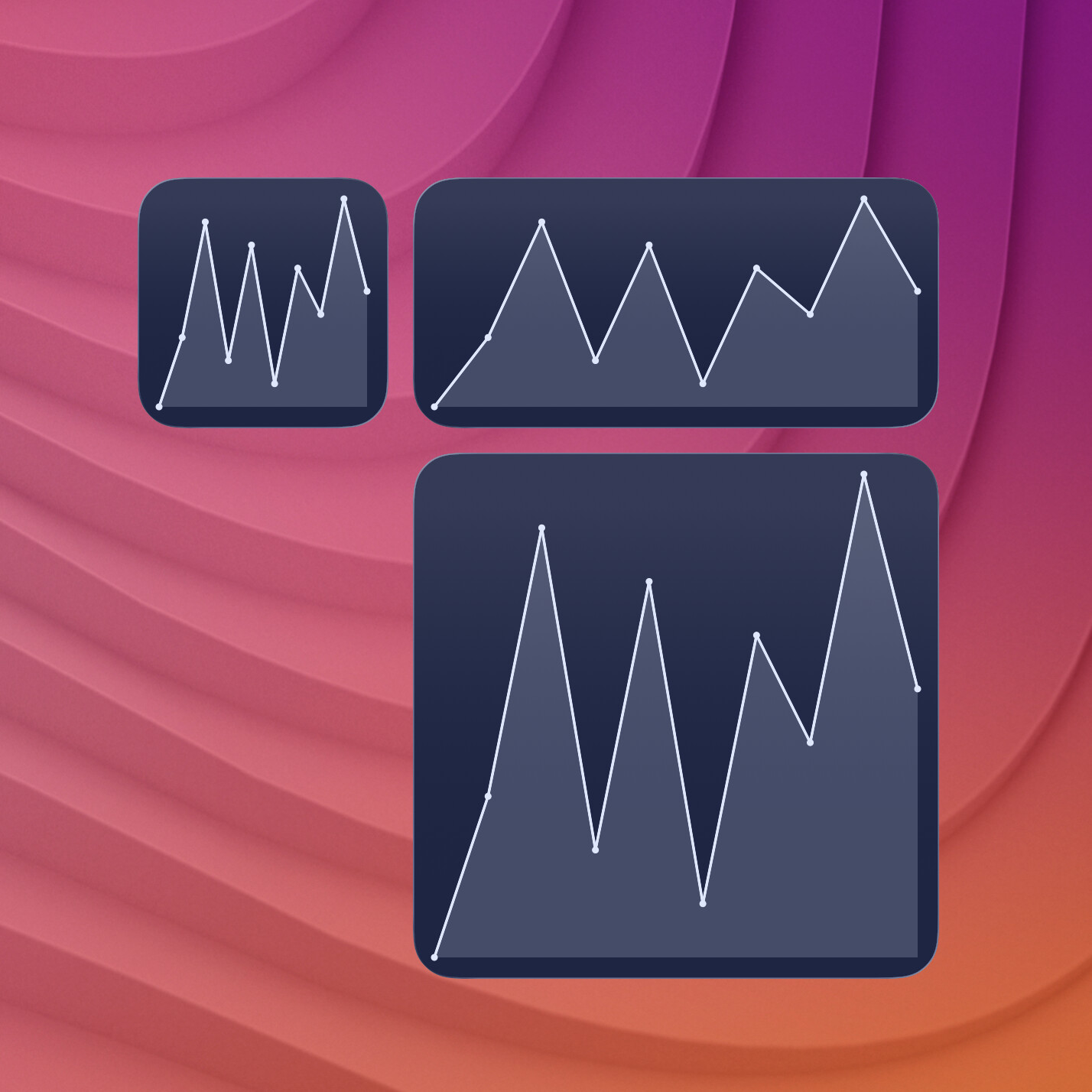

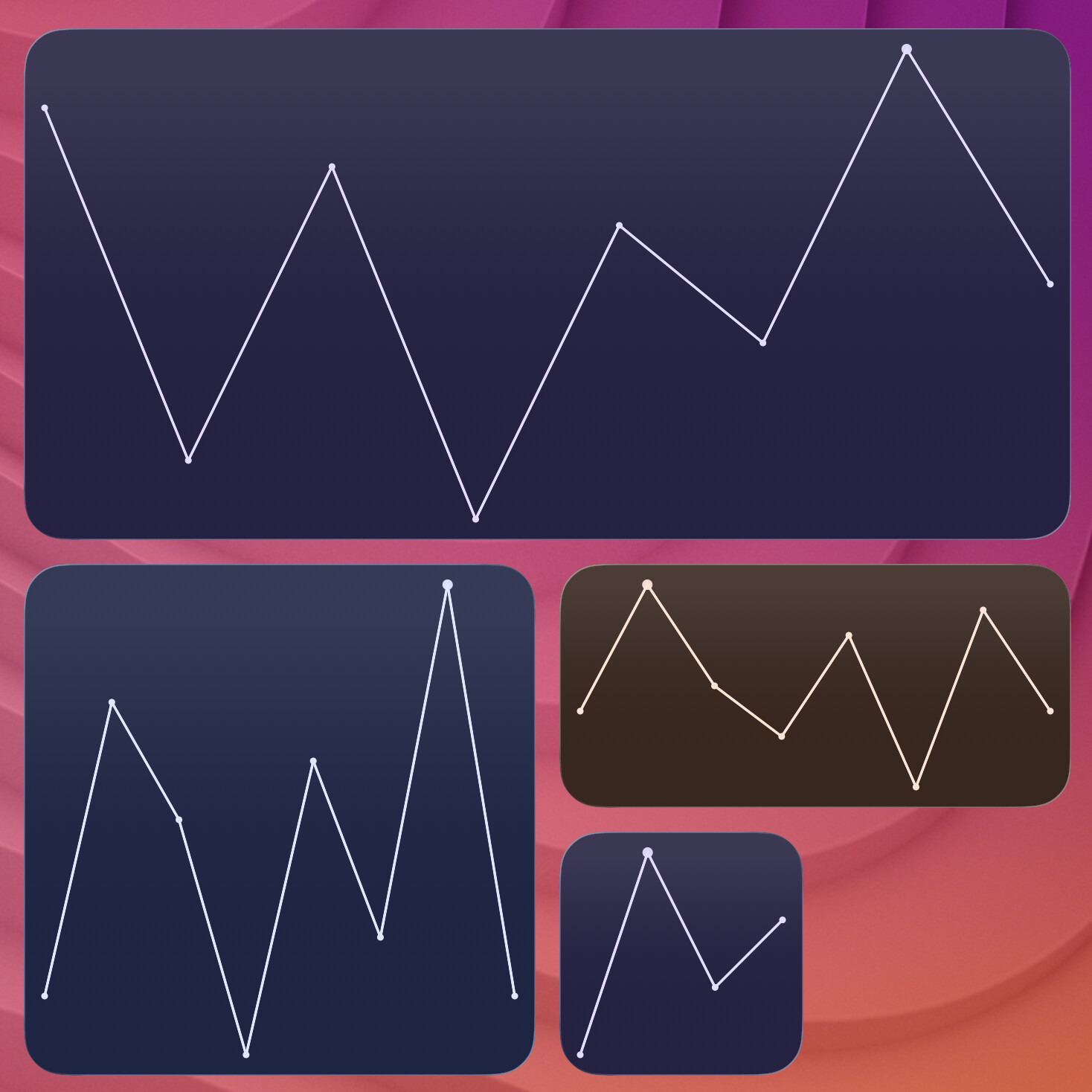

terminal-widget --target widget1 --chart "$DATA" --chart-format graph

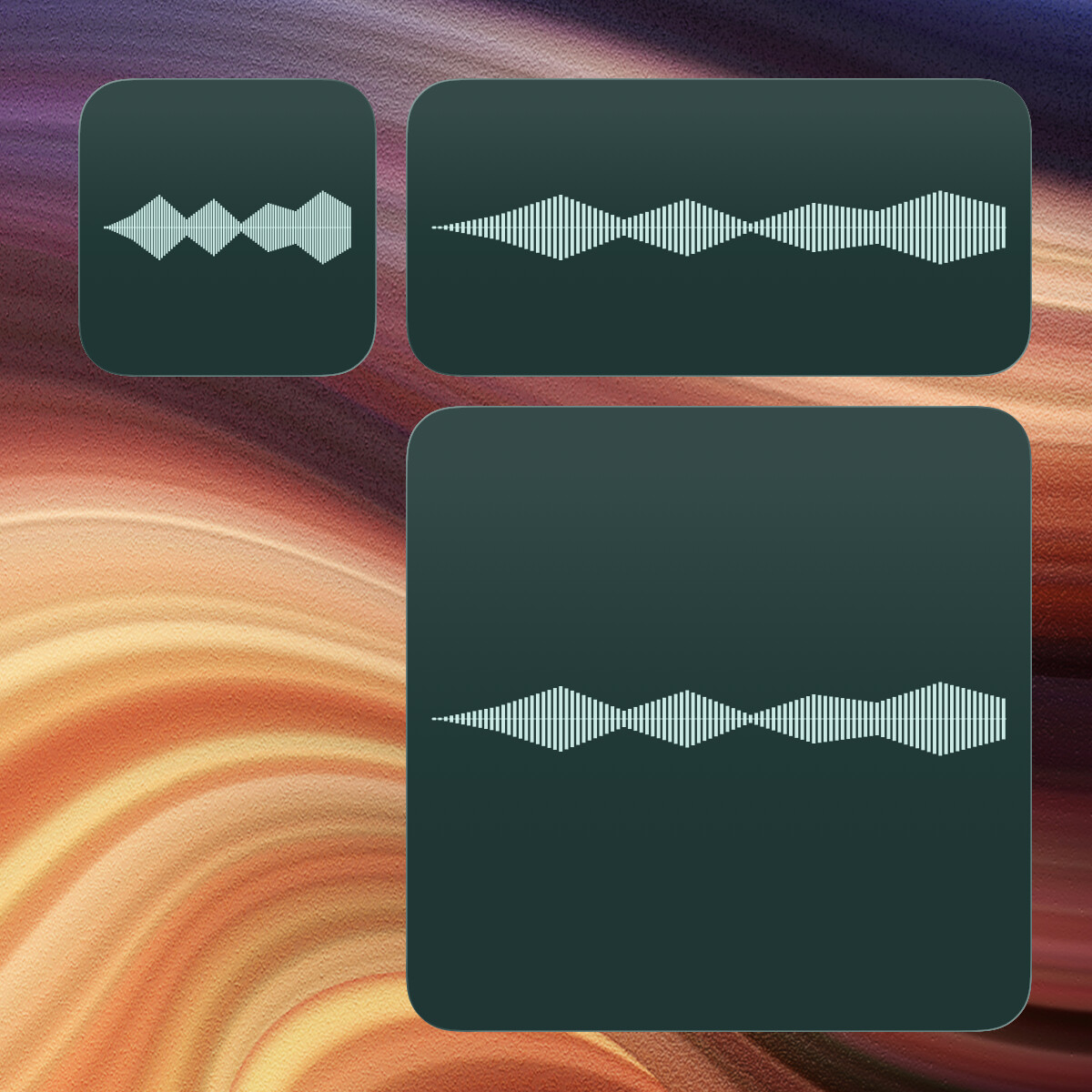

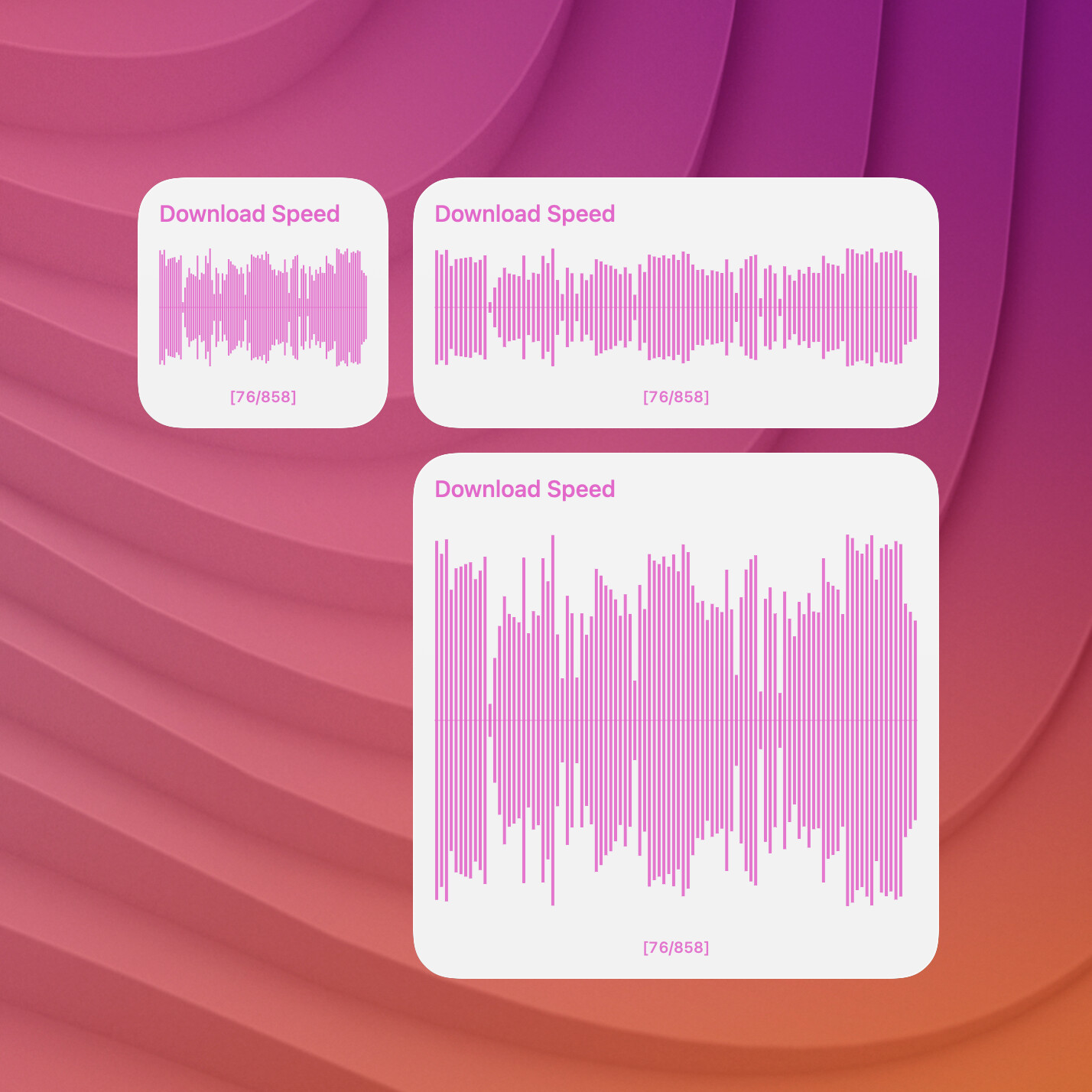

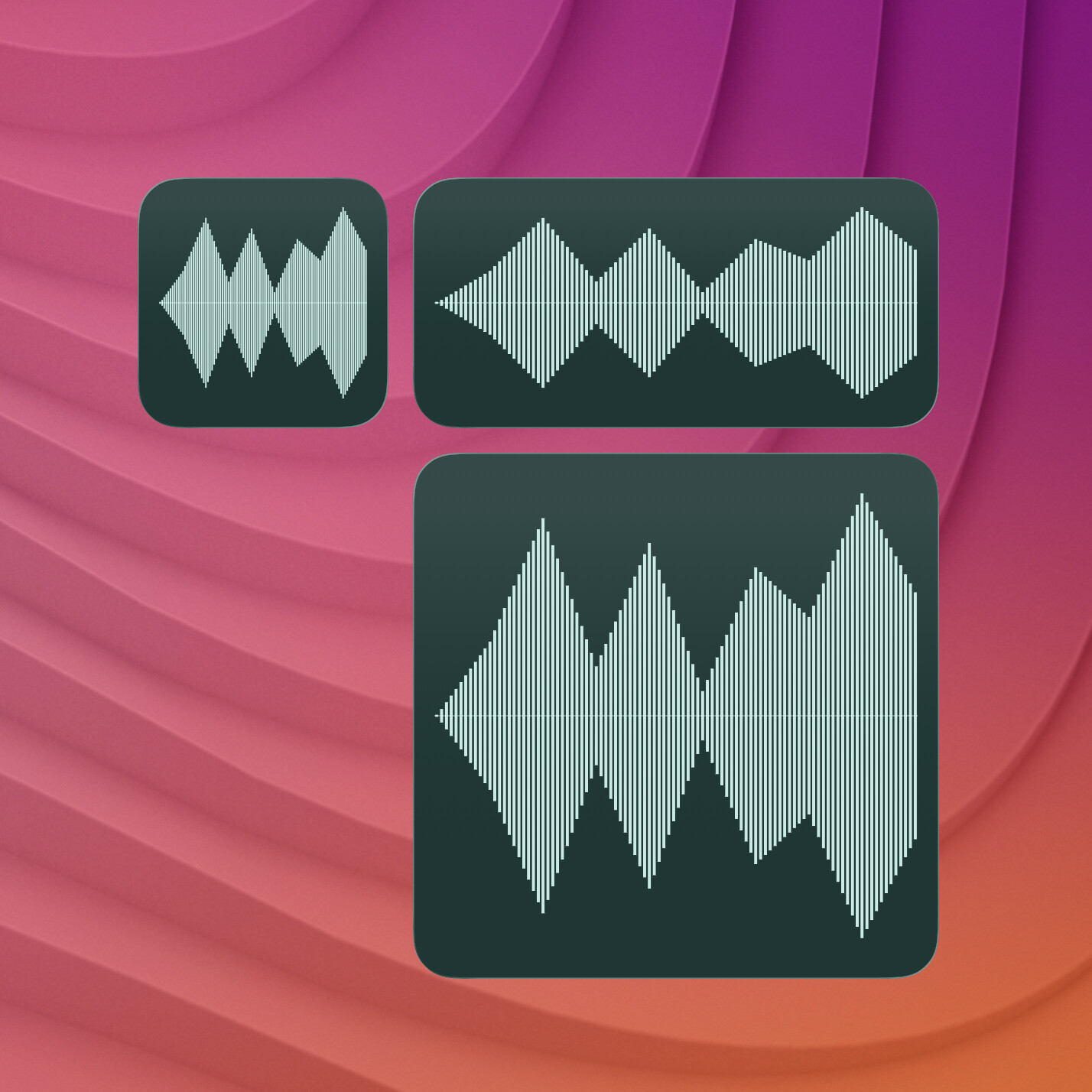

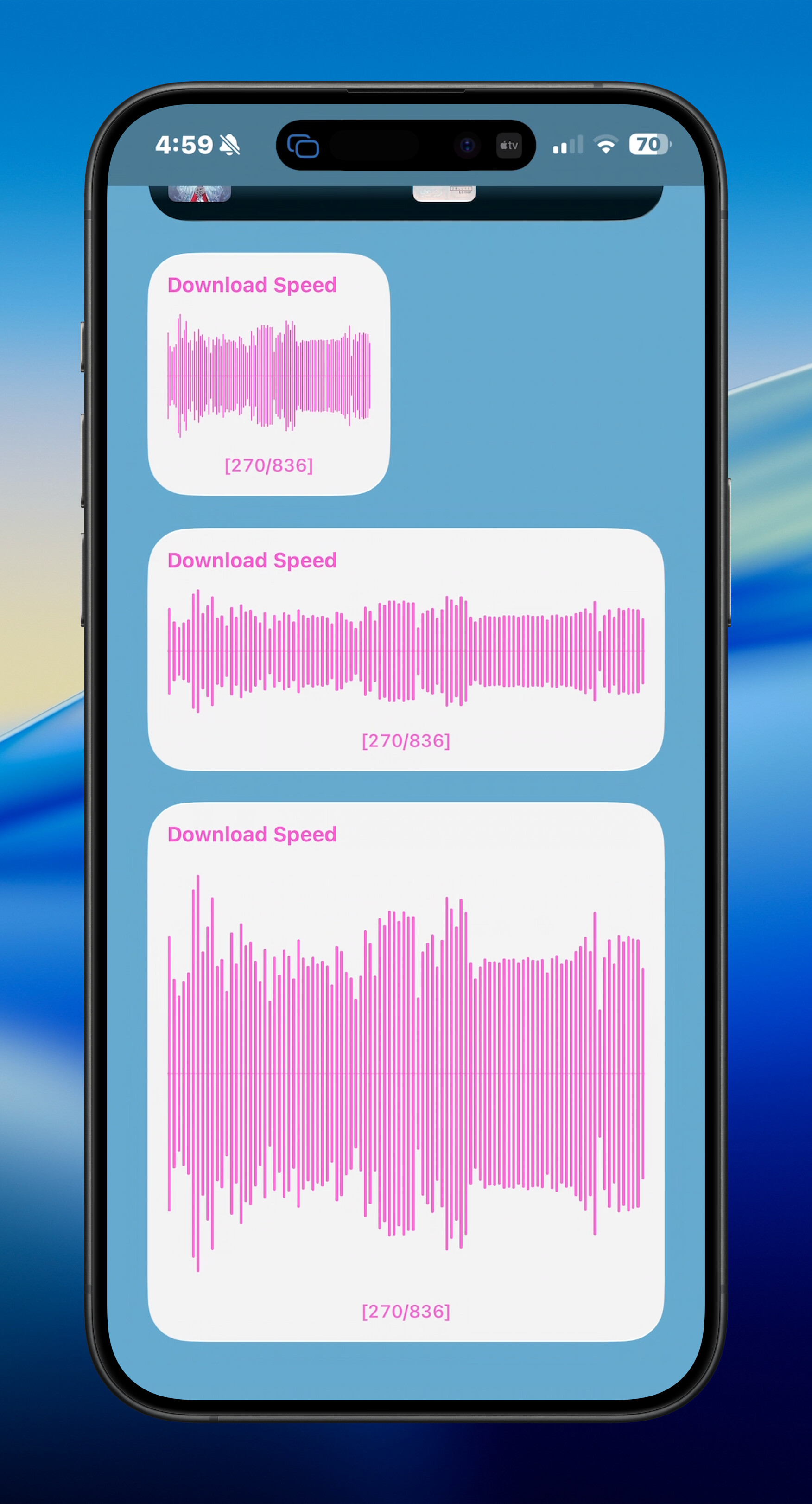

terminal-widget --target widget1 --chart "$DATA" --chart-format waveform

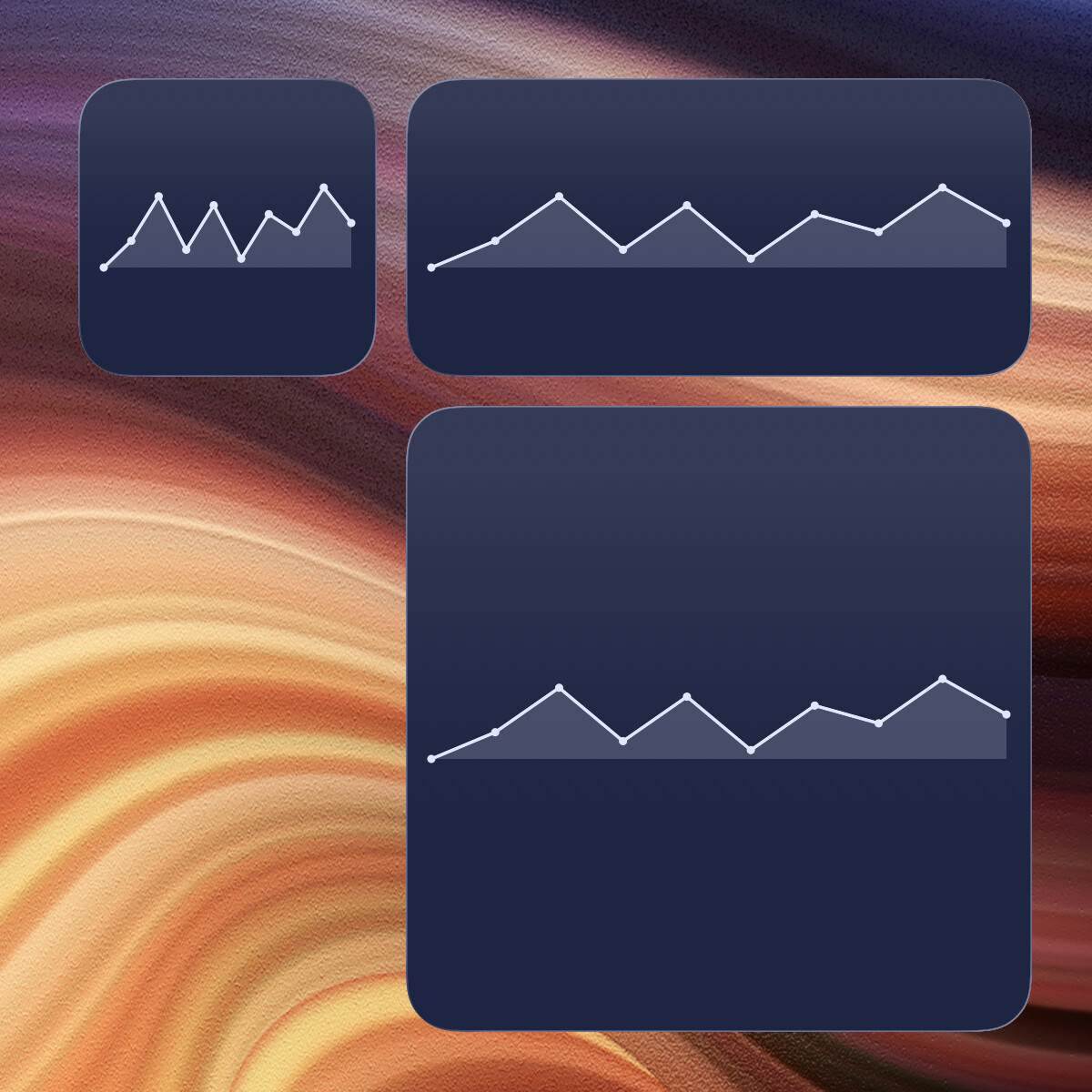

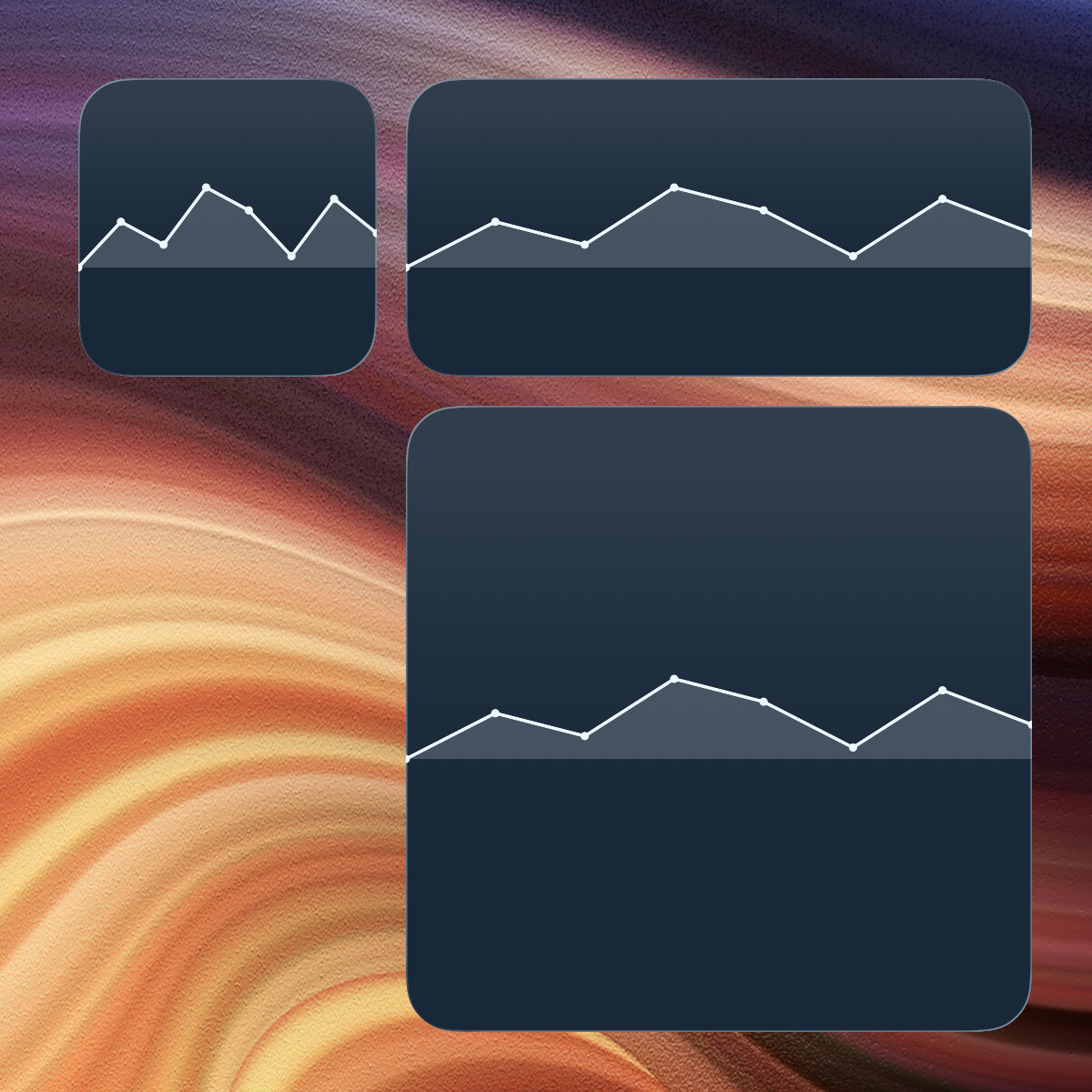

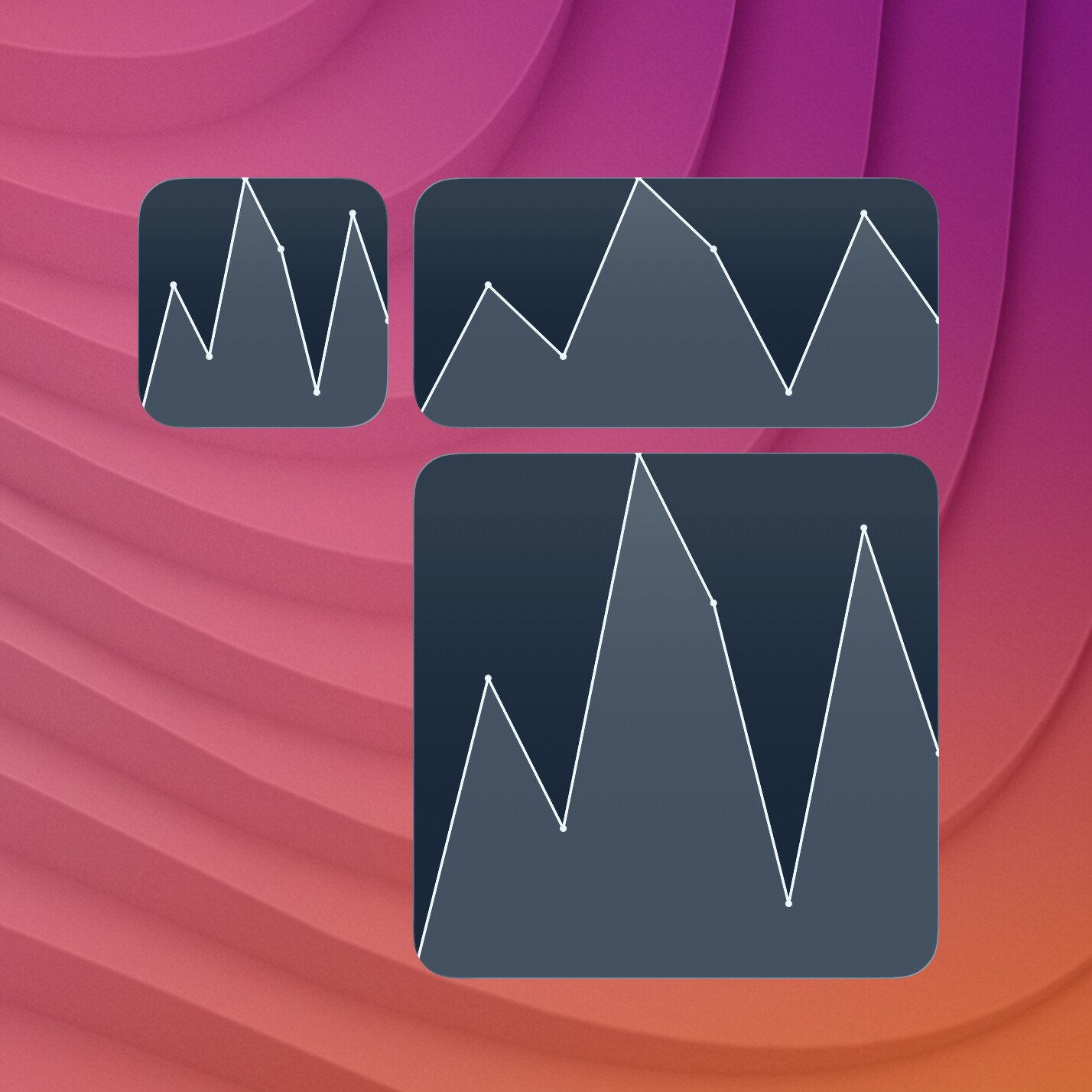

terminal-widget --target widget1 --chart "$DATA" --chart-format area

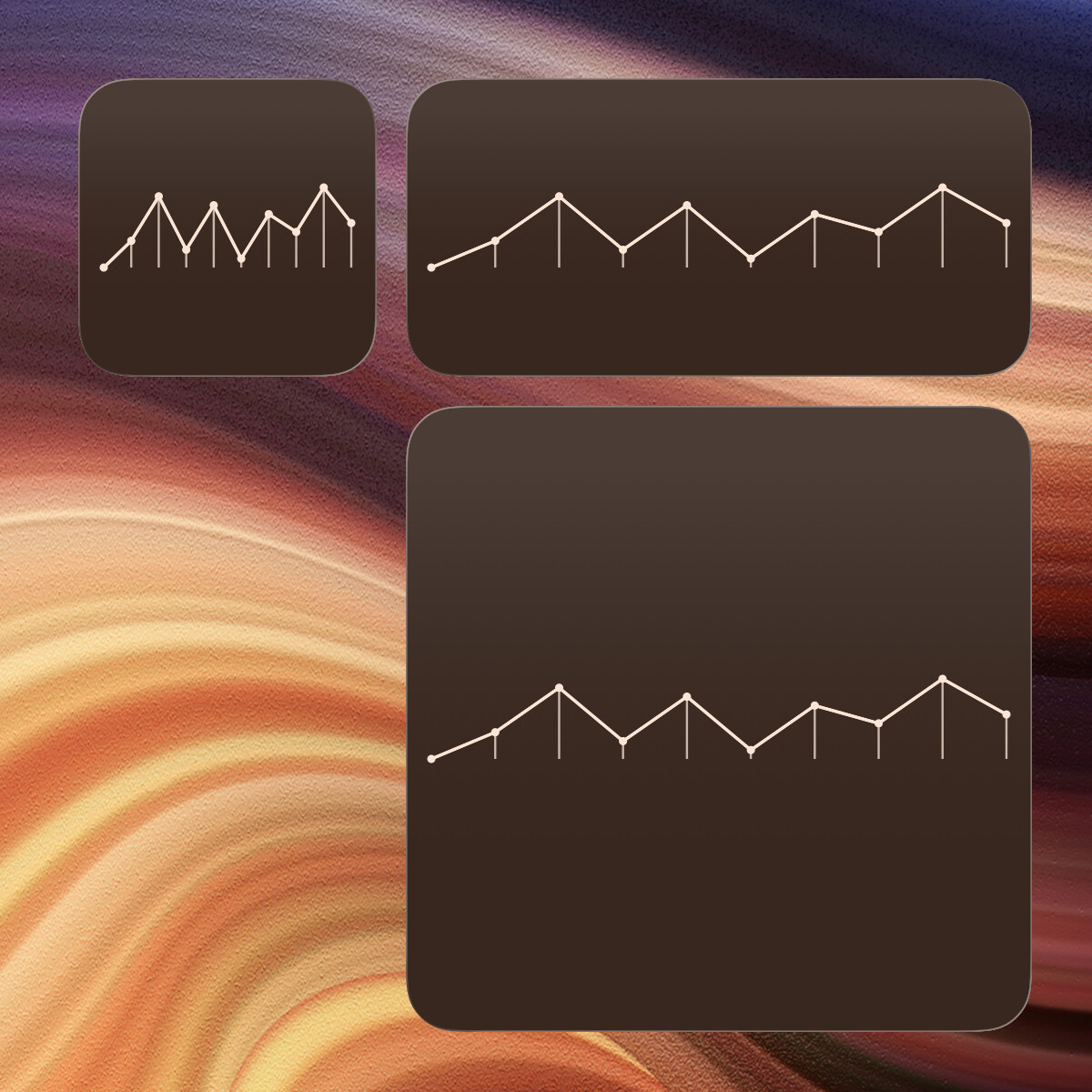

terminal-widget --target widget1 --chart "$DATA" --chart-format lollipop
terminal-widget --target widget1 --chart "$DATA" --chart-format strip

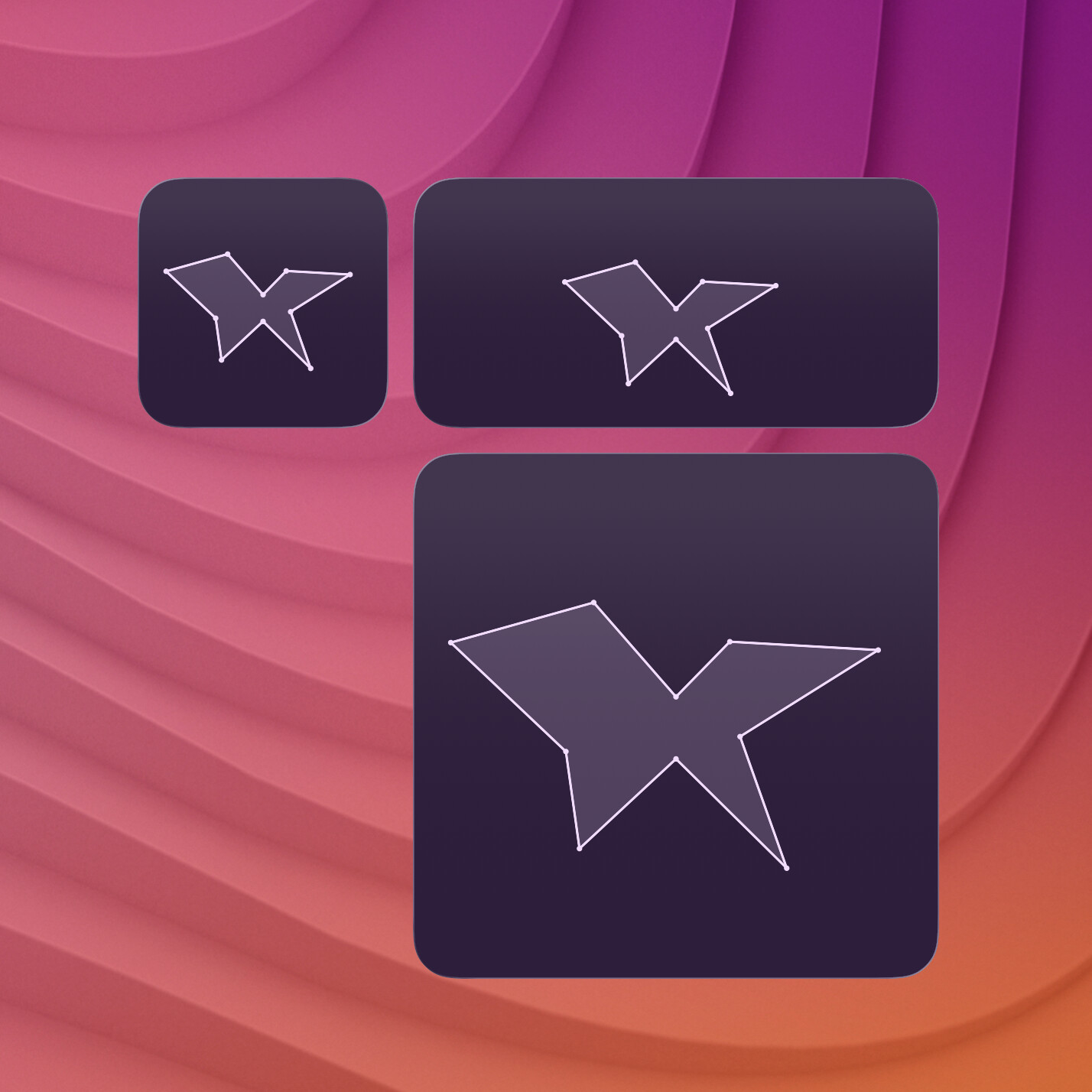

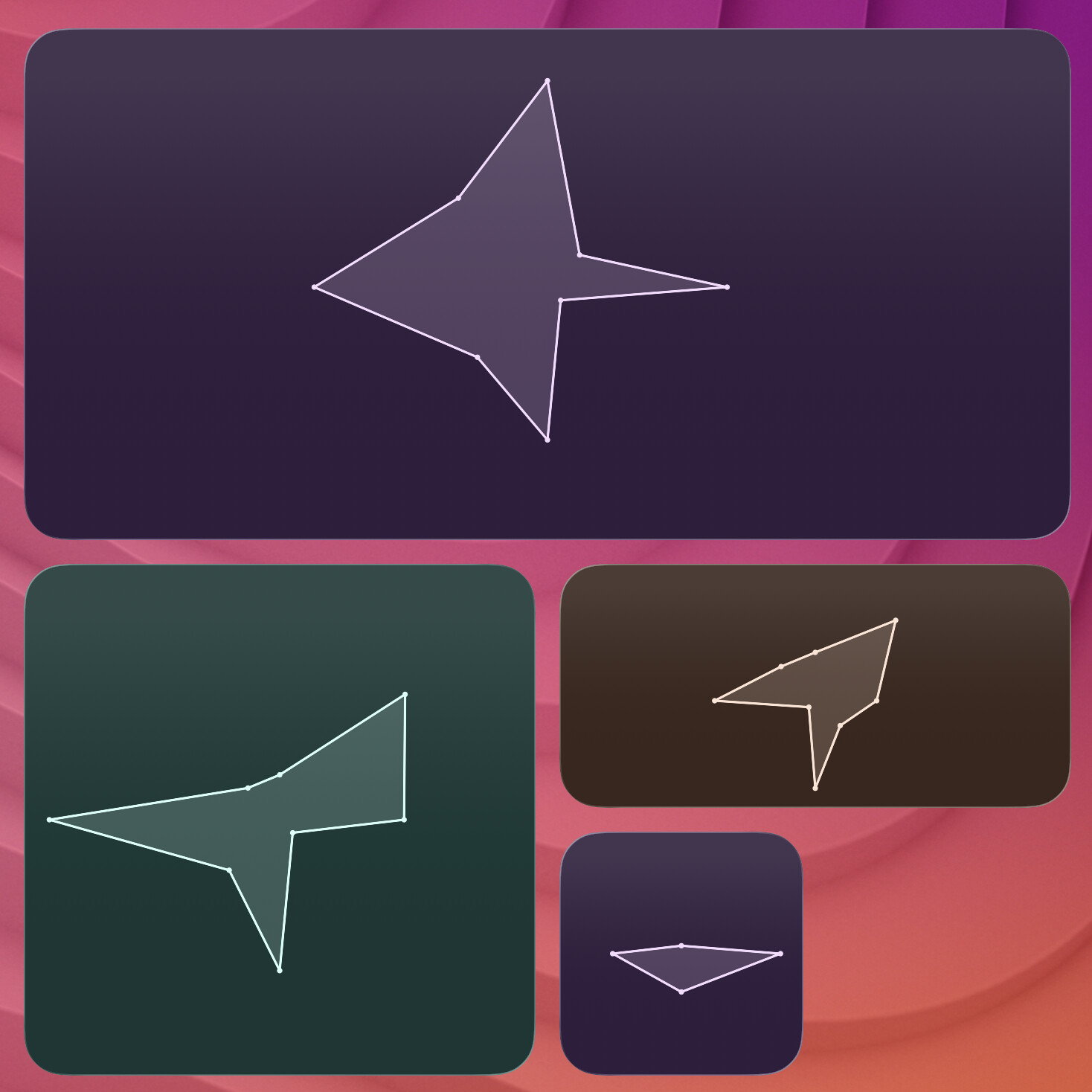

terminal-widget --target widget1 --chart "$DATA" --chart-format radial

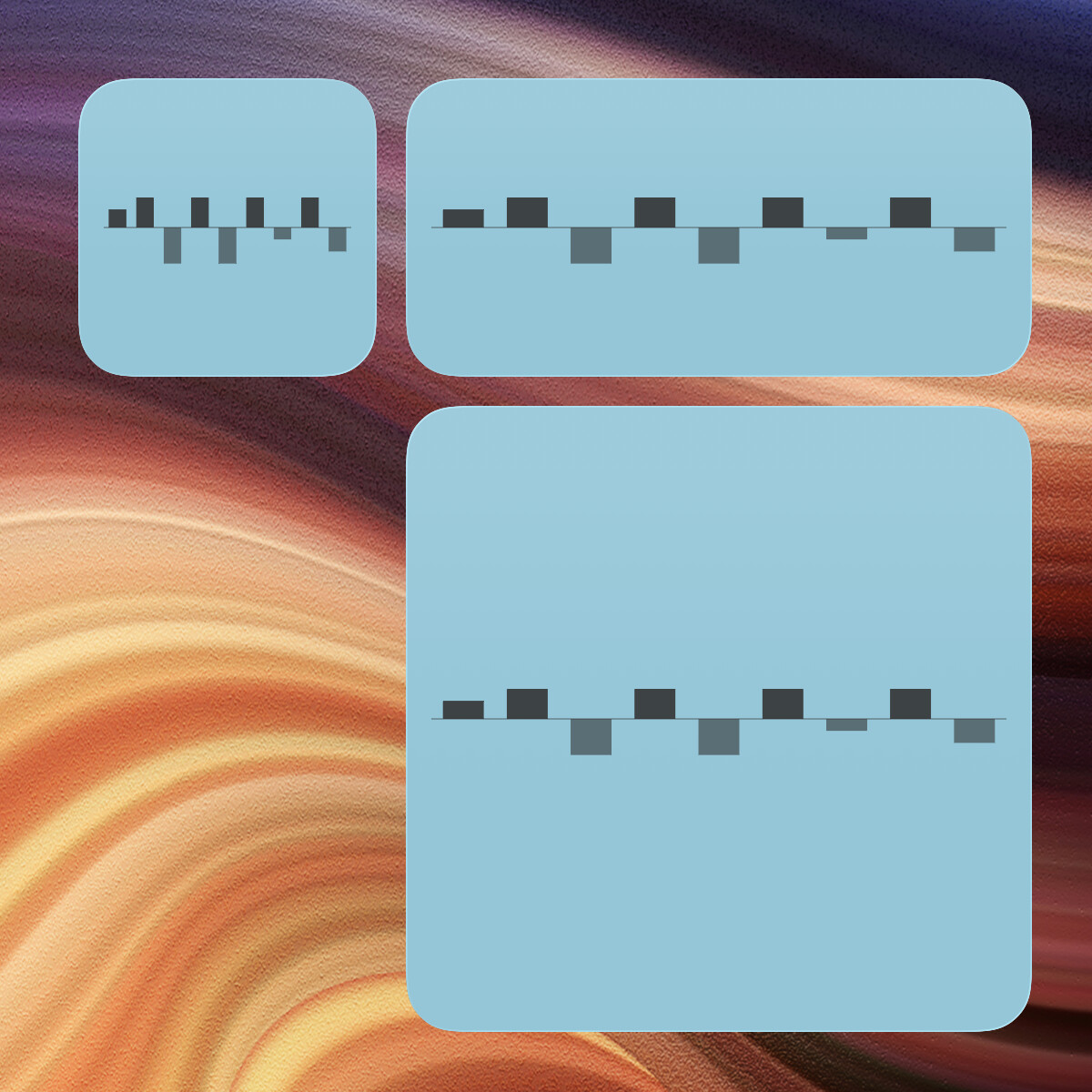

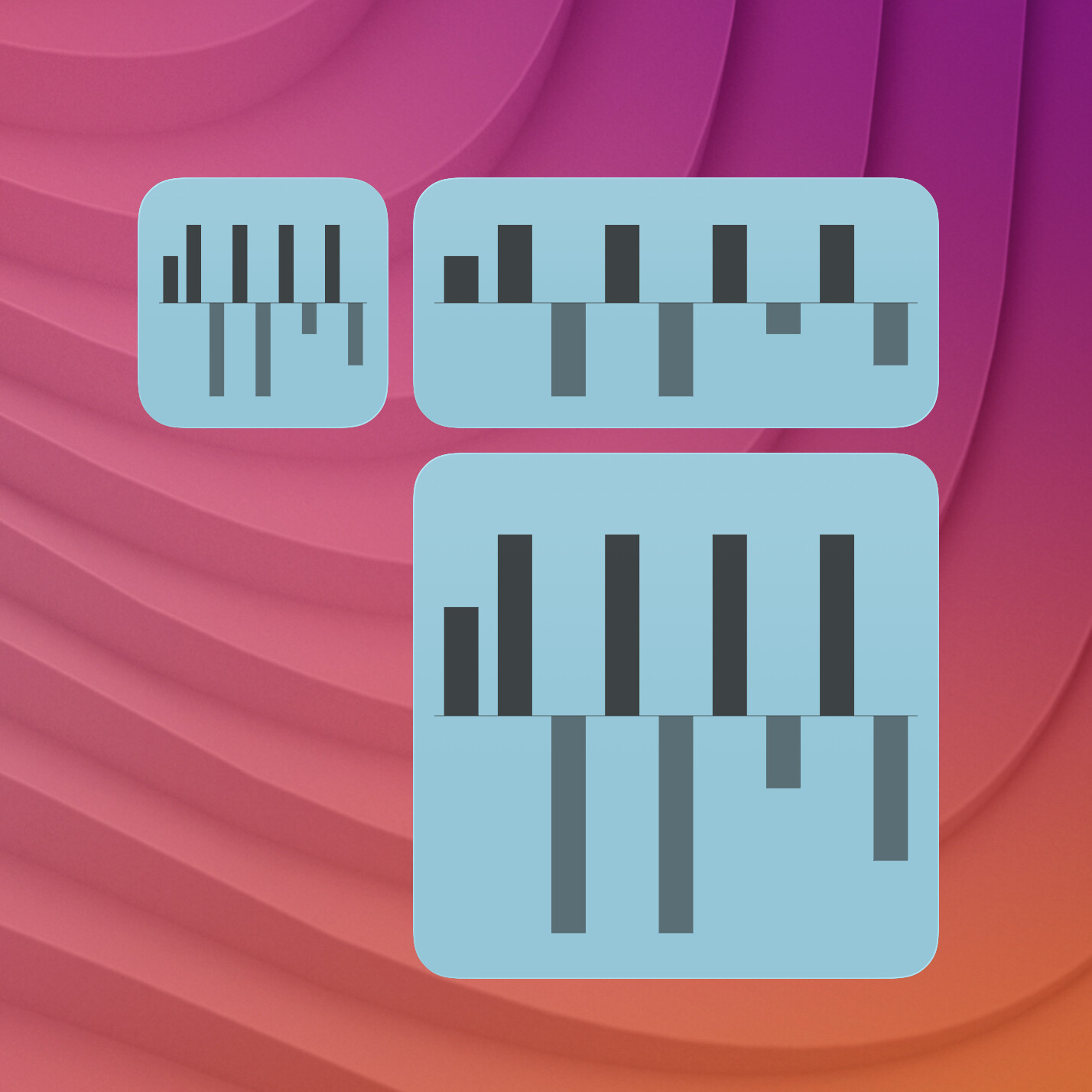

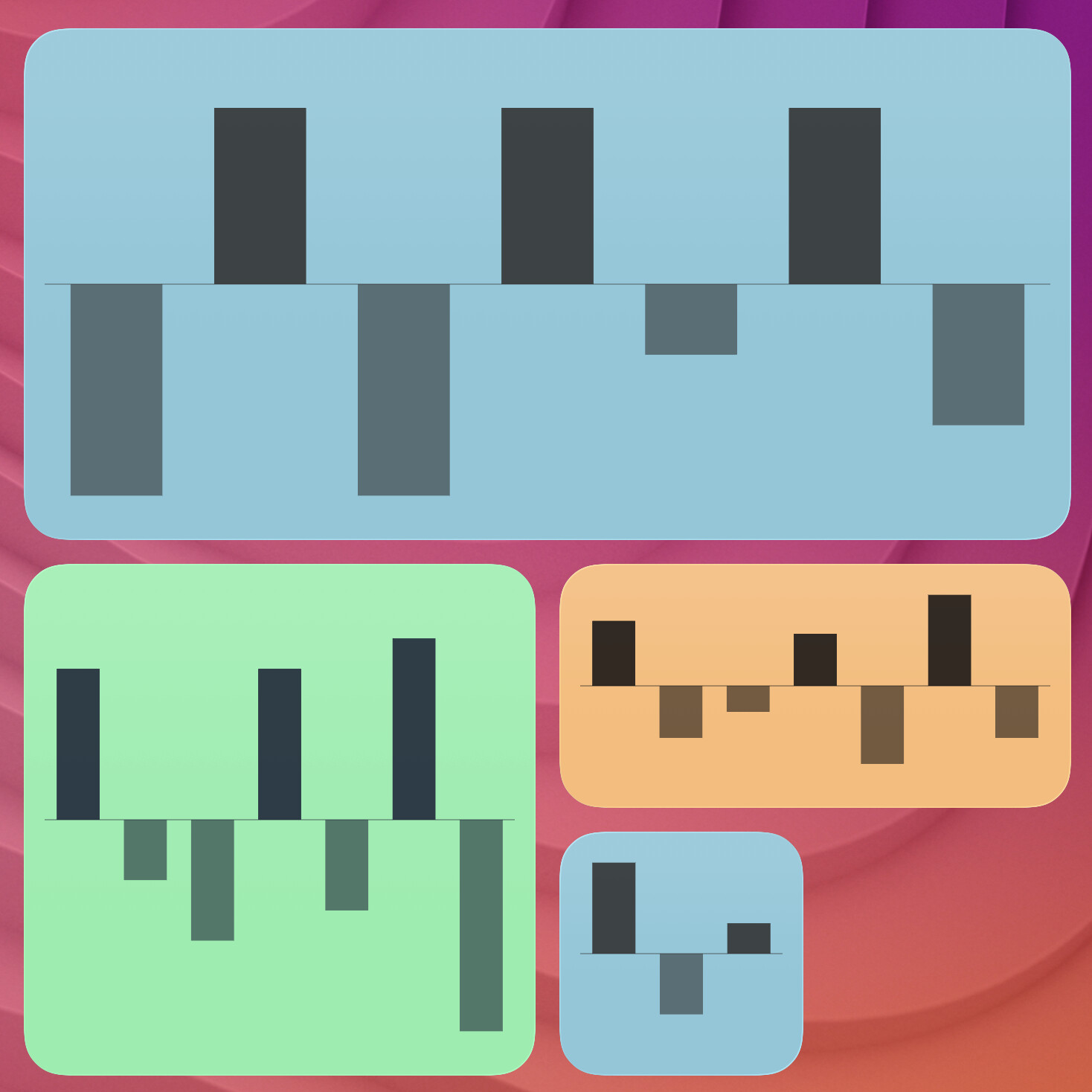

terminal-widget --target widget1 --chart "$DATA" --chart-format delta
terminal-widget --target widget1 --chart "$DATA" --chart-format threshold

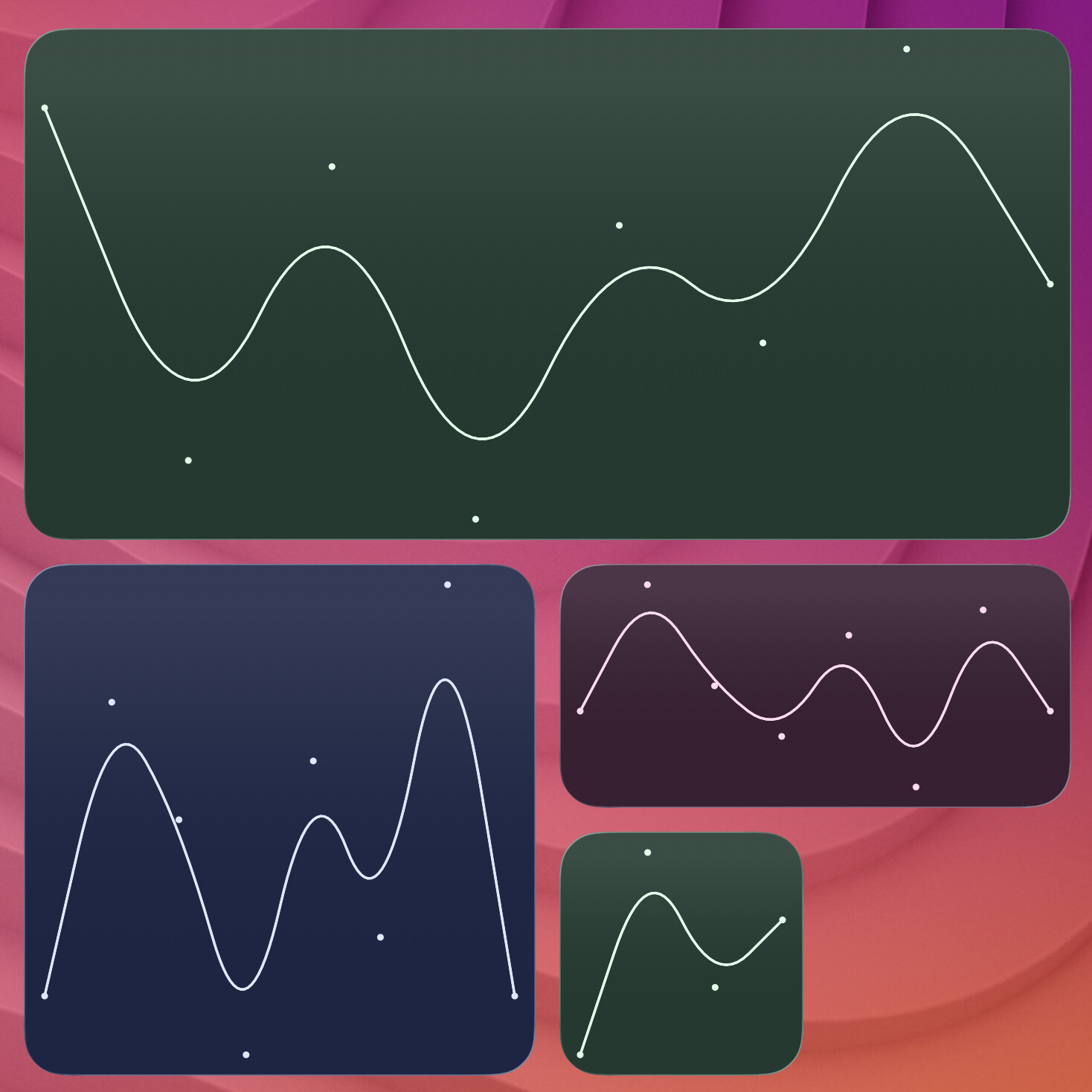

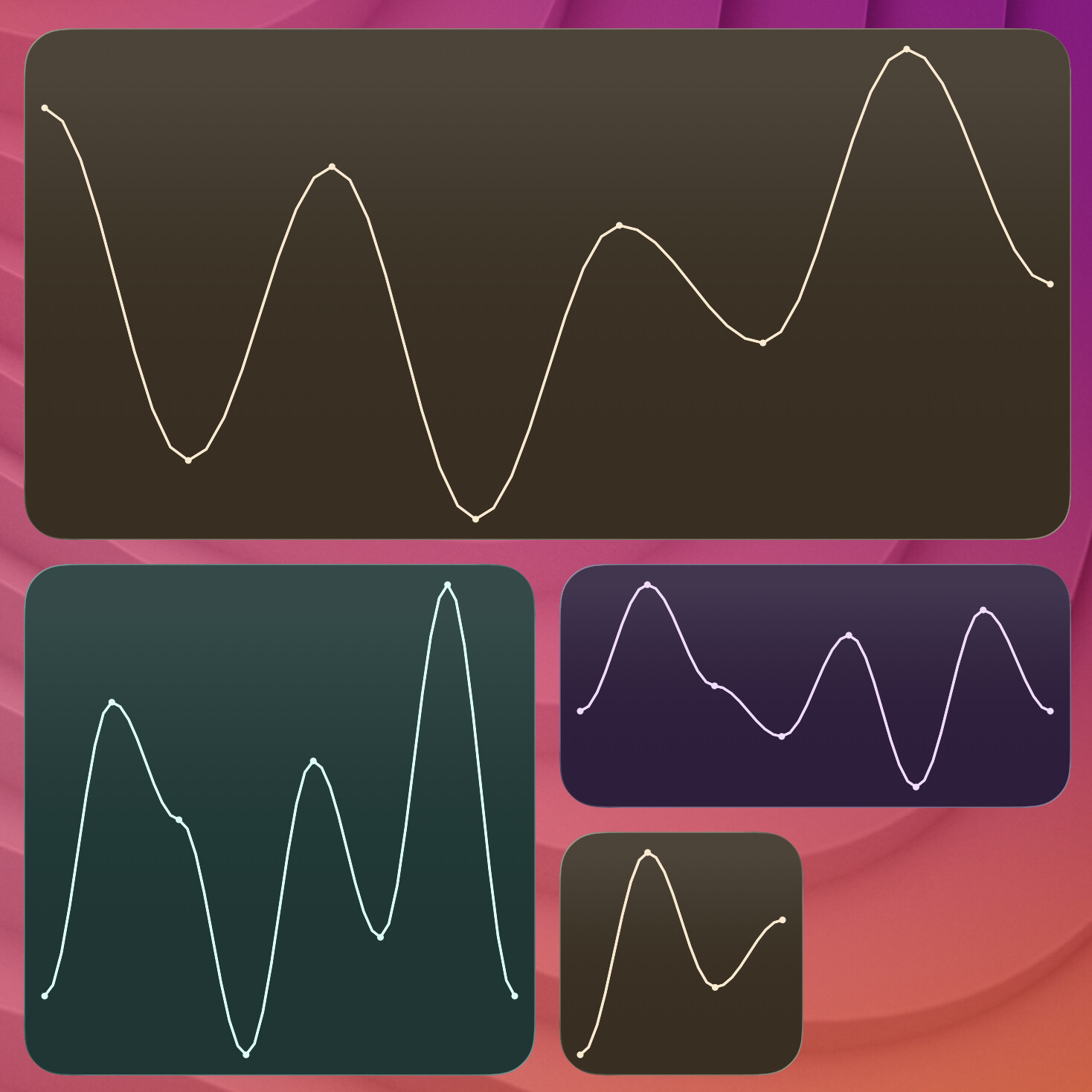

terminal-widget --target widget1 --chart "$DATA" --chart-format smooth
terminal-widget --target widget1 --chart "$DATA" --chart-format sine
terminal-widget --target widget1 --chart "$DATA" --chart-format peak

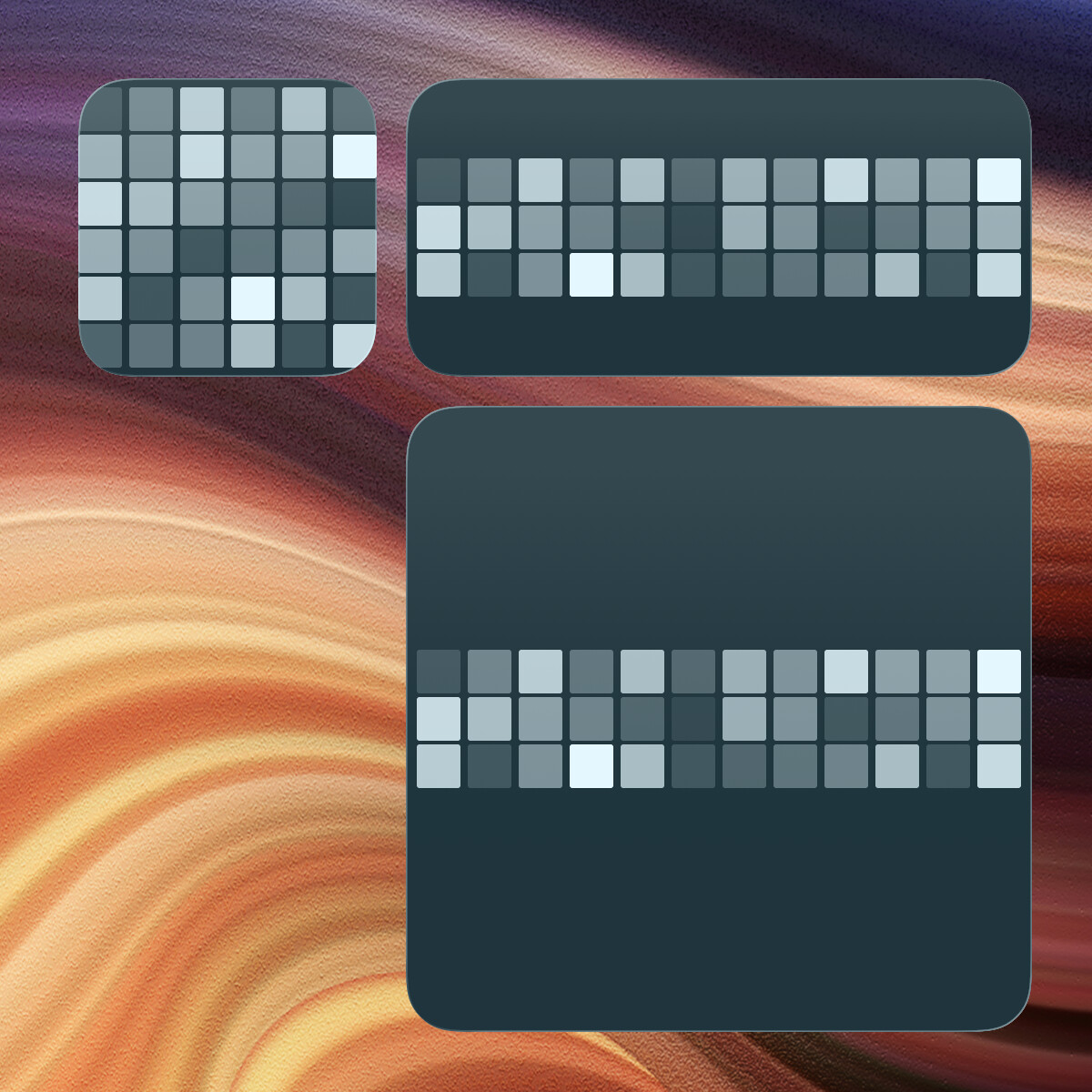

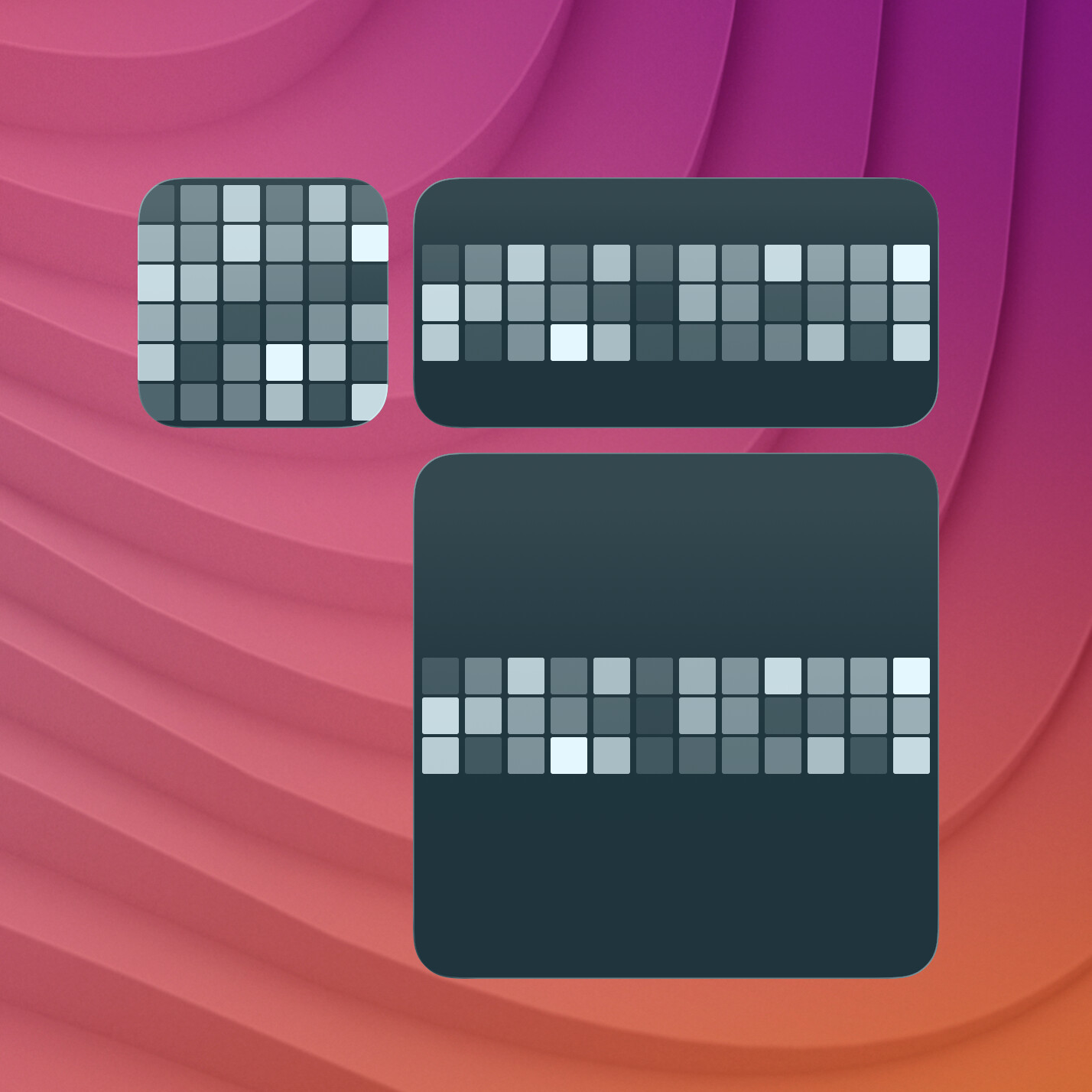

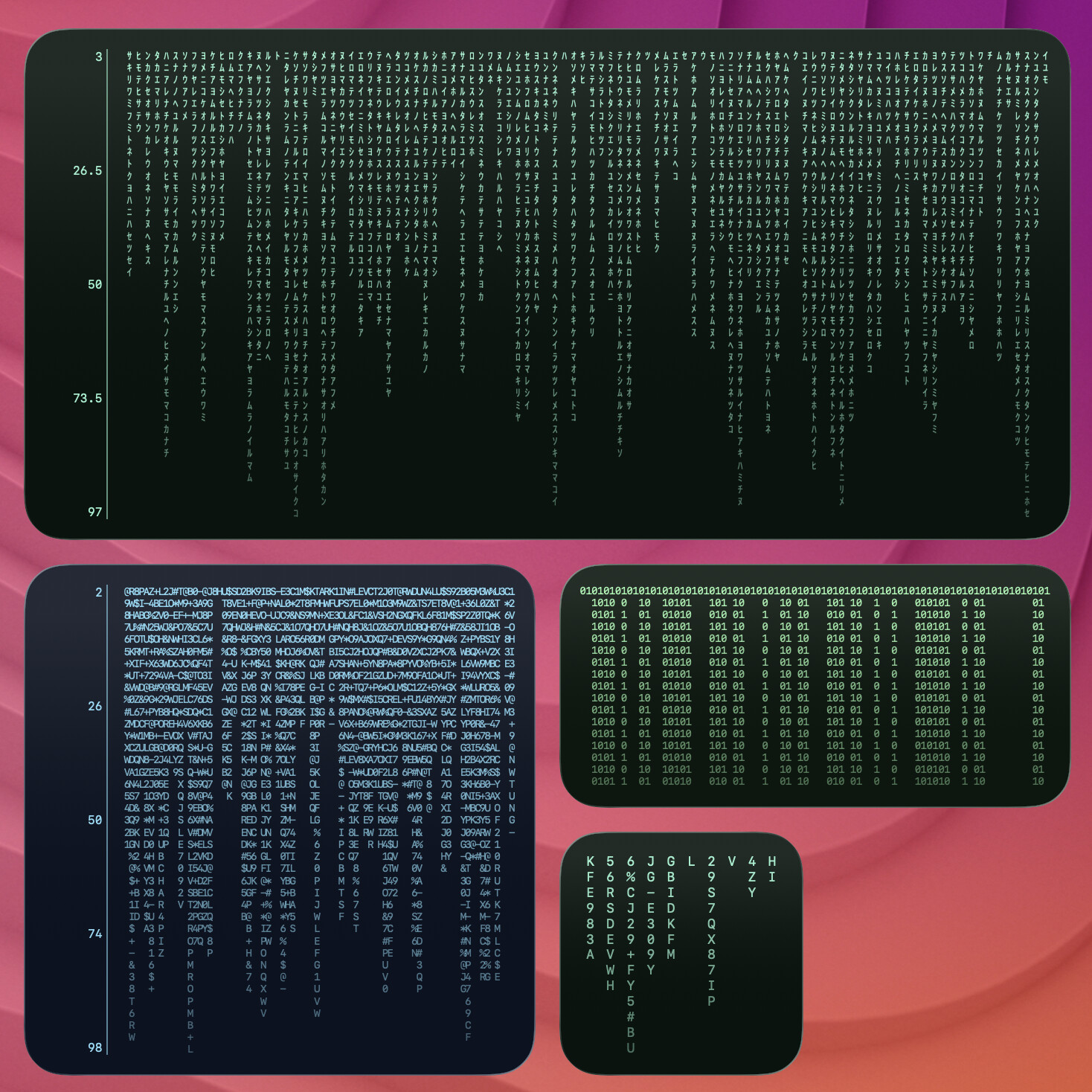

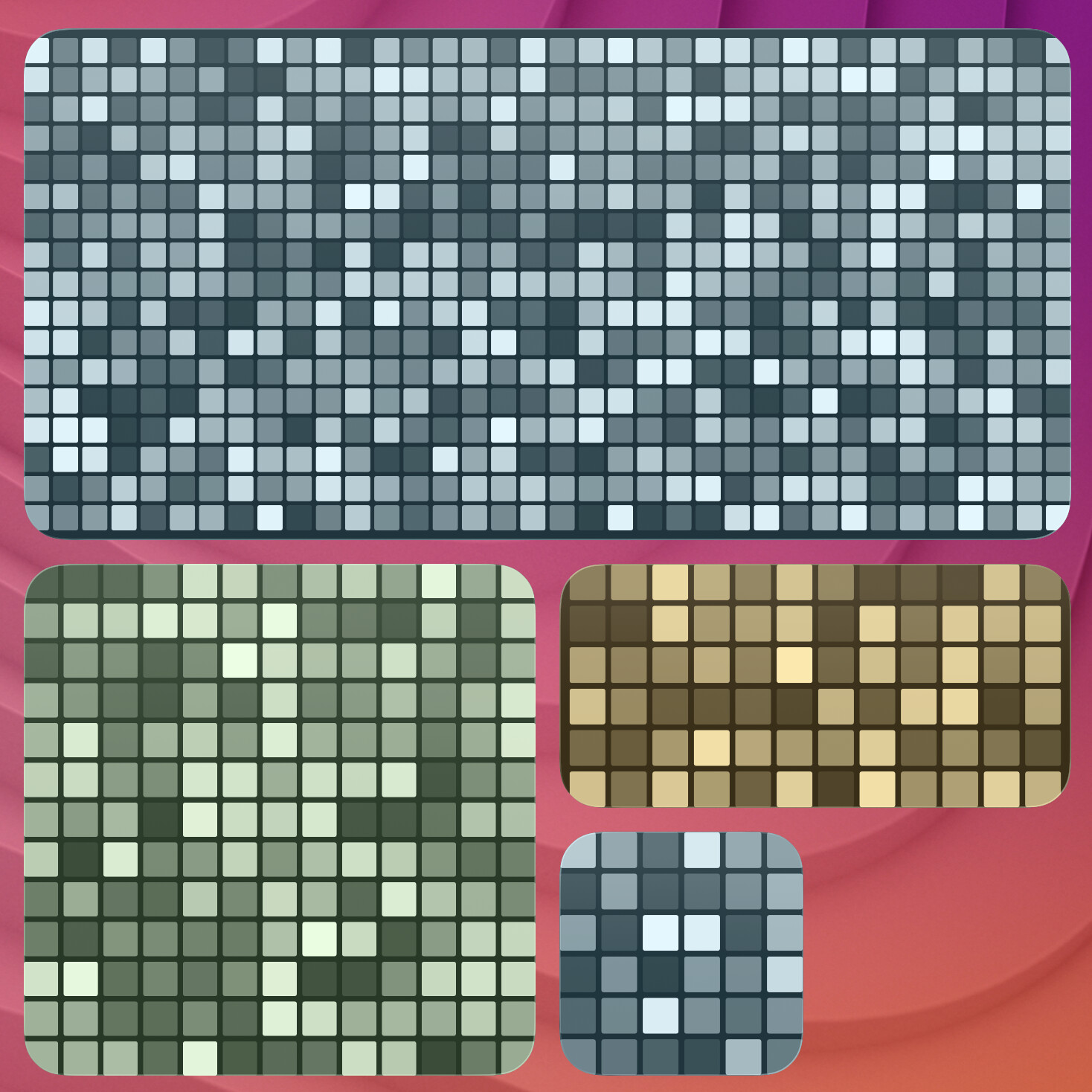

terminal-widget --target widget1 --chart "$DATA" --chart-format matrix
terminal-widget --chart "5-6,1-6,1-5,1.5-4,1-5" --chart-format rangebar --target widget1 --bg "ffffff" --fg "ca4fae"

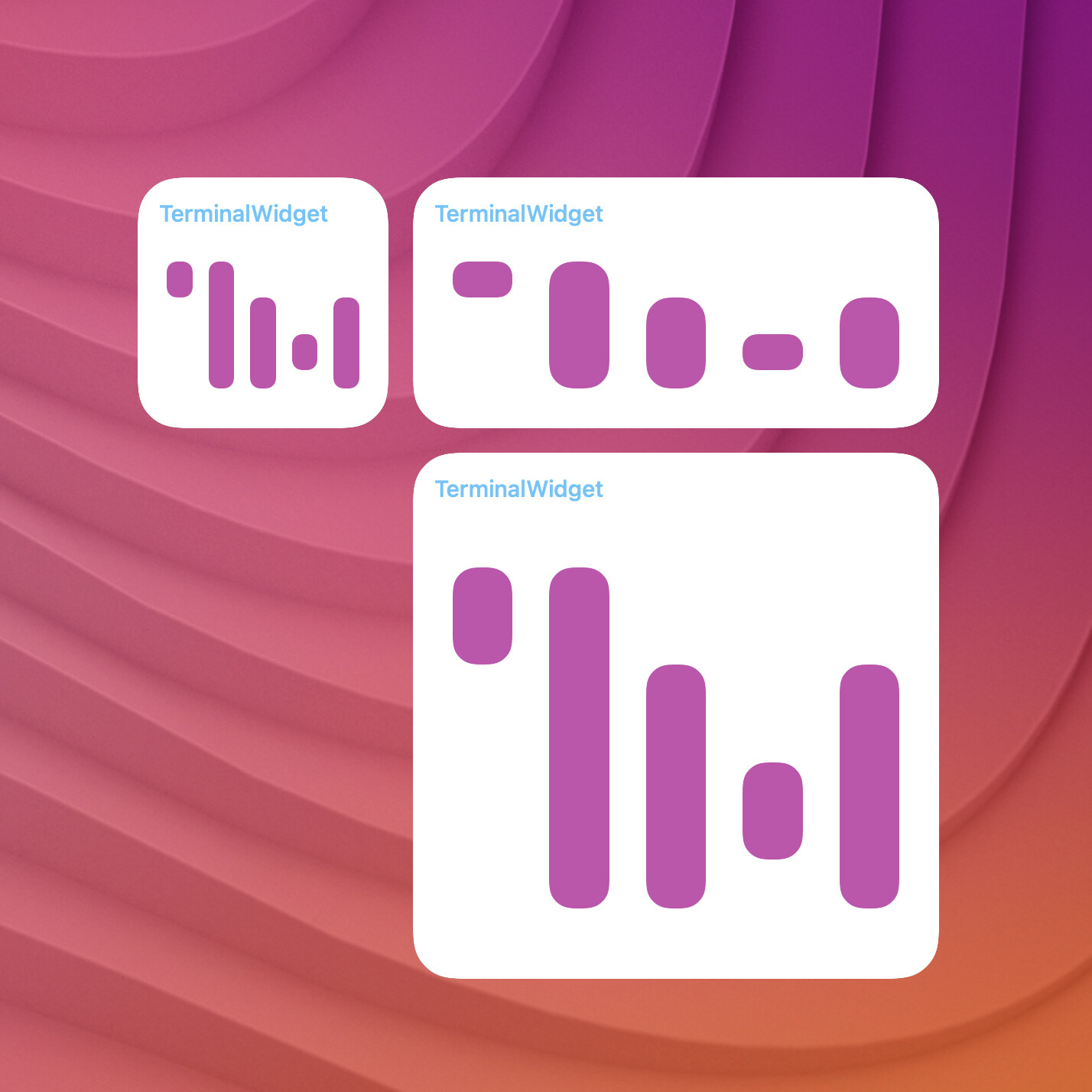

Range Bar

rangebar draws each bar as one contiguous inclusive range. The y axis starts at 0 and scales to the highest range endpoint plus one.

terminal-widget --chart "5-6,1-6,1-5,1.5-4,1-5" --chart-format rangebar --target widget1 --bg "ffffff" --fg "ca4fae"

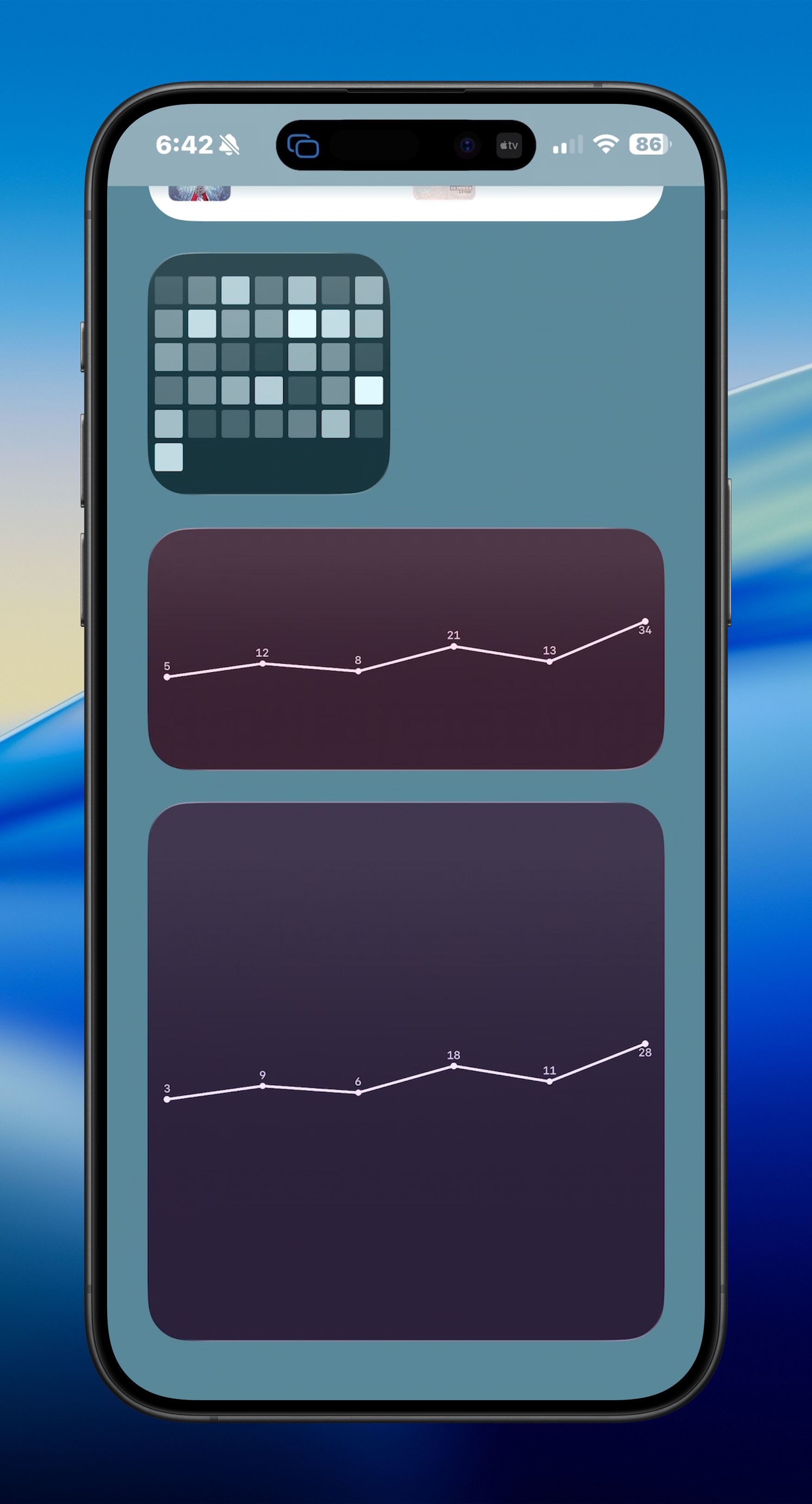

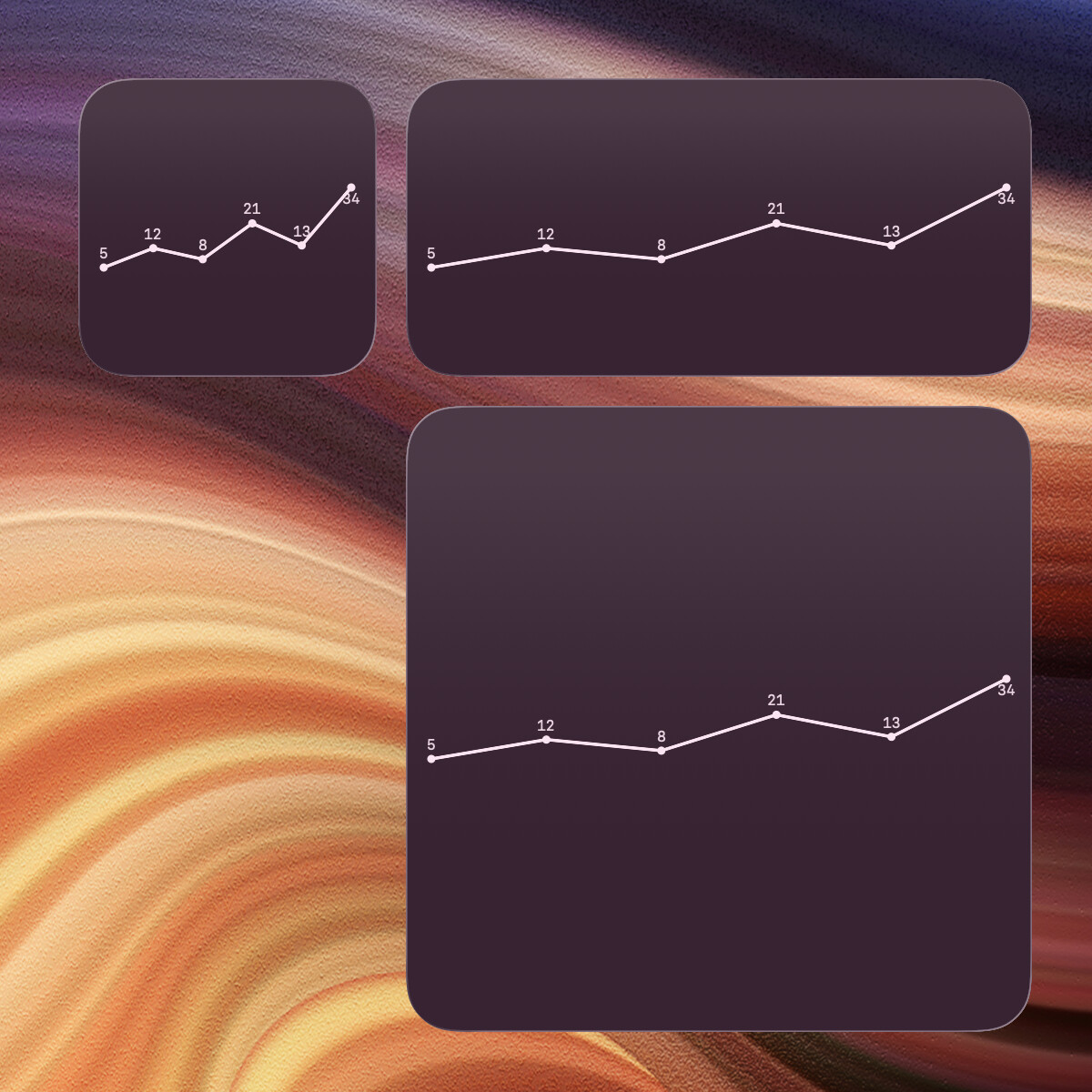

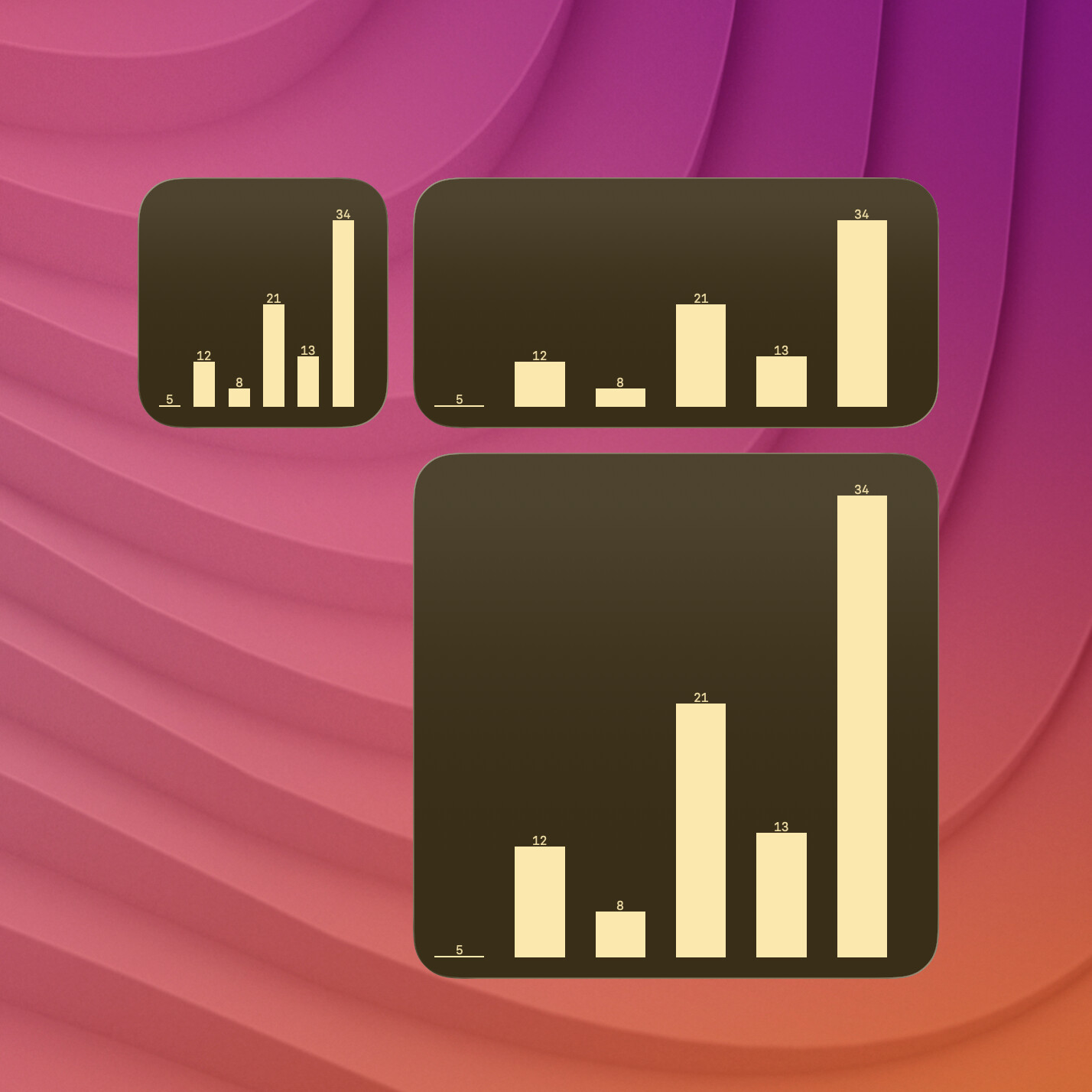

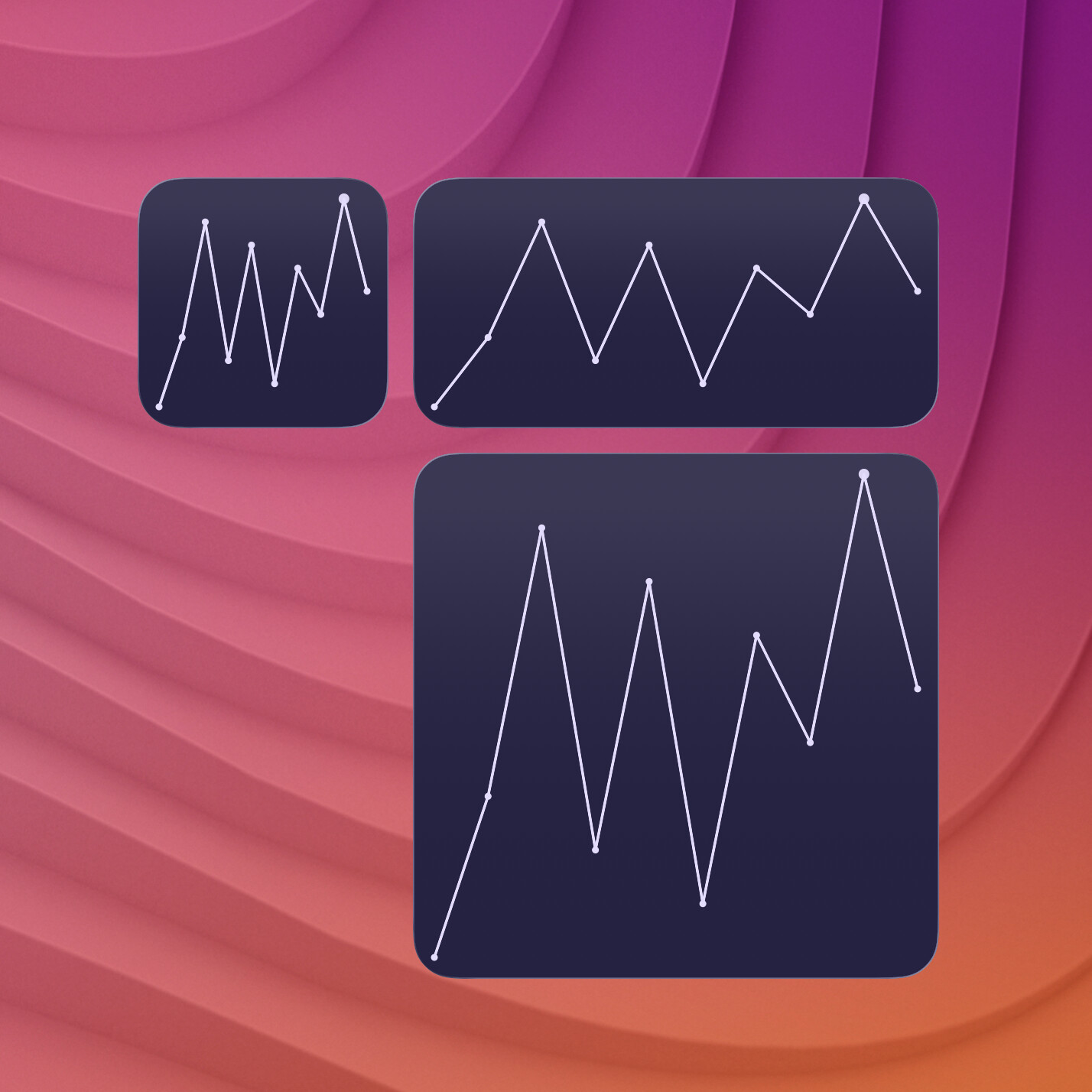

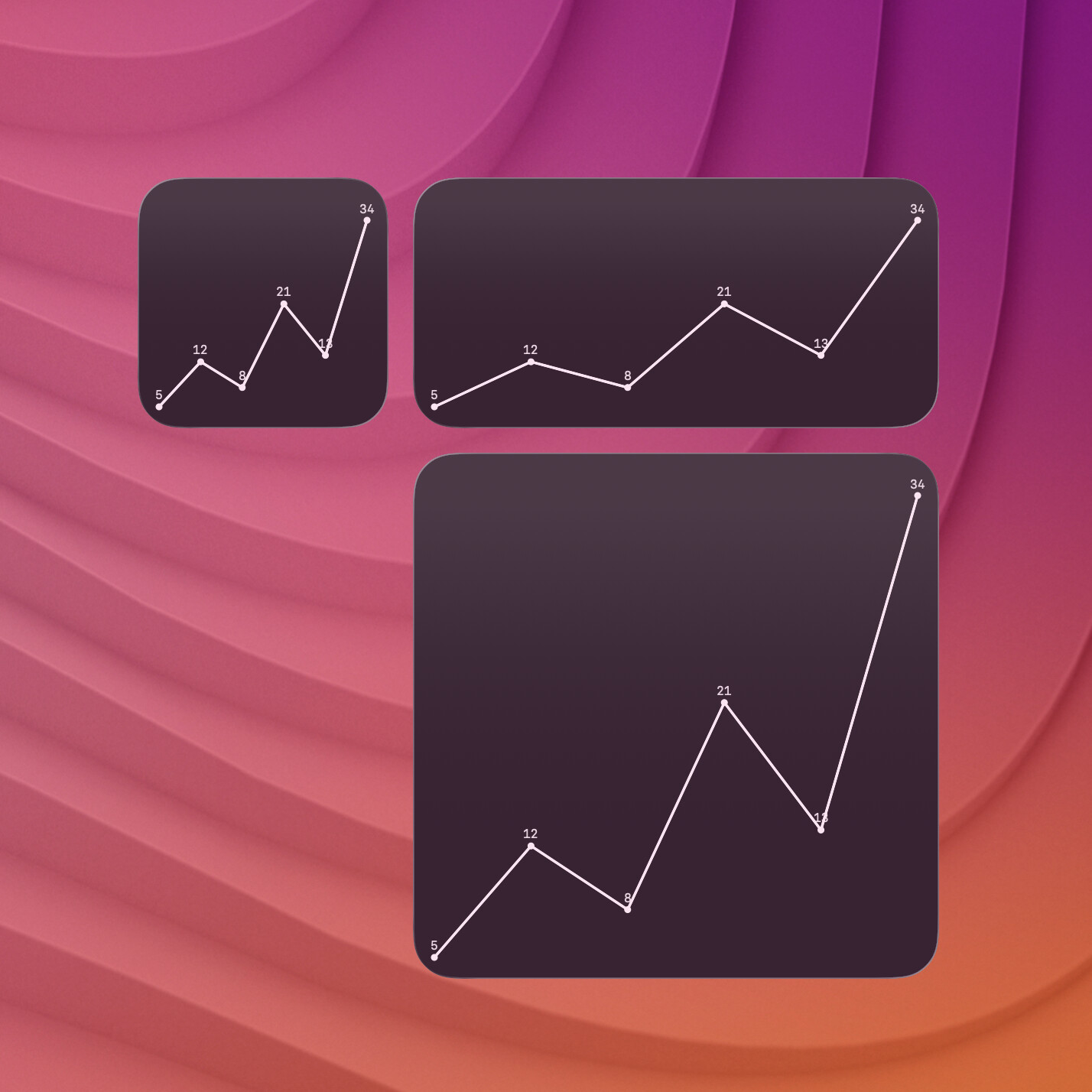

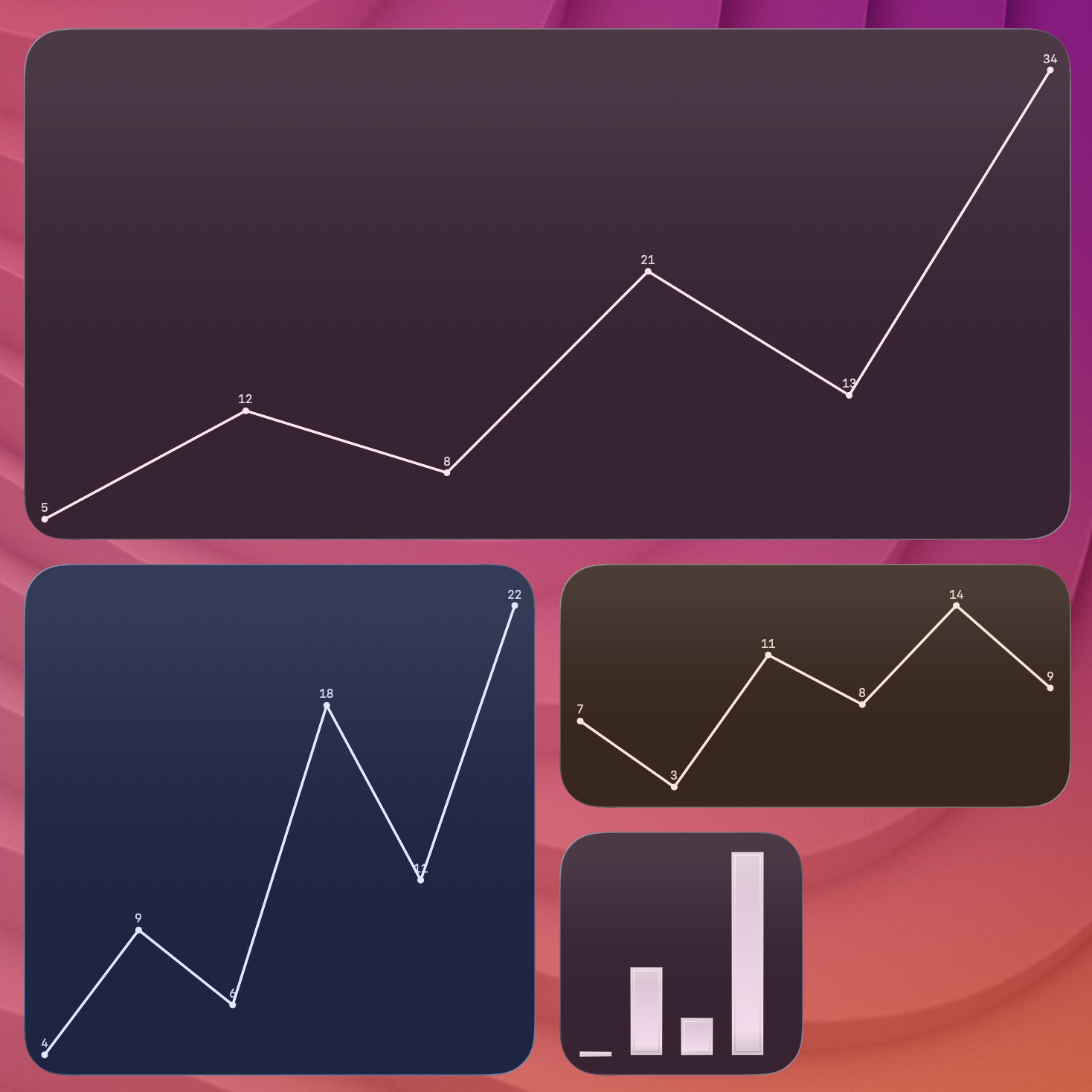

Chart Annotation (--annotate)

--annotate overlays point/bar labels for sparkline, graph, waveform, and rangebar chart families.

terminal-widget --target widget1 --chart "5 12 8 21 13 34" --chart-format graph --annotate
terminal-widget --target widget1 --chart "5 12 8 21 13 34" --chart-format sparkline --annotate

Gallery captures for bar-style annotations use slug chart-annotate-bars (capture-macos-widgets.sh / capture-ios-widgets-interactive.sh --only chart-annotate-bars).

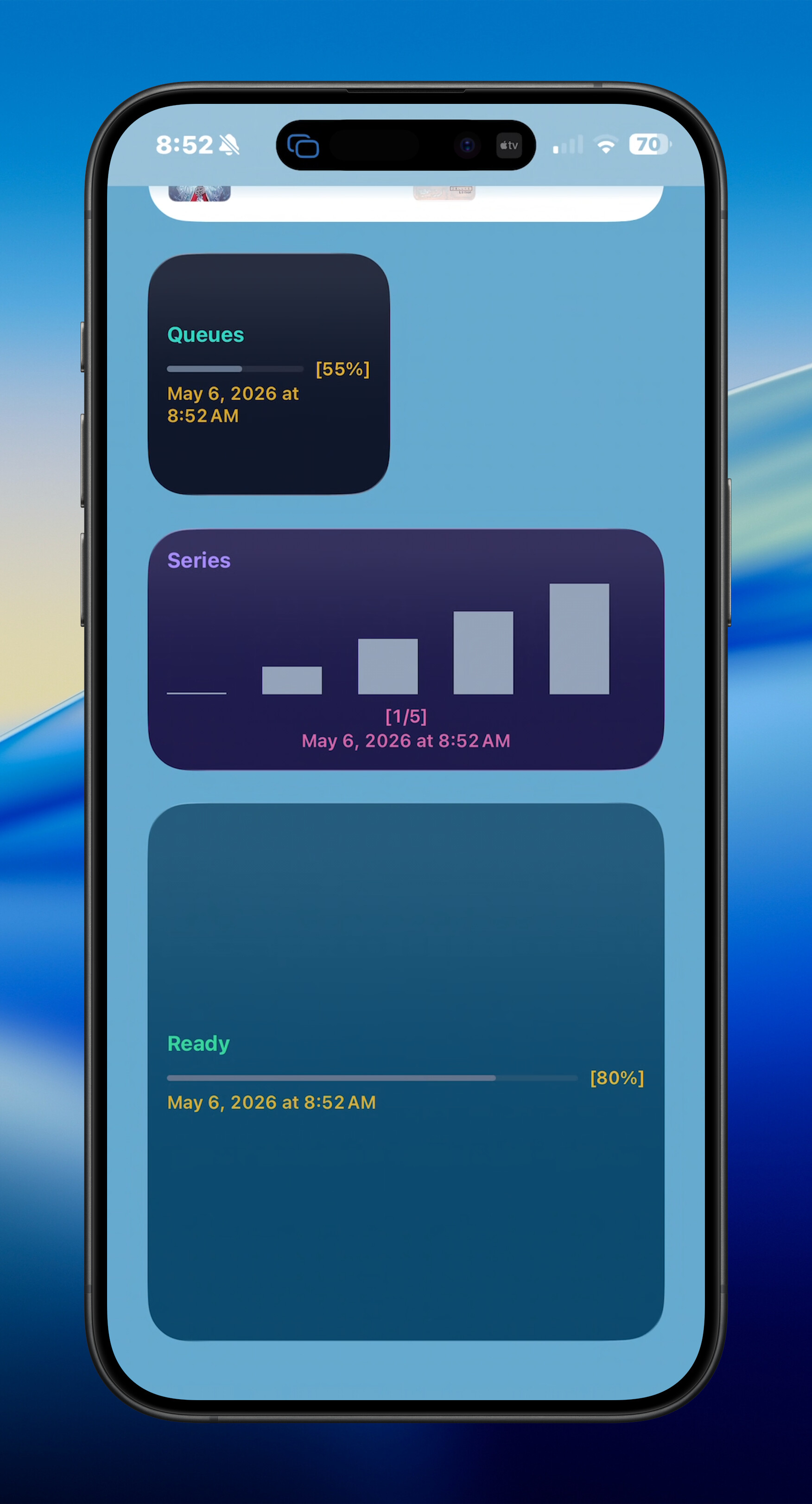

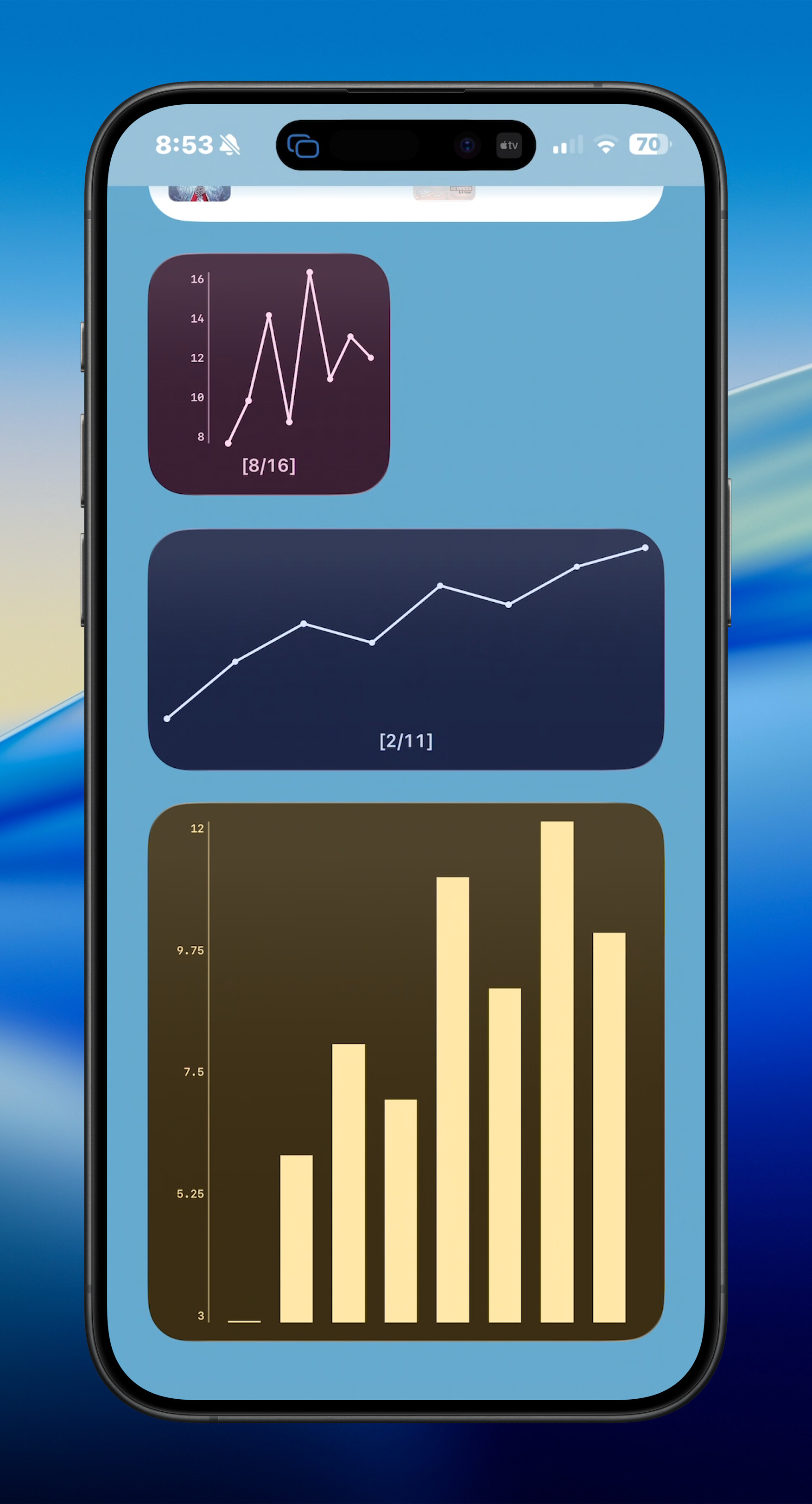

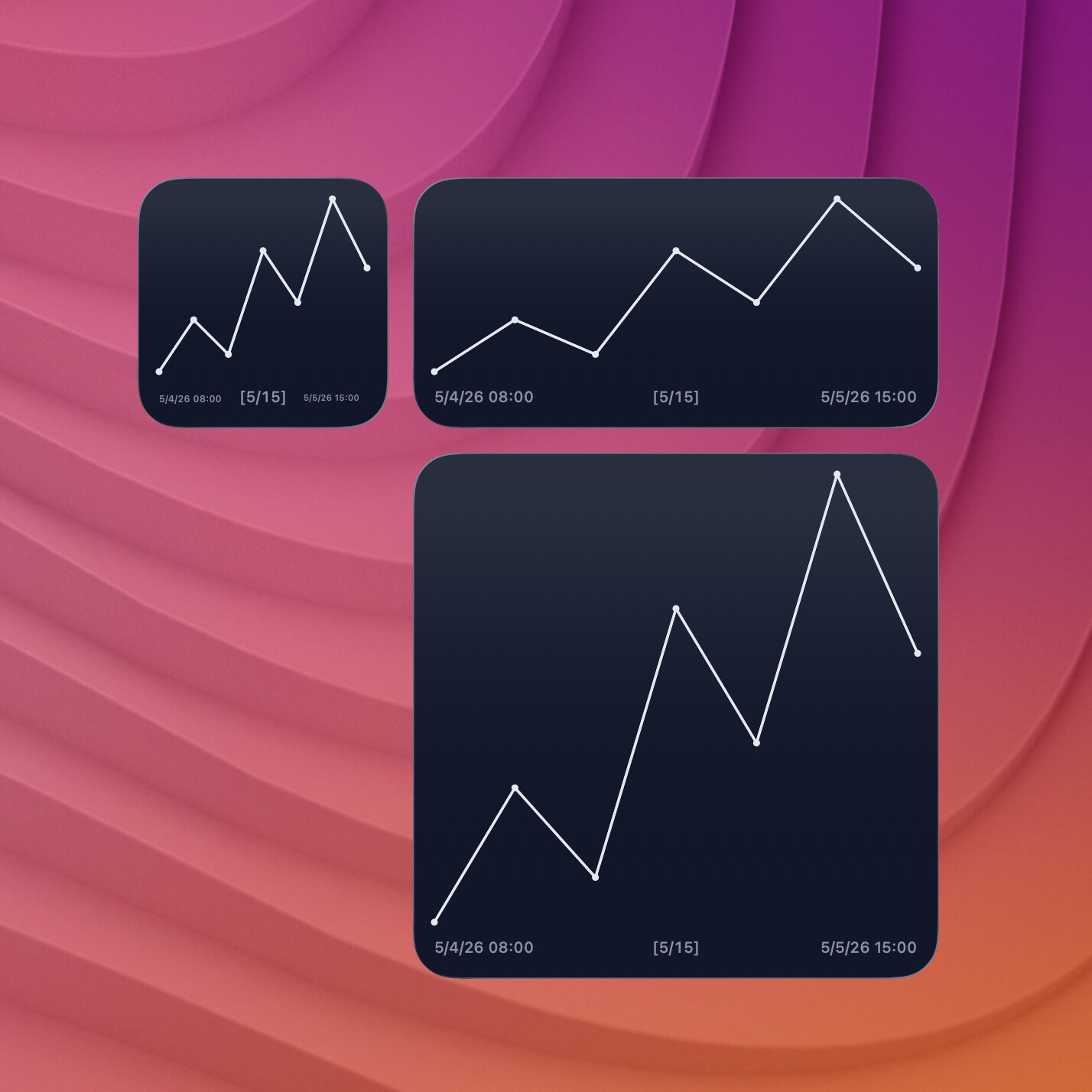

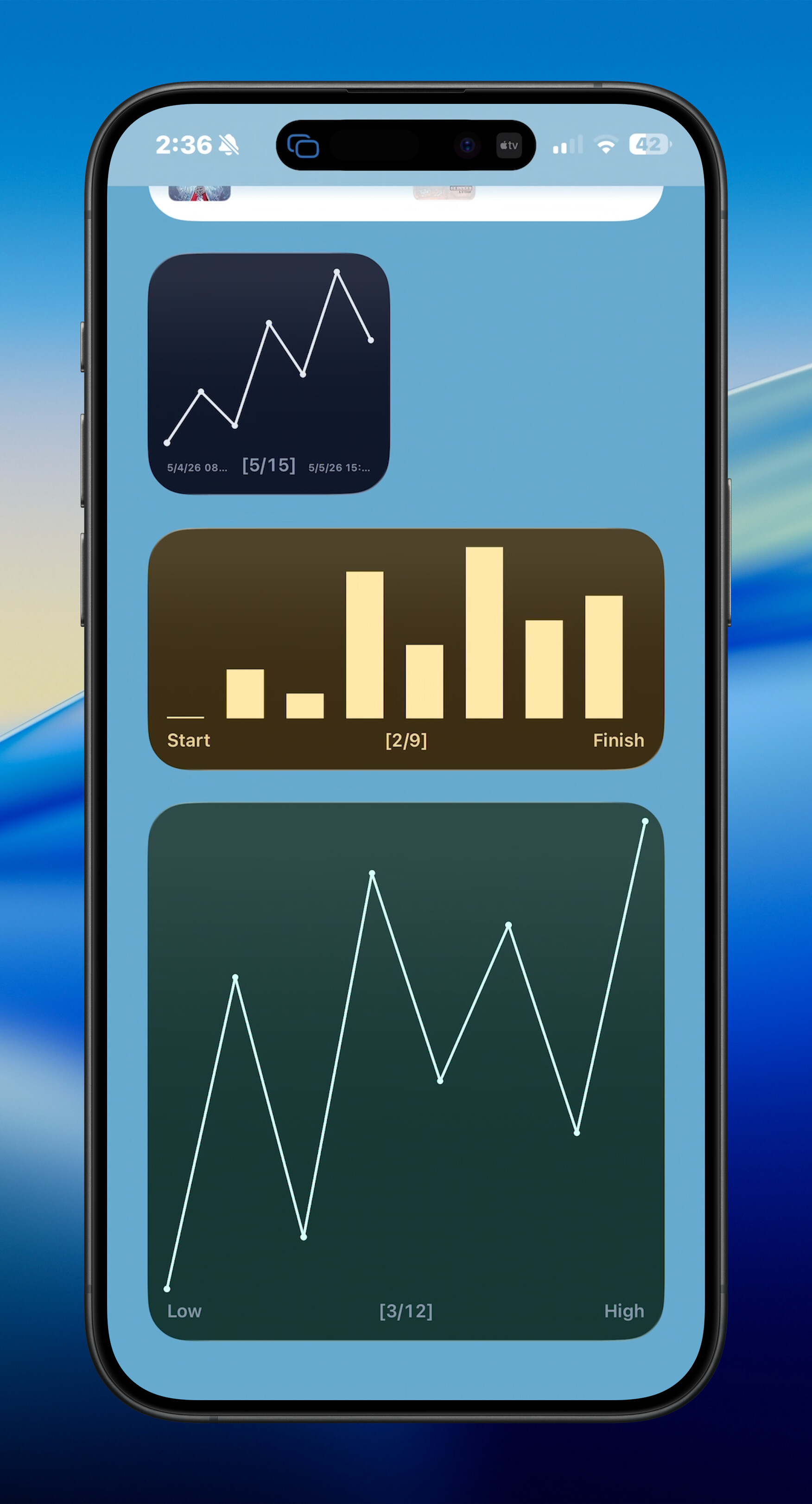

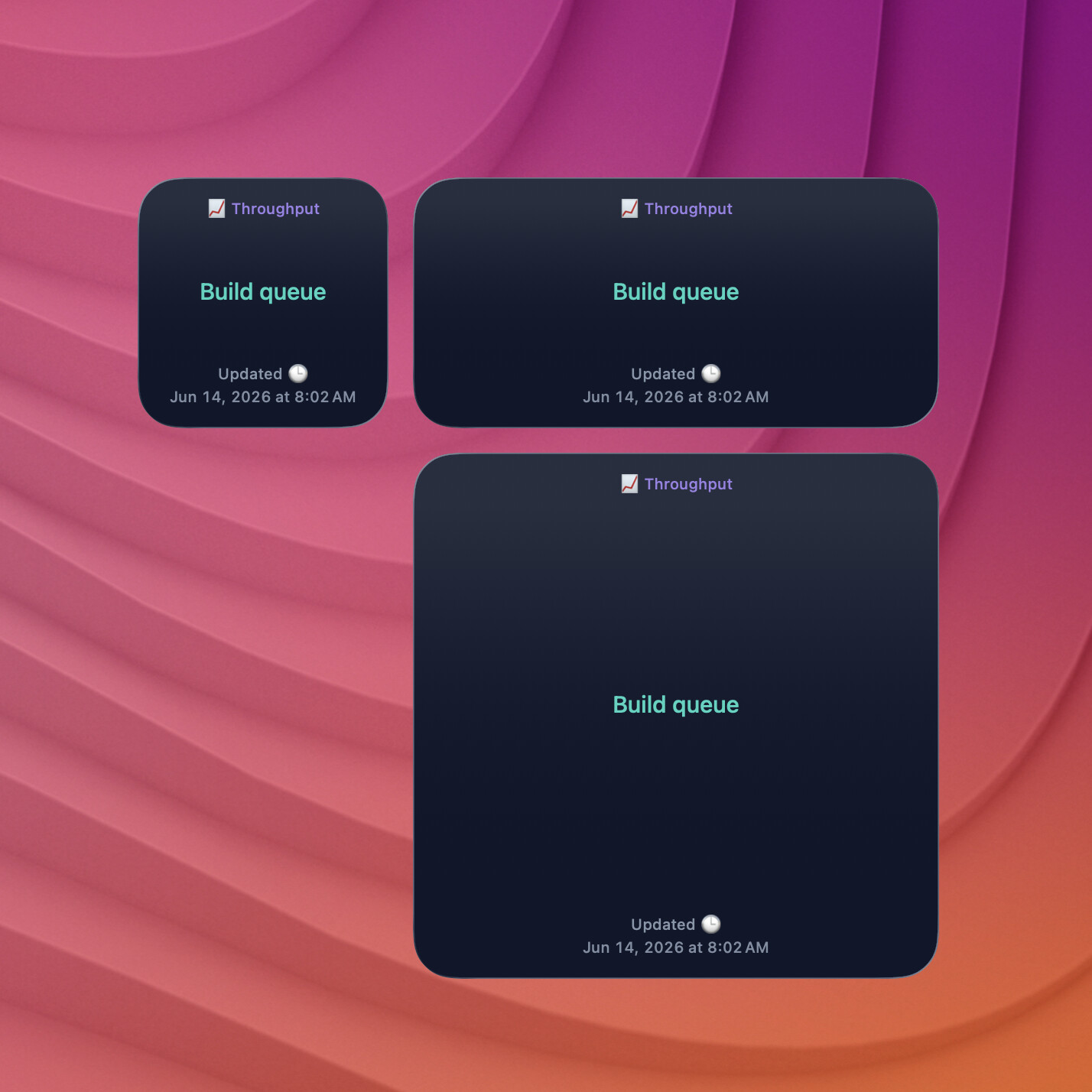

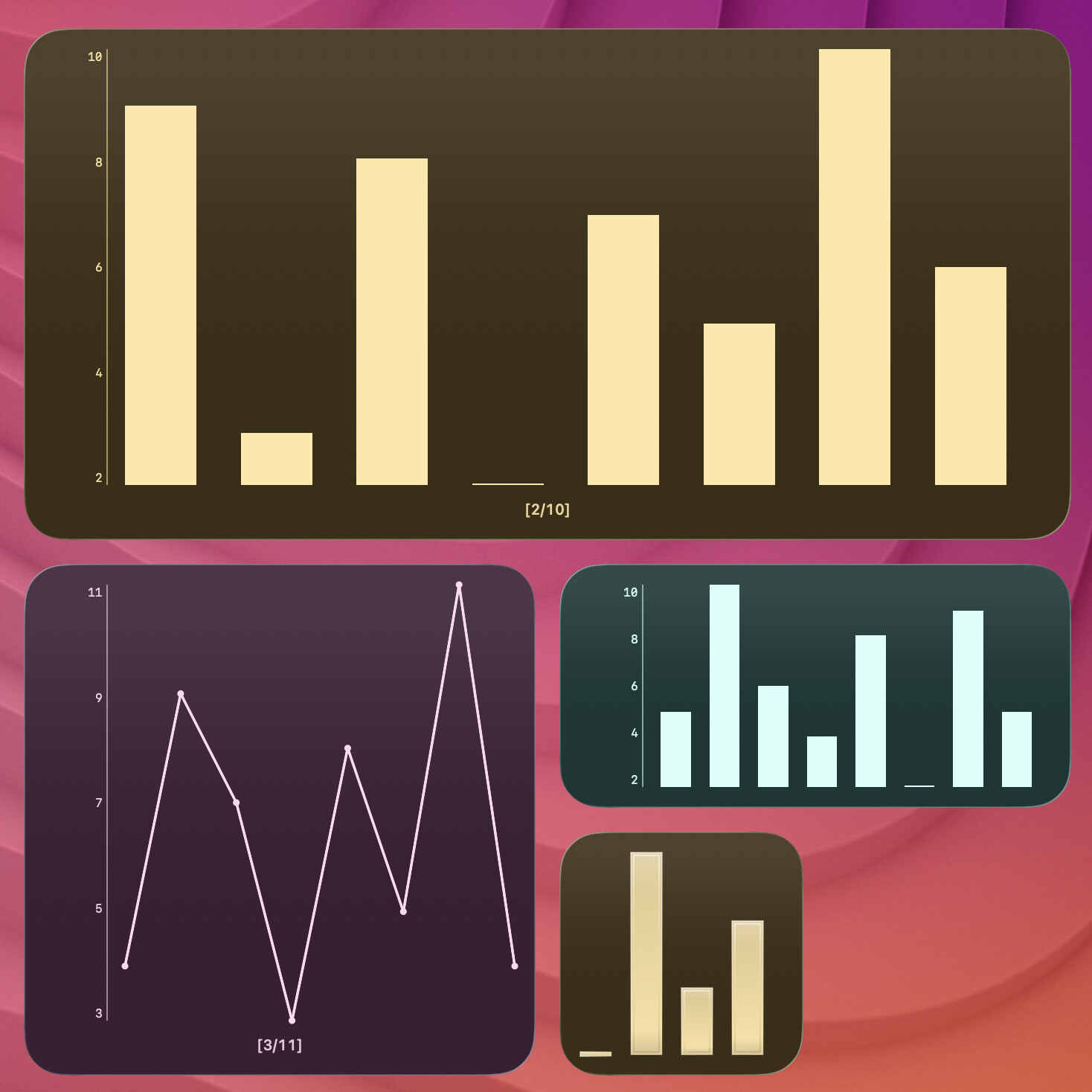

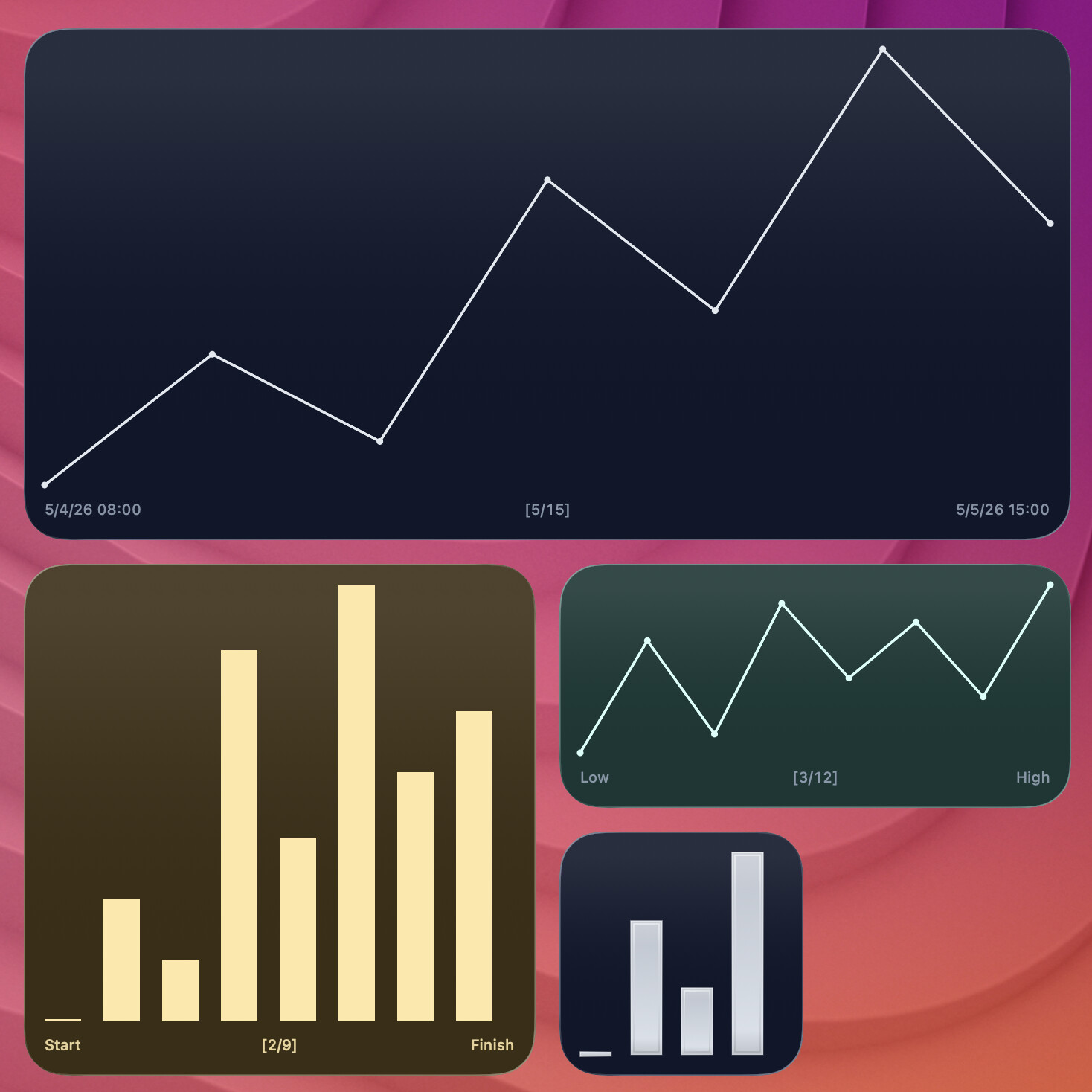

Y axis labels (--label-y) and update time (--timestamp)

--label-y adds a left axis with five labels spanning the chart’s value range (and 0…max+1 for rangebar). --timestamp shows a short local “last updated” line at the bottom on any widget type when no chart/progress footer already shows it; on charts/progress it can be combined with --caption, --caption-text, or used alone. Both apply to the same update that sets the payload (not the WidgetKit refresh schedule).

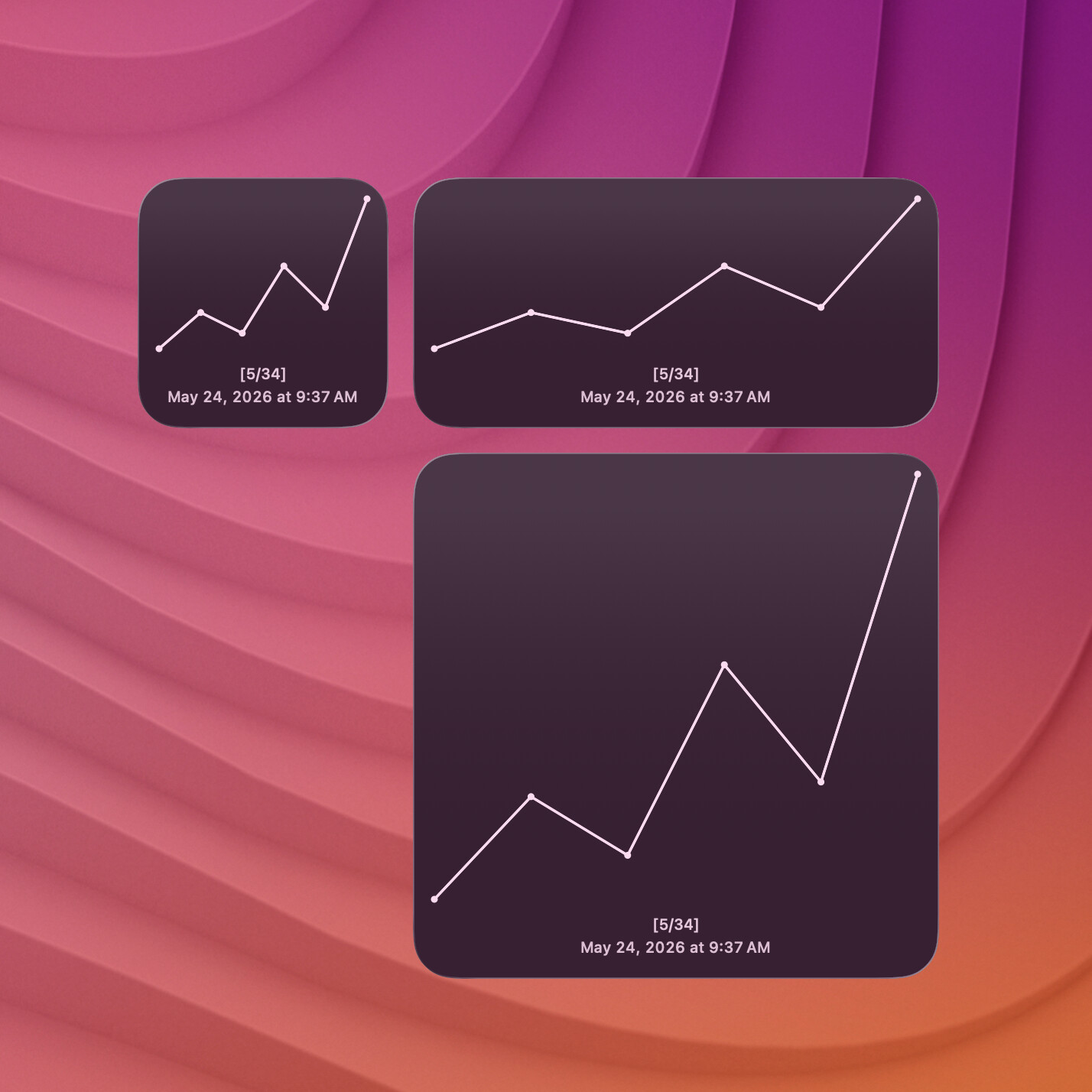

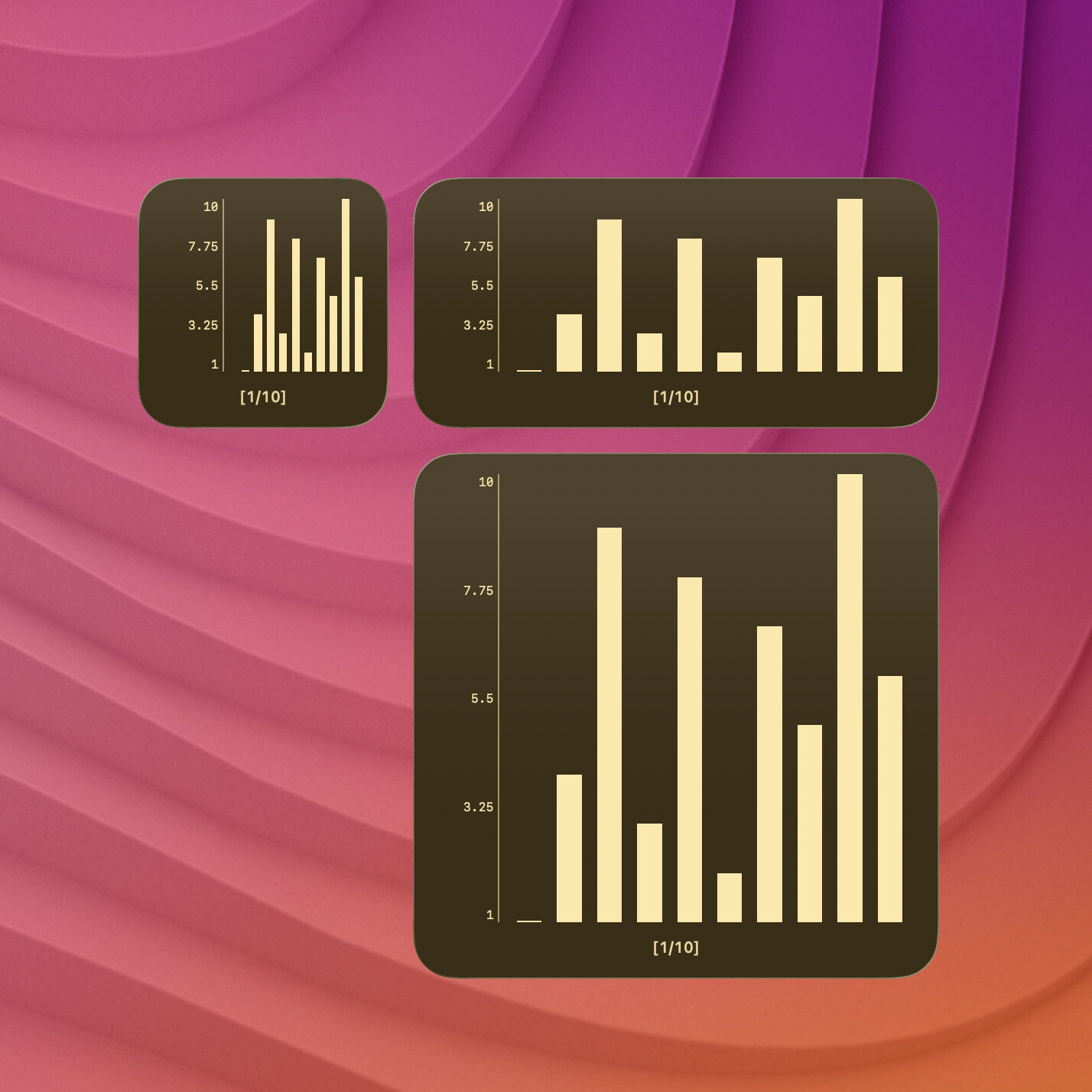

terminal-widget --target widget1 --chart "1 4 9 3 8 2 7 5 10 6" --chart-format sparkline --label-y --caption
terminal-widget --target widget1 --chart "5 12 8 21 13 34" --chart-format graph --caption --timestamp
terminal-widget --target widget1 --text "Syncing" --progress 42 --caption --timestamp

Styling and Layout Flags

Emoji + Tables

TerminalWidget expands GitHub-style :shortcode: aliases (same set as GitHub-flavored Markdown) in --text, --icon, --title, and --caption-text, plus table cell strings from --table. Examples: :rocket: → 🚀, :white_check_mark: → ✅, :clock3: → 🕒.

terminal-widget --target widget1 --text "Deploy :rocket:" --icon :smiley:
terminal-widget --target widget1 --title ":chart_with_upwards_trend: Weekly" --caption-text "Updated :clock3:"

Use these exact commands when capturing screenshot slots:

Emoji Icon + Background (emoji-icon-bg)

terminal-widget --target widget1 --icon :x: --bg "#ff5f5f"

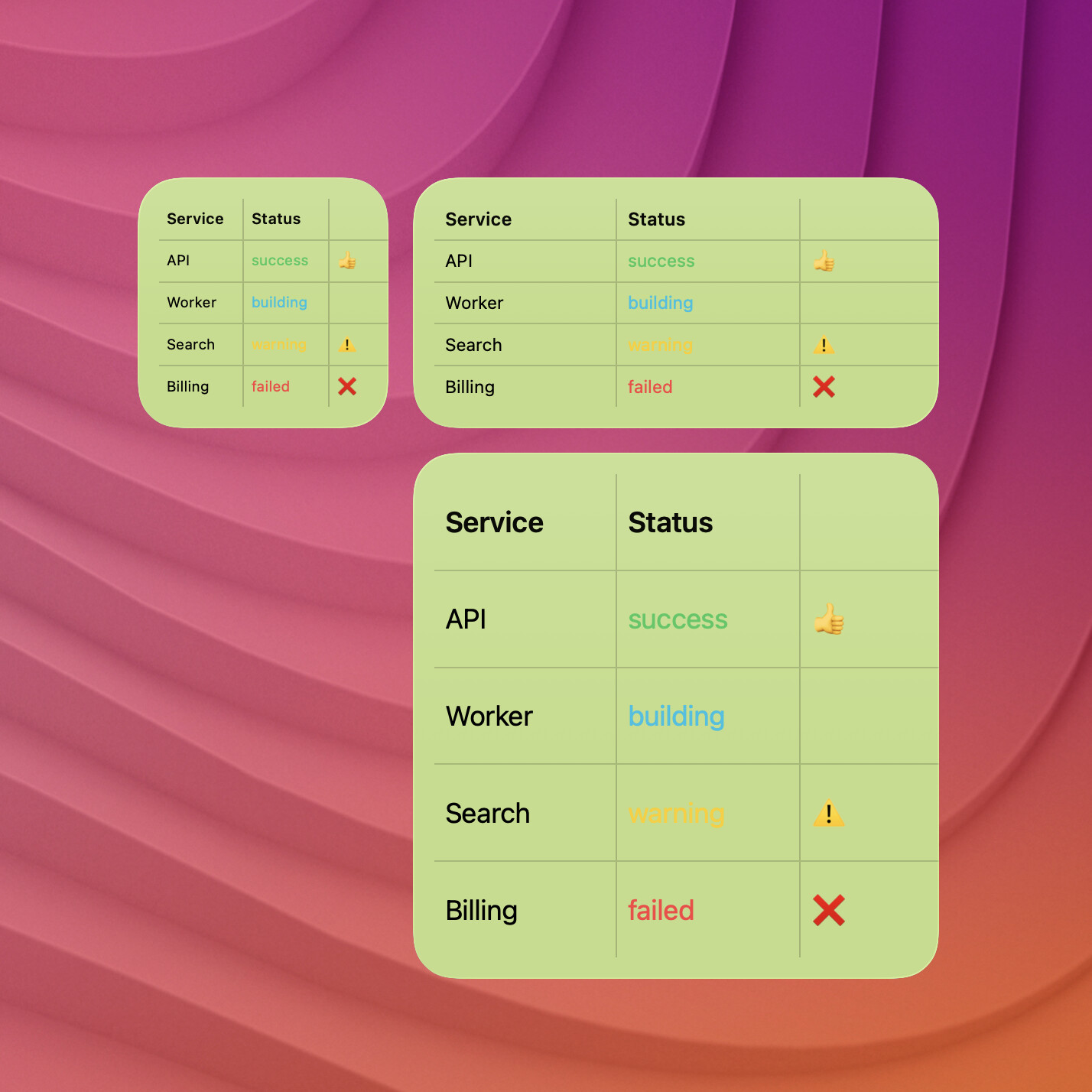

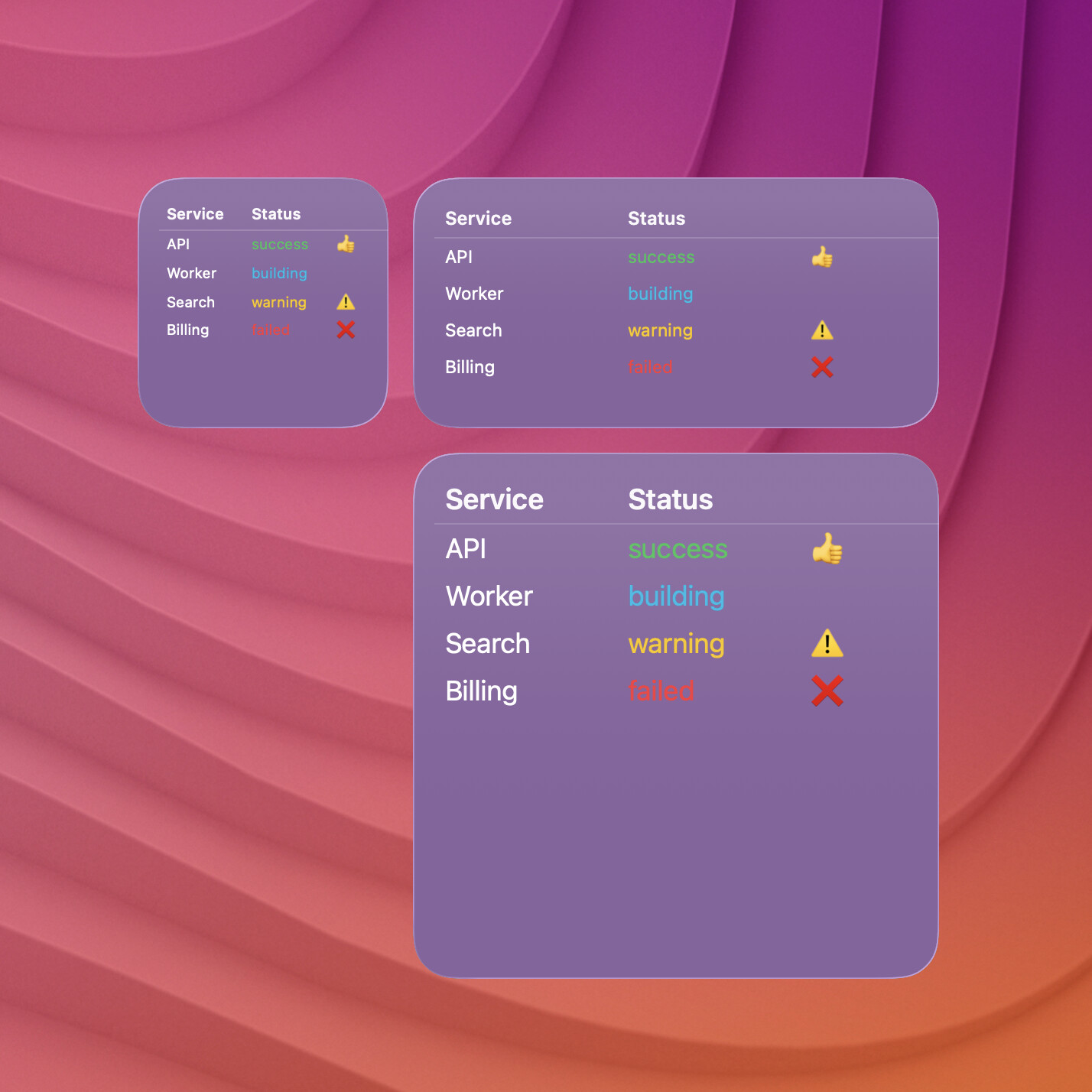

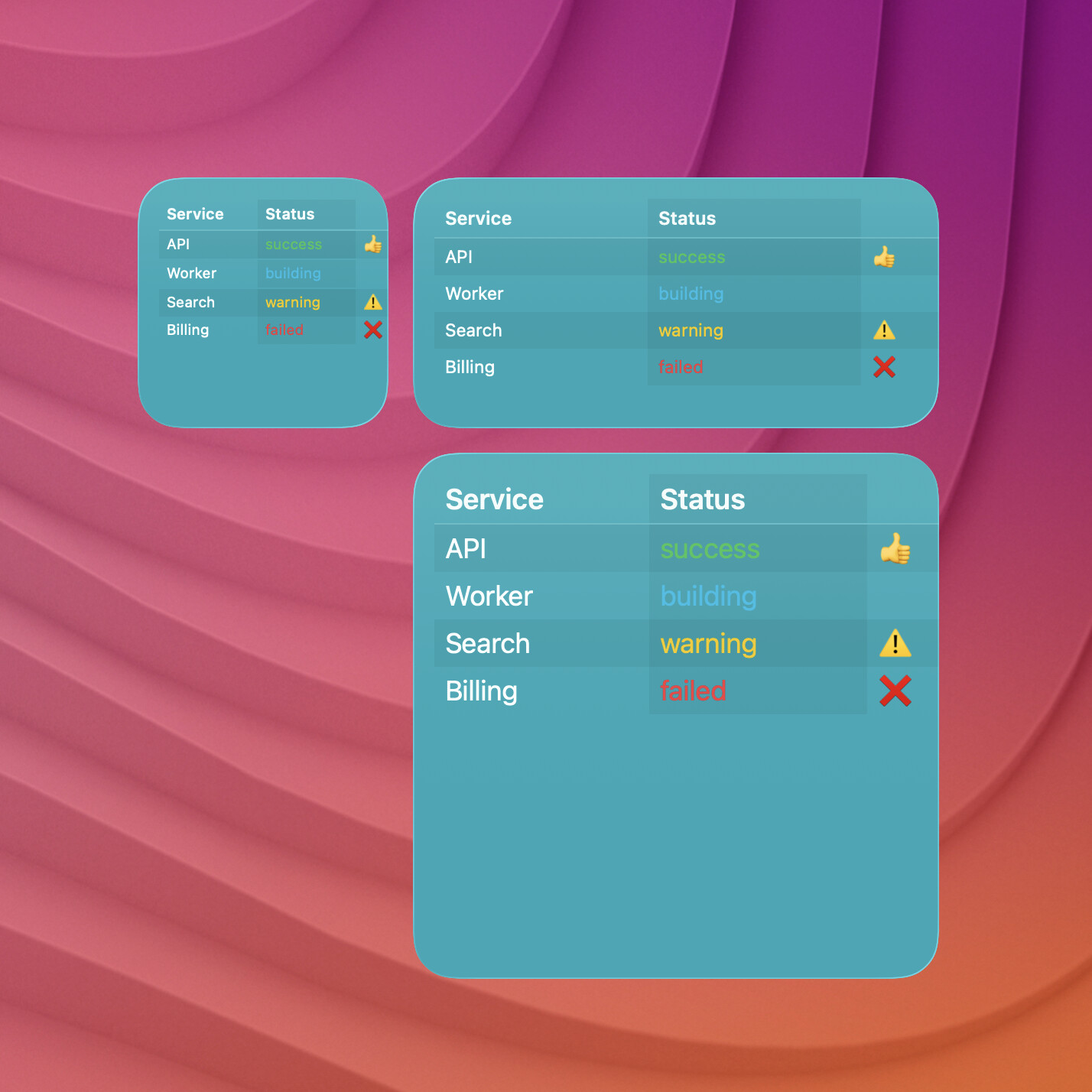

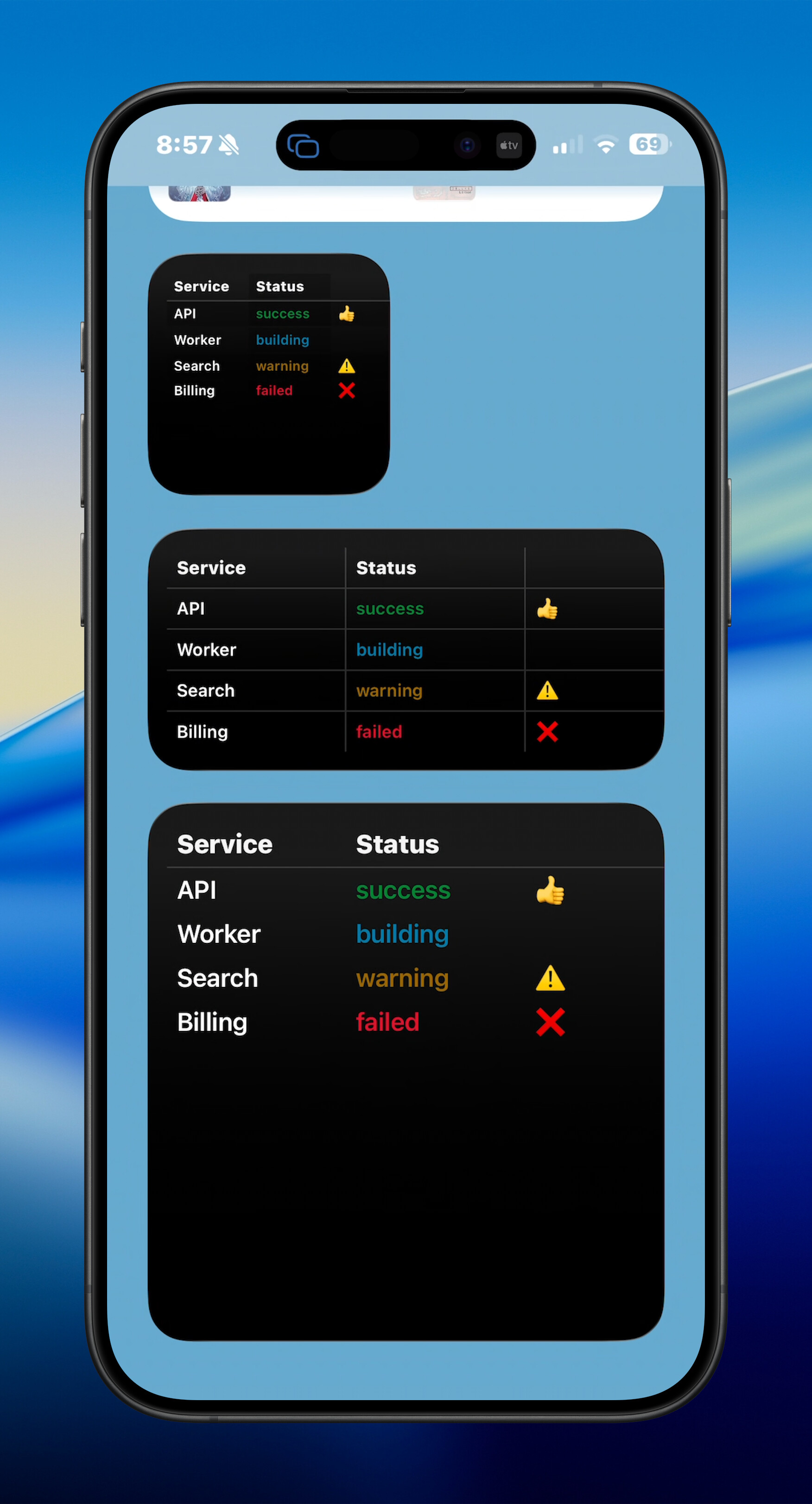

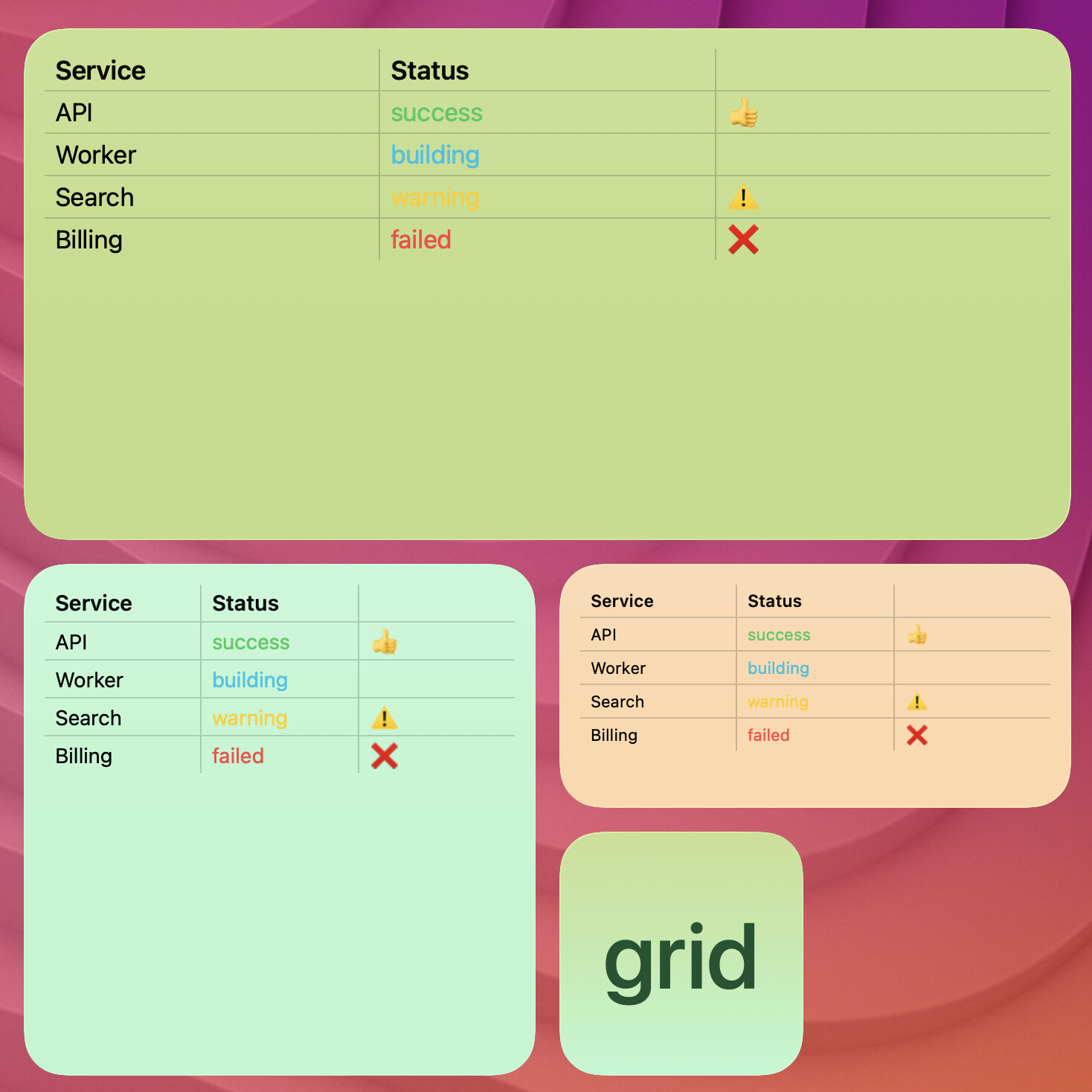

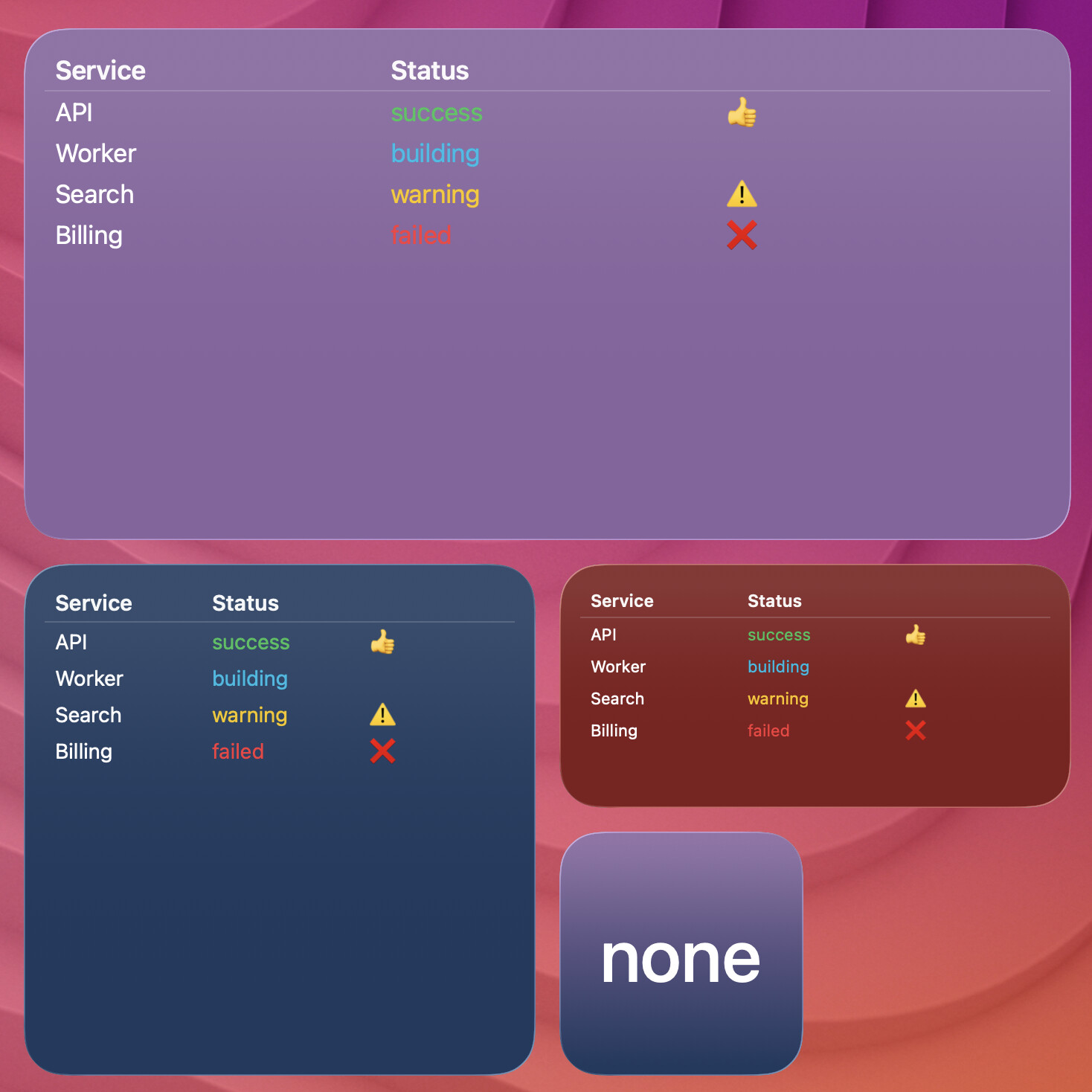

Table with Zebra Grid (table-grid-zebra)

terminal-widget --target widget1 --table ~/status/status.csv --grid zebra --zebra-opacity 60 --mode dark

Table with Row + Column Grid (table-grid-both)

terminal-widget --target widget1 --table ~/status/status.csv --grid both --mode dark

Table with Header Rule Only (table-grid-none)

terminal-widget --target widget1 --table ~/status/status.csv --grid none --mode dark

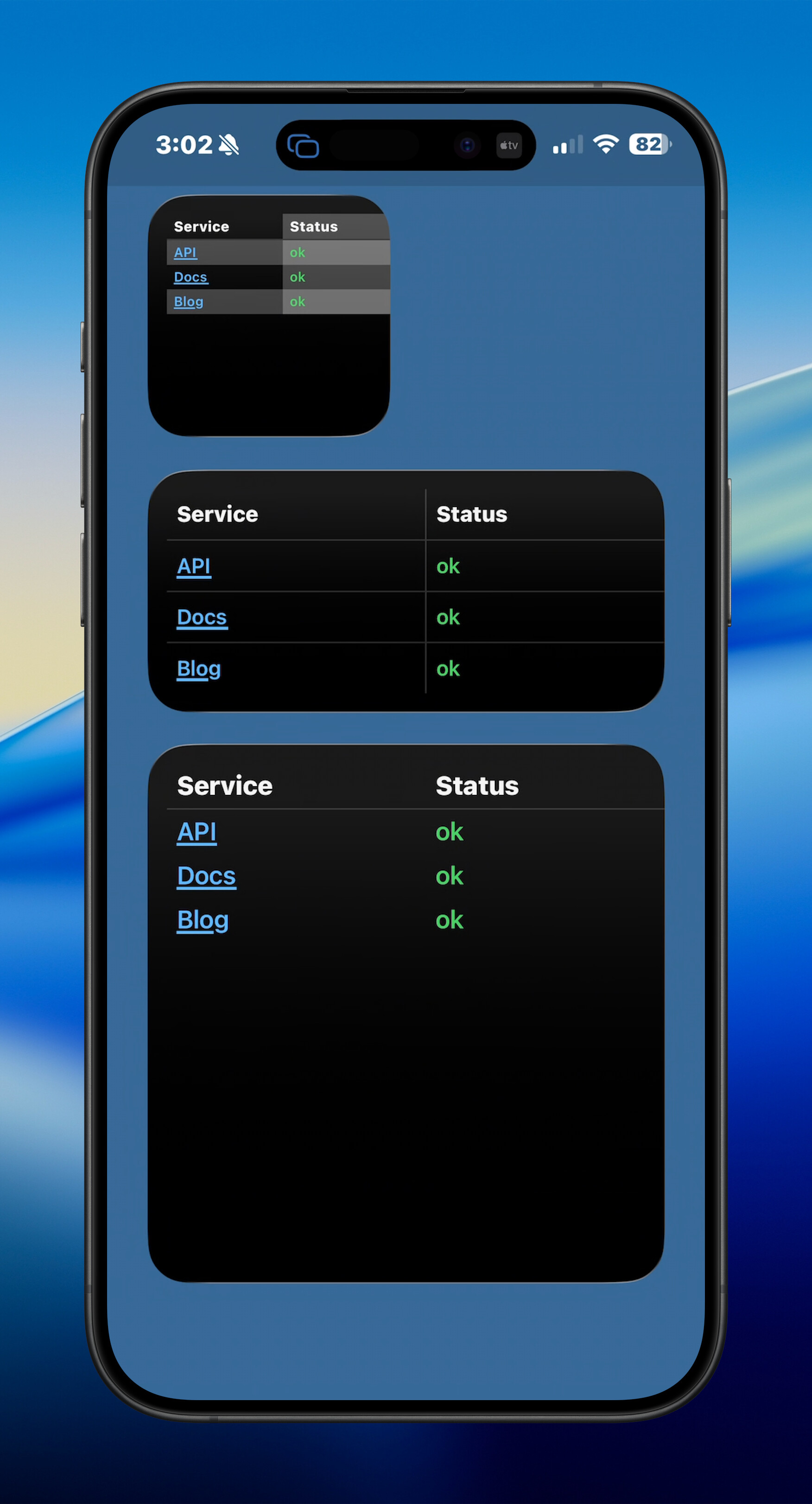

Table cell markdown links (table-cell-links)

Table cells accept the same [label](url) syntax as --text. Linked labels render as tappable buttons; other cell text stays plain.

cat scripts/fixtures/capture-table-links.csv | terminal-widget --target widget1 --table - --grid zebra --mode dark --table-layout equal

Optional STDIN Variant

cat ~/status/status.csv | terminal-widget --target widget1 --table -

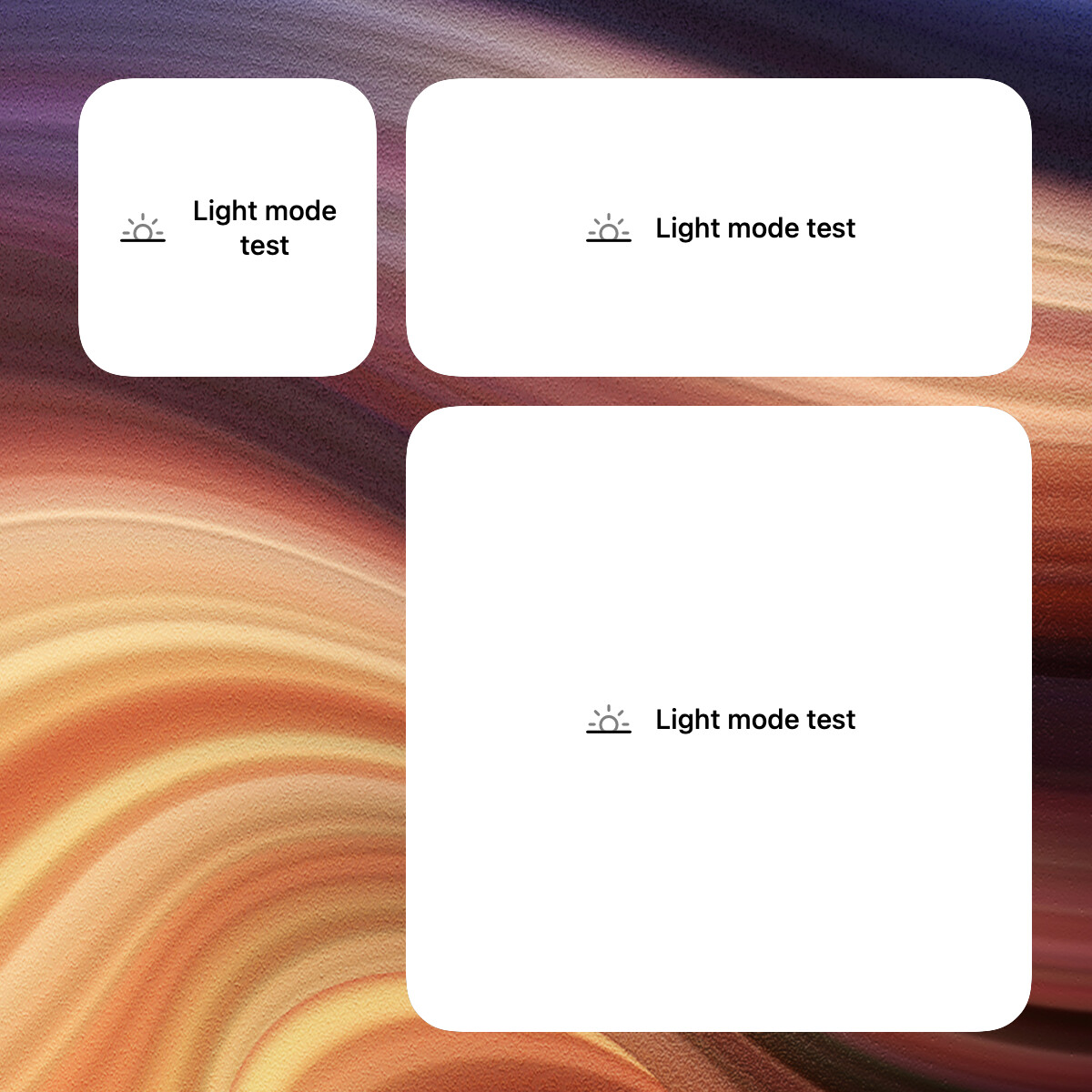

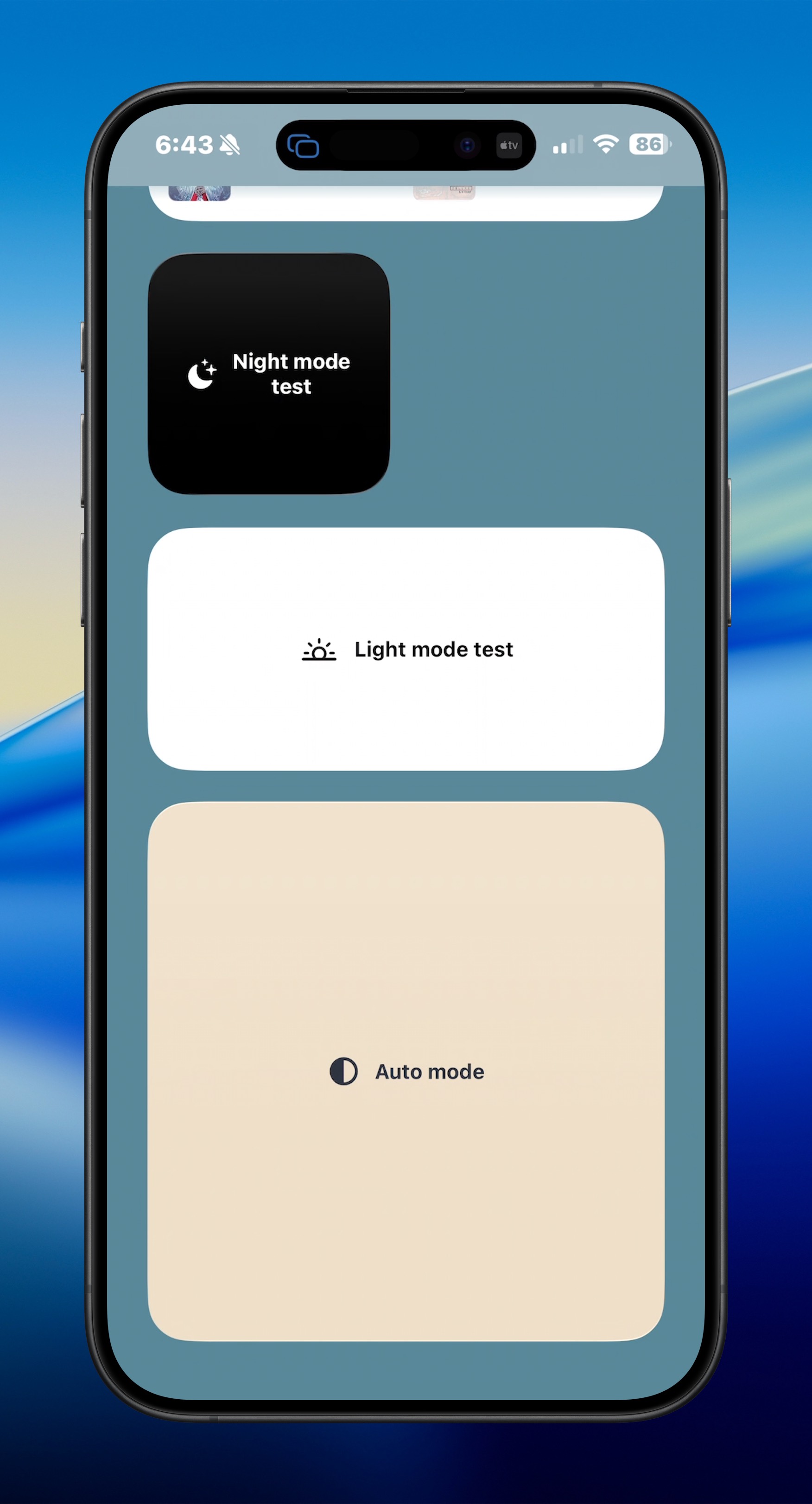

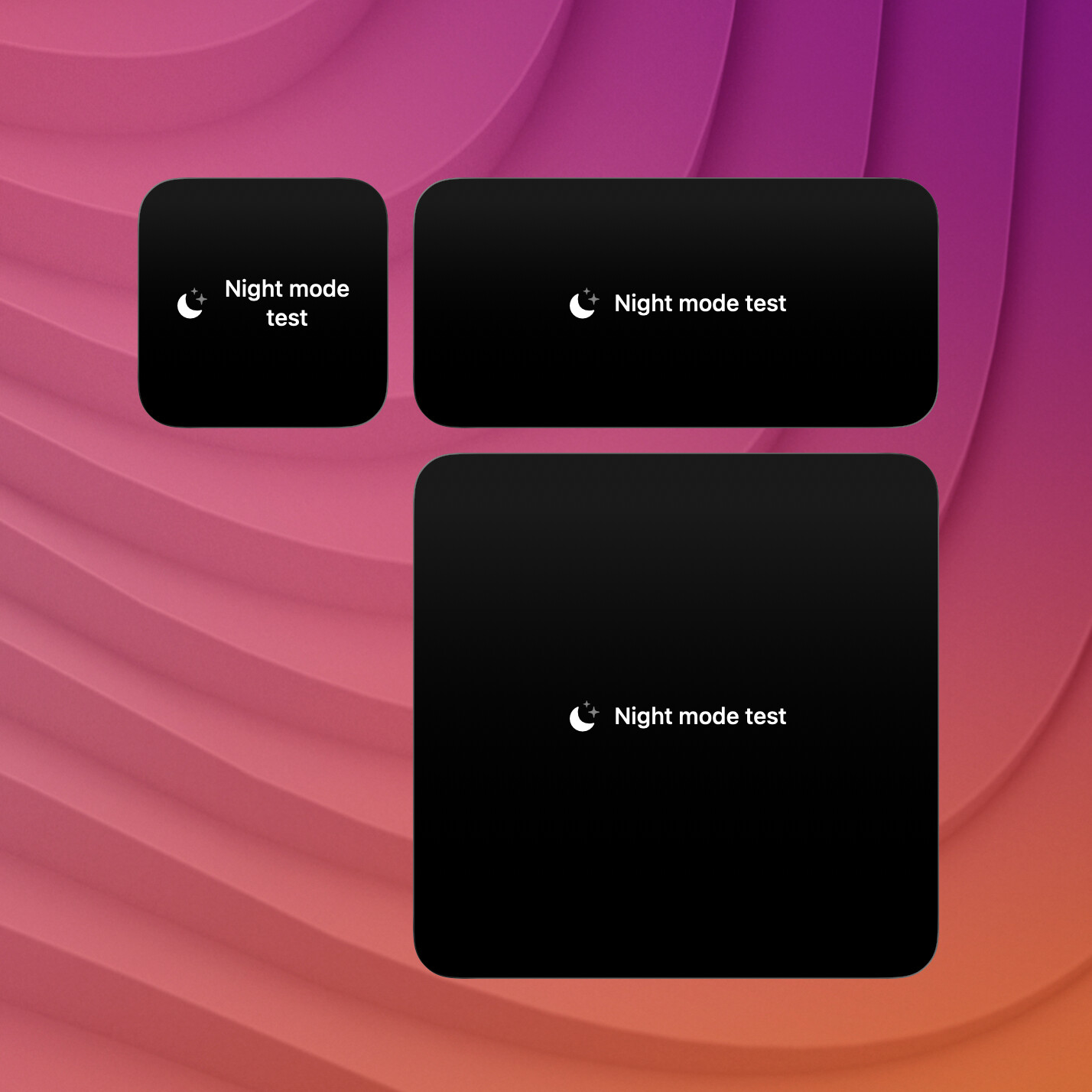

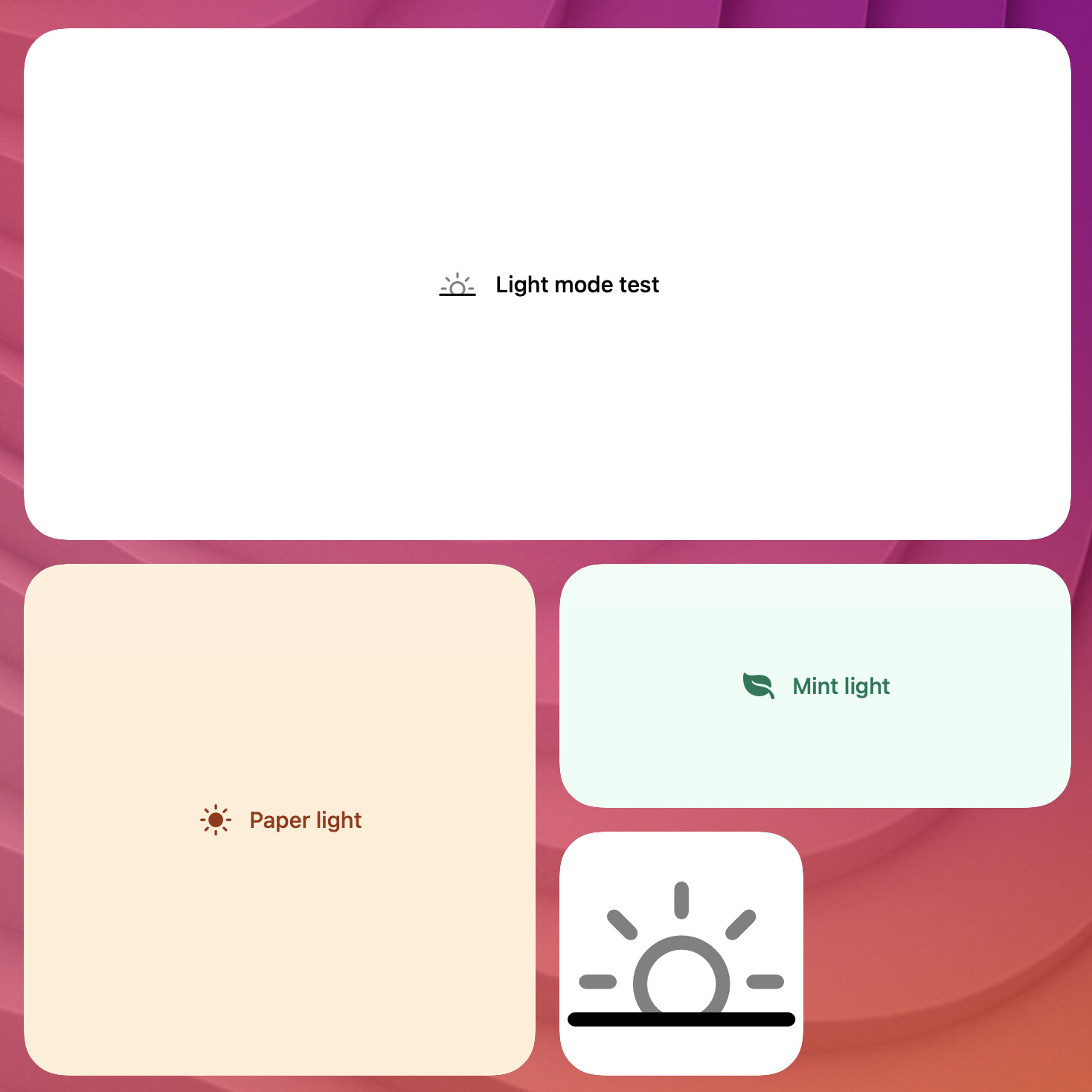

Foreground / Background (--foreground, --background, aliases --fg, --bg)

These set text/icon/chart/progress foreground and widget background colors for this payload.

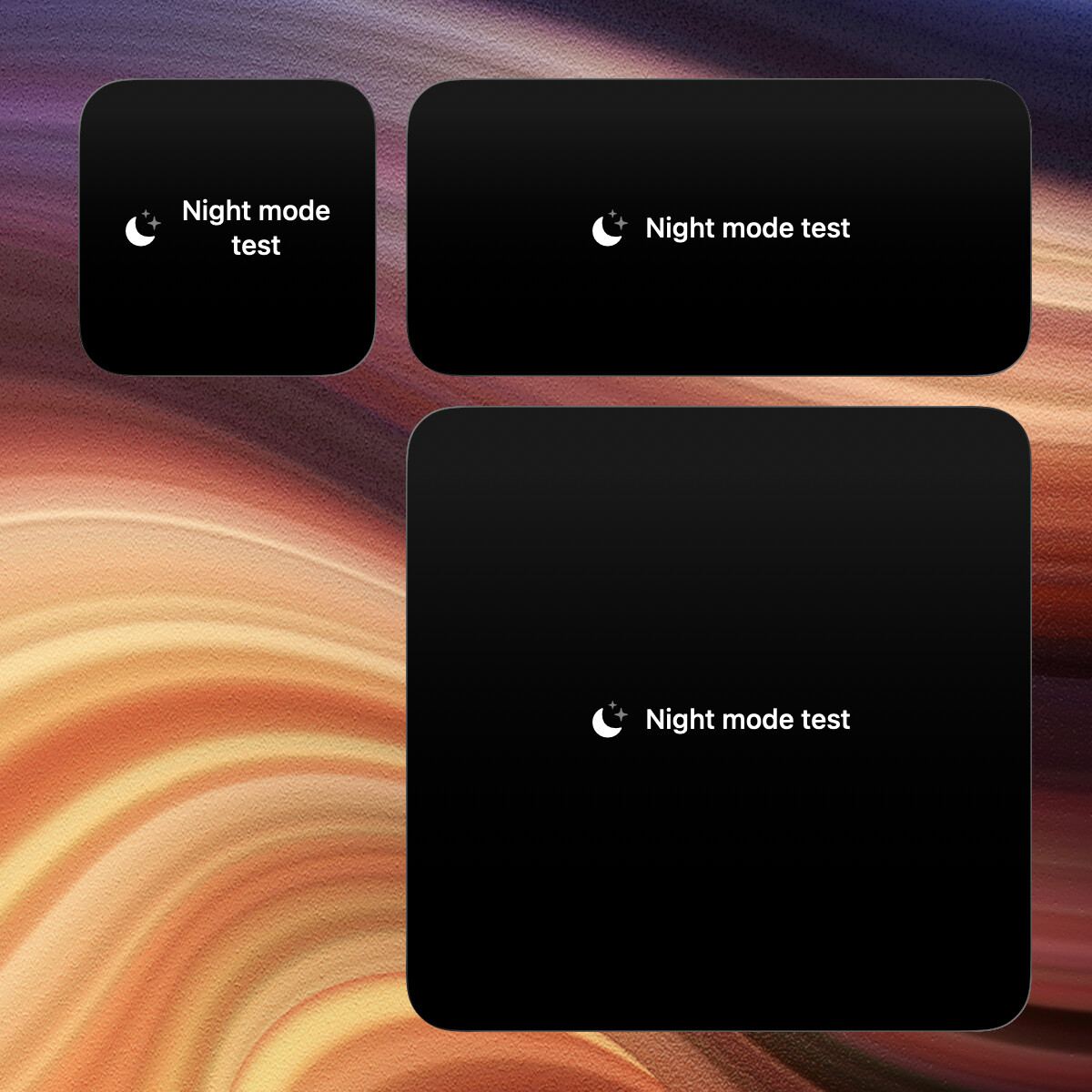

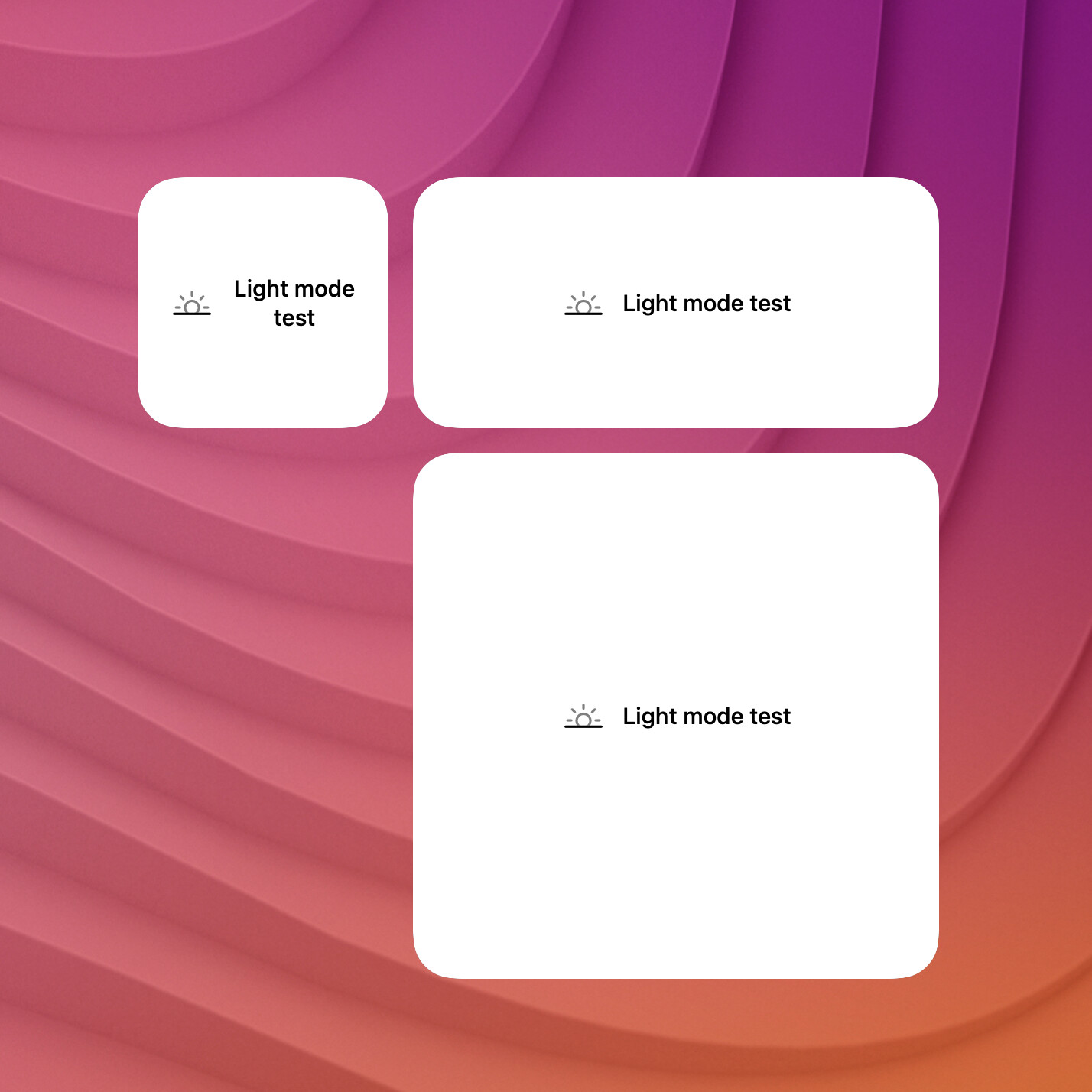

terminal-widget --target widget1 --text "Night mode test" --icon "moon.stars.fill" --fg "#dbeafe" --bg "#0b1220"

Full-size (--fullsize, alias for --padding 0)

Useful for edge-to-edge charts/images and dense visual widgets.

terminal-widget --target widget1 --chart "2 6 4 9 7 3 8 5" --chart-format area --fullsize

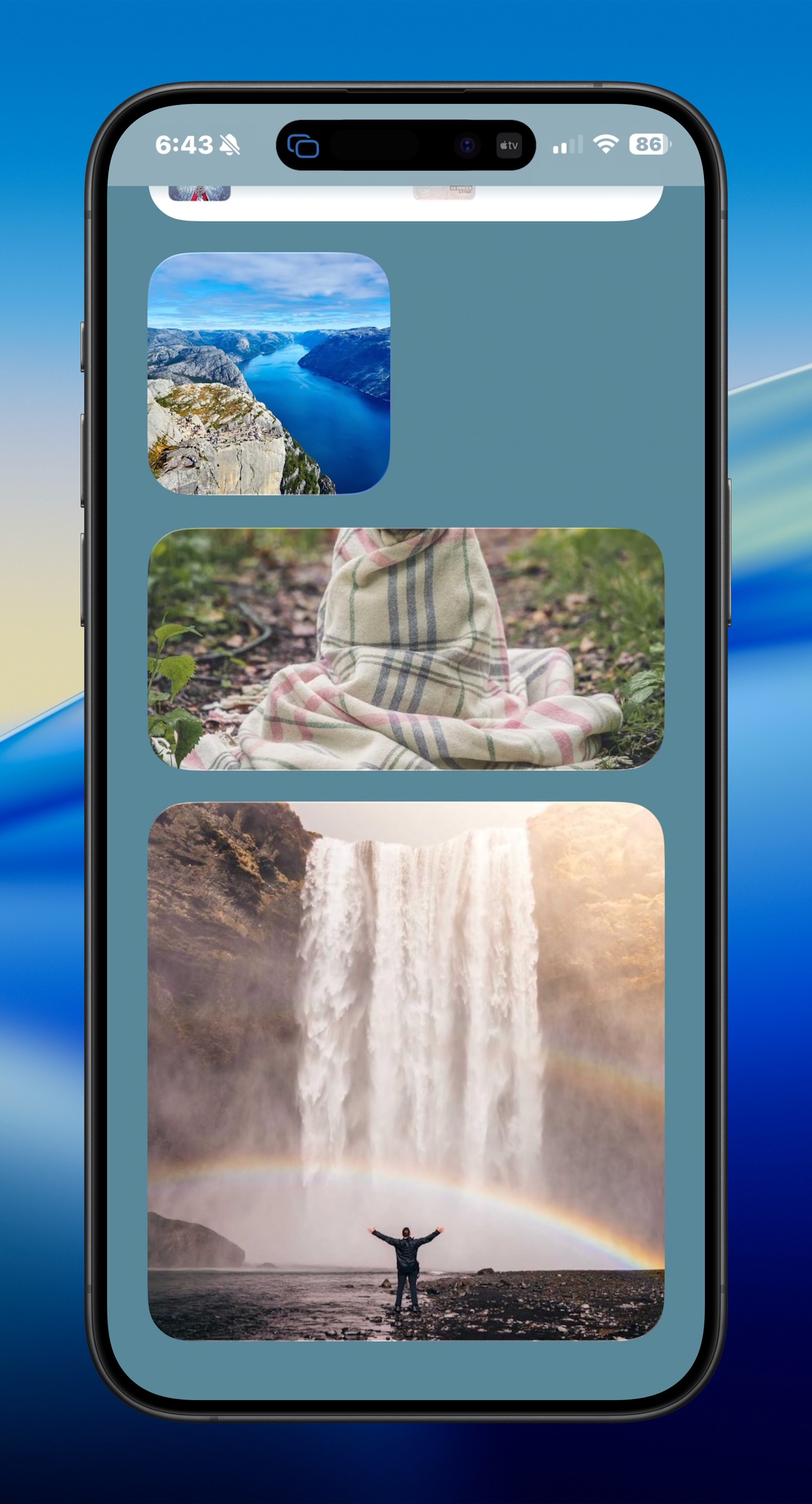

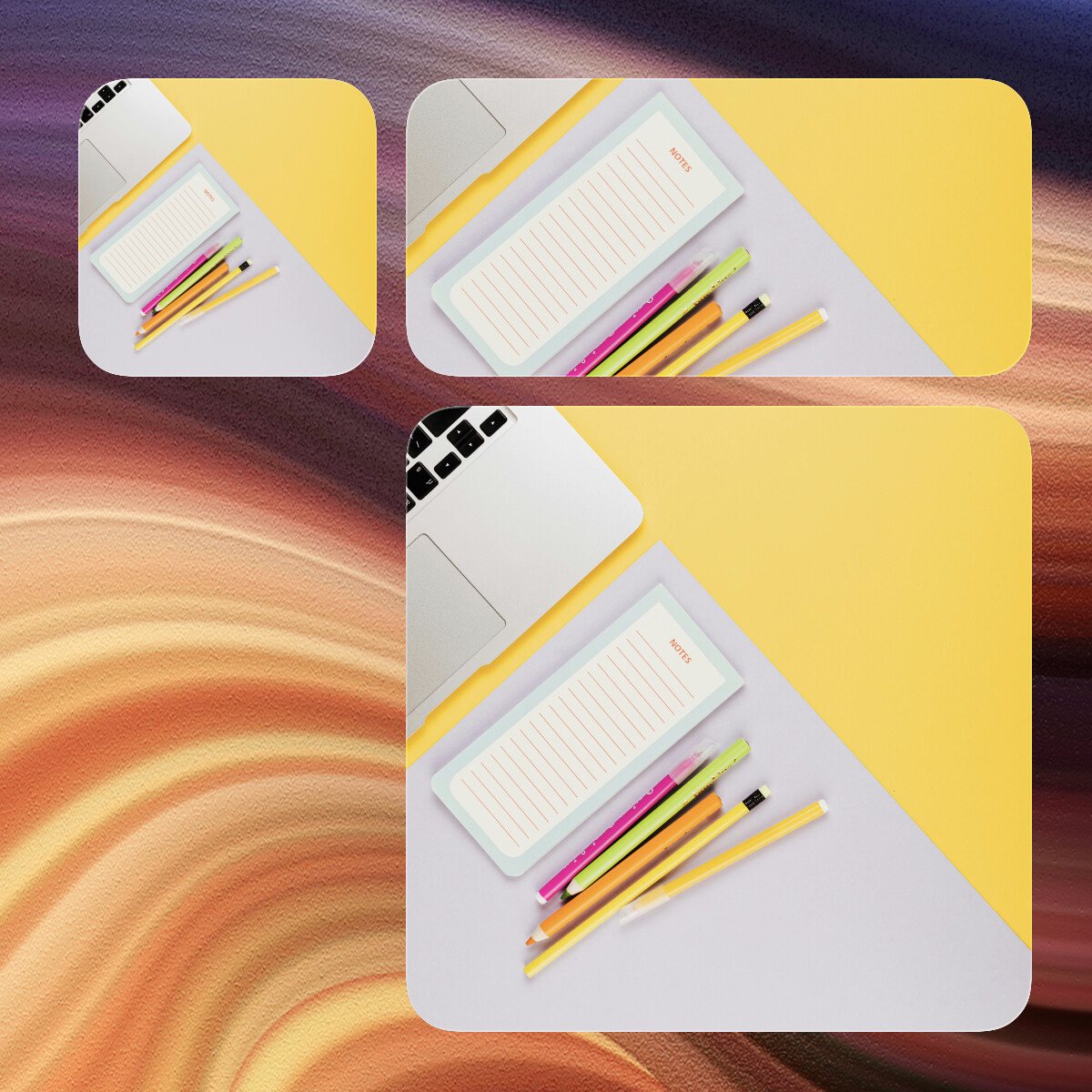

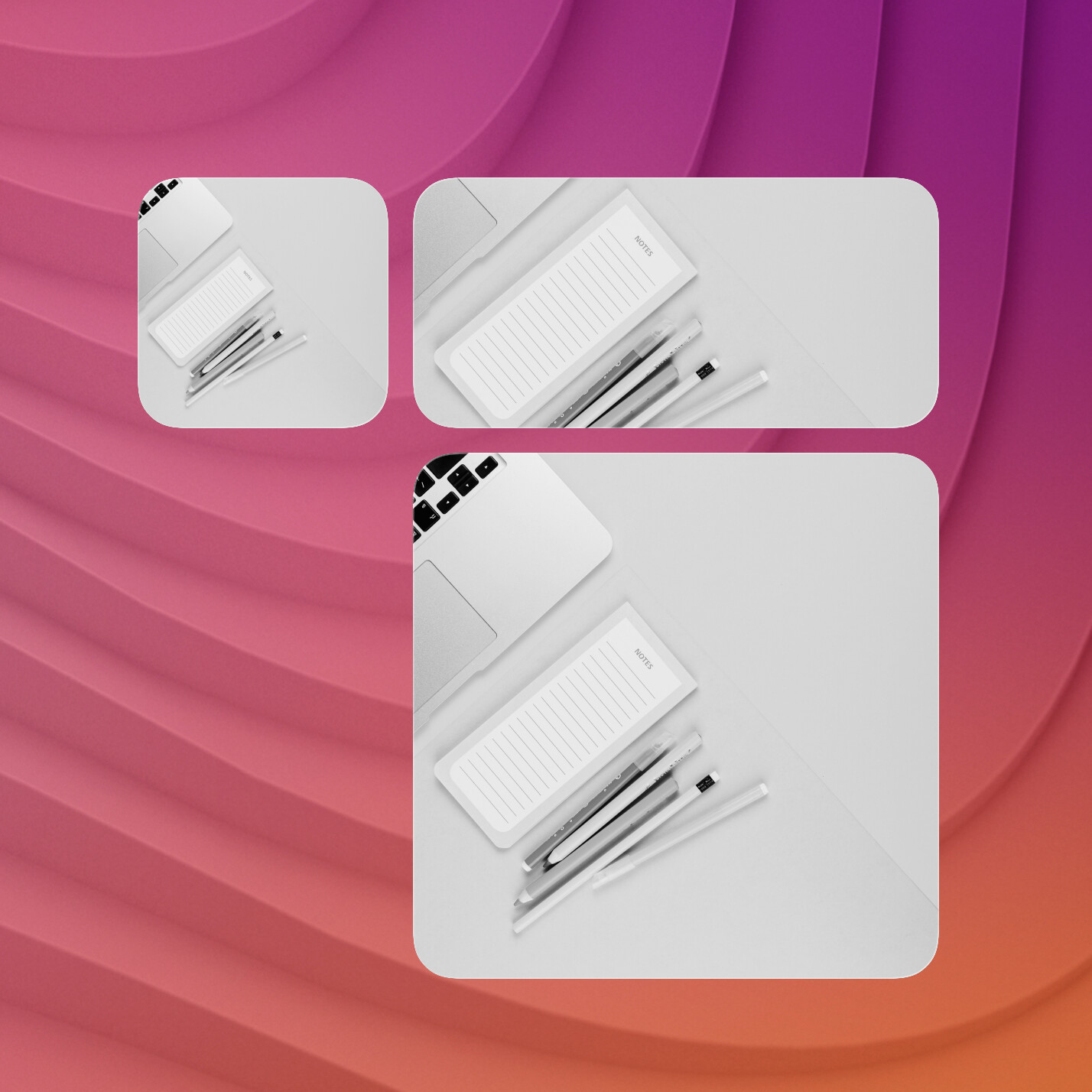

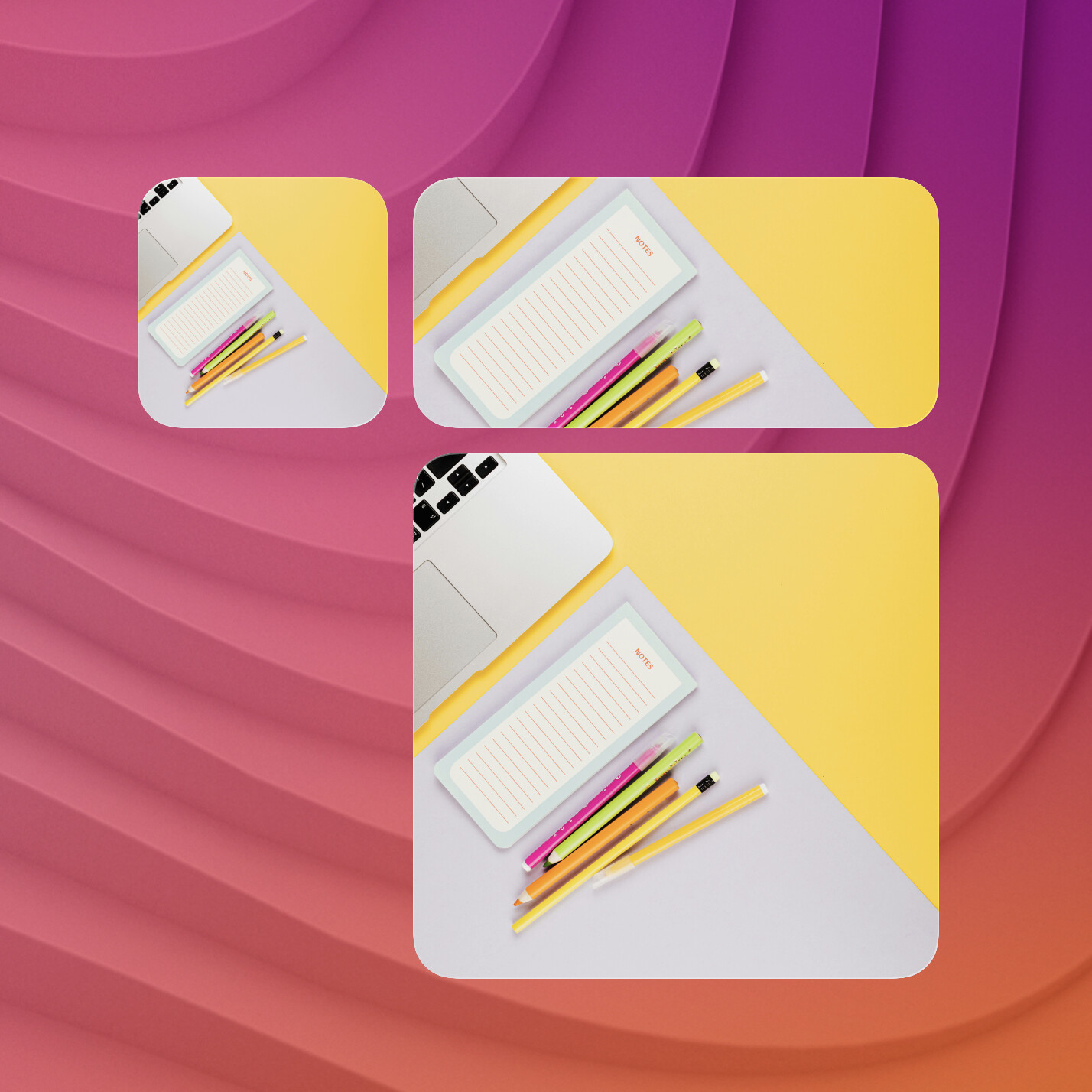

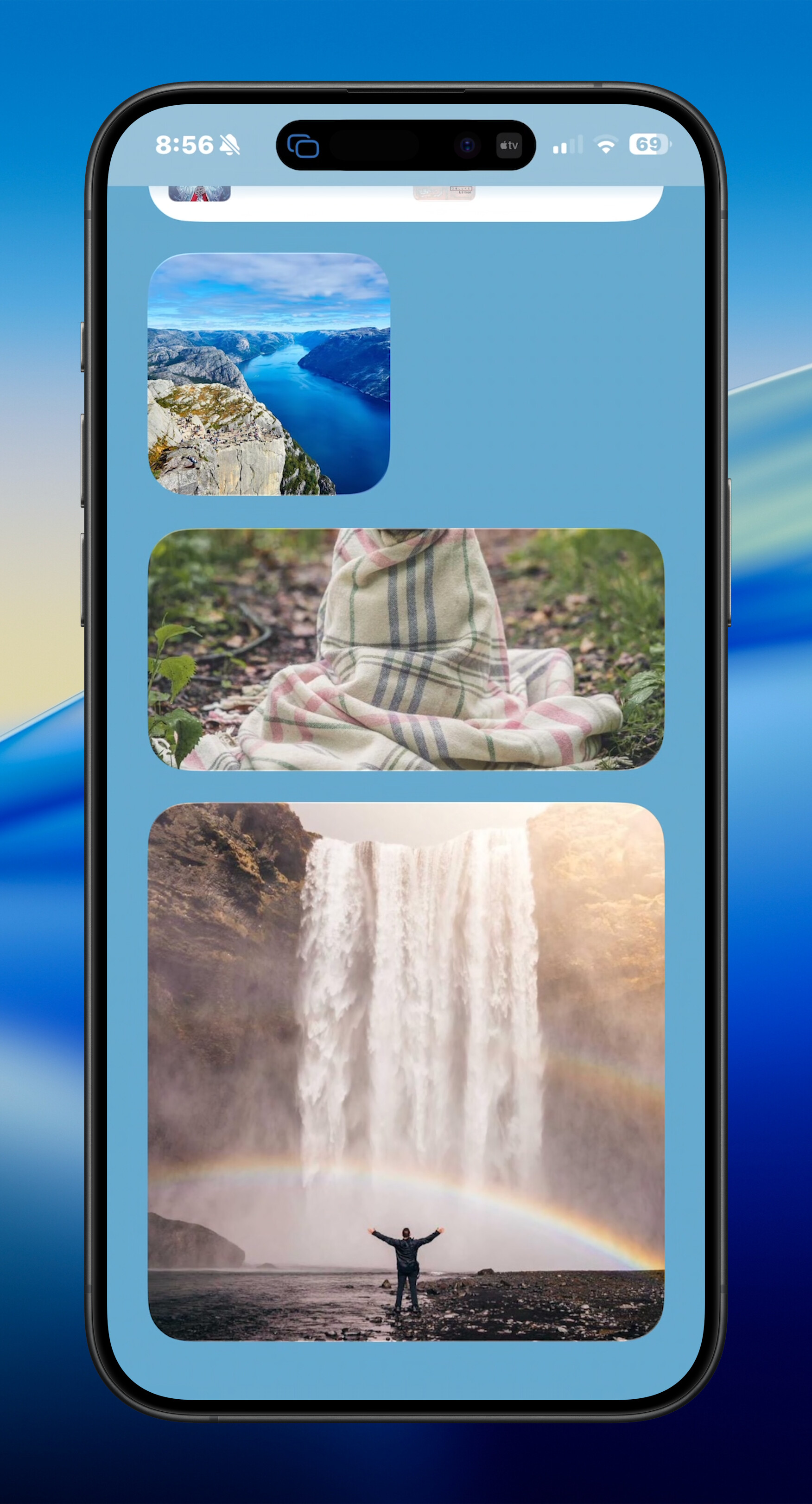

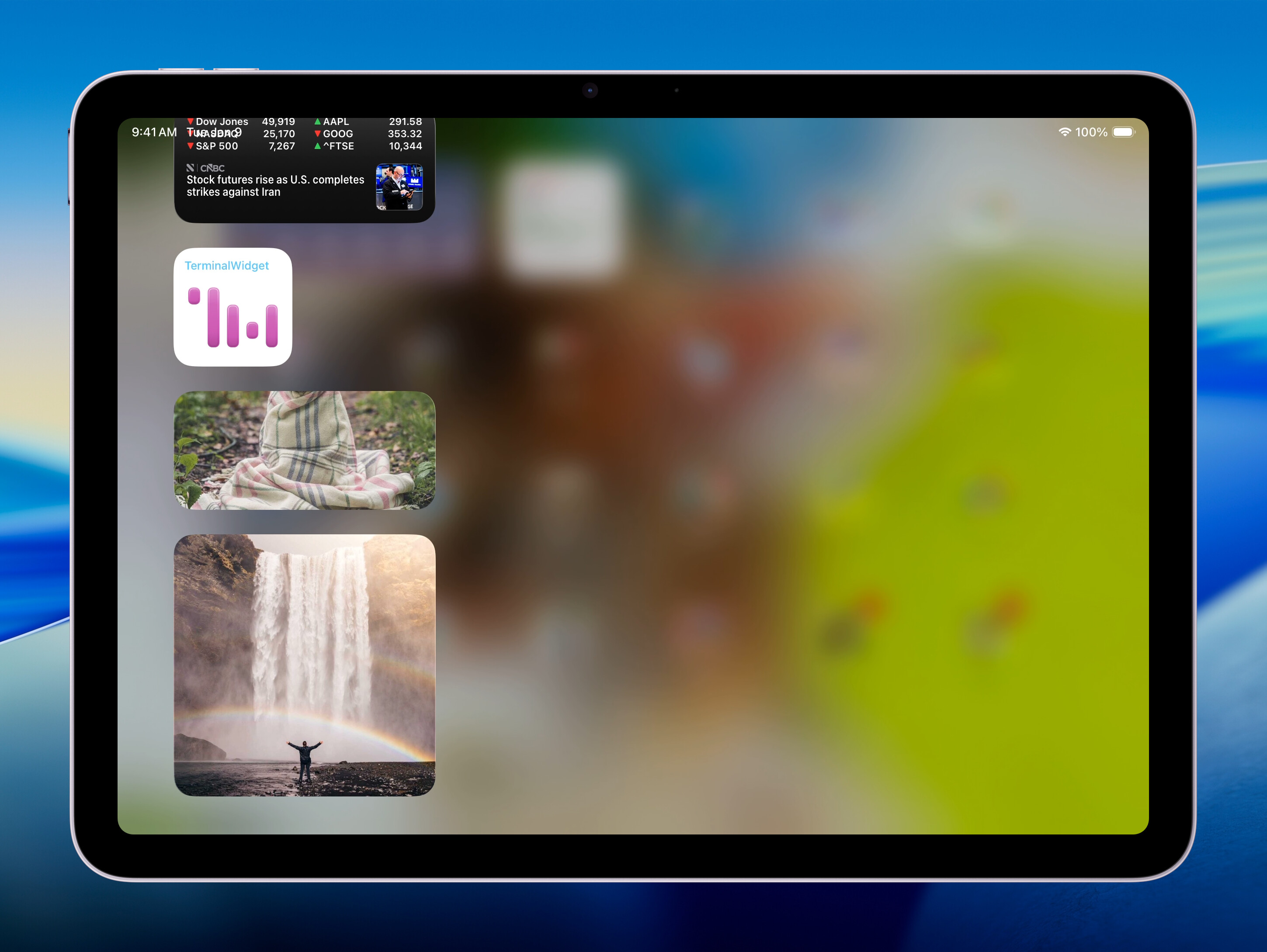

Image + Full Width (--image + --full-width)

Use a remote image source and fill mode for edge-to-edge image rendering.

terminal-widget --target widget1 --image "https://picsum.photos/400/400" --full-width

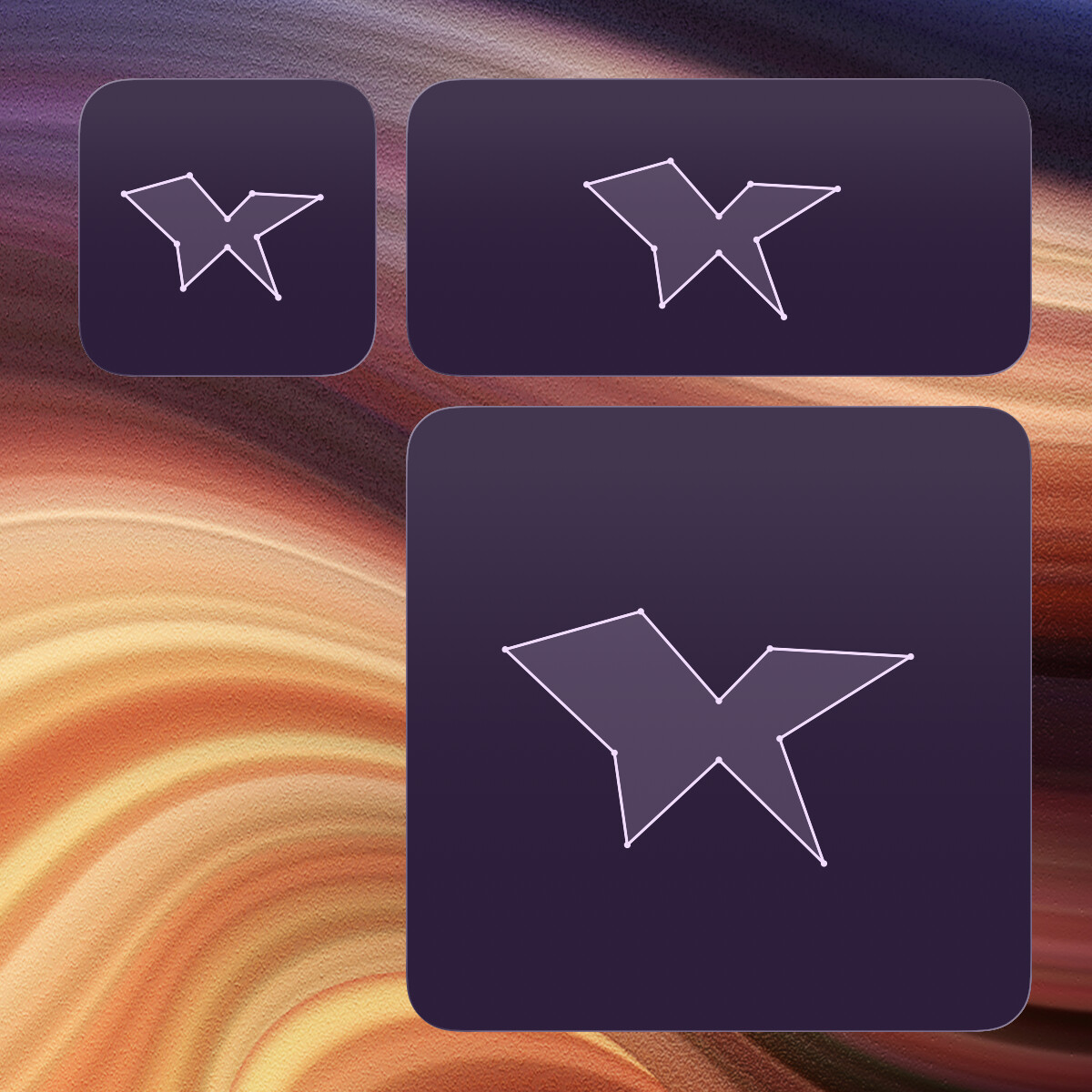

SVG diagrams

WidgetKit’s SVG renderer is not full WebKit. SVGs that use <text> or <tspan> often look correct in Safari, Sketch, and similar apps, but labels can be missing or wrong in the widget. Convert text to outlines/paths before passing the file to --image — then display is clean.

Easiest conversion is usually the Inkscape CLI:

inkscape treeBoxes.svg --export-text-to-path --export-plain-svg --export-filename=usingPaths.svg

Then point TerminalWidget at the outlined file:

terminal-widget --target widget1 --image ./usingPaths.svg

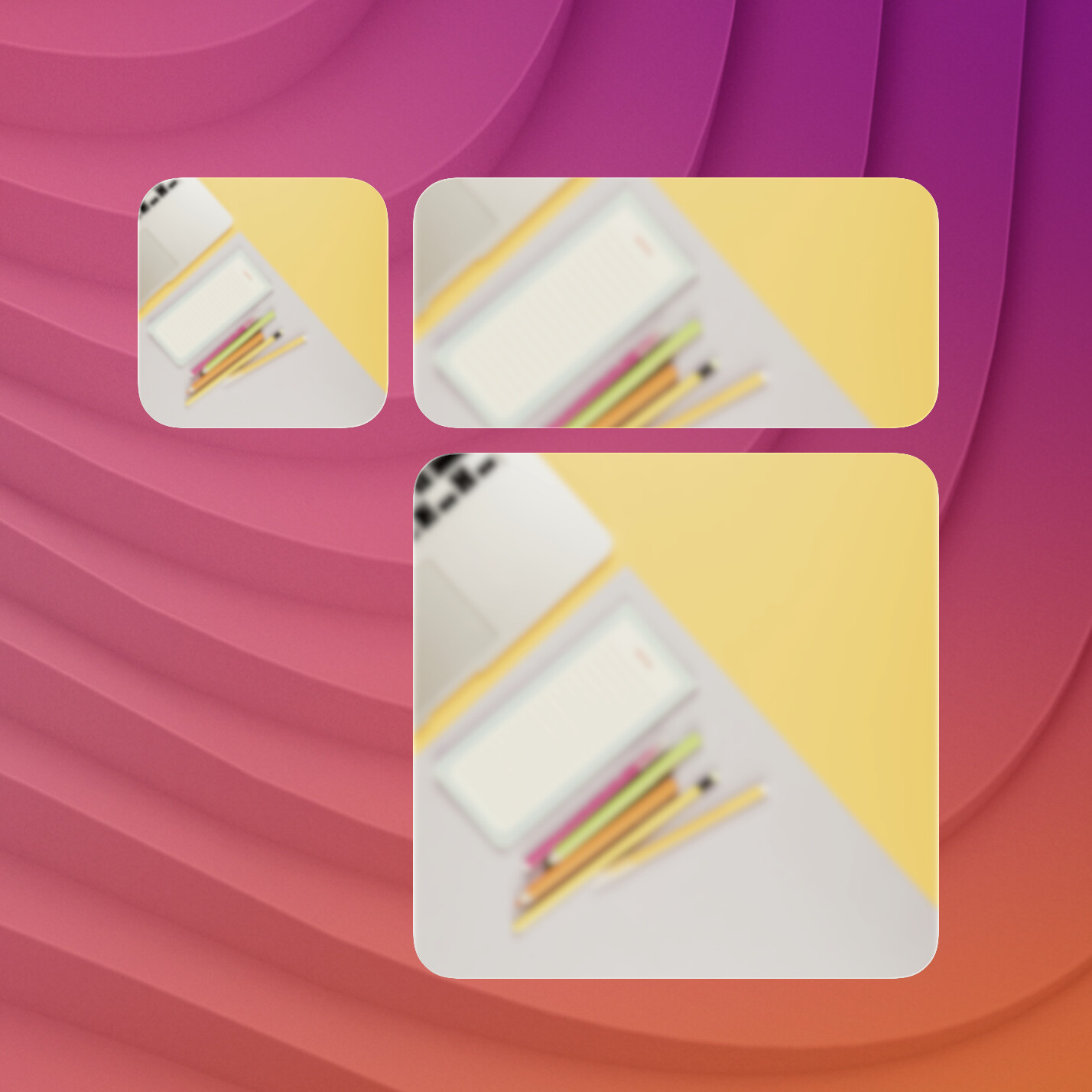

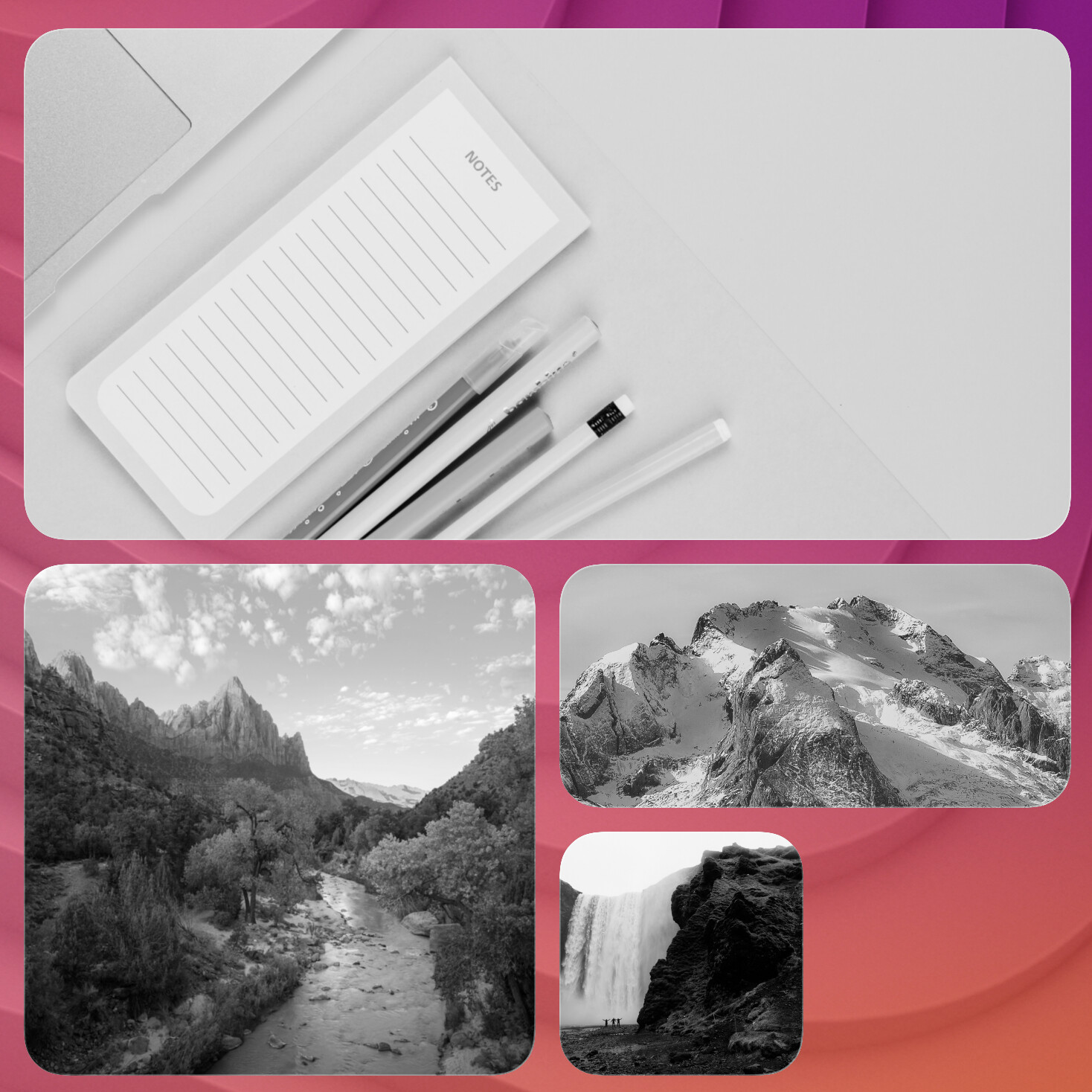

Image Filters (--filter)

Apply built-in filters to images. You can pass one filter, repeat --filter, or provide a comma-separated filter chain.

terminal-widget --target widget1 --image "https://picsum.photos/640/640" --filter sepia:35
terminal-widget --target widget1 --image "https://picsum.photos/640/640" --filter grayscale
terminal-widget --target widget1 --image "https://picsum.photos/640/640" --filter "sepia:25,blur:8"

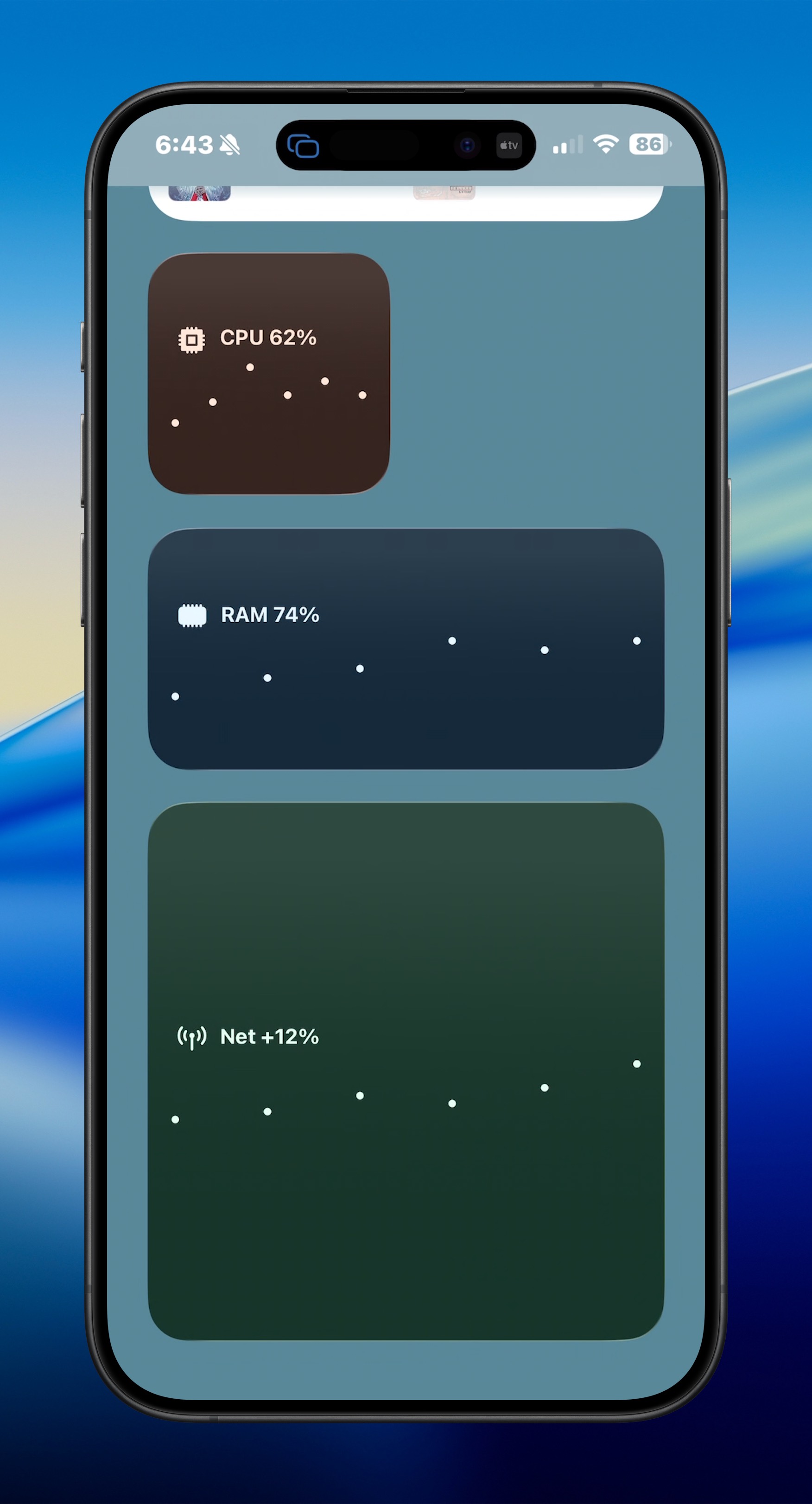

Icon Behavior (--icon)

--icon is inline with text/progress/chart, or centered if icon-only mode is active.

terminal-widget --target widget1 --text "CPU 62%" --icon "cpu.fill" --chart "58 61 66 62 64 62" --chart-format strip
